Complete replacement engine without secondary air system on the cylinder head for China 4-stroke scooters with 10 inch wheel size (3.5x10 / 3.00x10 / 90/90-10 etc.).
Often the replacement of the complete engine is much cheaper than the repair due to the savings in labor time.

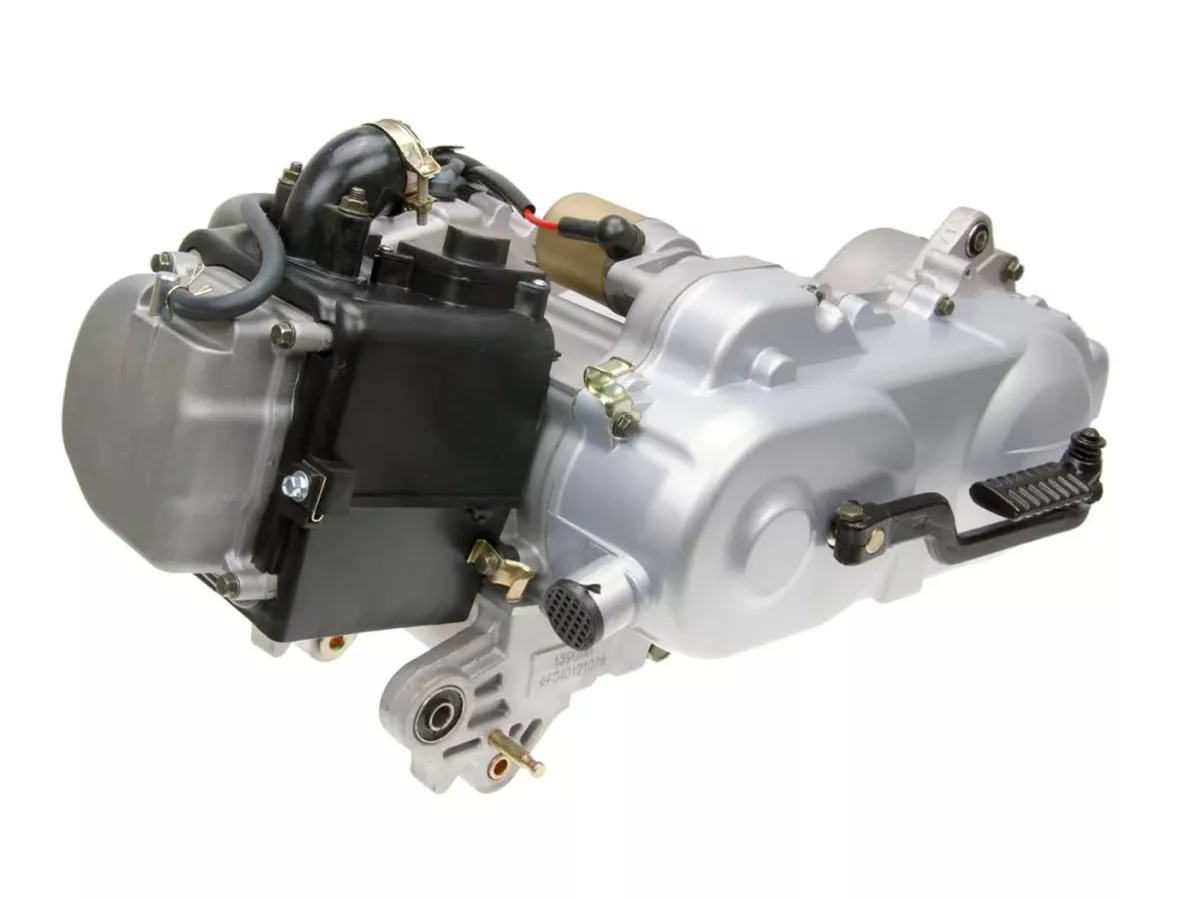

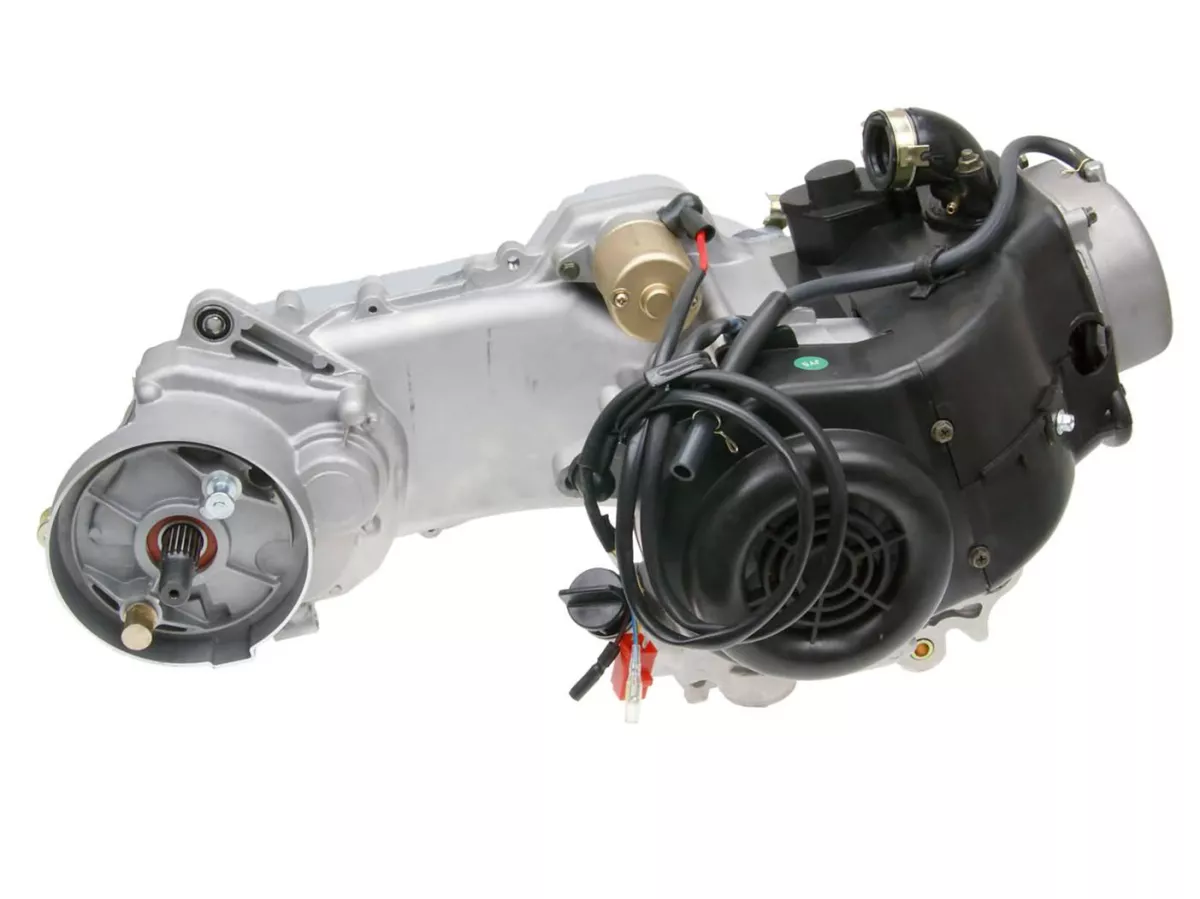

The replacement engine has all components like drive parts, alternator, starter etc. It is delivered as shown. The carburetor is not included in the delivery. Only the alternator has to be taken care of during assembly. If the delivered engine has one pin more or less occupied in the pin assignment of the alternator cable, the alternator and the rotor of the old engine should be taken over. The replacement engine has 2 occupied pins in the alternator connector. All other components are identical.
Important. Be sure to check the oil level in the gearbox and engine after assembly. Due to the oil quality of Chinese manufacturers, we recommend to change the oil after 50km break-in time. The valve clearance must also be checked. Both valves should be set to a dimension of 0.08mm.
The engine is delivered in a safe transport packaging.
The replacement of the complete engine is generally only to be carried out by specialist workshops.AI-translation
