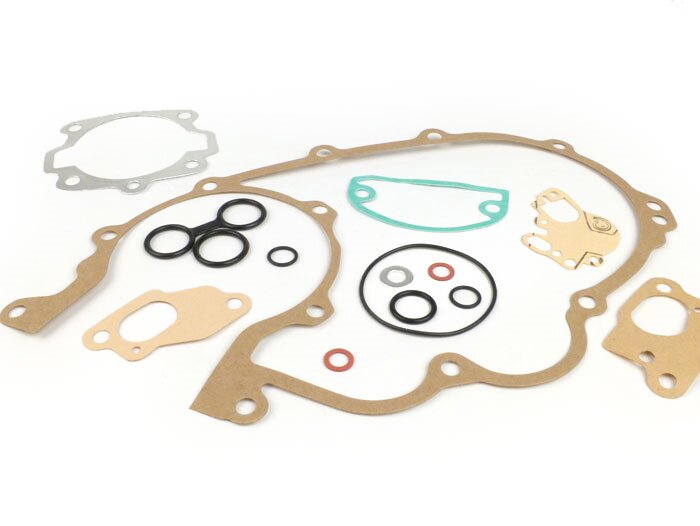

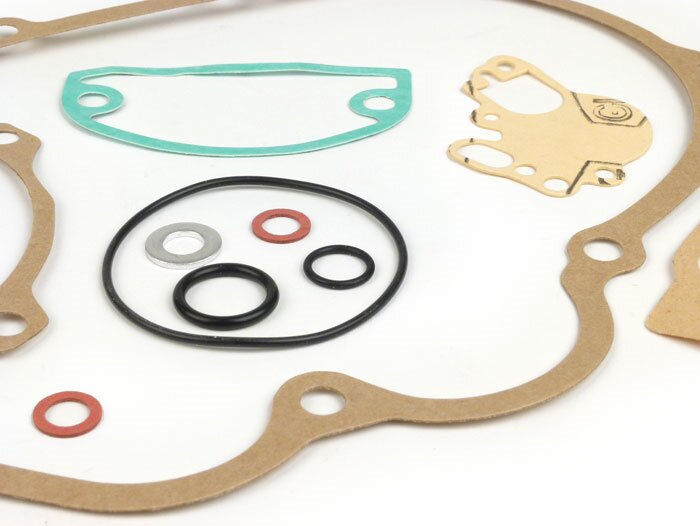

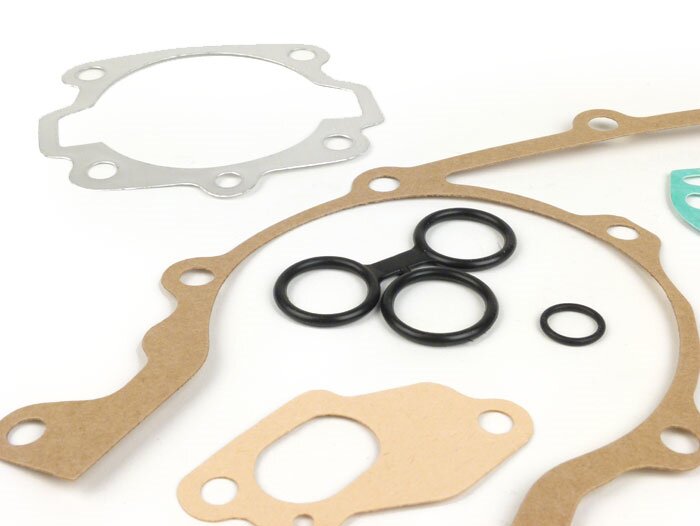

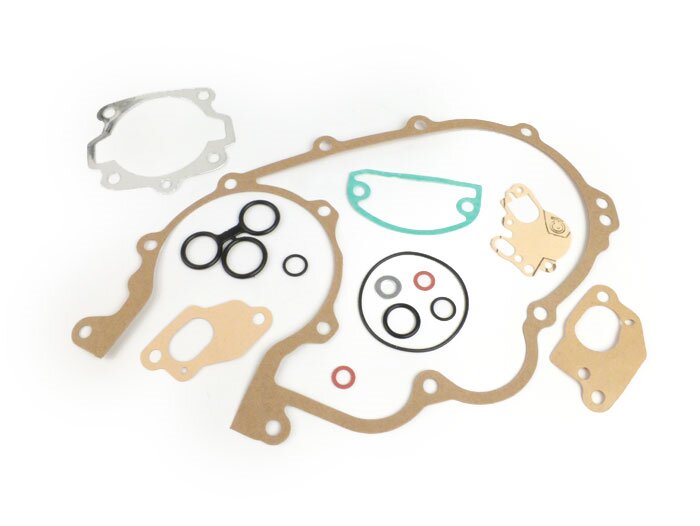

Gasket set engine -PIAGGIO- Vespa Largeframe (2 channel)

Original gasket set from Piaggio forVespa GT125 (VNL2T), GTR125 (VNL2T -138956), Super125 (VNC1T), Super 150 (VBC1T -328127), GL150 (VLA1T), Sprint150 (VLB1T -012665) incl. O-rings These vehicles are recognizable by the removable side cover (with sealing rubber) on the engine side as well as a carburetor that sits in a closed box directly on the engine case (not on the cylinder). These engines have, compared to the later versions with three overflow ports in the cylinder/motor housing, a slightly different hole pattern for the bolting of the housing halves. .


(TW020222)

AI-translation

Rate this article now and let us know what you think.
Seals
Number of seals
7
O-ring included in the scope of delivery
ja
Number of O-rings
4
Shaft seals included in the scope of delivery
nein
Number of shaft seals
0
Head gasket included in scope of delivery
ja
Foot gasket included in the scope of delivery
ja
Diaphragm seal included in the scope of delivery
nein
Valve stem seals included in the scope of delivery
nein
Squeeze ring included in the scope of delivery
nein

OEM numbers (for comparison purposes only)
Piaggio:
091991, 91730, 91991
Scooter Center:
7675290
