Advantages BGM PRO F16 front shock absorber set - Royal Alloy
Vehicle-specific BGM PRO F16 shock absorber set for Royal Alloy (front axle)
Wide adjustment range: 16-way adjustable compression and rebound damping
Wide range of spring preload: adjustable up to 60 mm
Tailored to the conditions of the Royal Alloy suspension in road tests
Reproducible setups thanks to clear click-locking and precise thread adjustment
Ideal for solo and pillion use, touring, city traffic and sporty riding style

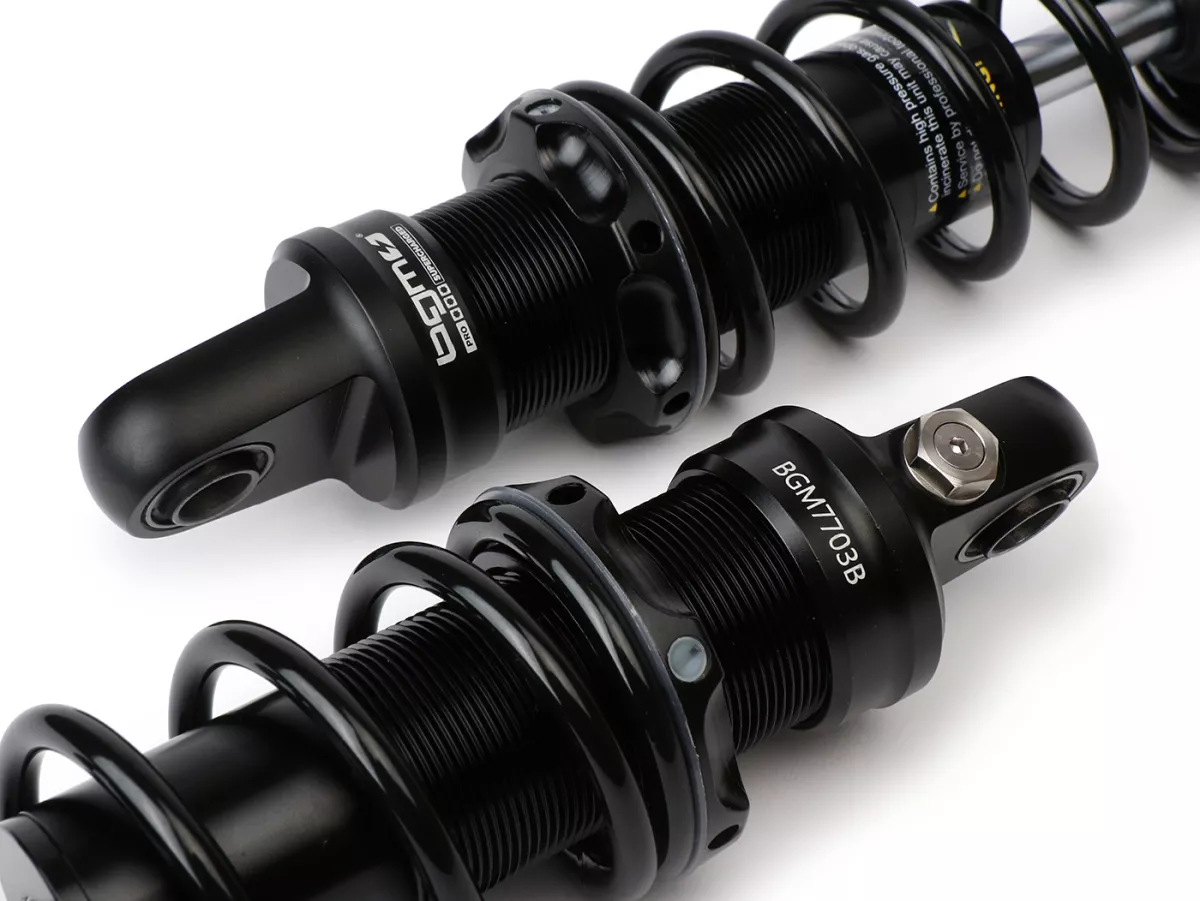

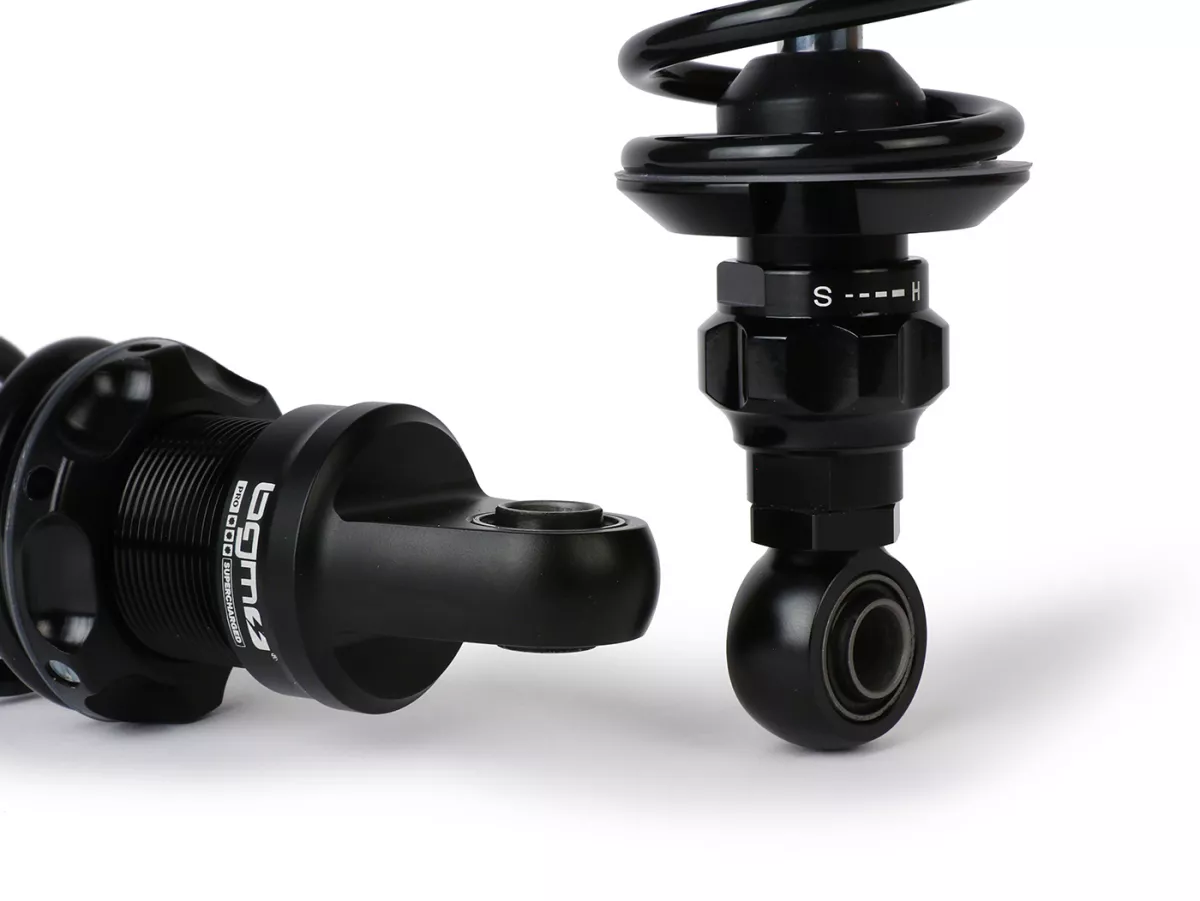

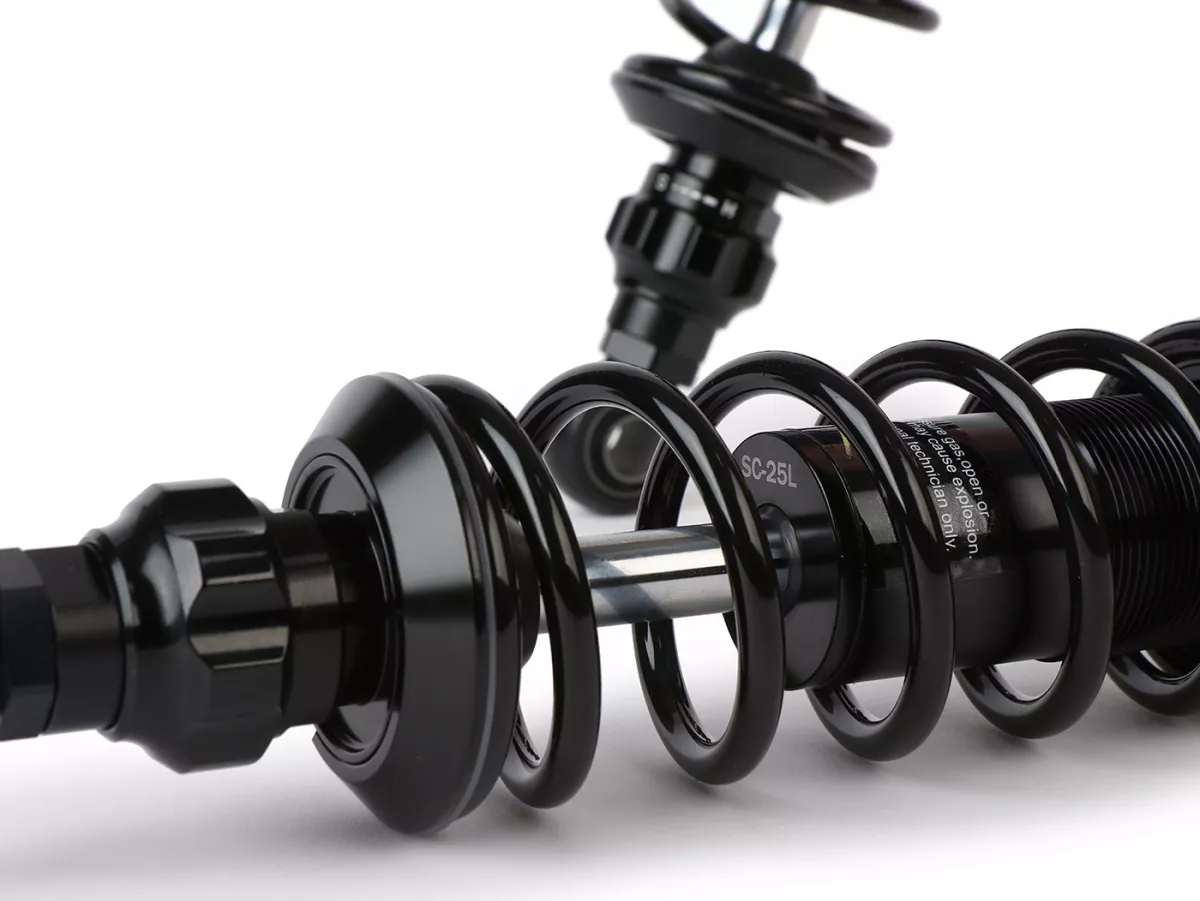

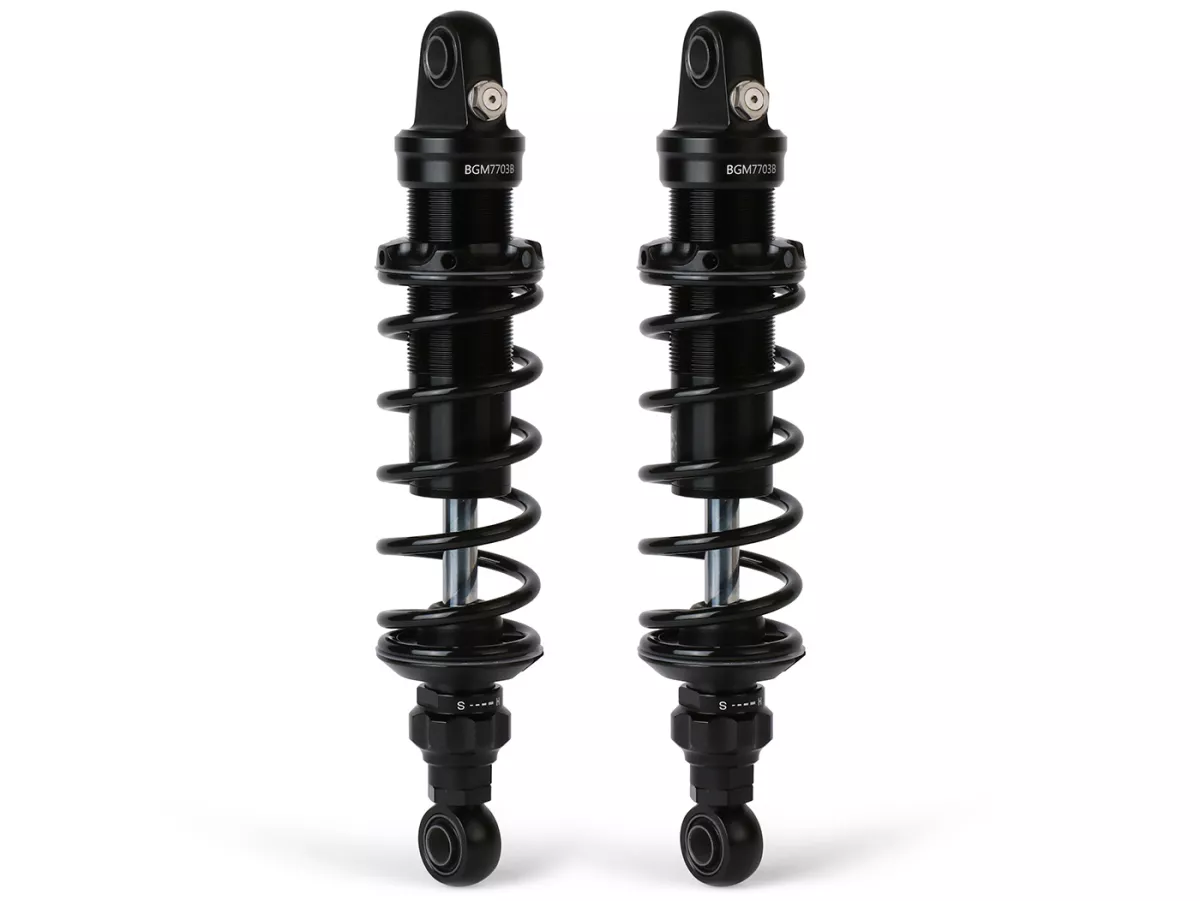

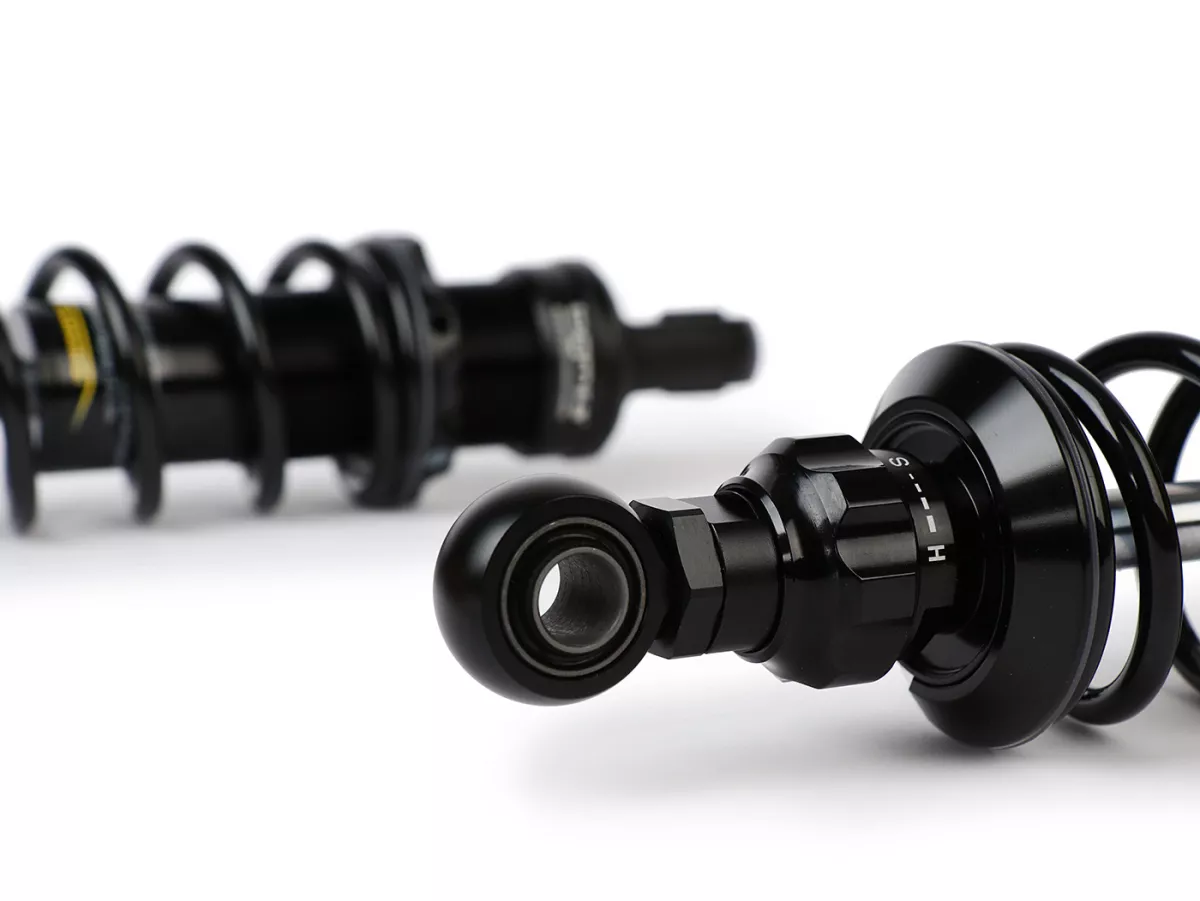

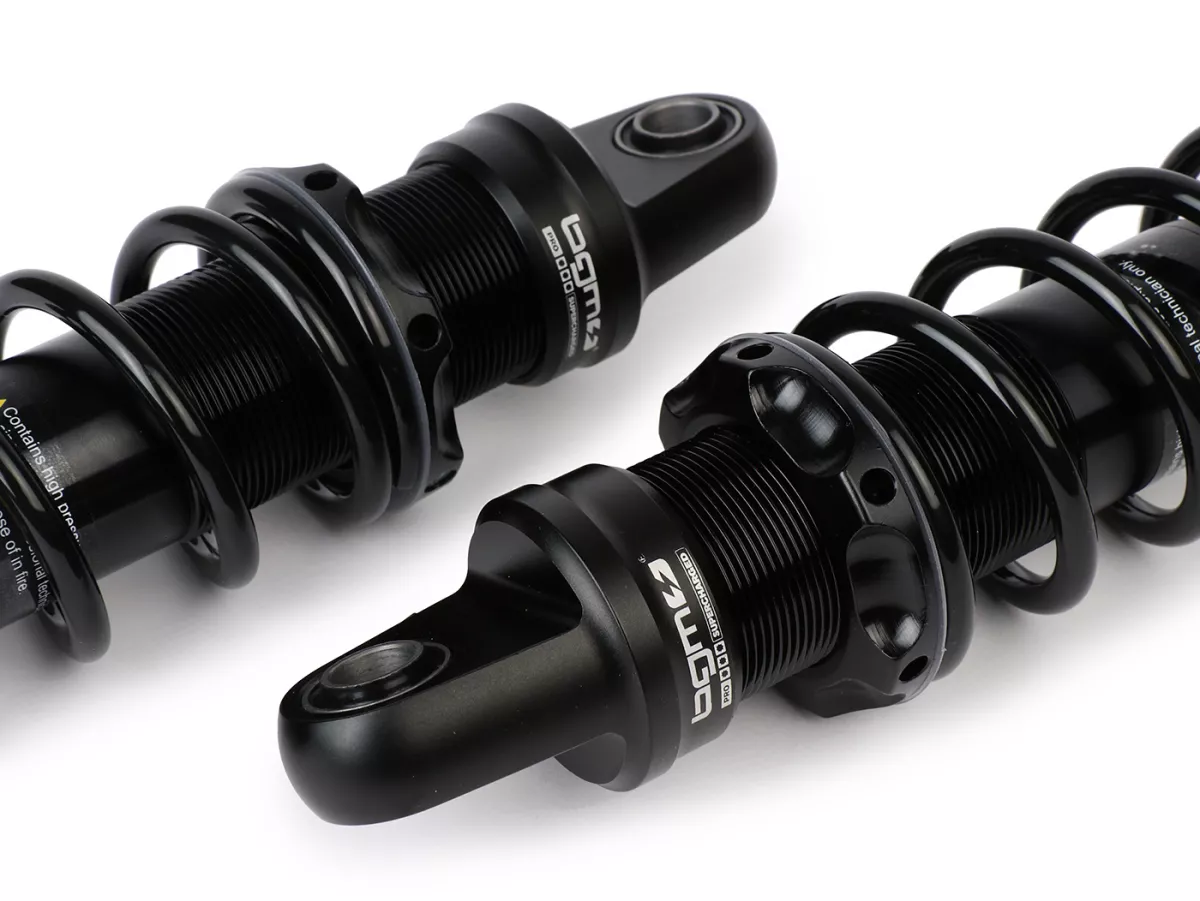

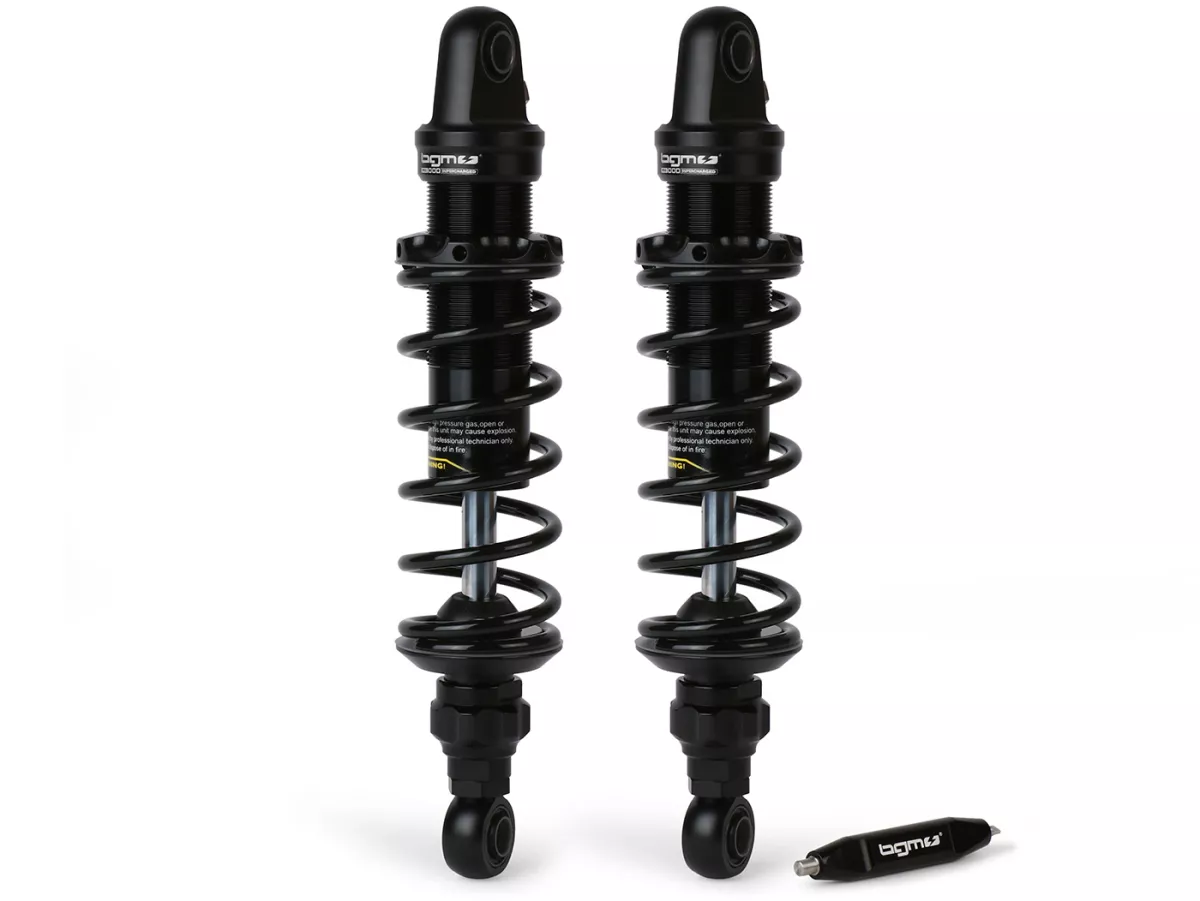

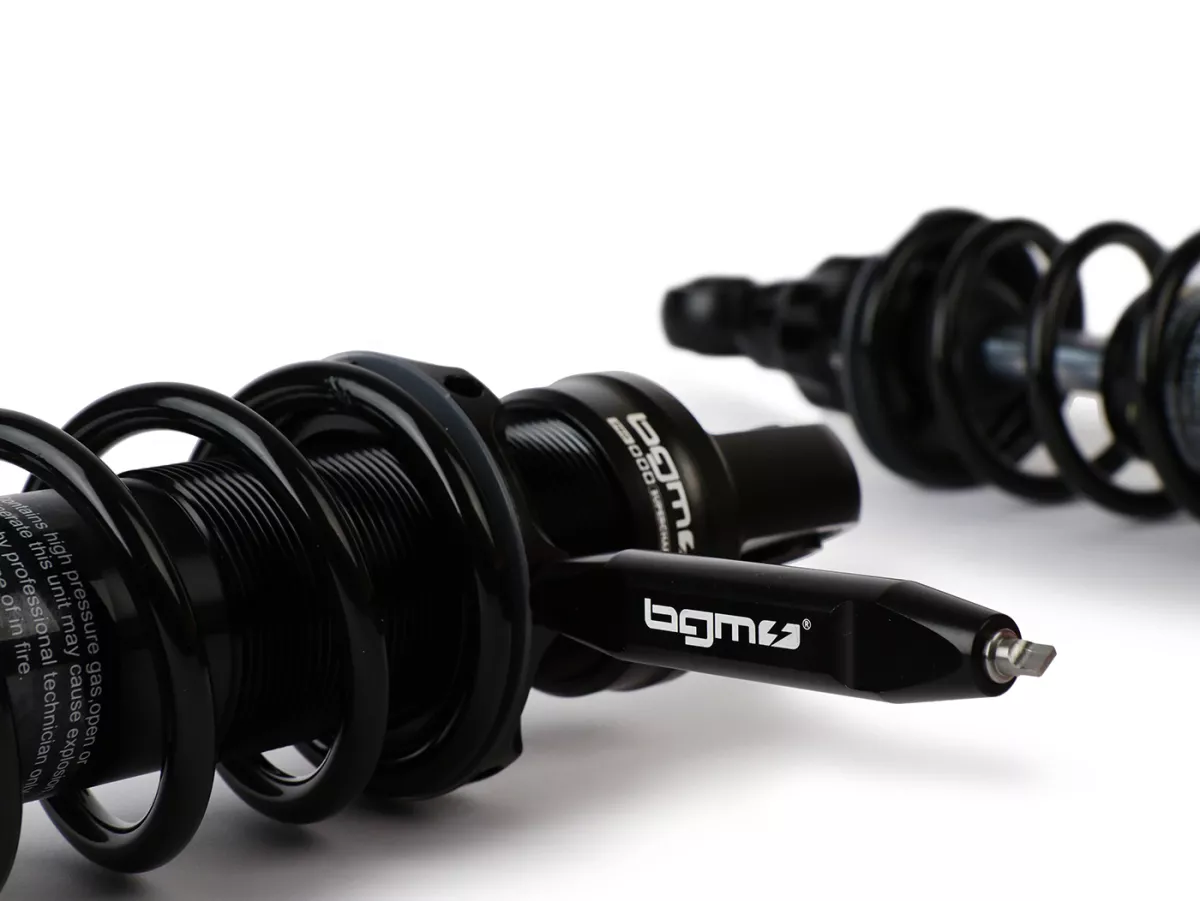

Shock absorber set front -BGM PRO F16- for Royal Alloy
The BGM PRO F16 front shock absorber set has been specifically adapted to the geometry and load distribution of the Royal Alloy in road tests. It combines a wide damping adjustment range with a large range of spring preload and thus enables a precisely reproducible suspension set-up - from comfortable to sporty and precise.
Vehicle-specific tuning
16-way compression and rebound damping
Spring preload up to 60 mm
Reproducible click adjustment
Function and area of application
The damping controls the compression and rebound movement of the front axle. The 16-way adjustable compression and rebound damping allows the response behavior to be clearly defined, while the spring preload determines the balance of the vehicle over up to 60 mm. The result is neutral, easily controllable steering behavior with secure reserves when braking.
16 clicks for compression and rebound: from comfortable to firm, quickly reproducible.
Spring preload 0-60 mm: Individual adjustment to rider weight, pillion rider, luggage and brake load shifting.
Clean guidance of the front wheel, reduced bobbing and precise grip when turning and decelerating.
Vehicle-specific tuning
The F16 set was tuned on the Royal Alloy under real conditions. Damper force ratios and leverage ratios have been taken into account to provide a wide, practical setup window.
Stable feedback on poor roads, clear feedback on the brakes.
Wide sweet spot: suitable for everyday use in city traffic, quiet on country roads, controlled at a sporty pace.
Reproducible setups: note click positions and recall them quickly depending on use.
Fitting instructions
Install according to the vehicle manual. After installation, set the basic setup, carry out a test ride and readjust in small steps. Document any changes.
Basic setup: Preset spring preload for one rider
For more composure at the front, close the rebound stage by 1-2 clicks, for more agile steering, open it by 1-2 clicks.
Adjust the spring preload in 5-10 mm increments, then check the steering behavior, brake flex and residual spring travel.
Scope of delivery
- Front shock absorber set BGM PRO F16 for Royal Alloy (vehicle-specific)
FAQ: BGM PRO F16 - Royal Alloy
Frequently asked questions
How do I document my settings?
Count the clicks from a reference point (fully open or closed) and make a note of them. This makes it easy to restore setups for solo, pillion or luggage.
How can I tell if the rebound damping is too fast or too slow?
Too fast: rebound oscillation, unsteadiness when rebounding. Too slow: "Standing up" in subsequent waves. Adjust by 1-2 clicks and check again.
What are the benefits of the large spring preload range?
The 60 mm preload range allows you to adjust the ride height and balance safely even when loaded or when the brakes are changed - without having to replace the spring.
Is the set suitable for road or track use?
Both. The vehicle-specific set-up offers a wide range of use, from comfortable to sporty. Fine tuning is done via clicks and preload.
