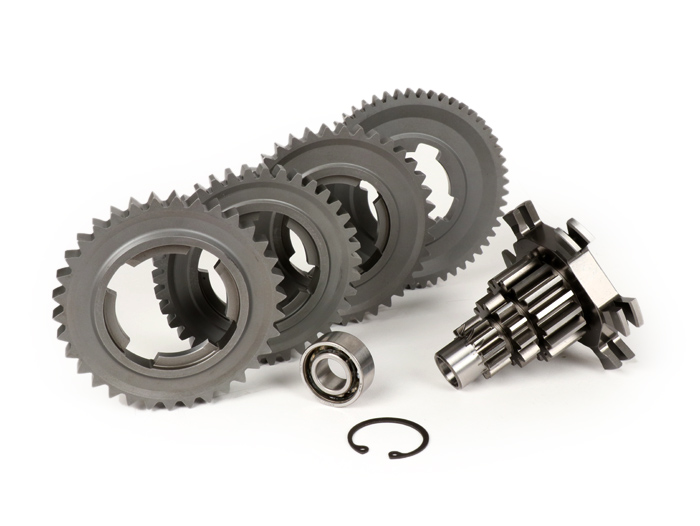

Benelli GPX short racing gearbox for Vespa PX and Cosa

Gearbox components from Stefano Benelli have rightfully earned an excellent reputation in the racing scene.
If you are looking for reliable racing technology for your gearbox, you will find it here.
Hardened to an average of 60 HRC, Benelli parts provide the ideal balance between sufficient hardness and the necessary elasticity to withstand the extreme loads of a racing engine over the long term.

The GPX version offered here is a special, very close-ratio racing gearbox designed for maximum acceleration on the racetrack. For normal road use, it should be combined on the primary side with the longest possible reduction ratio (BGM 25/62) in order to achieve a sufficiently high top speed.

In direct comparison with a PX200 stock gearbox, the BENELLI GPX, in its shortest version (12-12-15-15), positions all four gears within the range that the stock gearbox already covers with three gears. In other words, the fourth gear with the Benelli is as short as the third gear of the stock gearbox (assuming the same primary ratio).

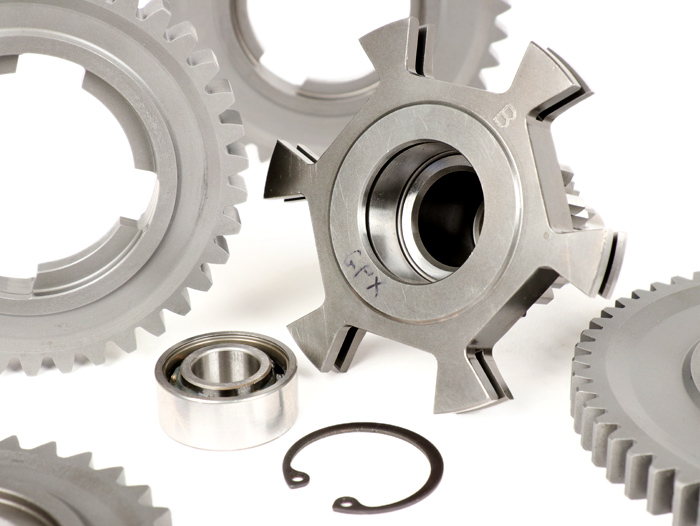

The GPX secondary shafts are used with a special ball bearing (15x32x13 mm), which is also included.

Benelli offers three differently stepped secondary shafts (values that differ from the original gearbox shown in bold):

1st gear

2nd gear

3rd gear

4th gear

Original PX125-200

12/57

13/42

17/38

21/35

BENELLI GPX short

12/55

12/38

17/38

17/34

BENELLI GPX extra short

12/55

12/38

16/38

16/34

BENELLI GPX ultra short

12/55

12/38

15/38

15/34


(US)

Rate this article now and let us know what you think.
Gearbox shift scooter
Number of teeth 1st gear
55
Number of teeth 2nd gear
38
Number of teeth 3rd gear
38
Number of teeth 4th gear
34
Number of teeth 1st gear auxiliary shaft
12
Number of teeth 2nd gear auxiliary shaft
12
Number of teeth 3rd gear auxiliary shaft
17
Number of teeth 4th gear auxiliary shaft
17
Type of gearing
gerade

OEM numbers (for comparison purposes only)
Scooter Center:
BE21717KT
