OEM-Qualität Item number: 232K15
OEM-Qualität
7 Ratings
26,90 €*
available immediately
Shipping weight 0,13 kg

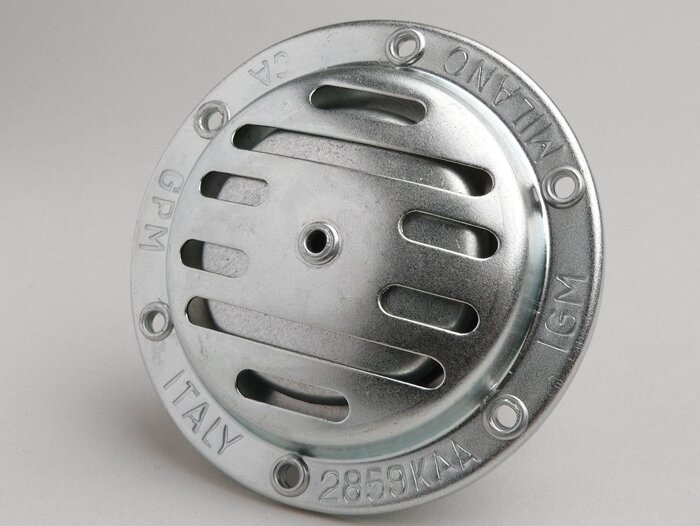

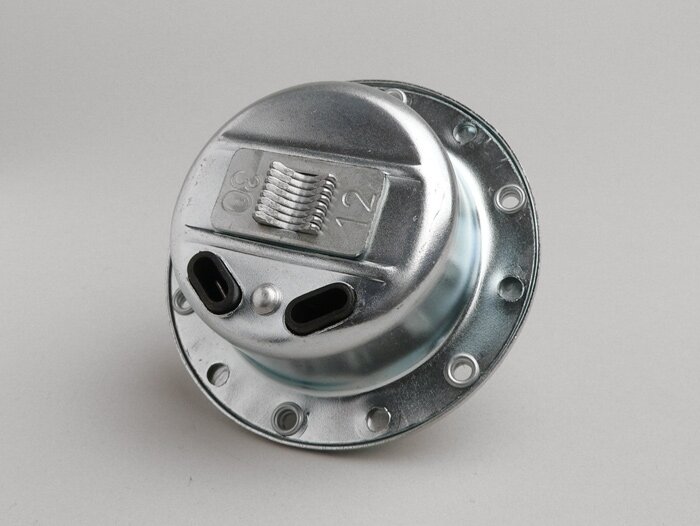

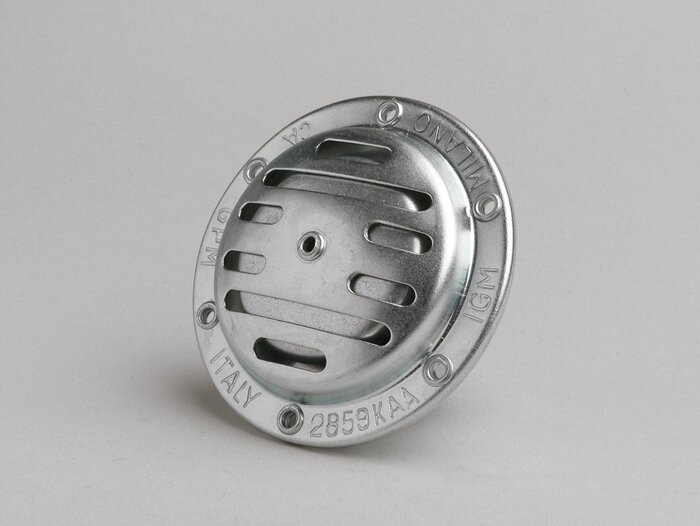

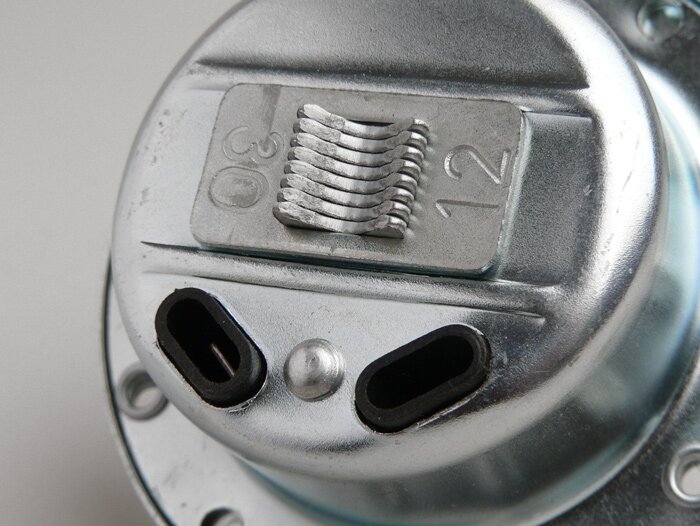

Horn, respectively ratchet for 12V
Fits to many oldies. Galvanized. Diameter 75mm (also PX ratchet)

AC/DC?

AC stands for alternating current = AC voltage = ratchet
DC stands for direct current = DC voltage = horn

ratchet
Many old vehicles without battery use AC voltage as on-board power supply. Only so-called buzzers can be connected to it. These are recognizable by a tone pitch which increases and decreases with engine speed.

Horns
Due to the non-constant frequency, buzzers have not been in conformity with the registration of German vehicles since approx. 1980. At this time, most vehicles were equipped with a battery and a DC on-board power supply. Here the real horns are used, recognizable by a constantly constant pitch, independent of the engine speed.

Exceptions
There are some exceptions where a DC horn was used, despite the AC on-board power supply. Piaggio used so-called horn rectifiers from 1984 onwards, with the introduction of the Lusso series. Here, a special bridge rectifier with downstream capacitors, which is only responsible for the horn, converts the AC on-board power supply for the horn into DC. This rectifier can also be retrofitted to all vehicles with a 12V AC on-board power supply if, for example, the TÜV does not accept a ratchet.

NOTE: Almost all German Vespa PK and PX models require a horn (DC).

(US)


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  01/21/2018

costa poco ma vale poco utolizzo privato

Anonym  12/15/2015

Verarbeitung nicht ganz auf OEM Niveau , aber OK.

Anonym  02/10/2015

Preis-Leistung sehr gut. Passte genau. Was will man mehr.

Anonym  02/11/2015

Hupt!

Anonym  01/10/2018

Einbau in eine V50 funktioniert tadellos. Schnarre arbeitet zuverlässig und in gewohnter Lautstärke :)

Jens W. from Eching 06/01/2025
Hans-Jörg A. from Freisen 07/29/2025
Color
Base color
silber

Horns
Tension
12 V
Electricity
Wechselstrom (AC)
Outside diameter
74 mm
Bolt circle diameter
65 mm
Number of fixing holes
2, 3, 4, 6
Special feature
-

OEM numbers (for comparison purposes only)
Piaggio:
148436, 163599, 189379
