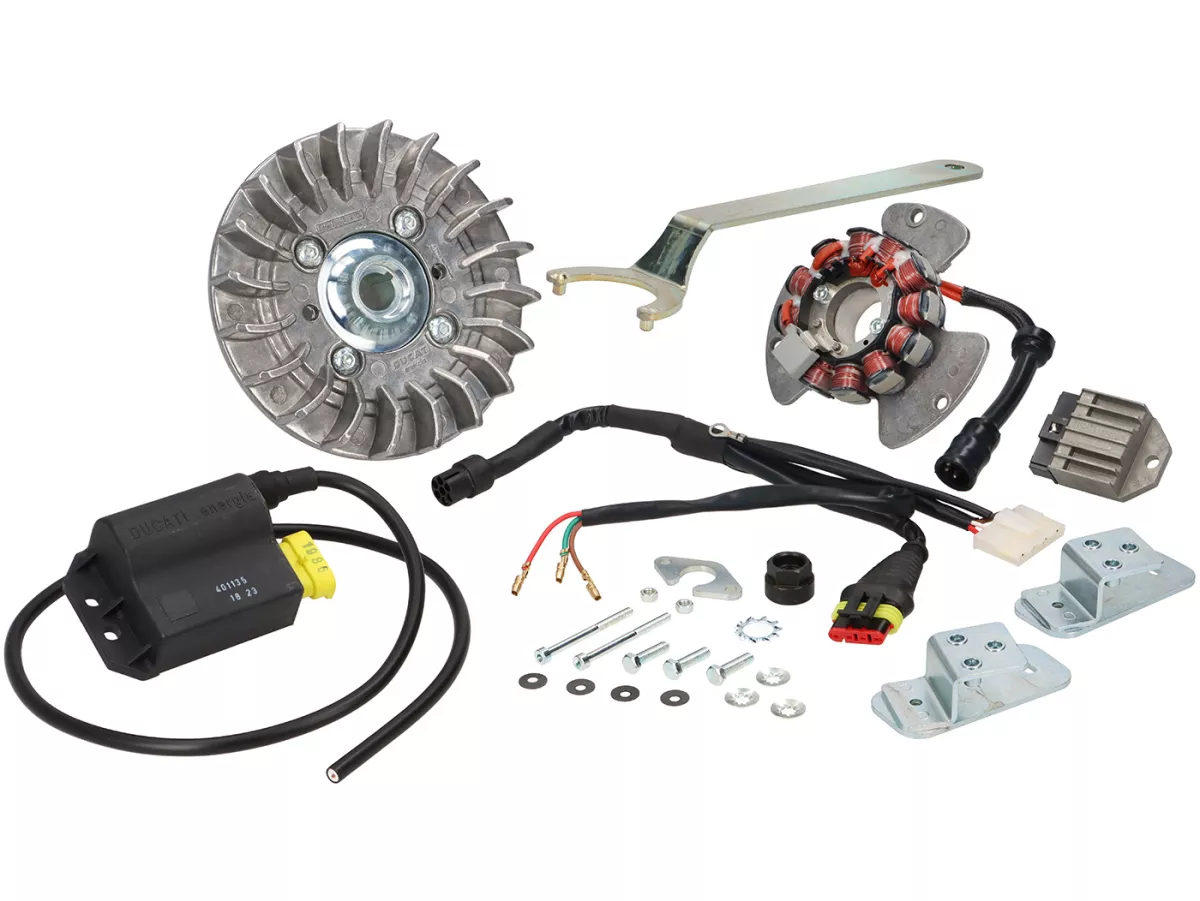

Casa Lambretta Ducati Casatronic Standard – 12 V ignition for GP and DL
Ignition CASA LAMBRETTA DUCATI CASATRONIC Lambretta GP, DL
Since 2020, the Casatronic has been manufactured by Ducati Energia and features several innovative and groundbreaking characteristics.
Main advantages:
- 12V with genuine 120W output even at very low revs
- AC and DC output
- Digital system with variable ignition timing

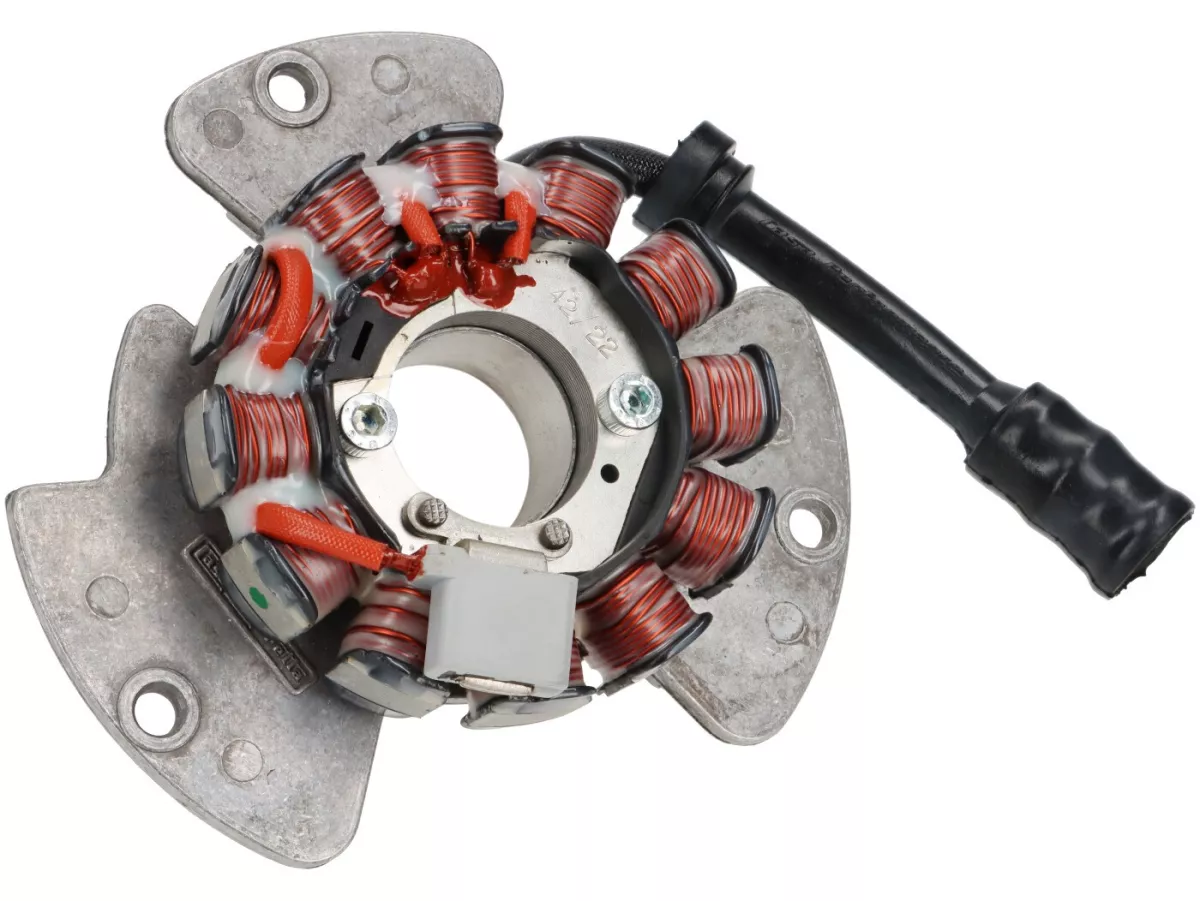

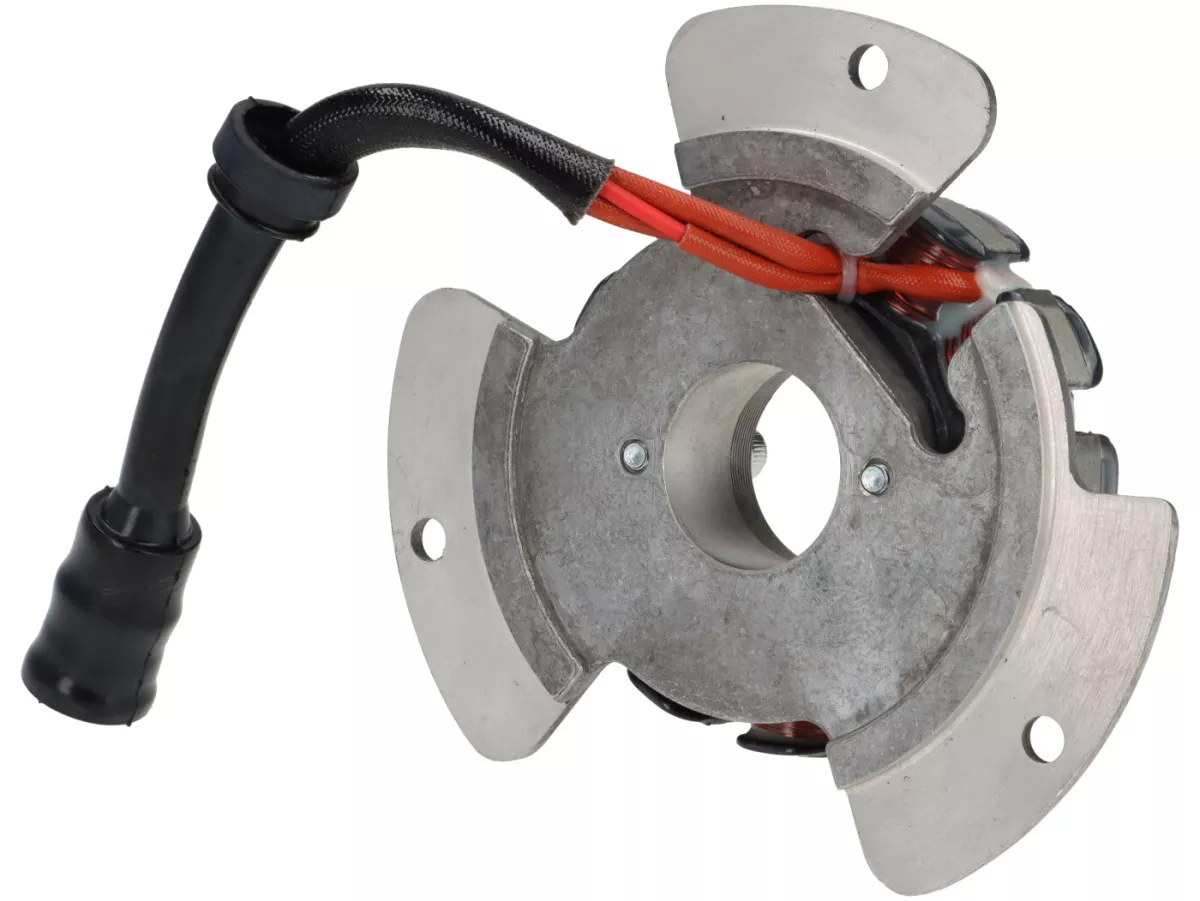

- 12-pole stator

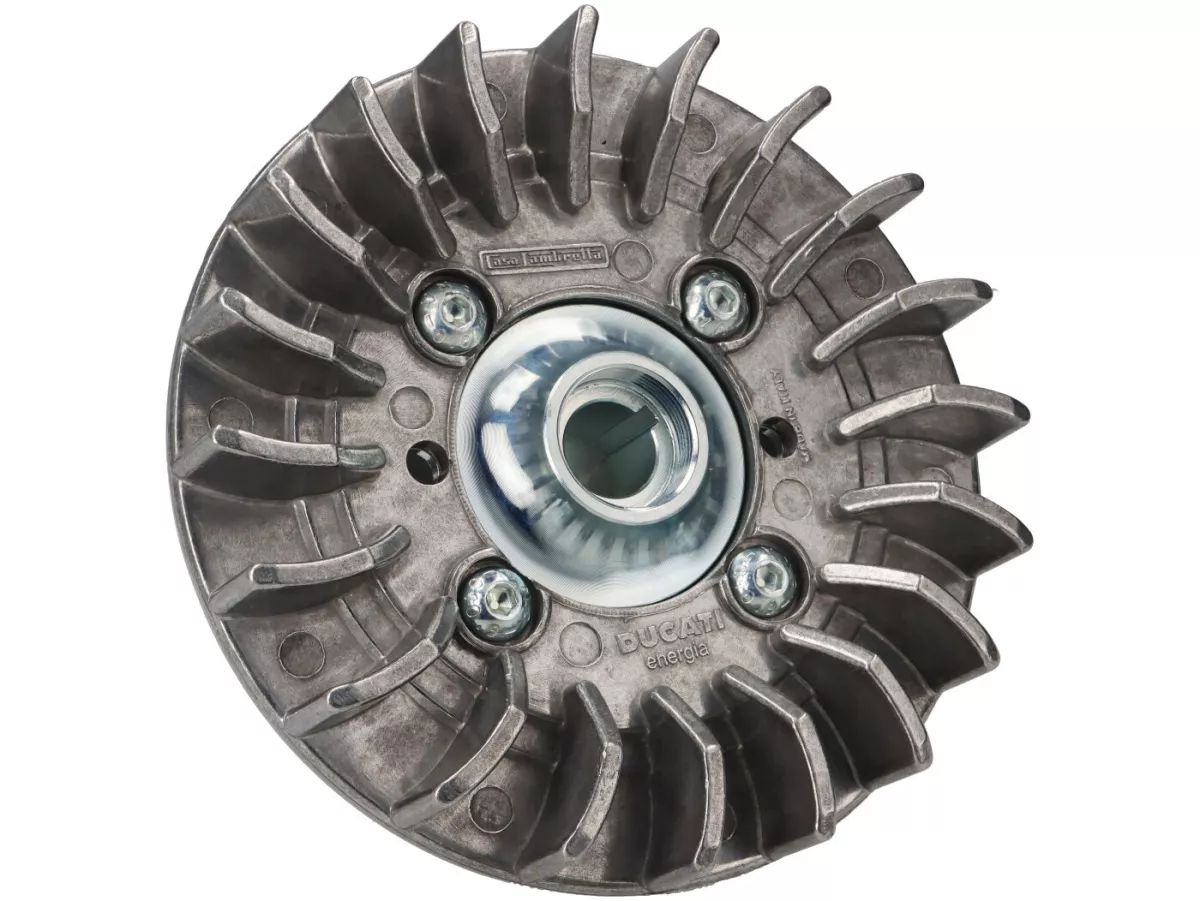

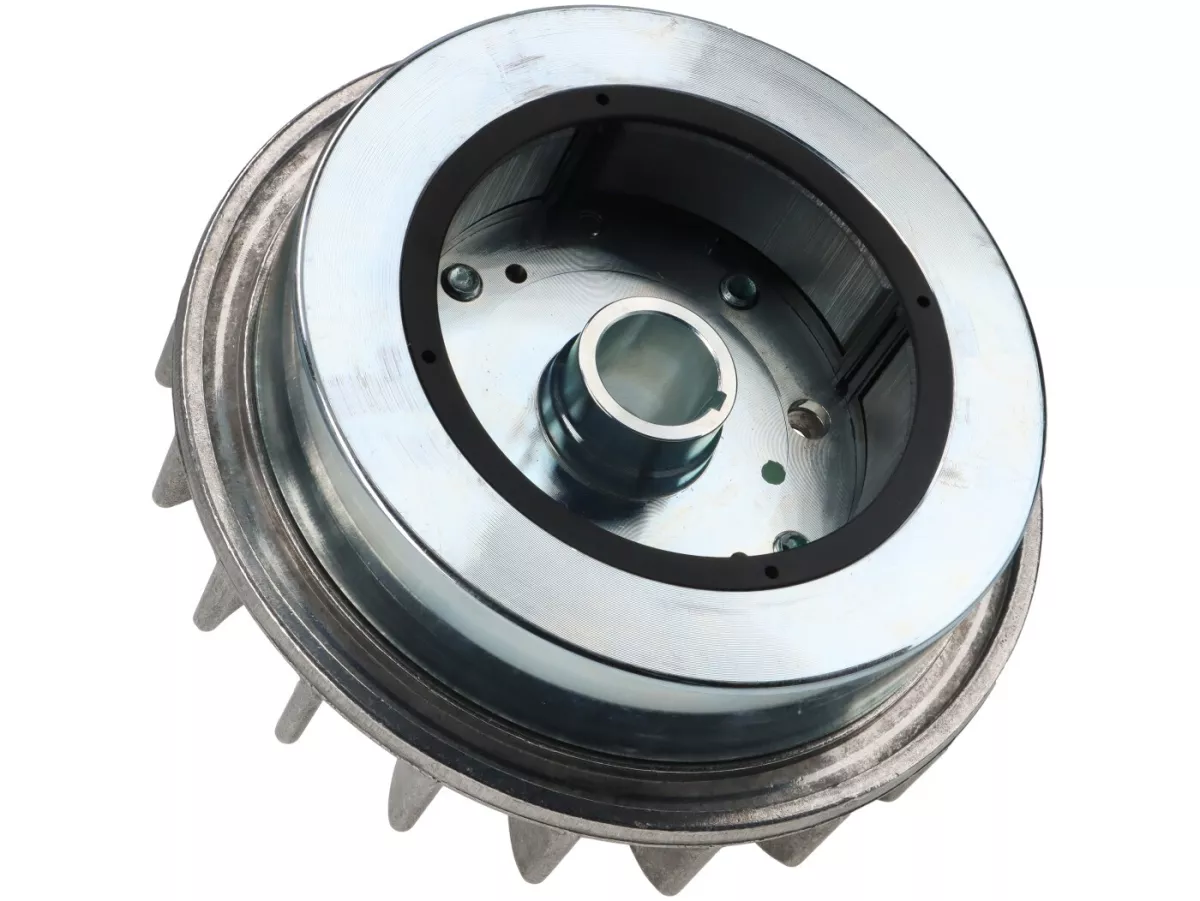

- CNC-manufactured and balanced flywheel
- Die-cast stator plate
- Die-cast fan blades
- Incredibly easy to install
- No ignition timing adjustment required

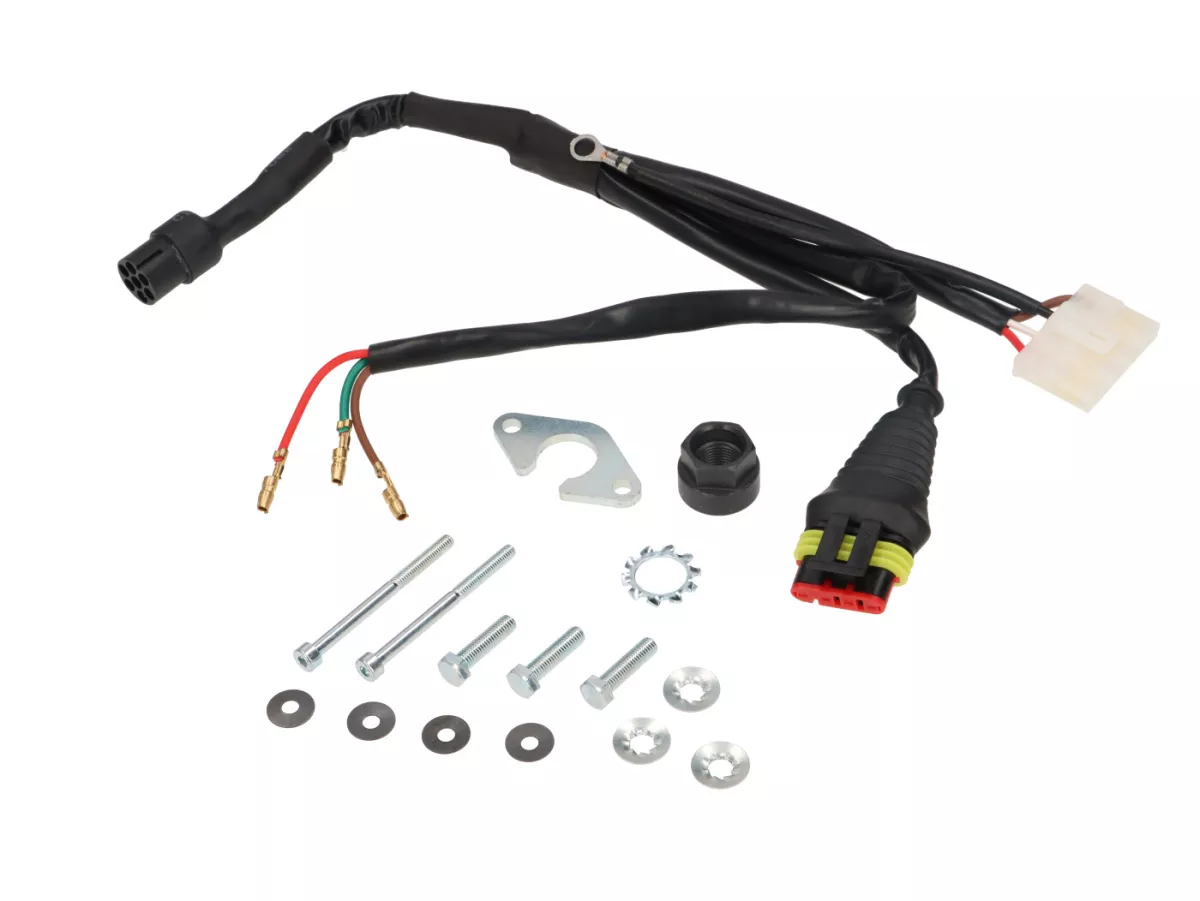

- Plug 'n' Play connections
- European manufacturing and associated quality
Three different versions are available, differing in flywheel weight and the pre-programmed ignition curves of the CDIs.
- Standard: Flywheel with fan: 2.8 kg
- Sport: Flywheel with fan: 2.1 kg
- Race: Flywheel with fan: 1.3 kg
In addition to the different flywheel weights, each ignition comes with a specific CDI unit and different ignition curves.
The

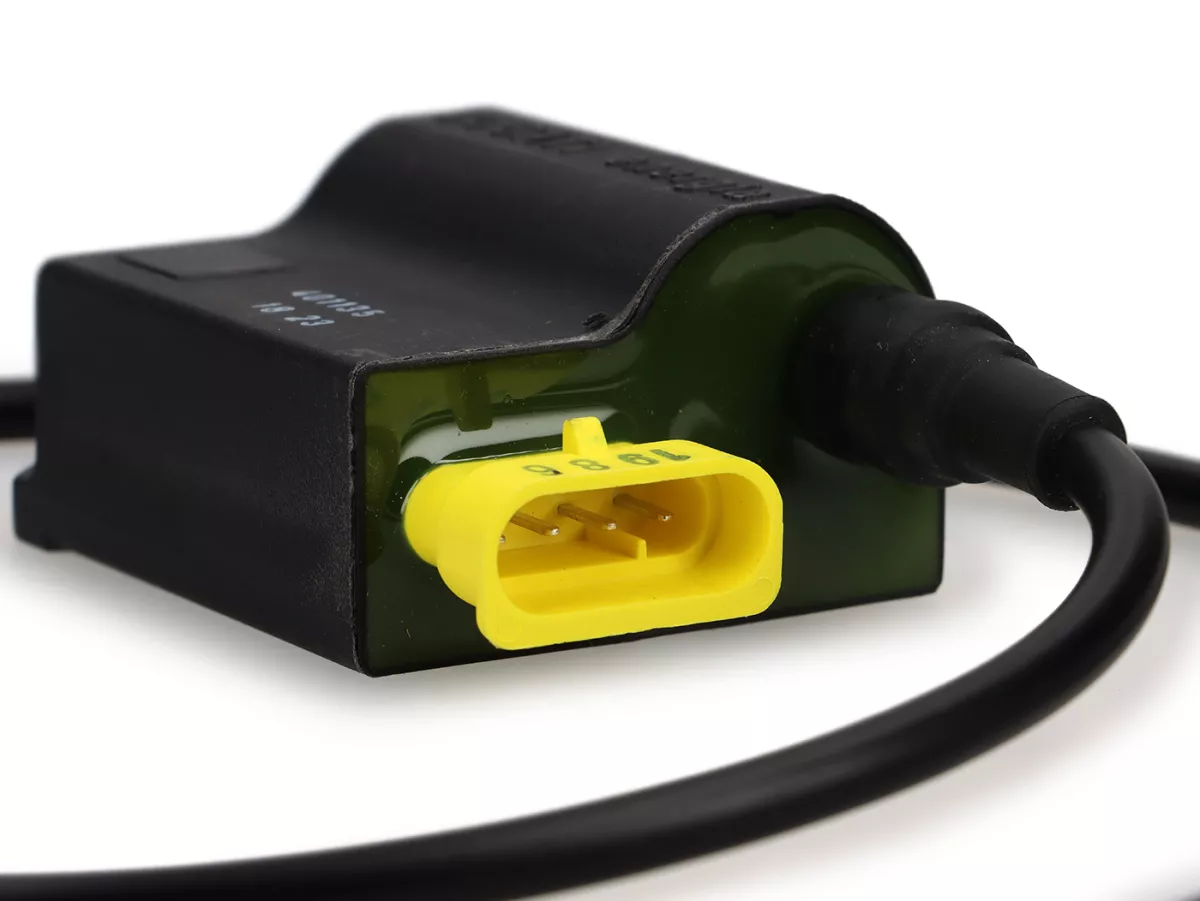

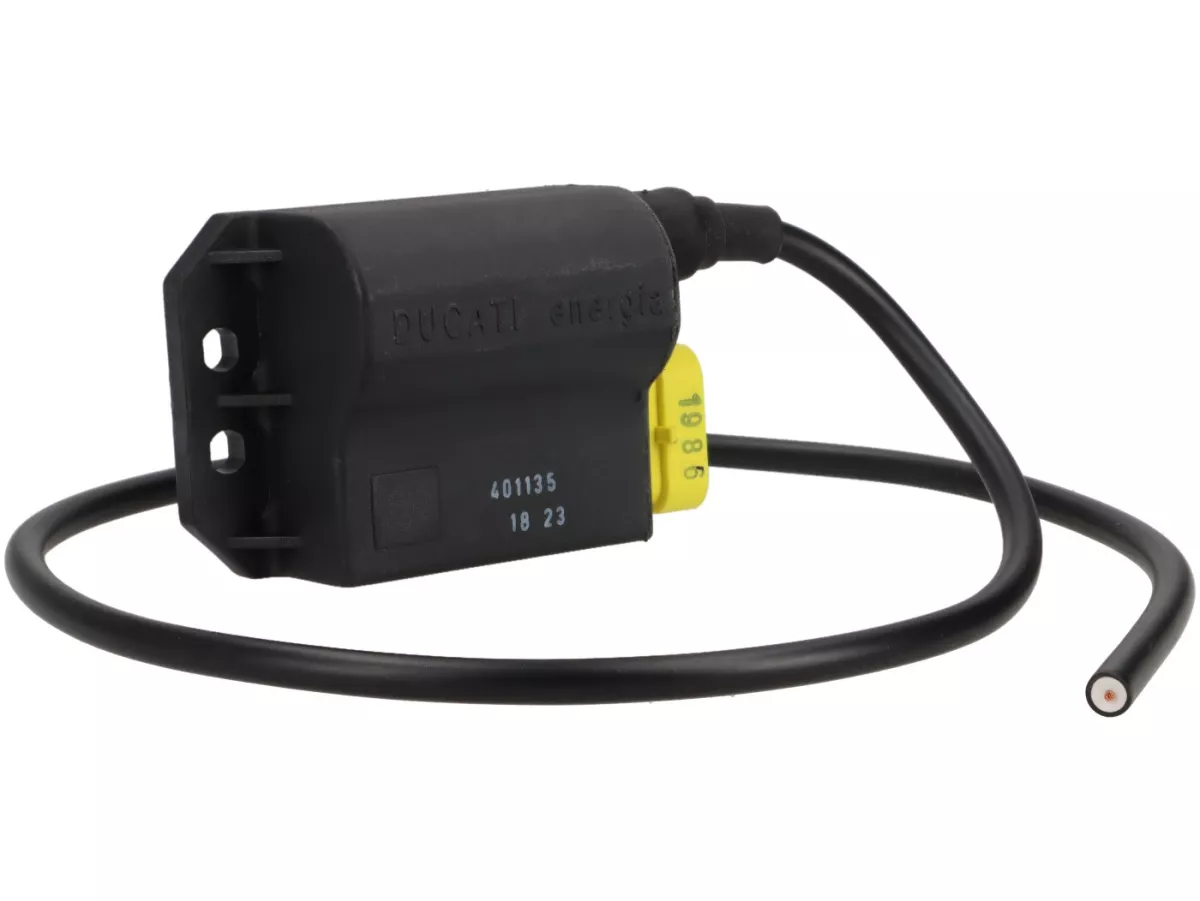

Standard CDI has these part numbers: SC
CLX907 - Casa Lambretta X907 and on the back it shows the Ducati number 401135.
The
Sport CDI has these part numbers: SC
CLX908 - Casa Lambretta X908 and on the back it shows the Ducati number 401136.
The
Race CDI has the following part numbers: SC
CLX909 - Casa Lambretta X909 and on the back it shows the Ducati number 401137.
The feature of not having to set the ignition works. However, to be 101% sure, the engine should be checked with a timing light.
