Evergreen Item number: 7673561
Evergreen
3 Ratings
469,00 €*
available immediately
Shipping weight 3,45 kg

ignition VARIOTRONIC for the Lambretta LD125 and D125 as well as all licensed cars with an ignition from Filso, Marelli, Dansi or Ducati.

Complete ignition with variable adjustment of the ignition timing.

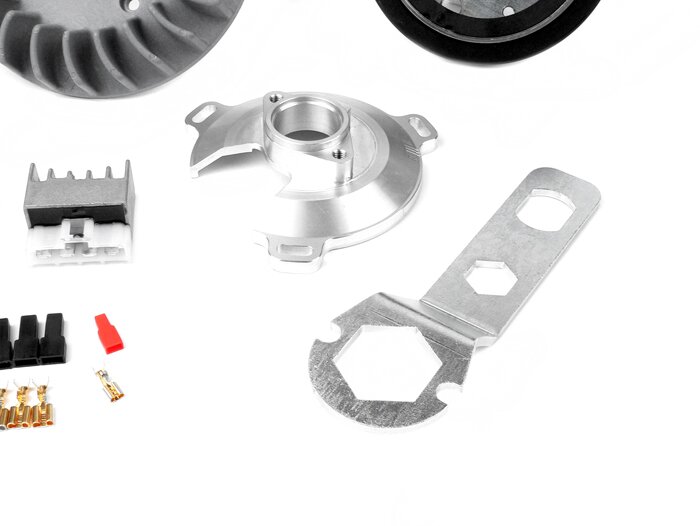

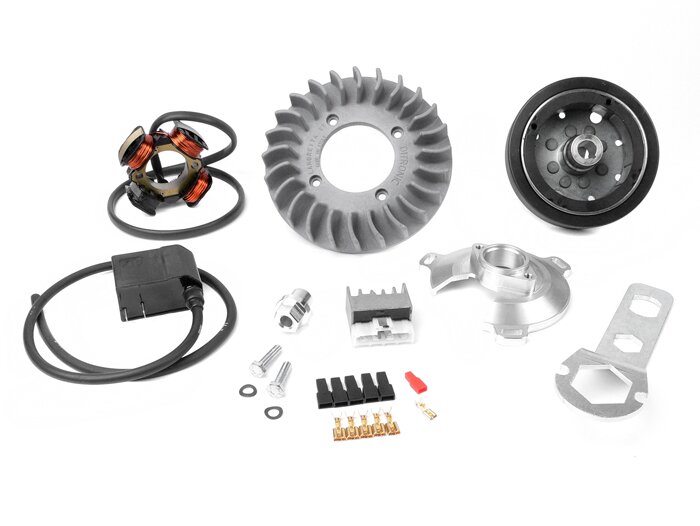

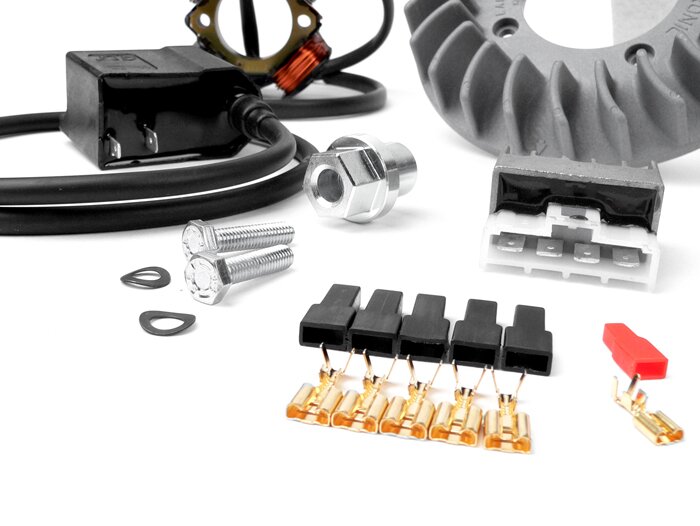

Included in delivery:

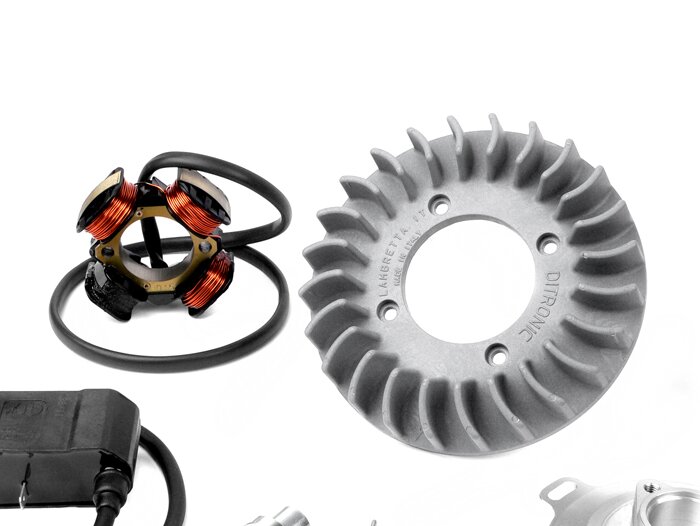

  • CNC milled ignition base plate

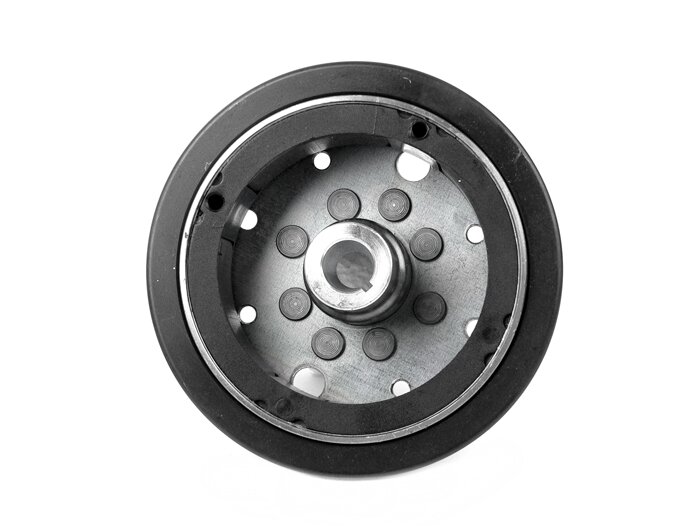

  • fan wheel with removable fan ring - weight 1,7 kg
  • CDI Box
  • Voltage regulator with 12V AC and DC output (battery charging)
  • Holding tool

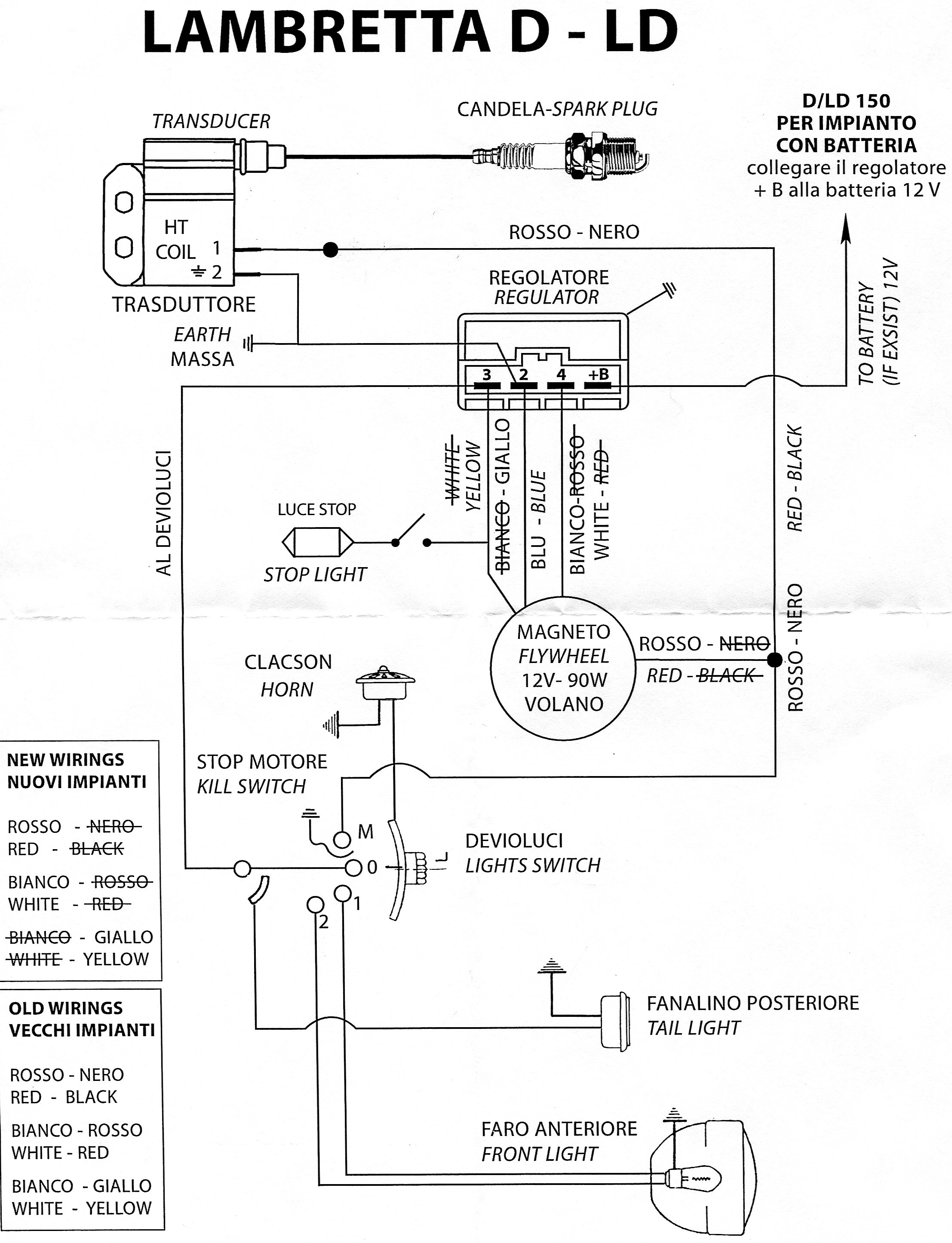

  • Data sheet and circuit diagram


The ignition adjusts by up to 8° (example: Idling 20° VOT - 2.000 rpm 23° VOT - 5.000 rpm 21° VOT - 8.000 rpm 15° VOT).

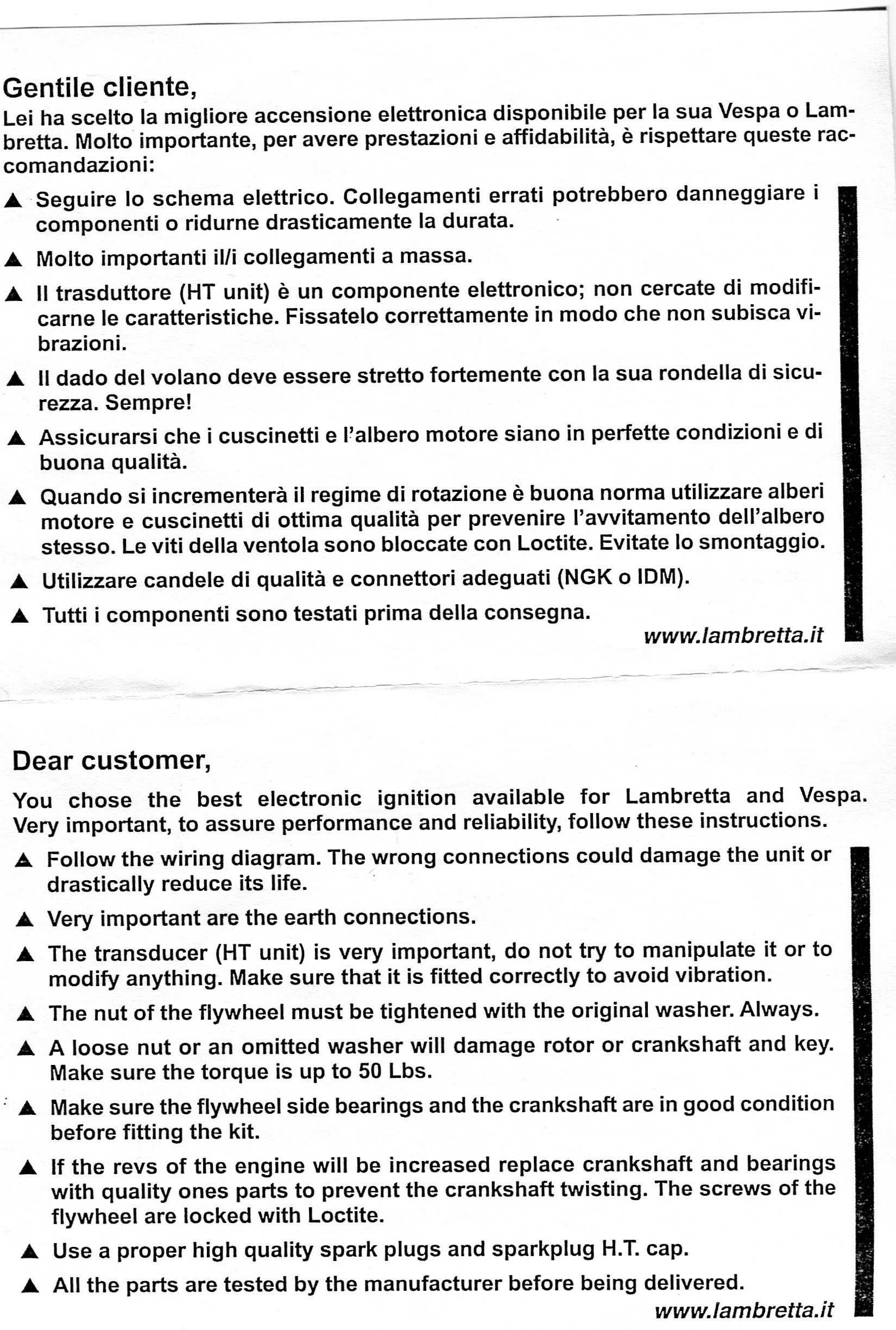

Detailed information can be found in the data sheet, which is available for download.

The ignition has proven itself in everyday use, but also made a good impression in the Scootering test bench test (December 2004). High Performance Ignition, with which you get the last bit out of the engine, without sacrificing suitability for everyday use.

The power of the alternator is 90W.


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  02/05/2016

Eine deutsche Montageanleitung wäre ganz nett.

Anonym  12/16/2015

Good, as expected.

Anonym  02/26/2018

Bon produit, facile à installer mais manque de protection lors de la livraison, la boîte en plastique était détériorée mais pas le produit, heureusement.

Stator ignition (base plate)
Ignition type
kontaktlos (elektronisch)
Position (pickup / contact)
innenliegend
Stator uses pole wheel type
Außenrotor
Number of coils
4
Tension
12V
Electricity
Wechselstrom (AC)
Base plate diameter
102 mm
Coil diameter
80 mm
Total height
35 mm
Number of cables
4
Plug type
Einzelstecker

Rotor ignition (pole wheel)
Pole wheel type
Außenrotor
Rotor mass
1700 g

Ignition in general
Rotor (pole wheel) included in the scope of delivery
ja
CDI included in scope of delivery
ja
Voltage regulator included in the scope of delivery
ja
Ignition timing
variabel

OEM numbers (for comparison purposes only)
Scooter Center:
7673561
