Ignition -EVERGREEN Varitronic- SIT Lambretta LD 1956, 1957 - only for license construction from France

VARIOTRONIC ignition for the Lambretta LD150 and D150 as well as all licensed models with an ignition from Filso, Marelli, Dansi or Ducati.

Complete ignition with variable adjustment of the ignition timing.

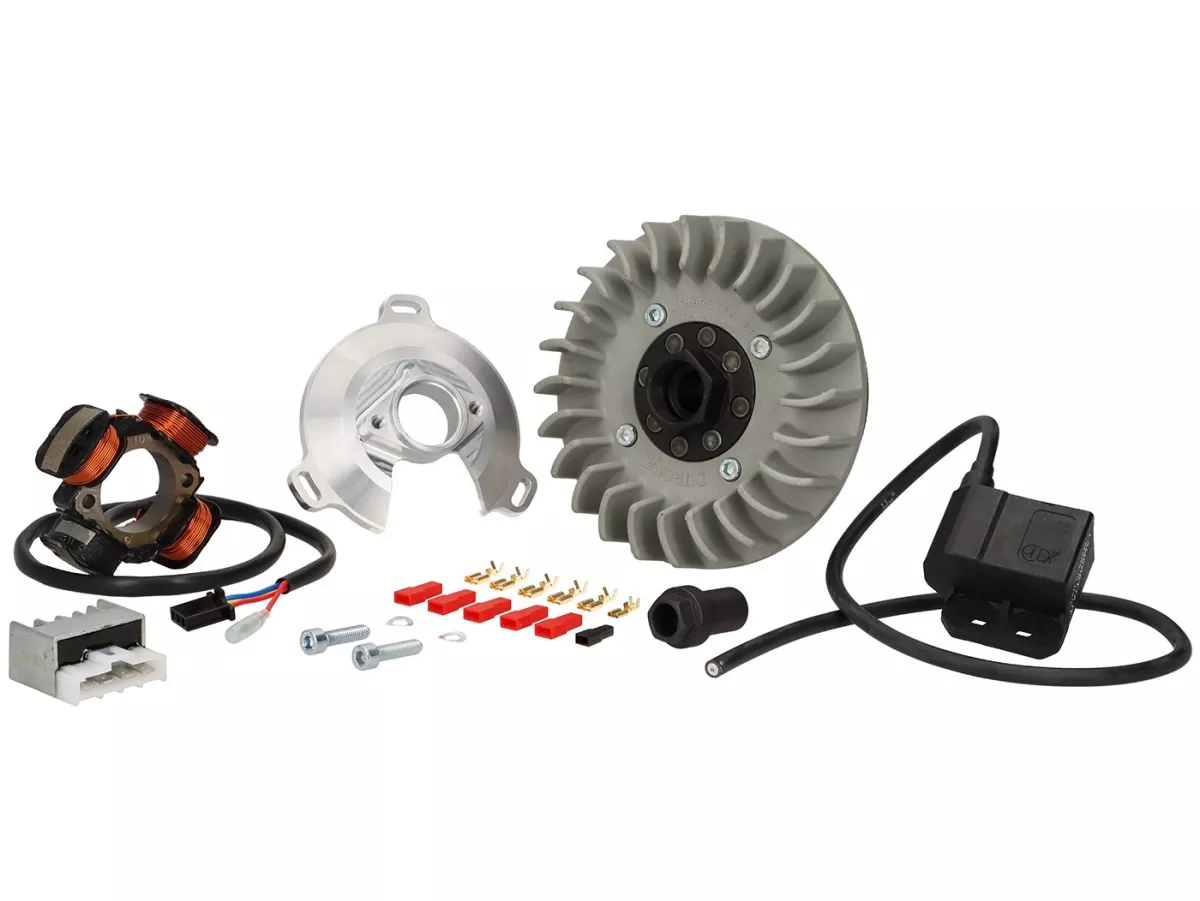

Included in the scope of delivery:

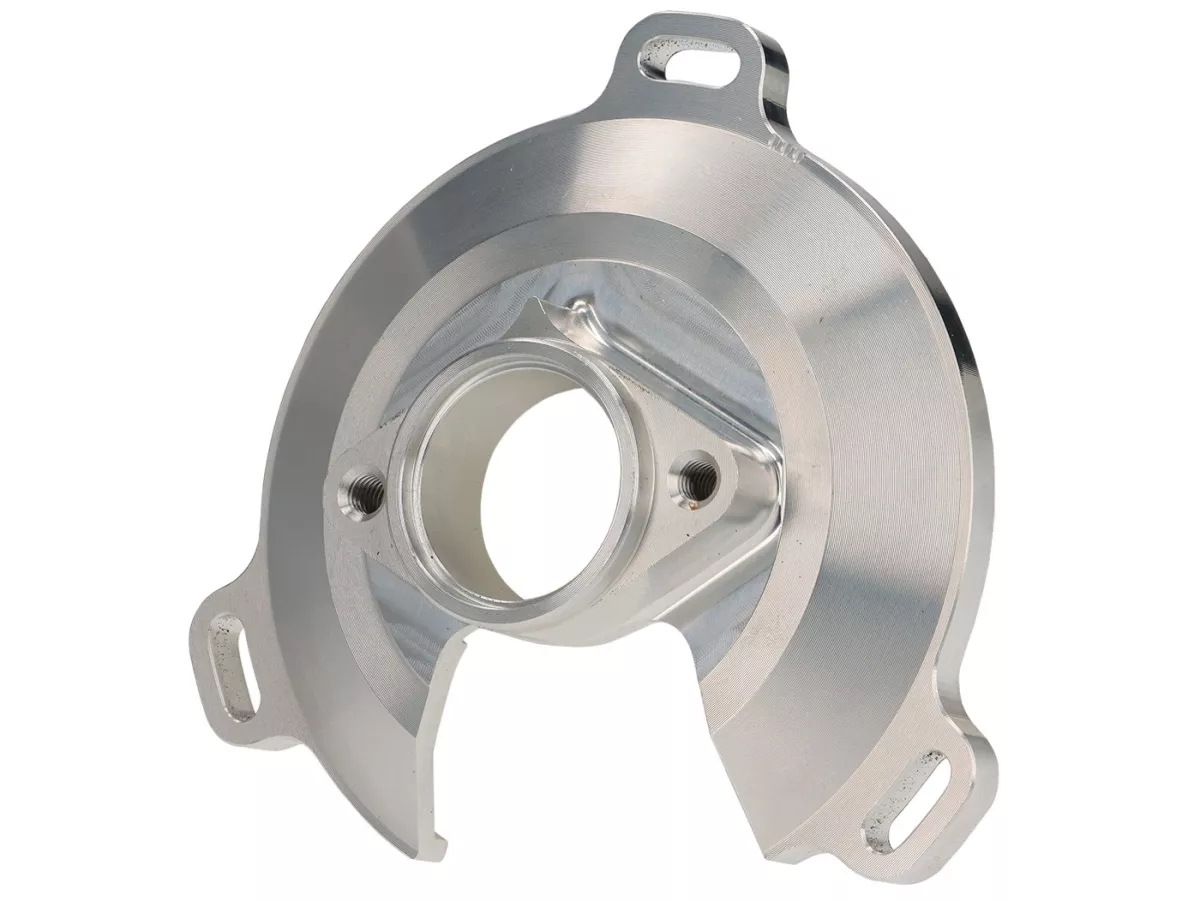

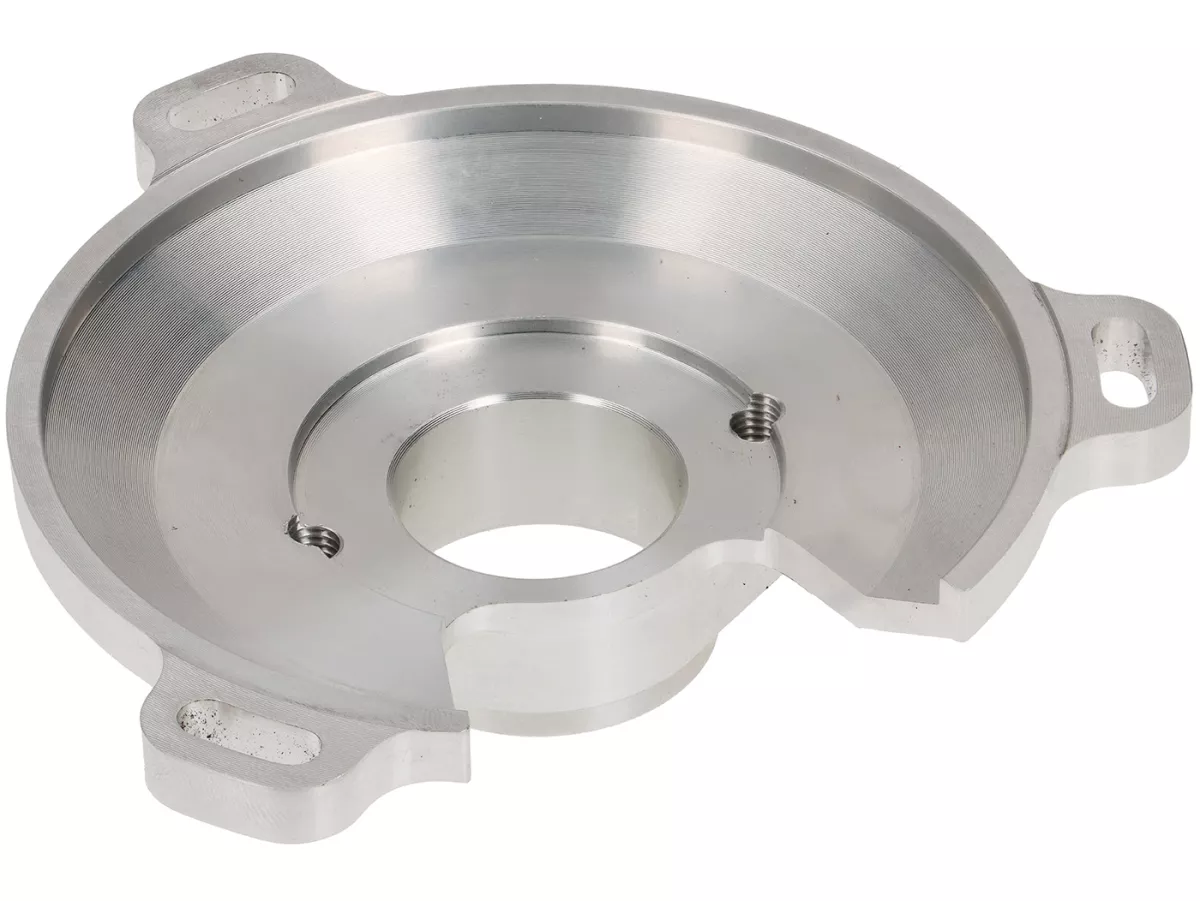

• CNC milled ignition base plate

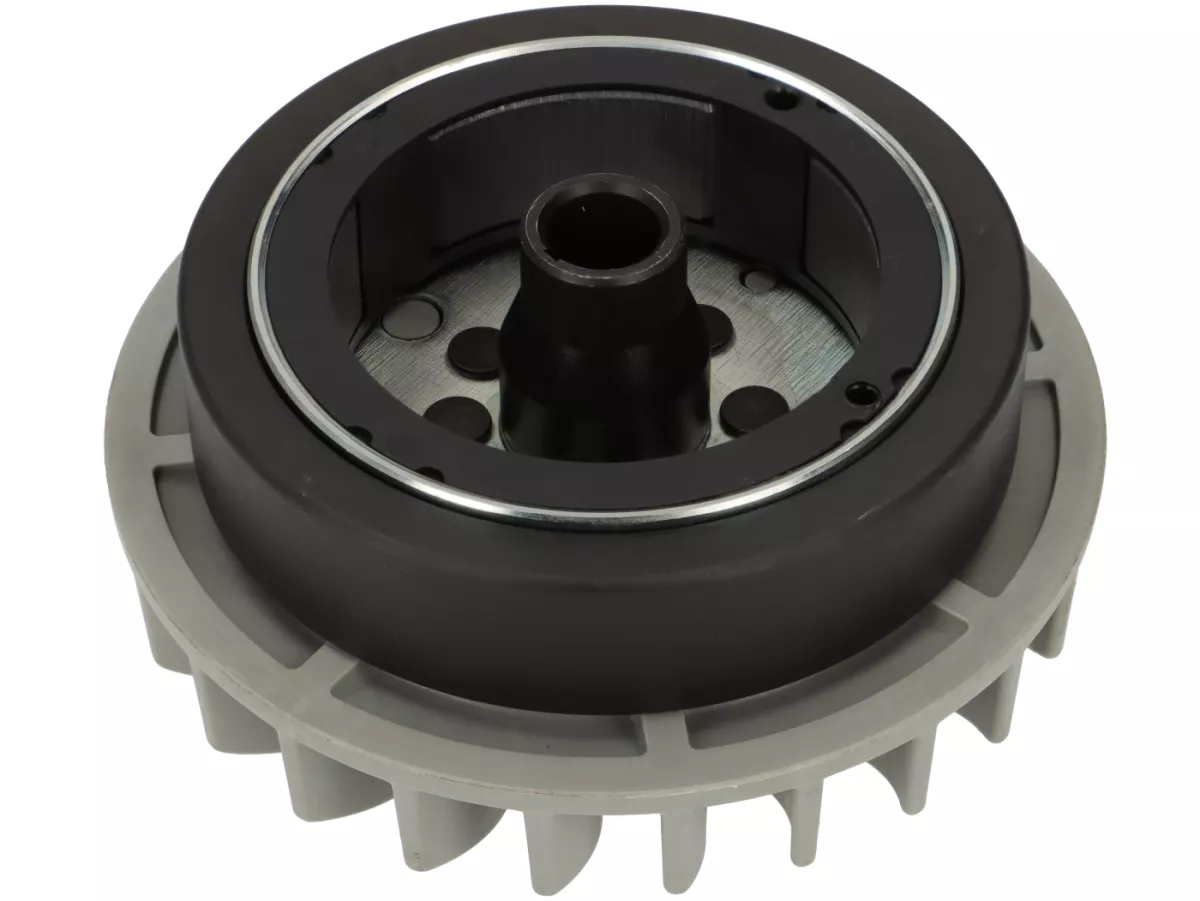

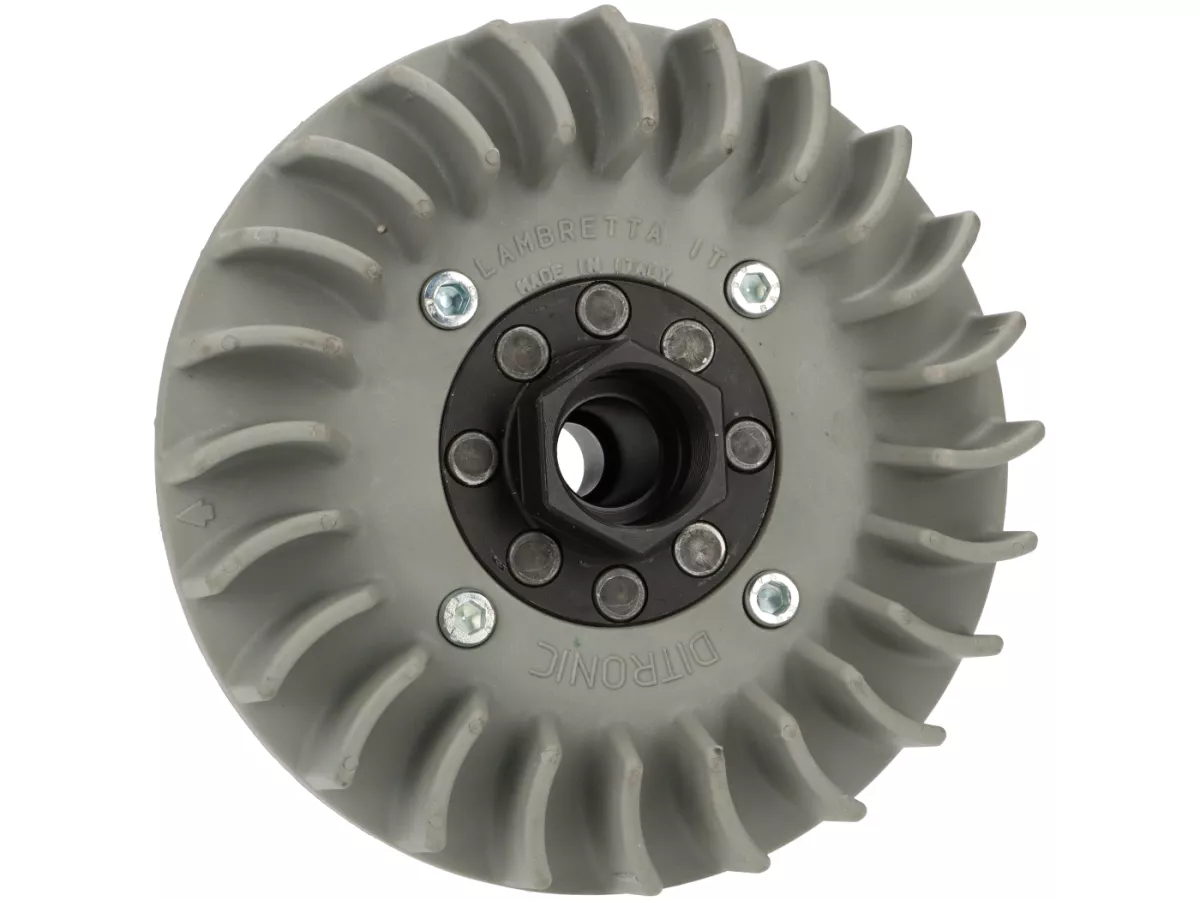

• Fan wheel with removable fan ring - Weight 1.7 kg

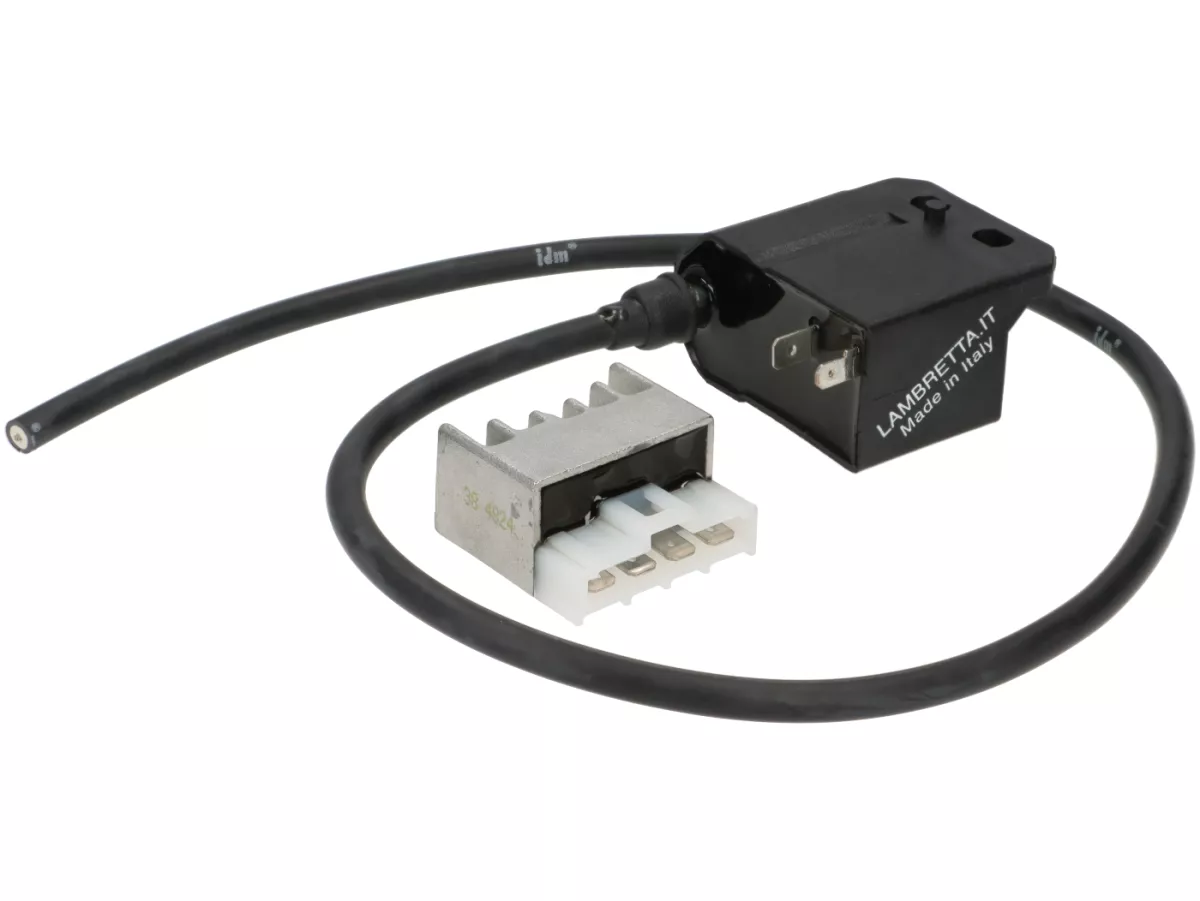

• CDI box
• Voltage regulator with 12V AC and DC output (battery charging)

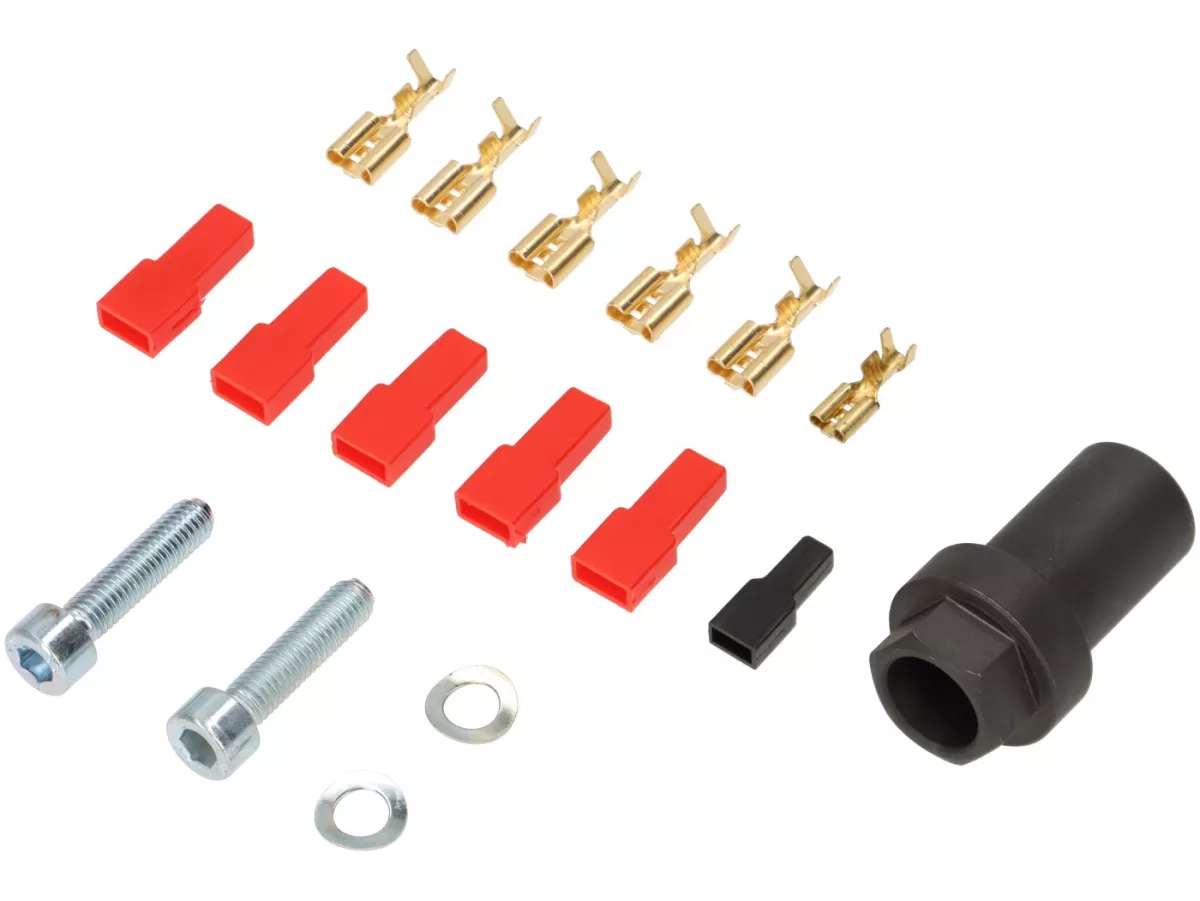

• Holding tool
• Data sheet and circuit diagram

The ignition adjusts by up to 8° (example: idling 20° VOT - 2,000 rpm 23° VOT - 5,000 rpm 21° VOT - 8,000 rpm 15° VOT).

Detailed information can be found in the data sheet, which is available for download.

The ignition has proven itself in everyday use, but also made a good impression in the Scootering test bench test (December 2004). High performance ignition, with which you can get the last ounce out of the engine without sacrificing suitability for everyday use.

The output of the alternator is 90W.
