Dellorto Item number: 2506172
Dellorto
2,70 €*
not available
Shipping weight 0,002 kg

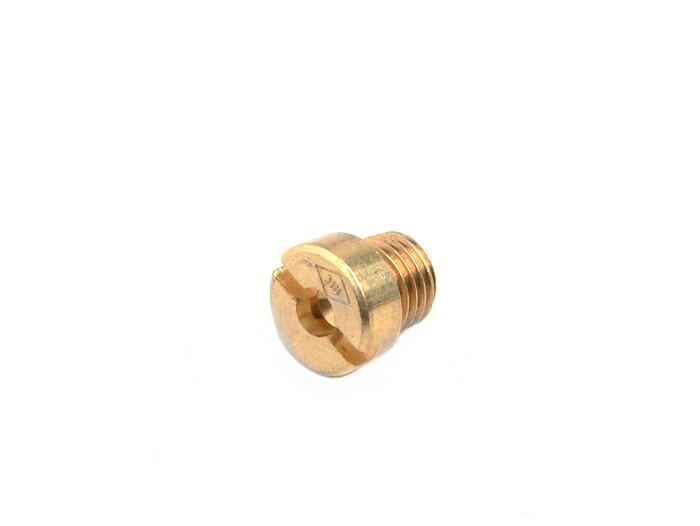

The main jet is considerably involved in the mixture preparation of the carburetor.
If it is too small, the engine dies off under full load and/or runs so leanly that the piston and cylinder overheats and a cylinder damage would be the consequence.
If it is too large, the mixture becomes too greasy, the engine runs very unevenly and can only deliver a fraction of its possible power.
Here it is important to find the ideal compromise.

To determine the correct main jet, it is first of all chosen so large that the goal is an engine that stutters heavily under full load. Of course you need some experience, but a nozzle can be changed quickly. Once you have found such a nozzle, you mount a smaller one until the engine does not stutter under full load anymore.

secondary jet 4mm / 5mm

main jet 5mm / 6mm

jets.

The 6mm nozzles are exclusively used as main nozzle in the following carburettors:

PHBH, PHBL, PHBN, PHVA, VHSA, VHSB, VHSC, VHSH, VHST


AI-translation

Rate this article now and let us know what you think.
Carburetor jets
for carburetors from the manufacturer
Dellorto
Main nozzle for
Dellorto FHB, Dellorto PHBE, Dellorto PHBH, Dellorto PHBL, Dellorto PHBN, Dellorto PHF, Dellorto PHM, Dellorto PHSB, Dellorto PHVA, Dellorto PHVB, Dellorto VHSA, Dellorto VHSB, Dellorto VHSC, Dellorto VHSH, Dellorto VHST, Dellorto SHB 25, Dellorto OVC
Thread
M6 x 0,75
Head diameter
8 mm
Thread length
5 mm
Total length
8 mm

OEM numbers (for comparison purposes only)
Scooter Center:
2506172
Dellorto:
06413172_02
