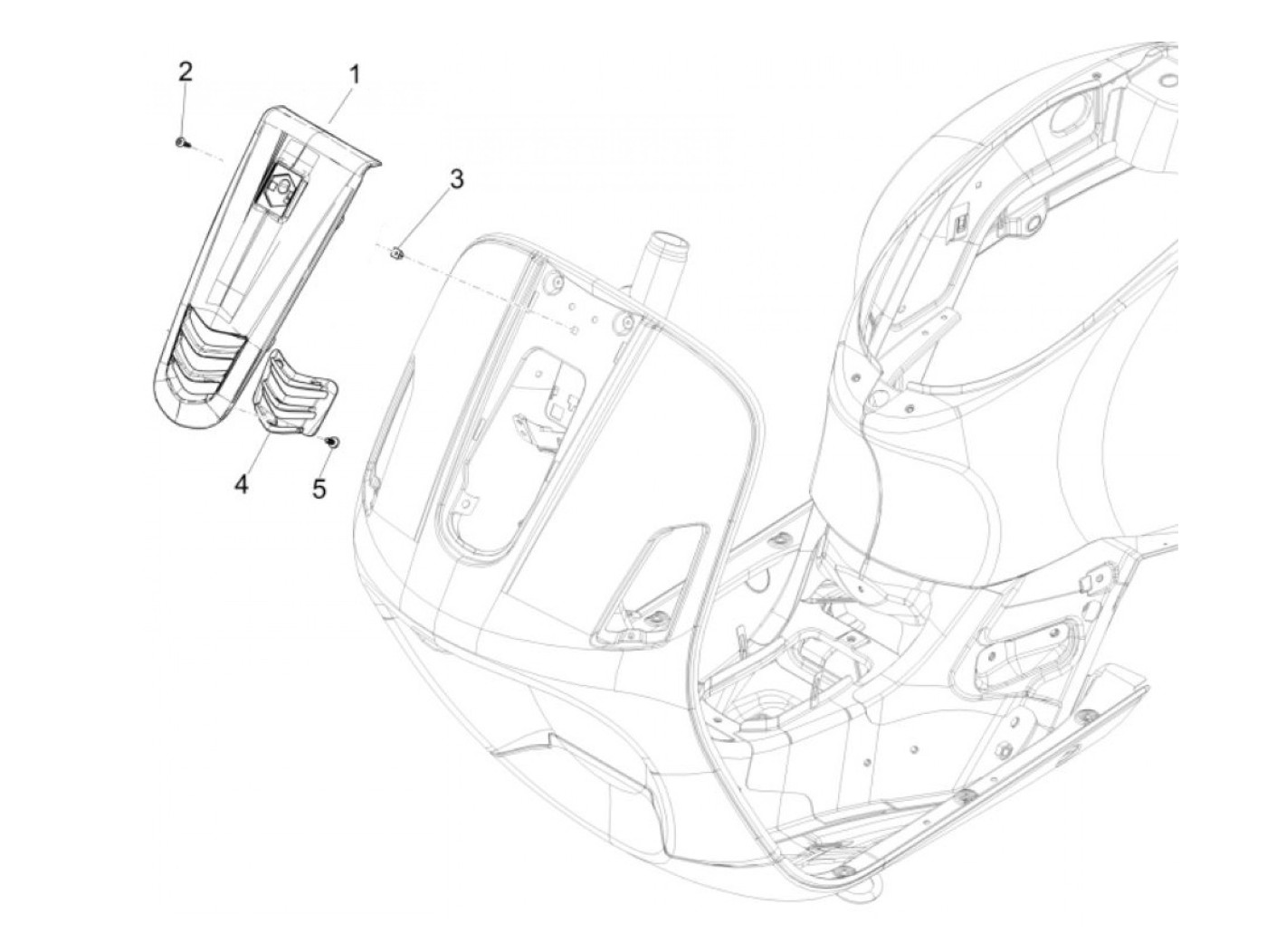

Vespa GTS 300 (2016, ZAPM45200) | Legshield | Exploded views

Legshield

Vespa GTS 300 (2016, ZAPM45200)

Sort

Plastic nut -PIAGGIO- 3.9mm (used for fixing upper horn cover Vespa PX (1984-))

Piaggio

Piaggio
4550025

Plastic nut -PIAGGIO- 3.9mm (used for fixing upper horn cover Vespa PX (1984-))

Tapping screw -DIN 7981 C- 3.5x9mm

Piaggio

Piaggio
7675338

Tapping screw -DIN 7981 C- 3.5x9mm

Self-tapping screw Torx T25 5.3x20mm -PIAGGIO-

Piaggio

Piaggio
GPCM179101

Self-tapping screw Torx T25 5.3x20mm -PIAGGIO-

Tapping screw -DIN 7981 F- 3.5x9mm

Piaggio

Piaggio
7675339

Tapping screw -DIN 7981 F- 3.5x9mm
