Lock washer set rear hub nut -LAMBRETTA M7- LI (series 2-3), LIS, SX, TV (series 2-3), DL, GP

Lambretta rear brake drum lock kit

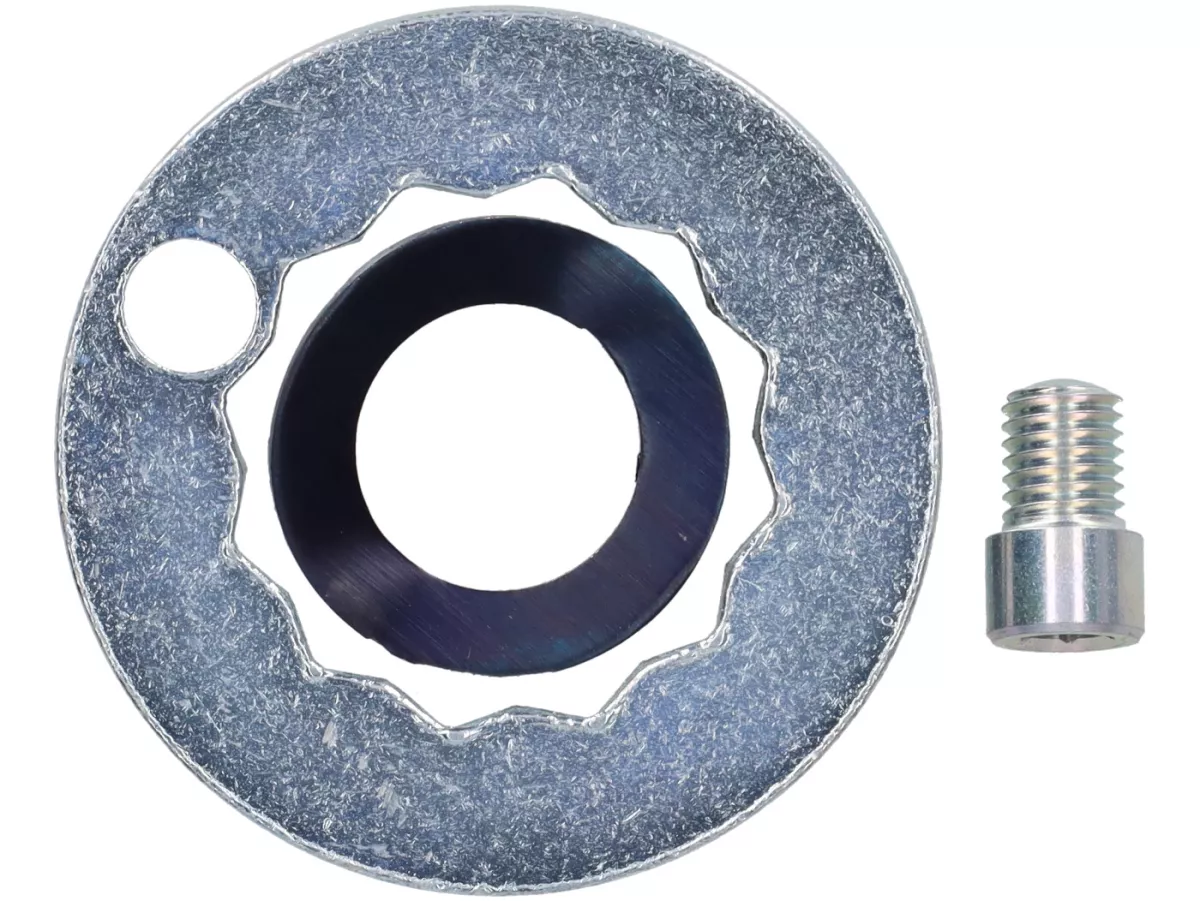

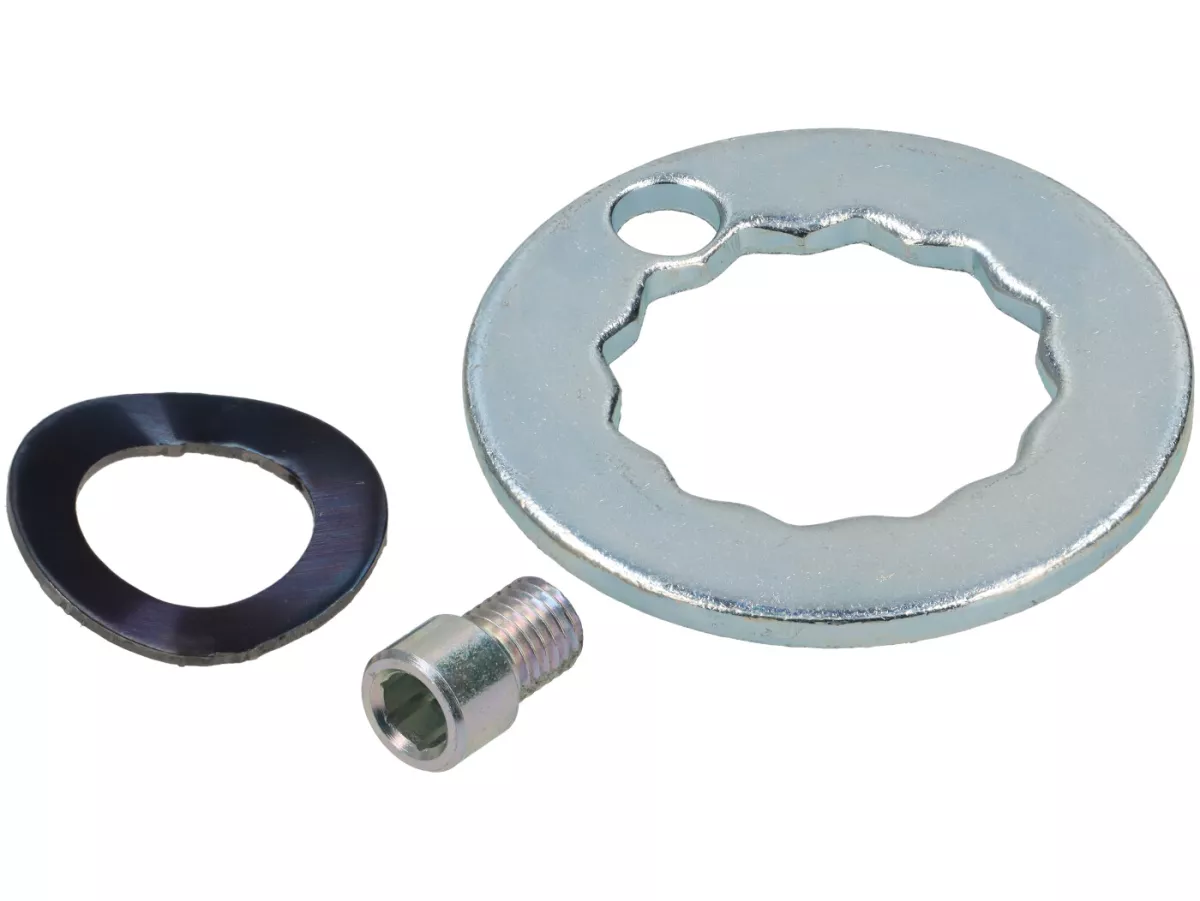

Consists of washer, bolt and shaft washer. The nut can be found under article number 8010310 or in chrome-plated under number 8010311.
(The required tightening torque varies with the angle of the brake drum cone: 20 degrees angle: 203 Nm, 11 and 8 degrees angle: 147 - 161 Nm. Work from the lower value to the higher one until the lock washer can be fitted).
