Fa Italia Item number: 7672914
Fa Italia
with E-approval
29,90 €*
not available
Shipping weight 0,4 kg

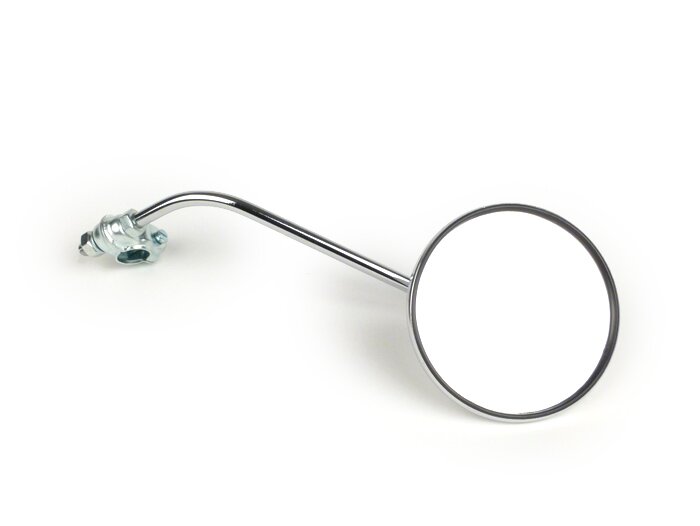

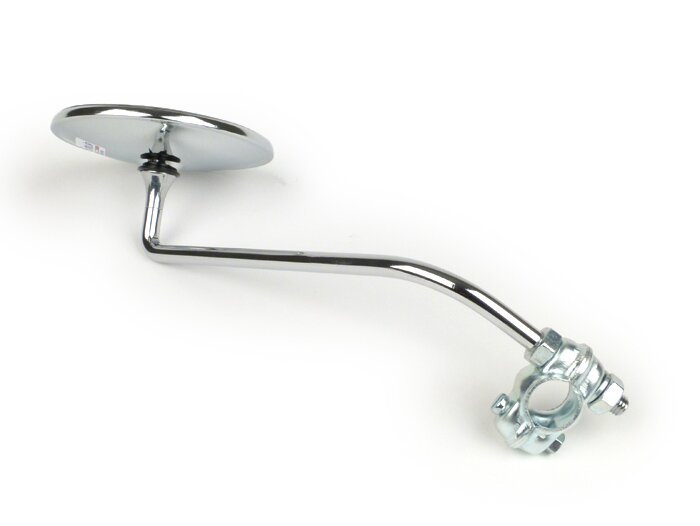

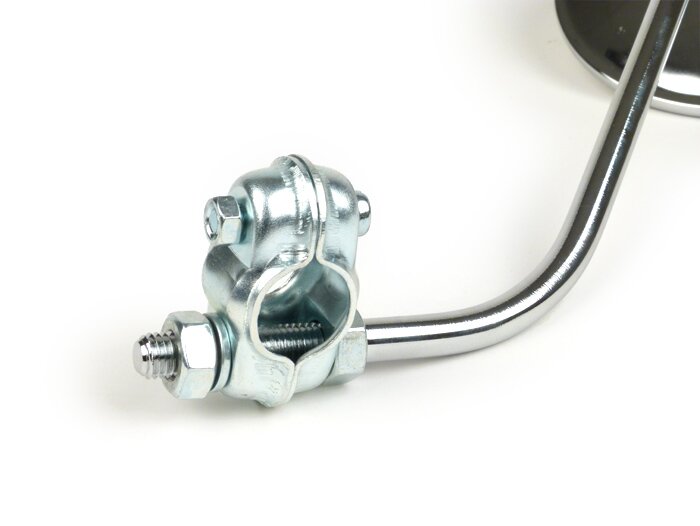

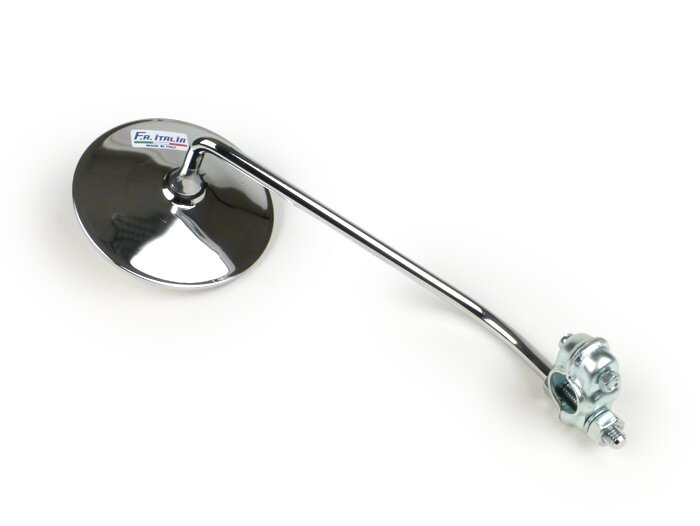

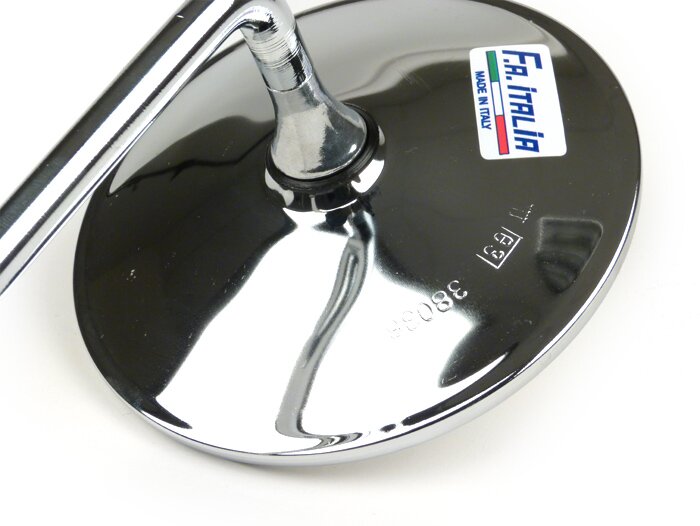

Mirror for mounting on a tubular handlebar of Ø20-22mm.

Chrome-plated steel, bracket galvanized


  • handlebar diameter: Ø20-22mm
  • mirror arm length approx. 18cm
  • Vertical lateral offset from screw-on point to mirror centre: 14cm
  • Mirror diameter: 12cm
  • Mirror thread at the mirror bottom: M10x1,5 (right)
  • thread length at the mirror below: 50mm
  • with E-marking

  • (US)
    p>Note:
    According to StVZO §56 every motor vehicle in Germany, which also includes mopeds, needs at least one mirror mounted on the left side of the vehicle.


    NUMBER OF mirrors depends on the first registration (EZ):

    • EZ before 01.01.1990 1 mirror left
    • EZ from 01.01.1990 up to 100 km/h 1 mirror left
    • EZ from 01.01.1990 over 100 km/h 2 mirrors

    SIZE
    The size of the reflecting surface must be >/p>

    • before EZ 17.06.2003 at least 60cm² (for round mirrors the diameter is greater than or equal to 88 mm)
    • after EZ 17.6.2003 at least 69cm² (for round mirrors the diameter is greater than or equal to 94 mm)

    betragen.

    MIRRORS WITH TEST MARK:
    Mirrors with test marks automatically fulfil all the above conditions.

    • Mirrors with test marks must be fitted to vehicles which are approved according to EC law (from 01.10.2005).
    • Vehicles with ABE approval (before 01.10.2005) must only use mirrors which meet the above criteria.

    AI-translation

    Rate this article now and let us know what you think.
    General
    Quantity included in delivery
    1

    Color
    Base color
    Chrom

    Mirror
    Mounting position
    Beinschild, Sturzbügel
    Color mirror glass
    farblos
    Color holder
    chrom
    Holder length
    200 mm
    Mirror shape
    rund
    Mirror surface
    Ø=115mm
    Fastening
    M10x1,25 (rechts) 40mm
    used for page
    rechts

    OEM numbers (for comparison purposes only)
    Scooter Center:
    7672914
