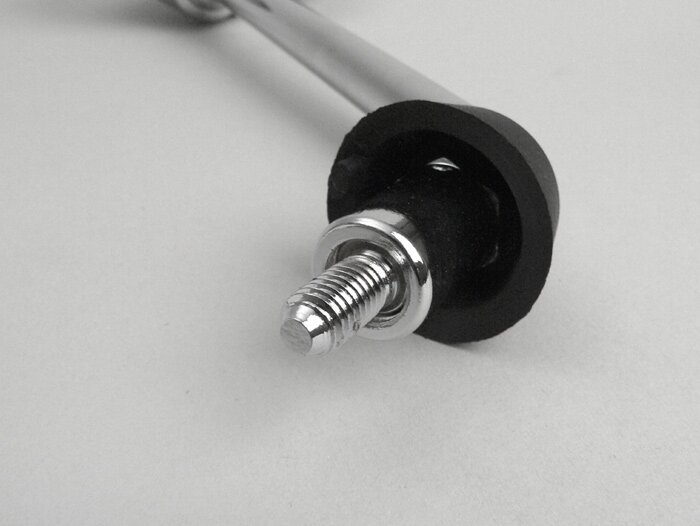

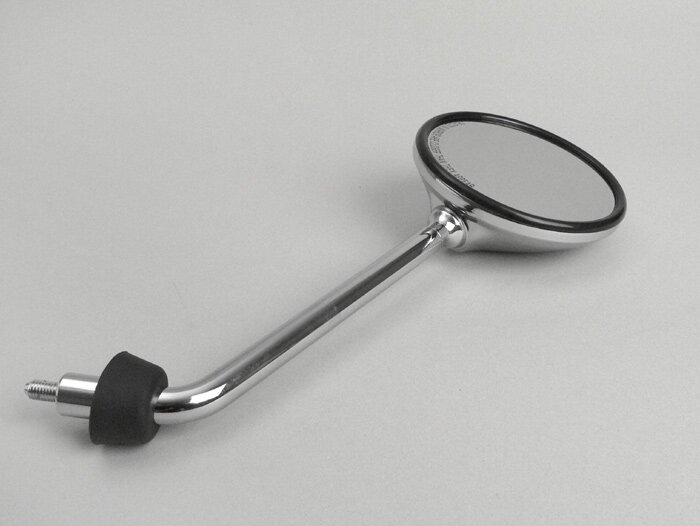

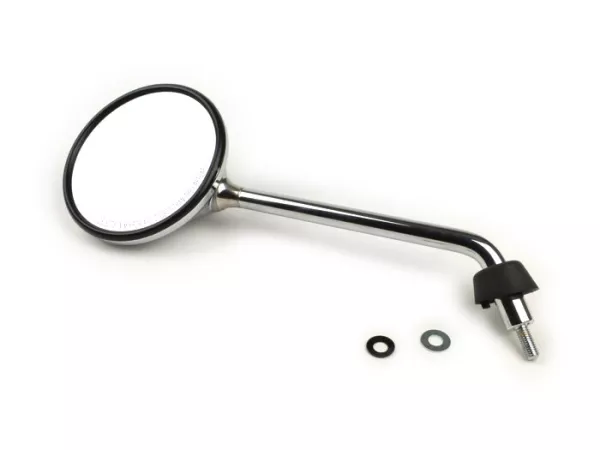

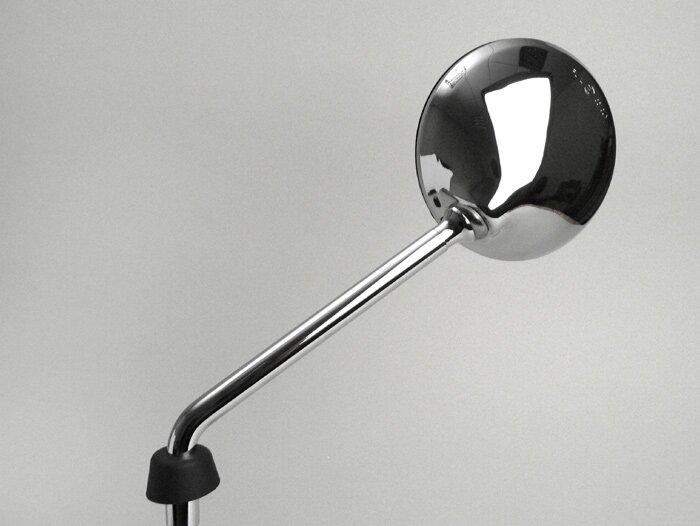

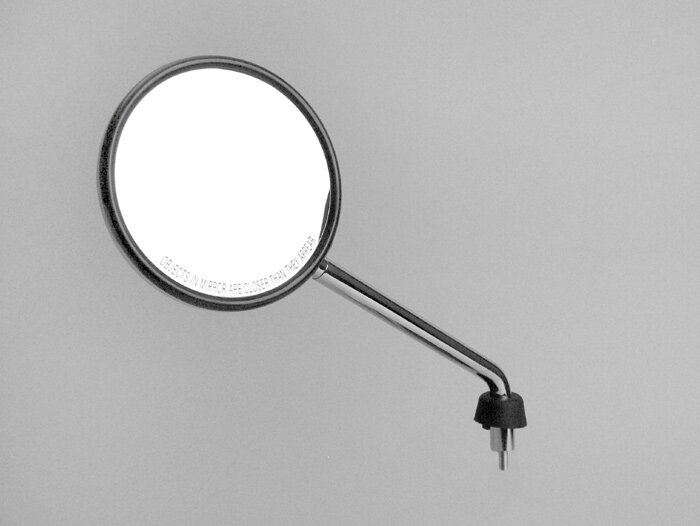

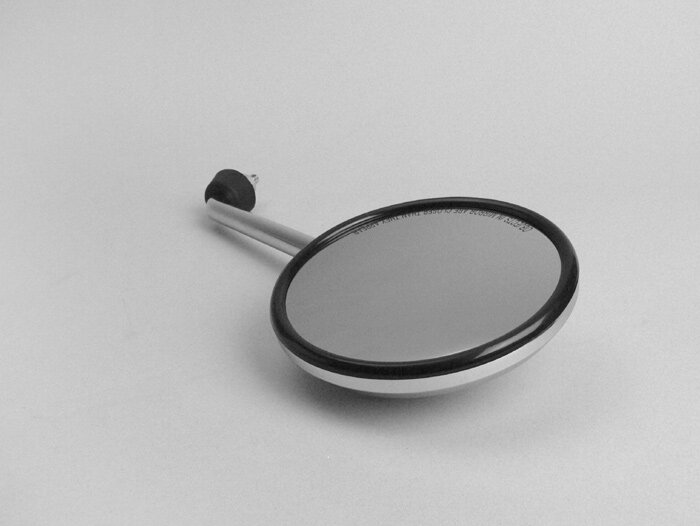

Mirror -PIAGGIO, chrome, M8x1.25 right-hand thread, lhs- Piaggio LX50 (ZAPC381, ZAPC383, ZAPC387), LX125 (ZAPM441, ZAPM443, ZAPM681), LX150 (ZAPM444), S50 (ZAPC386), Piaggio Liberty 50 (ZAPC42, ZAPC49) Liberty 125 (RP8M, ZAPM38, ZAPM67), Liberty 150 (ZAPM

NOTE:
According to StVZO §56, every motor vehicle in Germany, which also includes mopeds, needs at least one mirror mounted on the left side of the vehicle.

NUMBER OF mirrors
The number of mirrors depends on the initial registration (EZ):

• EZ before 01.01.1990 1 mirror left
• EZ from 01.01.1990 up to 100 km/h 1 mirror left
• EZ from 01.01.1990 over 100 km/h 2 mirrors

SIZE
The size of the reflecting surface must be

• before EZ 17.06.2003 at least 60cm² (for round mirrors the diameter is greater or equal to 88 mm)
• after EZ 17.6.2003 at least 69cm² (for round mirrors with a diameter greater than or equal to 94 mm)

betragen.

MARK:
Mirrors with test marks automatically fulfil all the above conditions.

• For vehicles approved under EC law (from 01.10.2005) mirrors with test marks must be fitted.
• Vehicles with ABE approval (before 01.10.2005) must only use mirrors that meet the above criteria.
