Dellorto Item number: 2521055
Dellorto

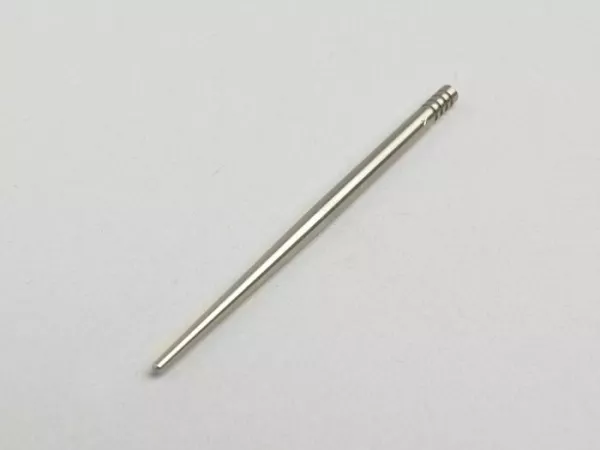

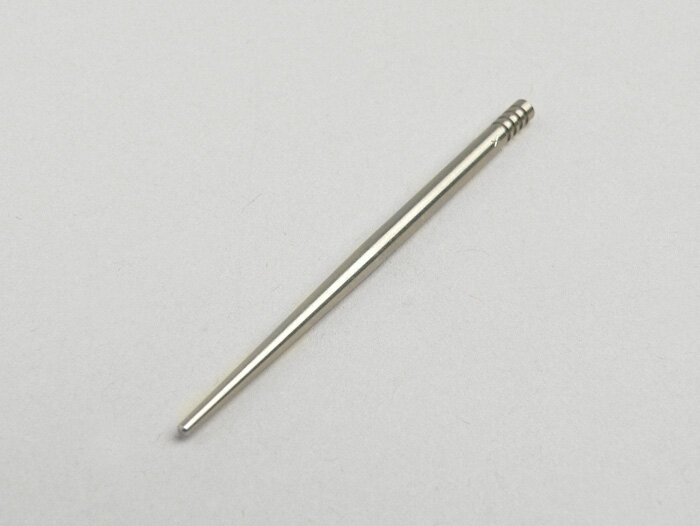

Needle -DELLORTO- X55

7,90 €*
available immediately
Shipping weight 0,002 kg
all variants
Information on product safety
Report error
e
a b c d
X 01 2,48 1.20 26,00
X 02 2.50 1.80 24.00
X 03 2,46 1.60 22.00
X 04 2.48 1.80 20,00
X 05 2.46 1.80 24.00
X 06 2,50 1.20 26.00
X 07 2.50 1,80 20.00
X 08 2.50 1.40 26,00
X 09 2.50 1.40 18.00
X 10 2,50 1.40 20.00
X 11 2.50 1,40 22.00
X 12 2.50 1.80 18,00
X 13 2.50 1.80 22.00
X 16 2,50 0.80 28.00
X 17 2.50 1.20 24,00
X 18 2.50 1.20 28.00
X 19 2,48 1.00 28.00
X 20 2.42 1.00 22,00
X 21 2.50 1.00 20.00
X 22 2,48 1.20 28.50
X 23 2.46 1.20 26,00
X 24 2.50 1.00 30.00
X 25 2,50 1.80 25.00
X 27 2.48 1,40 20.00
X 28 2.50 1.20 26.00 2.38 20,00
X 29 2.50 0.60 30.00
X 30 2,50 1.00 28.00 2.30 20.00
X 31 2.48 1.20 28,00
X 33 2.50 1.00 32.00
X 34 2,48 1.20 29.00 2.34 15.00
X 38 2.48 1,20 28.00 2.28 20.00
X 41 2.48 1.00 29.00 2,43 27.00
X 42 2.53 0.65 29.25
X 44 2,46 1.80 22.00
X 46 2.50 1,20 23.00
X 47 2.50 1.80 30.00 2.35 15,00
X 49 2.50 1.20 22.00
X 50 2,50 1.20 25.00
X 51 2.50 1.20 24,00 2.37 18.00
X 53 2.53 0.60 28.00 2.40 24,00
X 55 2.51 0.98 29.25
X 56 2,50 0.80 26.00 2.36 22.00

AI-translation

Carburetor needles Dellorto
Shank diameter (A)
2.51 mm
Diameter tip (B)
0.98 mm
Cone length (C)
29.25 mm
used in Dellorto carburetor
Dellorto PHBH
License plate
X55

OEM numbers (for comparison purposes only)
Dellorto:
0947755_08
