Ganter-Griff Item number: 3330793B
Ganter-Griff
1 Rating
Oil level plug Lambretta LI,LIS,TV(Series1-3), DL,GP,J, Lui, black
15,90 €*
available immediately
Shipping weight 0,007 kg

Precise oil level control for Lambretta engines

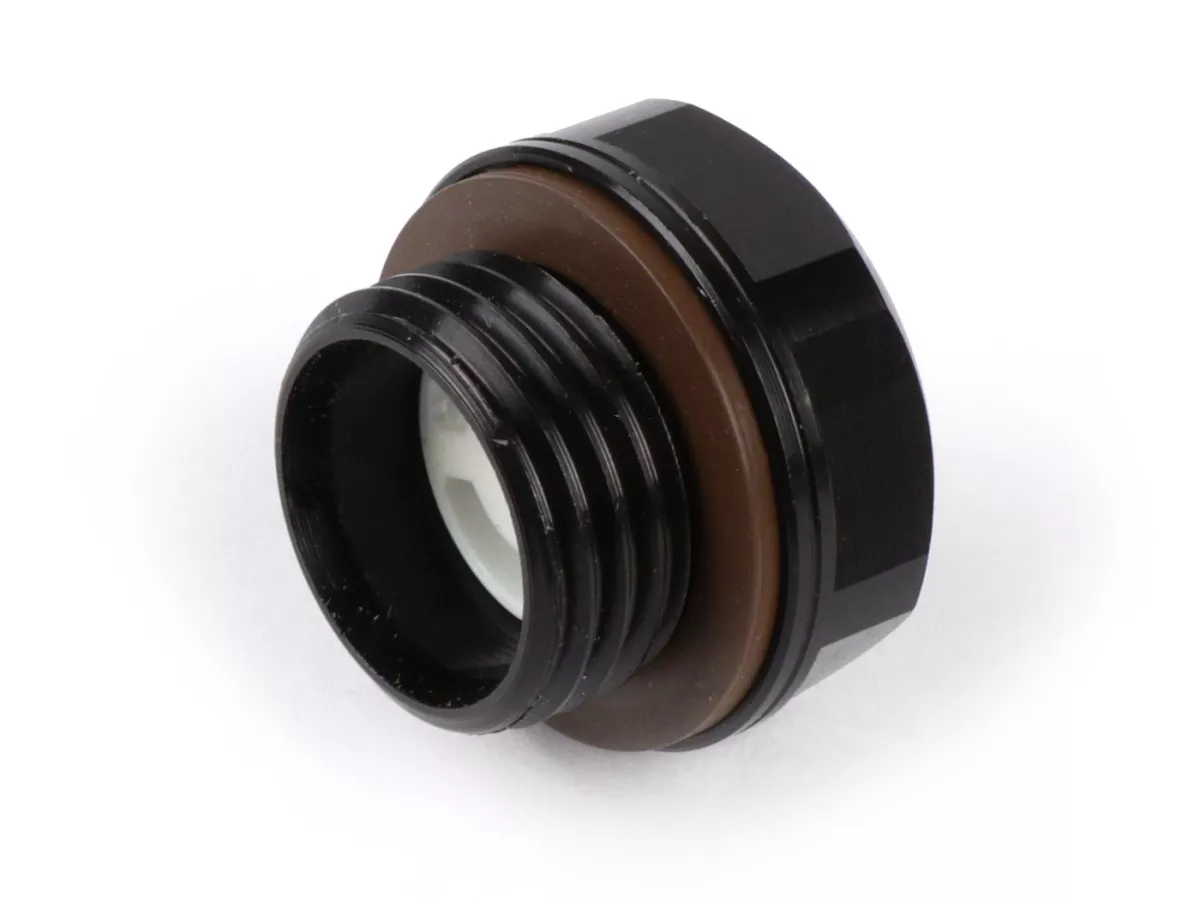

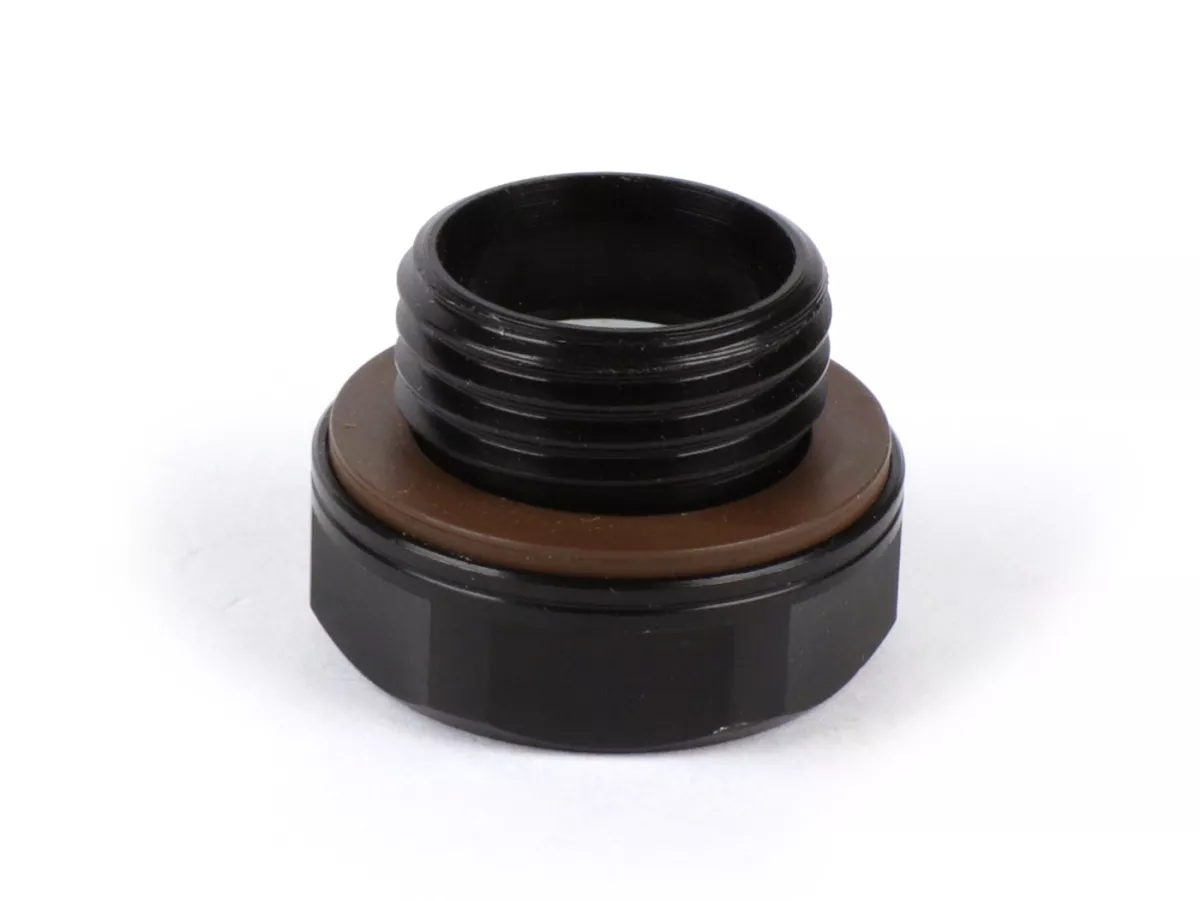

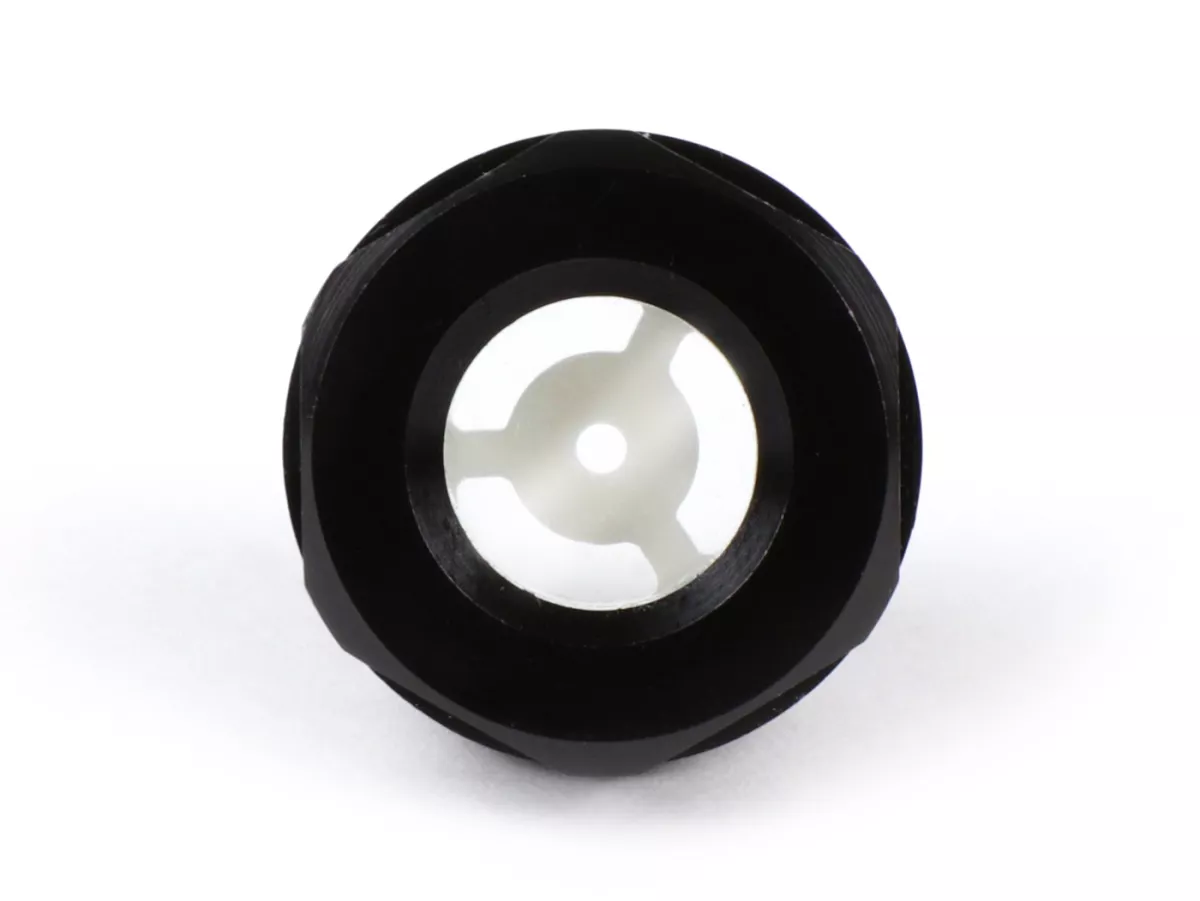

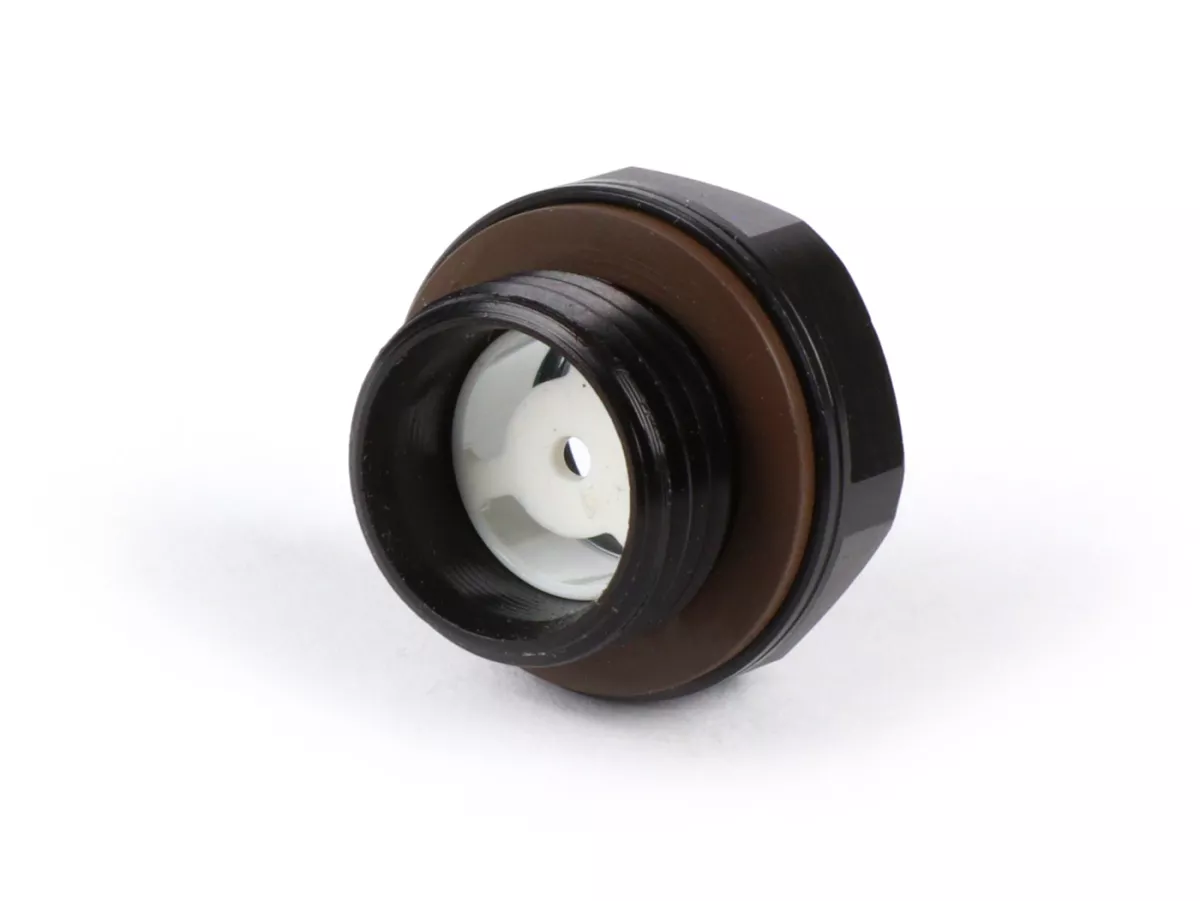

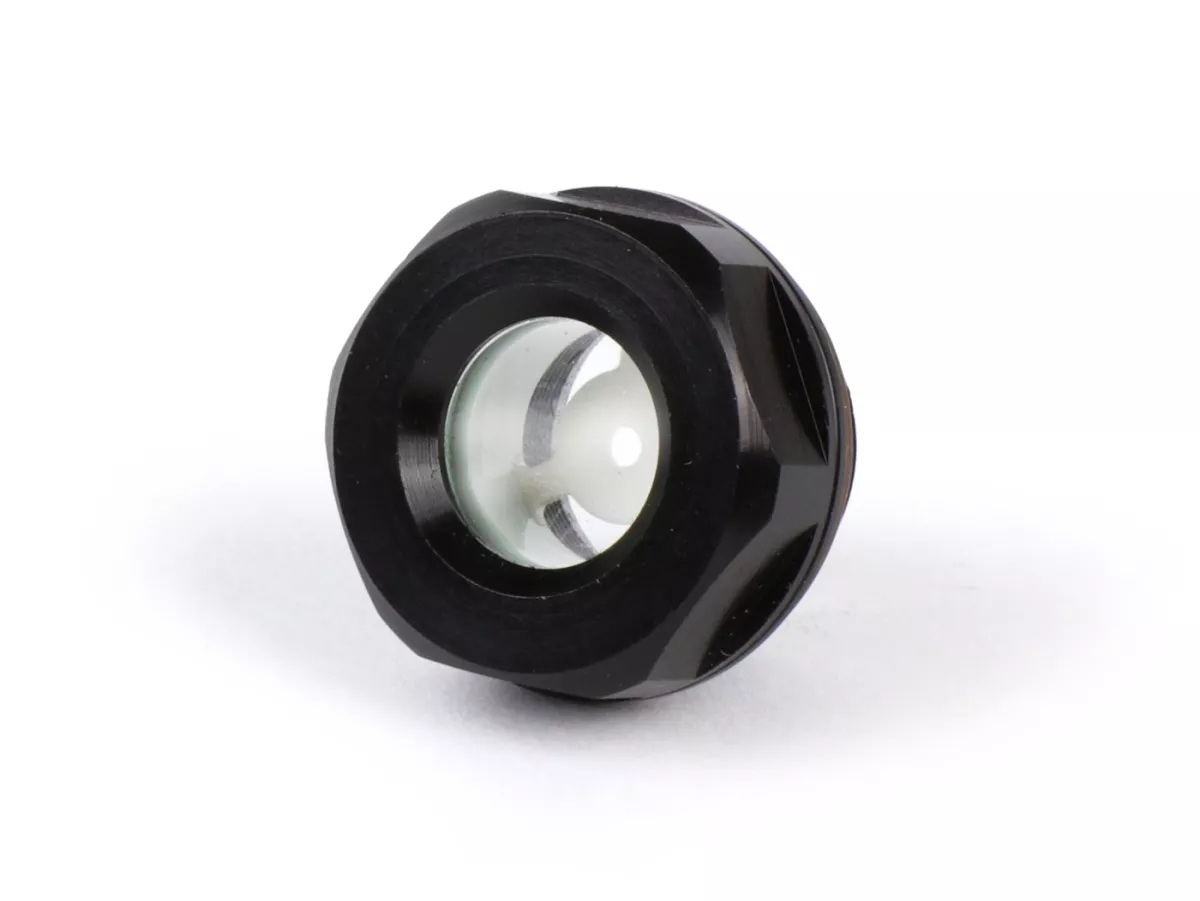

Oil sight glass as a replacement for the oil level control screw of almost all Lambretta engines.

Delivery incl. seal.

  • Housing
  • aluminum
  • precision machined

  • Reflector
  • thermoplastic (polysulfone)
  • Temperature resistant up to 180 °C
  • Inspection glass ESG glass
  • Rubber seal
  • FPM (FKM®)
  • Identification by non-black coloring of the seal

The very sturdily dimensioned, scratch-resistant natural glass pane of the GN 743.1 oil sight glasses is sealed via an O-ring on the circumference of the pane and not on the flat side, which means that the seal is independent of the axial contact pressure.

The outer Ø of the oil sight glasses with the recessed hexagon is matched to screw-in holes for DIN 3852 pipe fittings.

The sealing ring is embedded in a radial and flat-sided recess, which prevents the seal from being lost and, above all, from being squeezed out during tightening.
