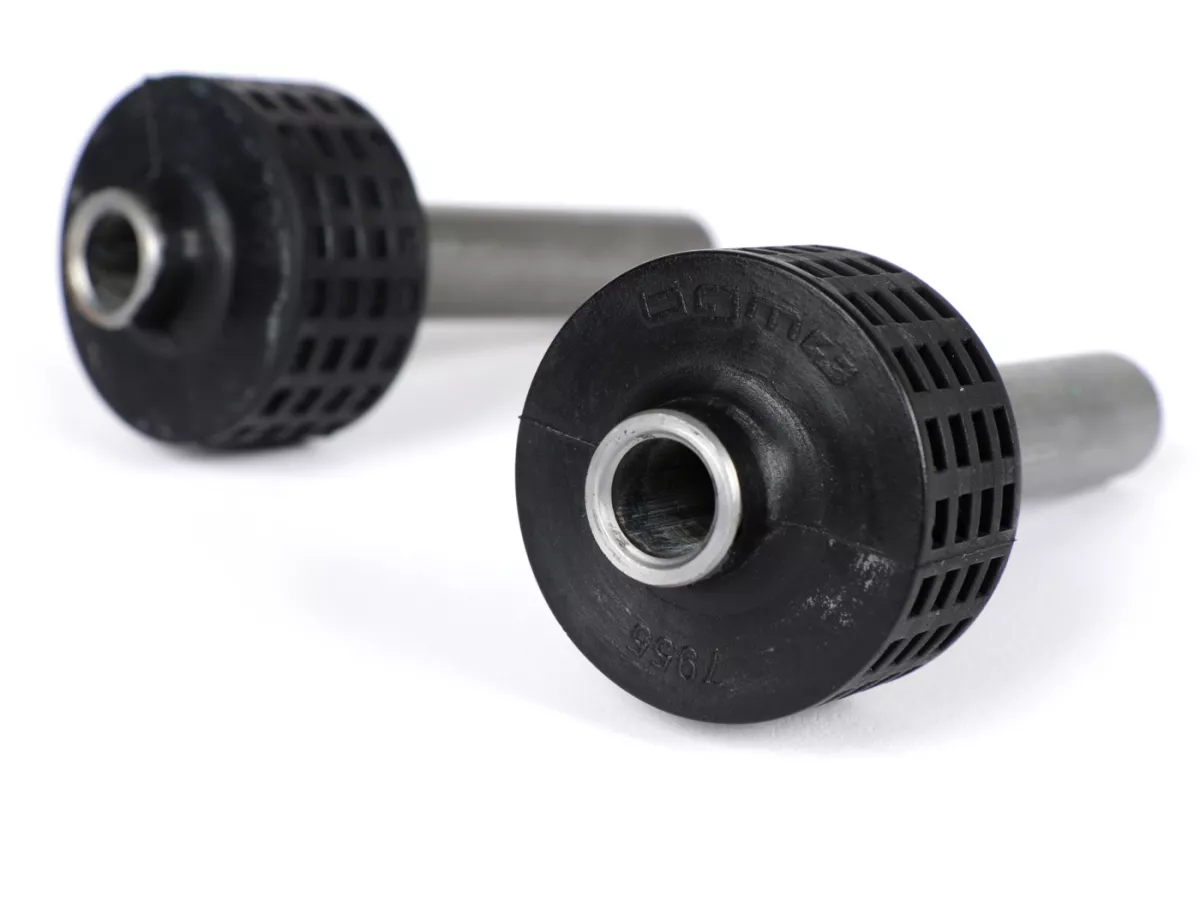

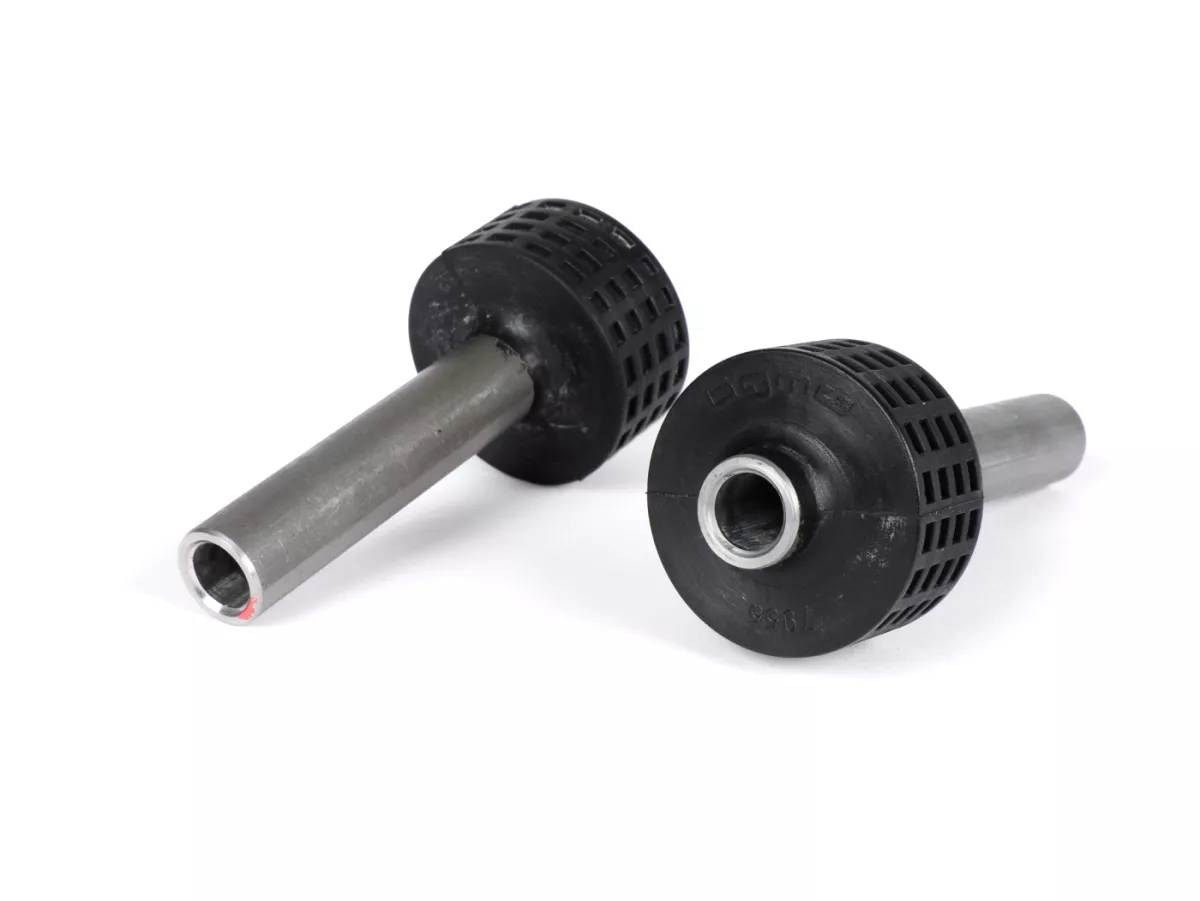

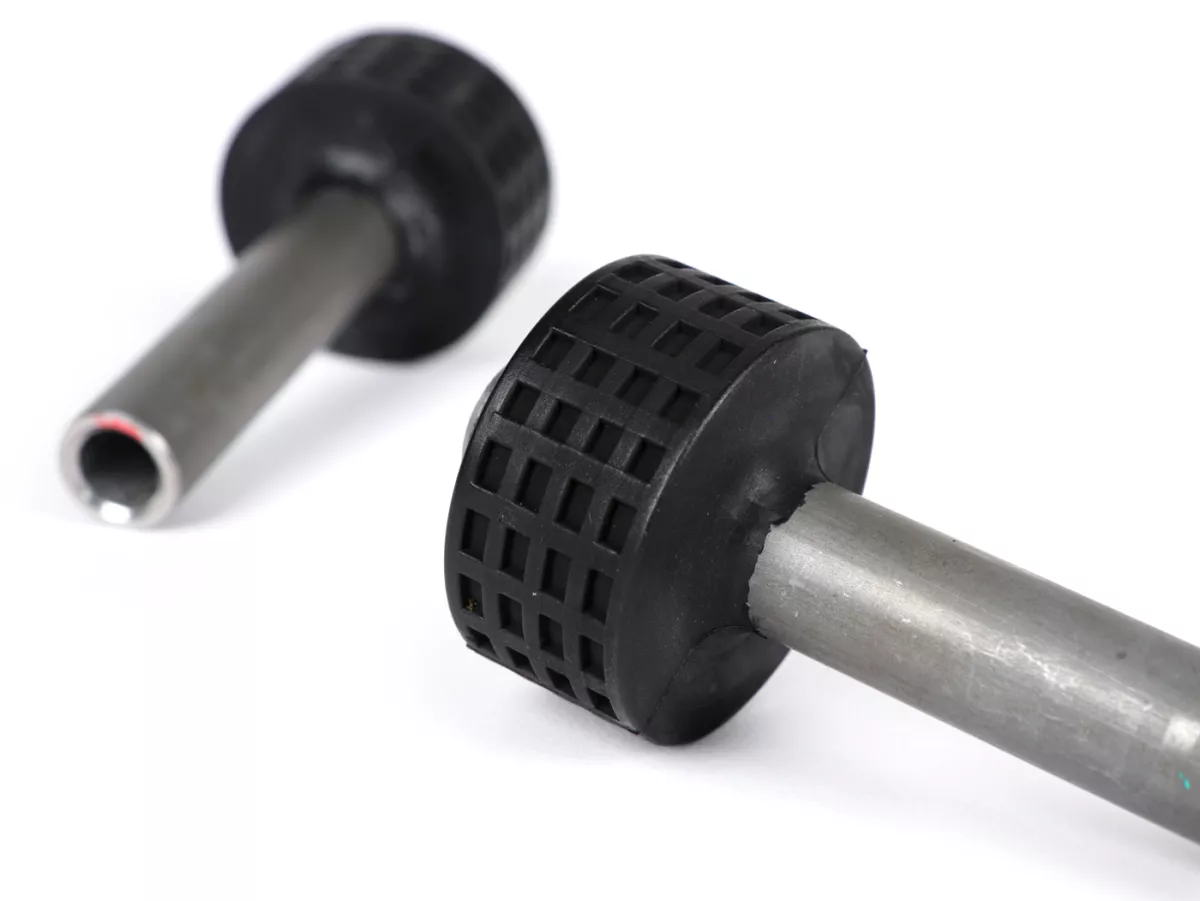

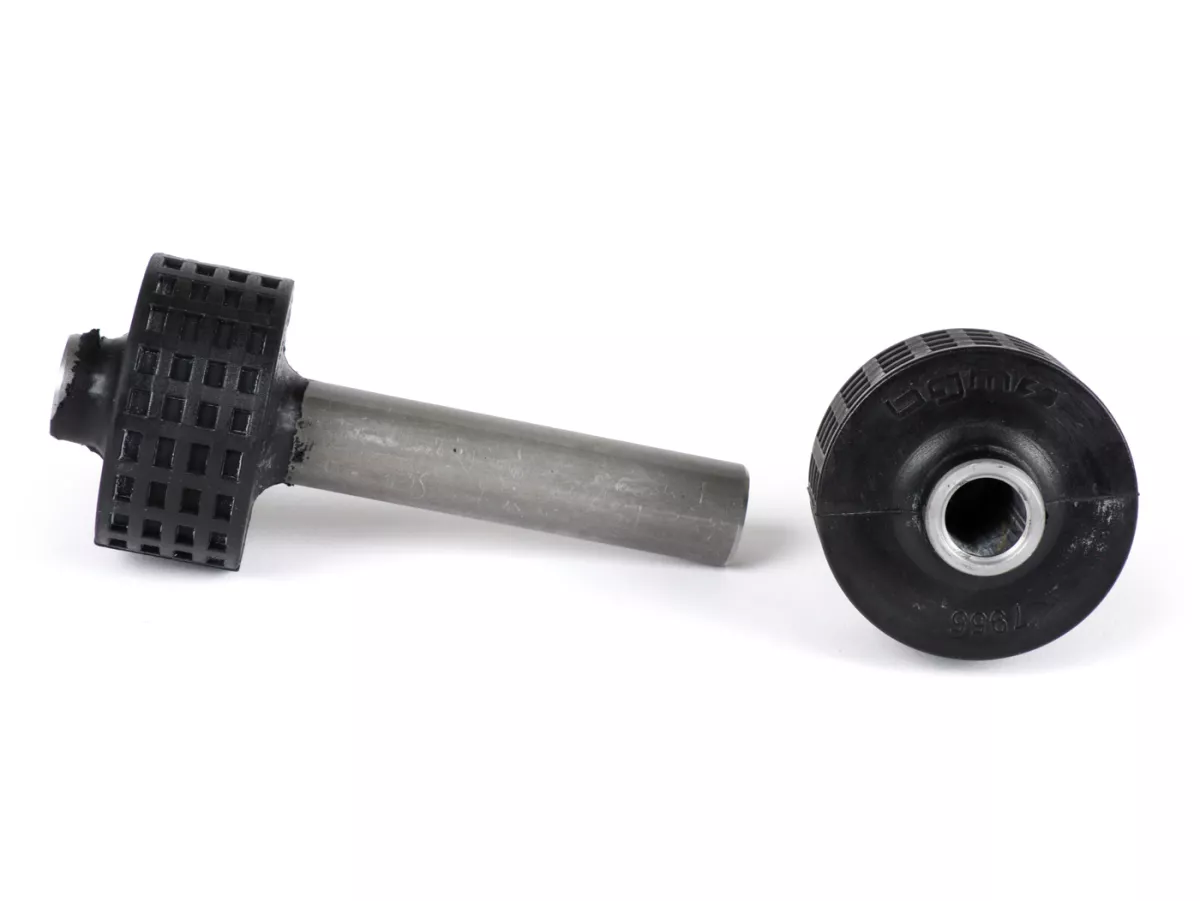

Pair of engine silent blocks -BGM PRO- Vespa V50, V90, SS50, SS90, PV125, ET3

The bgm PRO silent rubbers improve handling by guiding the engine much more precisely in the frame. The reinforced rubbers have asymmetric degrees of hardness. Therefore, driving comfort is maintained despite tighter suspension.

With the reinforced bgm engine silent rubbers supplied in a pair, the chassis gains in directional stability, steering precision and stiffness. Installation is simple and is ideal, for example, in the course of an engine overhaul.

MOUNTING

Vespa PX 200, V50, PV125 ET3, PK
Have inserted rubbers. Remove (lever out) the old rubbers from the housing.
Push the new BGM PRO rubbers back into the housing with a little talcum powder.

Vespa PX80-150, Sprint, VBB, etc..
These models use factory caulked rubbers.
In this case, drill out/flex the caulked axle ends. Remove the tube and rubbers from the housing.
Push the new BGM PRO rubbers back into the housing with a little talcum powder.

NOTE: Install the silent rubbers dry, do not grease/oil. Use talcum powder for easier installation.
Please note:
The rubbers are to be installed directionally.

• On the left in the direction of travel: Red color marking

• In direction of travel right: Green color marking
