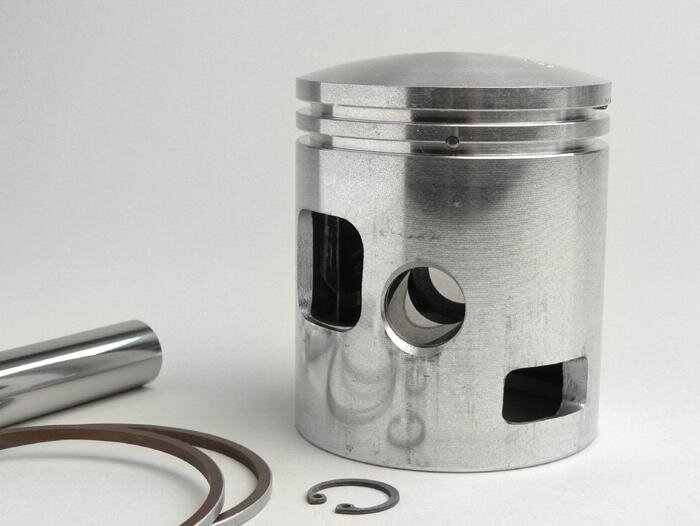

Meteor Piston Item number: 9020022
Meteor Piston
66,00 €*
available immediately
Shipping weight 0,35 kg

High-precision manufactured replacement piston from Meteor.

Meteor, located in Northern Italy, is our first choice for pistons. Therefore Meteor also manufactures the pistons for our Vespa BGM177 and Lambretta BGM195/225 cylinders.

br>

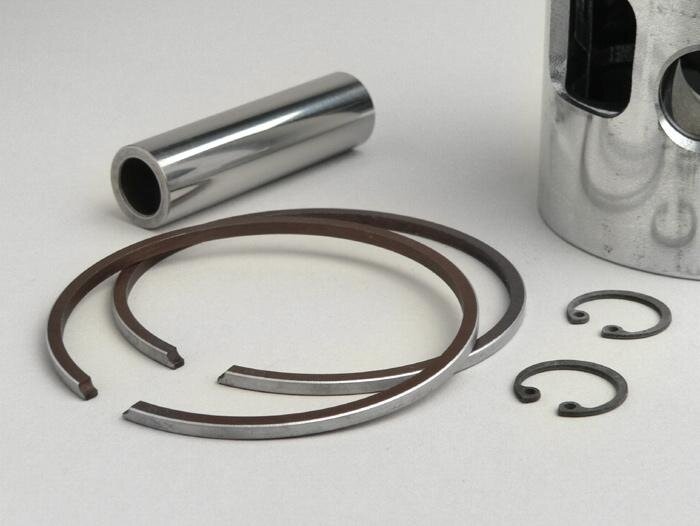

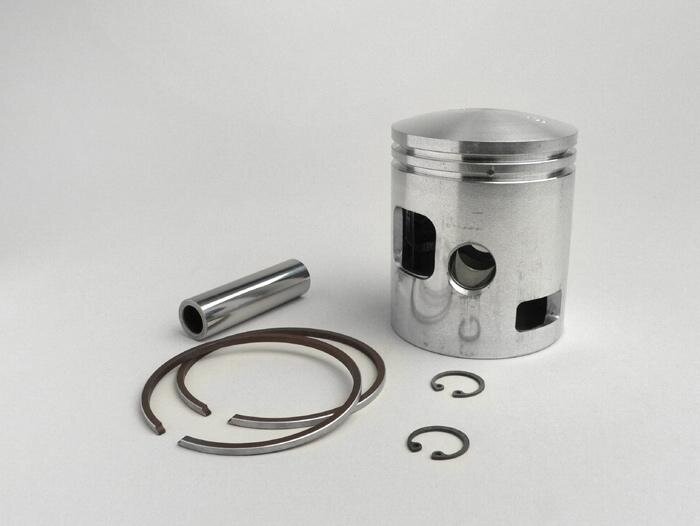

The scope of delivery includes

  • 1x piston

  • 1x piston pin

  • 2x piston clip

  • 2x piston ring


The specified piston diameter (z.The specified piston diameter (e.g. 66.5mm) represents the bore of the cylinder.

The piston itself has a corresponding undersize for this bore. This ensures that the correct piston clearance is always available. Some pistons have trapezoidally profiled piston rings (so-called keystone rings), these only fit in one installation position. If the ring is not free, please loosen it carefully and reinstall it upside down.


AI-translation

Rate this article now and let us know what you think.
Piston pin
Diameter
16 mm
Length
58.2 mm

Cylinder
Drill hole
67.1 mm
Motor type
2-Takt

Piston
Number of piston rings
2
Piston manufacturing method
gegossen
Pin position
außermittig
Compression height
42.5 mm
Piston roof shape
konvex gewölbt

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
2,5mm

Piston clips
Piston clip type
Seeger-Typ
Wire gauge Piston clip
1,0mm

OEM numbers (for comparison purposes only)
Scooter Center:
9020022
