Is needed to fix the rear brake drum to the vehicle with four nuts. The mounting technique is still very much based on the early car technology. The advantage of interchangeable rims at the front and rear has proven itself to be very effective to this day, as it allows the vehicle to be quickly repaired with a single spare wheel in the event of a puncture.

The brake drum flange is used to mount the brake drum first, followed by the rim.

brake drum mountings (also called brake drum flange) for Vespa models with brake drums without integrated gearing are available in many different versions.


There are two general differences:


  • toothing (27Z or 38 Z)
  • diameter brake drum stud bolt (M8 or M10)

  • It is very difficult to define exactly in which model/engine which type of flange was installed.
    We therefore specify the toothing and the diameter of the bolts for exact identification.

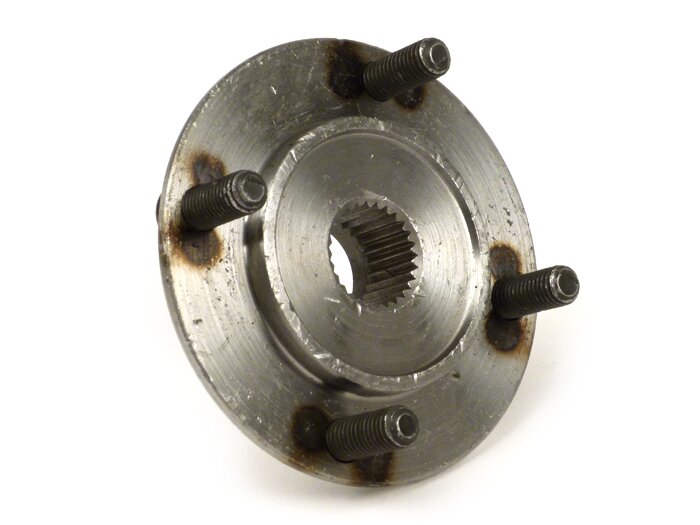

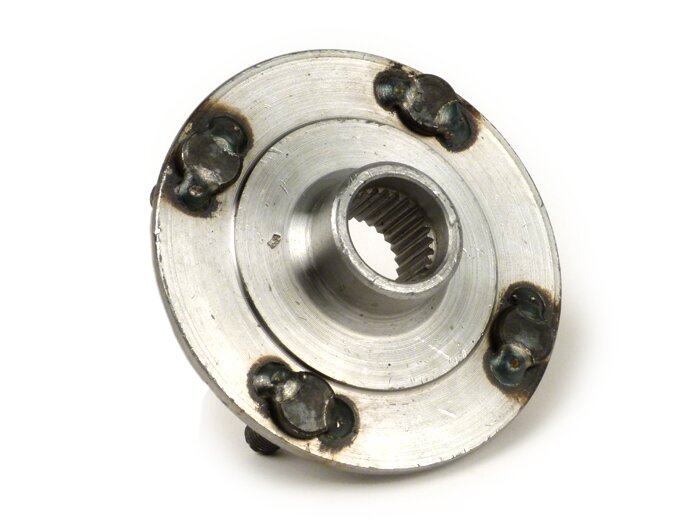

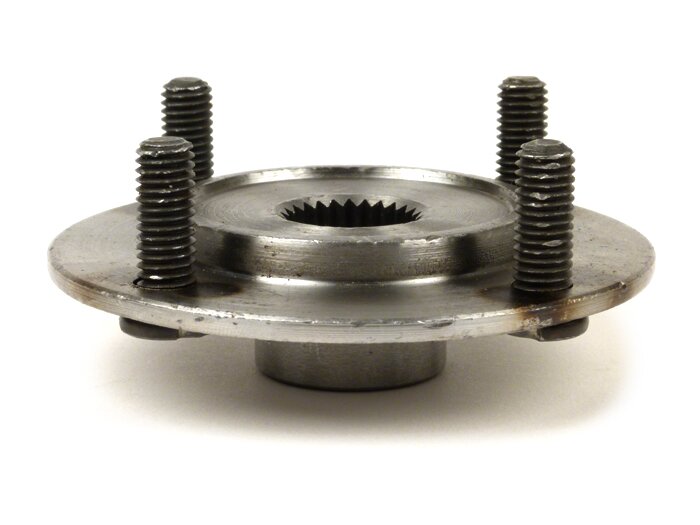

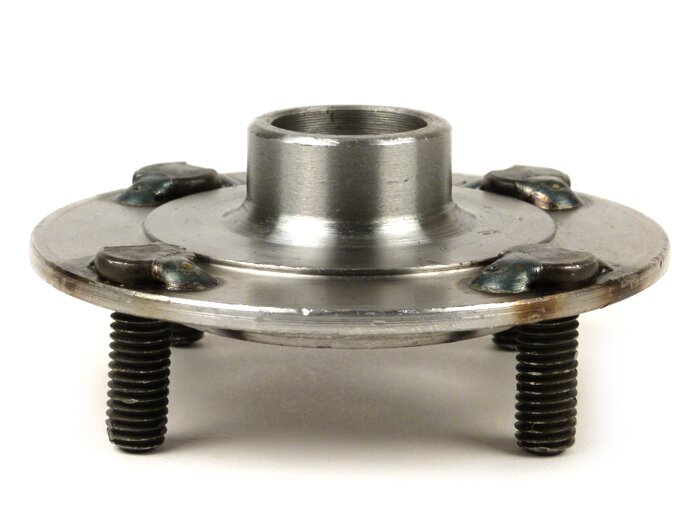

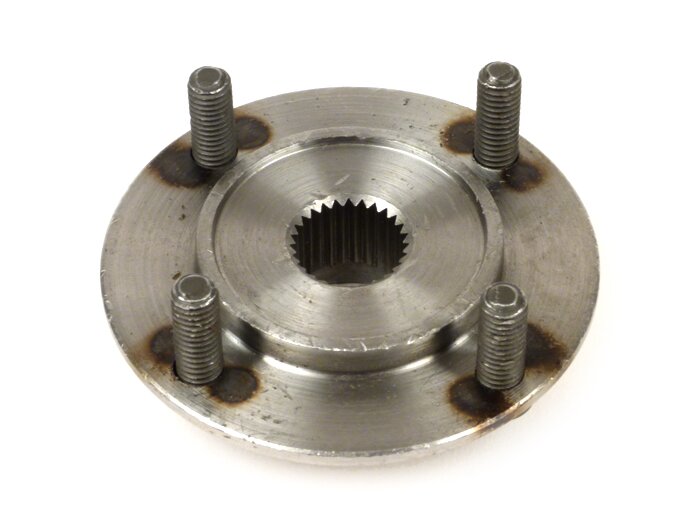

    The flange type offered here has:


  • Fine toothing 38Z
  • M8 brake drum stud bolts

  • (US)
    AI-translation

    This is how we ensure, that reviews come from real consumers.
    Anonym  02/26/2016

    Gute Verabeitung

    Anonym  07/26/2017

    Super service, gute qualität

    General
    Quantity included in delivery
    1

    Brake drum flanges
    Material
    Stahl
    Flange diameter
    84.8 mm
    Flange plate thickness
    3.3 mm
    Number of teeth
    38
    Number of screw connections for the brake drum
    4
    Type of brake drum mounting
    Stehbolzen mit Muttern
    Thread size of the brake drum mounting
    M8

    OEM numbers (for comparison purposes only)
    Piaggio:
    15148, 15907, 2857, 95802
