OEM-Qualität Item number: 457MF129
OEM-Qualität
1 Rating
14,90 €*
not available
Shipping weight 0,04 kg
Diaphragm plates are subject to natural wear, similar to piston rings and clutch shoes. The diaphragm plates should therefore be replaced at regular intervals.

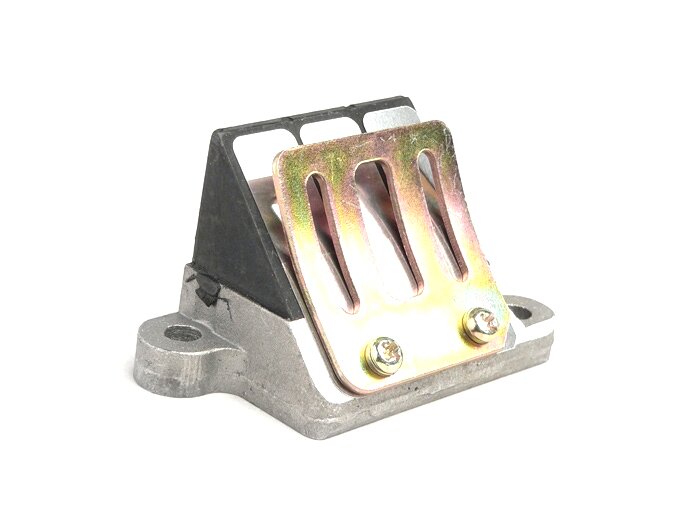

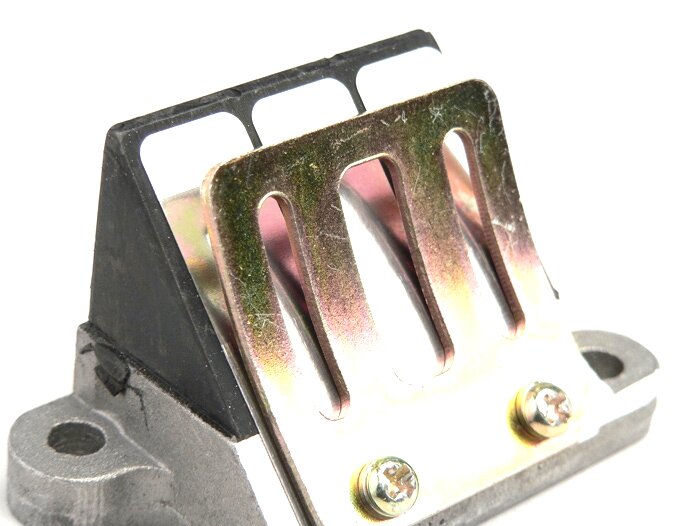

With the bgm ORIGINAL diaphragm blocks we offer you a low-cost replacement in original equipment quality. Since everything is already pre-assembled, the replacement is quick and easy, even for inexperienced screwdrivers.
AI-translation/sub>

This is how we ensure, that reviews come from real consumers.
Toni B. from Frechen 07/16/2025
Membrane platelets
Strength tile 1
0.1 mm
Material
Stahl
Number of screws per plate
2

Membrane blocks
Design
V-Form
Membrane body material
Aluminium
Rubberized membrane body
Nein
Number of fixing holes
2
Hole stitch
52mm
Outer dimension flange plate
42 x 32mm
Internal dimension flange plate
35 x 32mm
Flange plate thickness
13,5mm
Insertion depth
21,0mm
Stops for membrane plates
ja
Number of membranes
3
Stuffer included in the scope of delivery
nein
Seal included in the scope of delivery
nein
Spacer included in the scope of delivery
nein
Replacement plates included in the scope of delivery
nein

OEM numbers (for comparison purposes only)
Scooter Center:
457MF129
