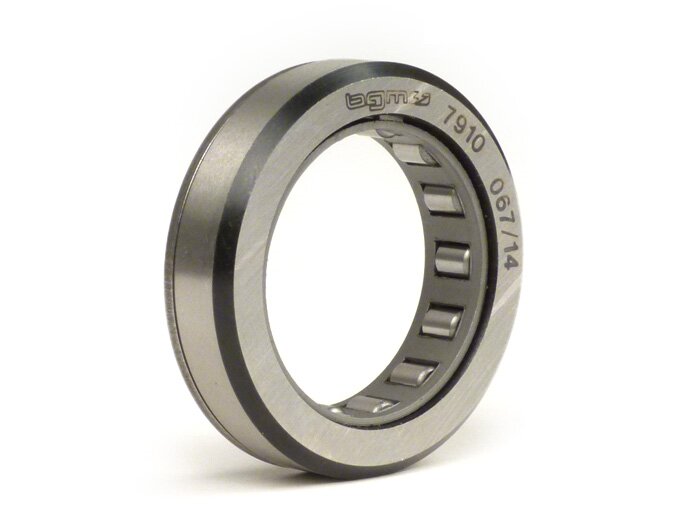

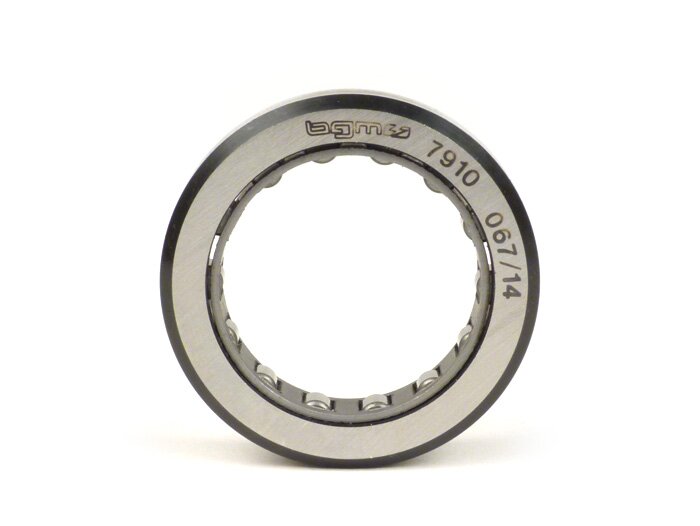

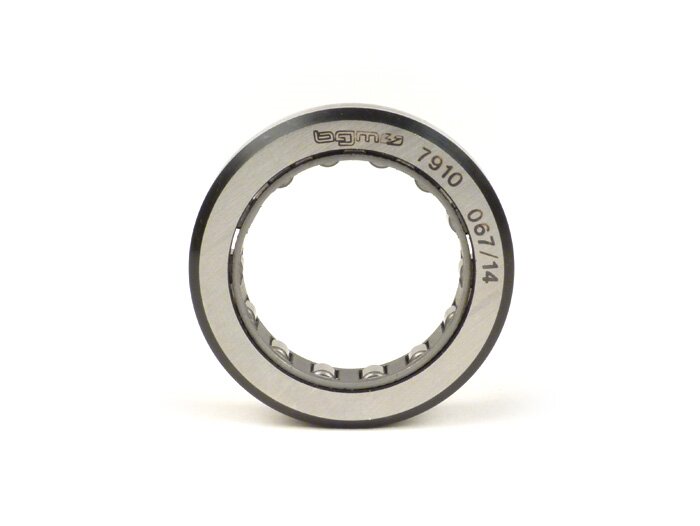

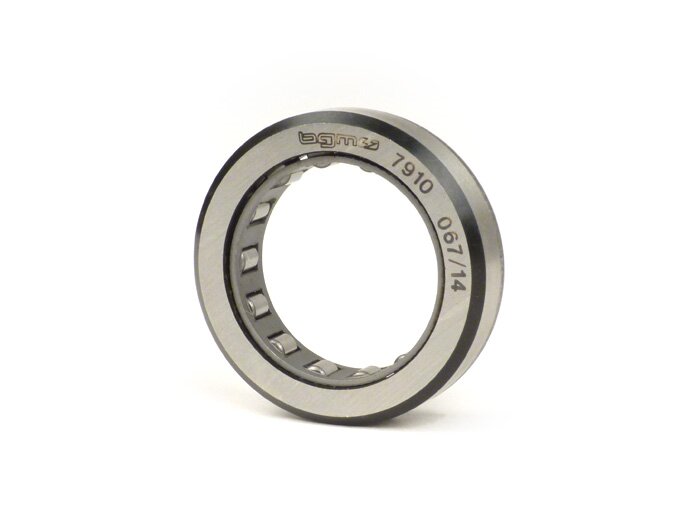

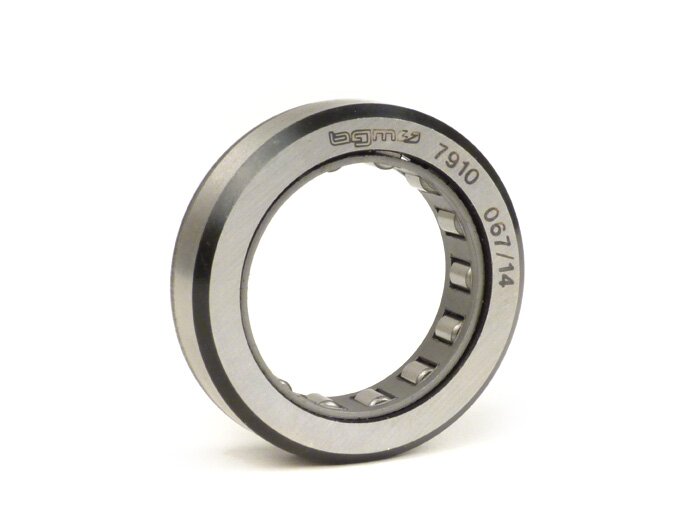

Three-part BGM precision roller bearing for the main shaft bearing on the control box side of Vespa VNA, VNB, VBB, Super, Sprint, GT, GTR

All 125/150cc Vespa engines with horizontal cylinder (from approx. 1957 onwards), starting with the still direct intake VNA models, have a multi-part main shaft bearing on the control box side. It was not until the late years of the Vespa Sprint models that a modern, closed needle cage with different dimensions was used (B188).

For a long time the old bearing type was only available from Indian production, finally in a completely unacceptable quality. These have a bearing clearance of over 6/10mm. Thus the main shaft has an enormous amount of play and would be noticed negatively by the TÜV at the latest.

The BGM bearings are manufactured by a well-known Italian company and have a closed bearing cage. Thanks to the precise production and the high-quality material, the main and auxiliary shaft are guided safely and permanently.

Thanks to the closed bearing cage, the rollers are inserted here before the bearing ring is installed.

  • One-piece cage
  • Made in Italy
  • Precise dimensional accuracy
  • Highest quality material

(US)


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  10/14/2016

buon cuscinetto, ben rifinito, cosigliabilissimo su tutte le Old

Anonym  06/12/2019

Cuscinetto vespa lato selettore
Finalmente ho trovato il tempo di montarlo per ora tutto perfetto Fero un po di rodaggio poi lo proverò come si deve , per il momento molto bene.

Anonym  06/11/2015

ottima fattura,molto simile all'originale Piaggio.

Anonym  01/29/2024

Rodamiento
Después de muchos años sin tener un rodamiento decente como recambio, por fin BGM nos trae éste. Llevo años montándolo en los motores Motovespa con cero incidencias.

Anonym  10/06/2025
Ball bearing
Inner diameter
28.2 mm
Outside diameter
42 mm
Width
8 mm
Dimensions
28,2x42x08mm

General
EAN
4250366706405

OEM numbers (for comparison purposes only)
Piaggio:
047160, 47160, 47161, 81842, 82086, 82806
