Front left indicator Royal Alloy – Black – original spare part for handlebar mounting

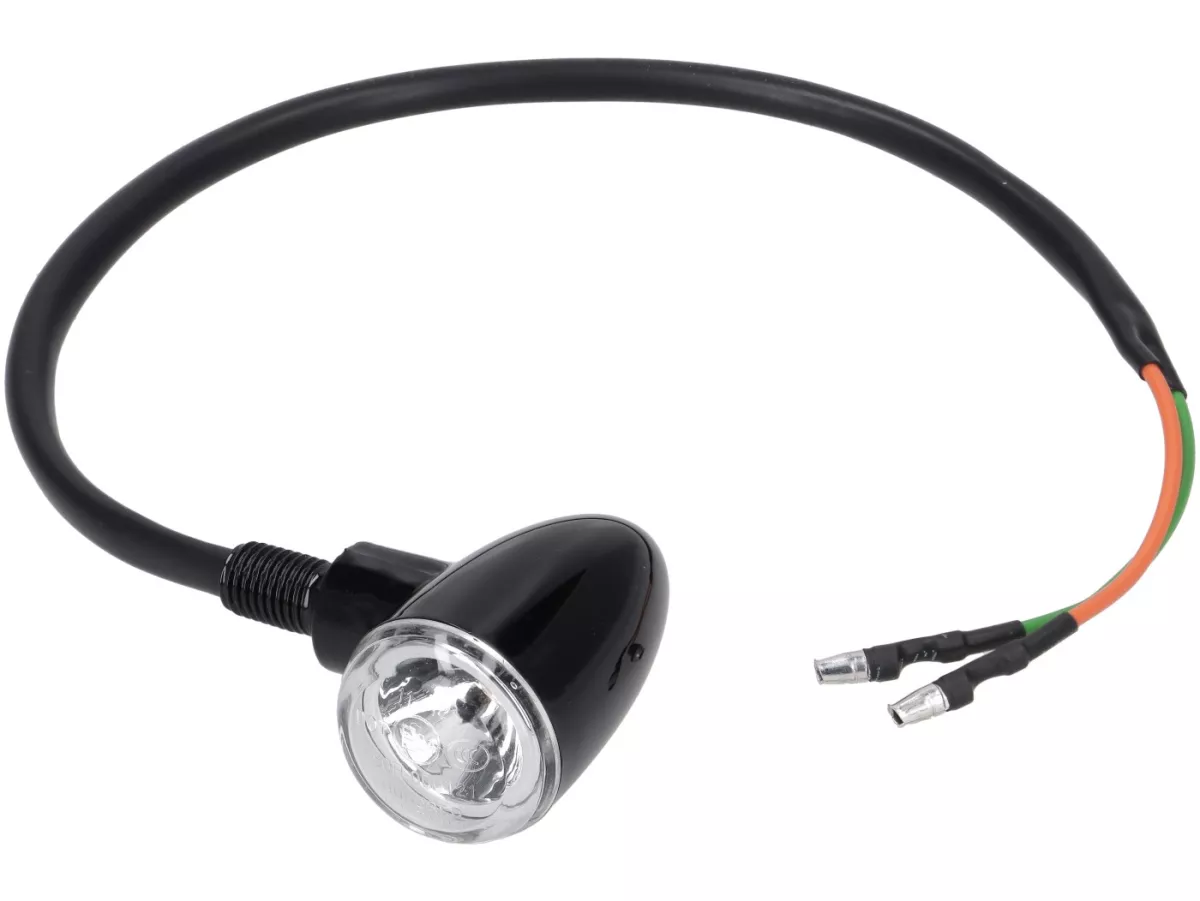

Original Royal Alloy indicator for the front left-hand side, featuring a black housing. The indicator is mounted on the handlebar and is intended for Royal Alloy GP 350 as well as JPS and TG models. The Royal Alloy part number for this black version is 0311070007-10-022.
The housing has a compact, rounded basic shape and tapers noticeably towards the rear mounting section. The black surface has a smooth finish. At the front, a round, clear indicator lens closes the housing. The correspondingly shaped reflector unit is located behind the lens.
Left-hand handlebar mounting
The indicator is designed for installation on the left-hand side of the handlebar. It is secured by means of the threaded mounting section extending from the rear of the housing. The connection cable and mounting section are arranged along the same housing axis.
This design combines the housing, optical components, mounting section and electrical connection cable into a compact unit.
Connection cable with pre-installed contacts
A long connection cable with a black outer sheath extends from the mounting section. At the end of the cable, two individual wires emerge from the sheath. These are already fitted with separate connectors for connection to the corresponding vehicle wiring.
Black original version
Unlike the chrome-plated version, this variant features a black finish across the visible housing. The clear indicator lens provides a distinct contrast to the dark surface. This allows the black original version to be specifically replaced if the existing front left indicator is damaged or defective.
Technical features
- Original Royal Alloy spare part
- Position: front left
- Mounting on the left-hand side of the handlebar
- Black housing tapering towards the rear
- Round, clear indicator lens
- Internal reflector unit
- Rear threaded mounting section
- Two-wire connection cable with black outer sheath and individual connectors
- Royal Alloy part number: 0311070007-10-022
Fits
- Royal Alloy GP 350
- Royal Alloy JPS 125-350
- Royal Alloy TG 125-350
Position-specific original spare part
The assignment to the front left-hand side must be observed when selecting the replacement part. With its black housing, integrated threaded mounting section and pre-installed wiring, this component provides a complete indicator unit for the intended position on the handlebar.
