OEM-Qualität Item number: 7671101
OEM-Qualität
3 Ratings
4,50 €*
available immediately
Shipping weight 0,05 kg
Spacer nut to be mounted between the upper end of the rear shock absorber and the chassis-side square silent block.

It is often necessary if large carburettors or large resonance exhaust systems are to be used in an oldie.

It is important to note that raising the rear end can also have a strong influence on the driving behaviour.

The higher the rear end is raised compared to the standard condition, the more nervous/nervous the driving behaviour becomes. On the other hand, the scooter is more stable when the rear is lowered.

The keyword for further research is the so-called 'caster' on the front axle.

In some models no spacer is used at all, occasionally this may also be necessary with retrofit shock absorbers that are longer than the standard counterpart.

The spacers are available in these lengths:

  • 26mm
  • 35mm
  • 40mm
  • 43mm
  • 48mm

This article is the version with 43mm.


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  11/26/2015

ok consigliato

Anonym  03/01/2016

Top Ware

Anonym  01/11/2018

Passt perfekt !

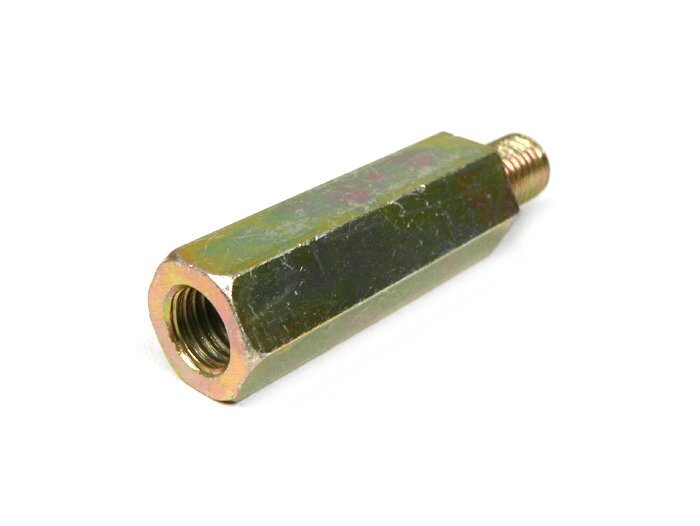

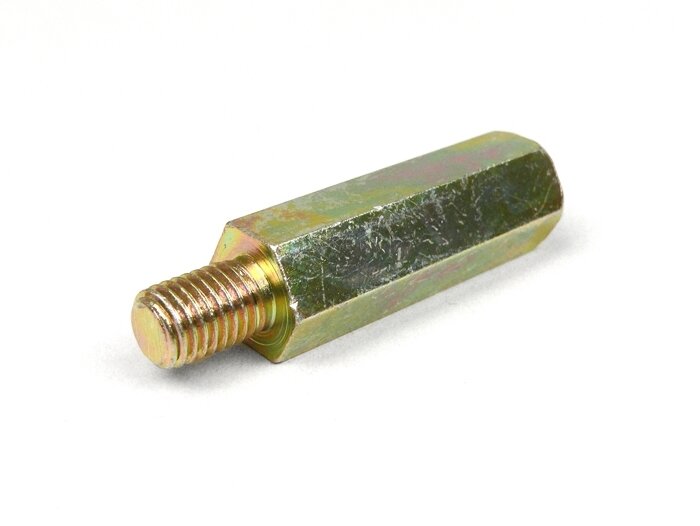

Shock absorber spacer
Length
43 mm
External thread
M9x1,25 (l=13mm)
Internal thread
M9x1.25 (l=23mm)
Width across flats
14mm
