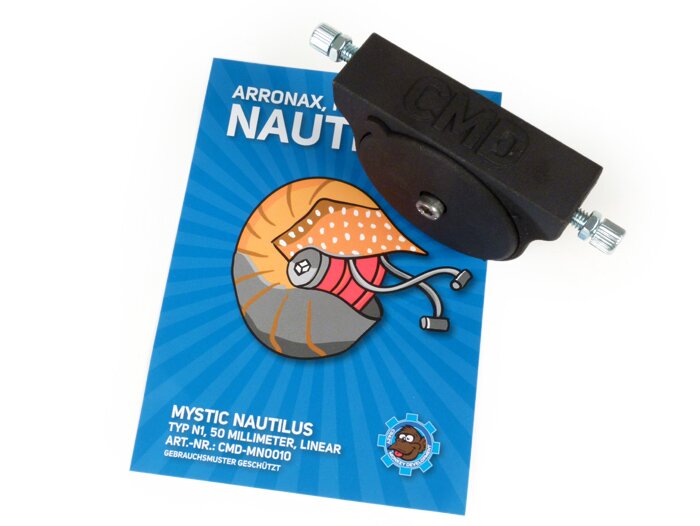

Throttle cable transmission box/roller - CMD Mystic Nautilus- (type N1), Quick action, throttle Ø50mm - universal

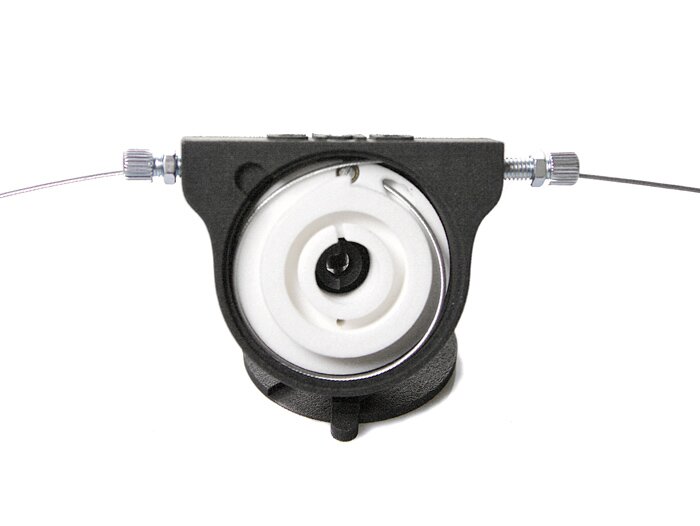

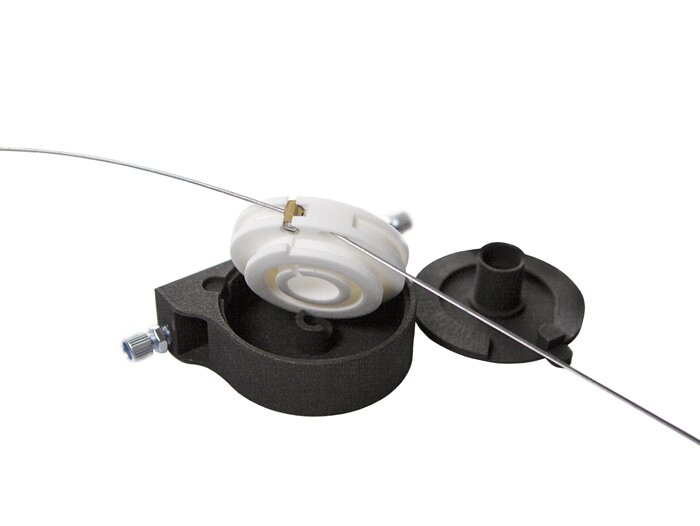

In order to be able to open a large carburettor (e.g. Ø=38mm) completely and quickly, you need a large throttle roller on the handlebars. The space in the handlebars is often limited, a conventional throttle grip is not possible for many oldies for optical reasons. The Mystic Nautilus from CMD provides a remedy here. Two differently sized pulley diameters inside the Nautilus provide more opening travel at the carburettor with the same rotational movement at the original throttle grip. The Nautilus itself can, of course, be mounted inside the vehicle, the result is a de facto invisible throttle grip.

• Type: linear shortening of throttle travel
• Material: resistant technical nylon (PA)
• Casing colour black
• Roll colour white
• Utility patent protected

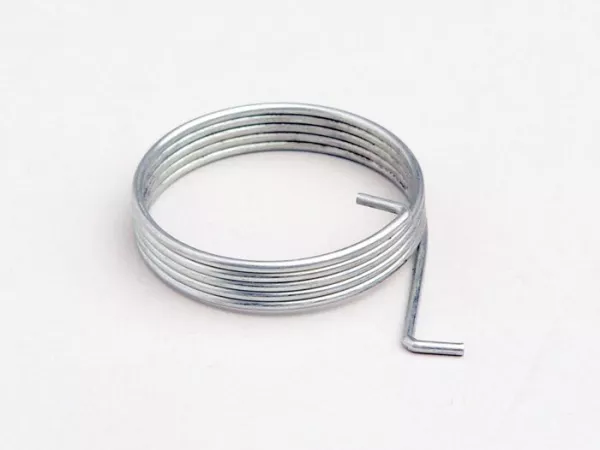

TIP: A spring (gas tube spring PX Millennium) can be installed as an option.
This increases the restoring torque and also reliably pulls back sluggish cable pulls.

_{AI-translation}
