Keihin Item number: KH330000
Keihin
1 Rating
335,00 €*
available immediately
Shipping weight 0,69 kg

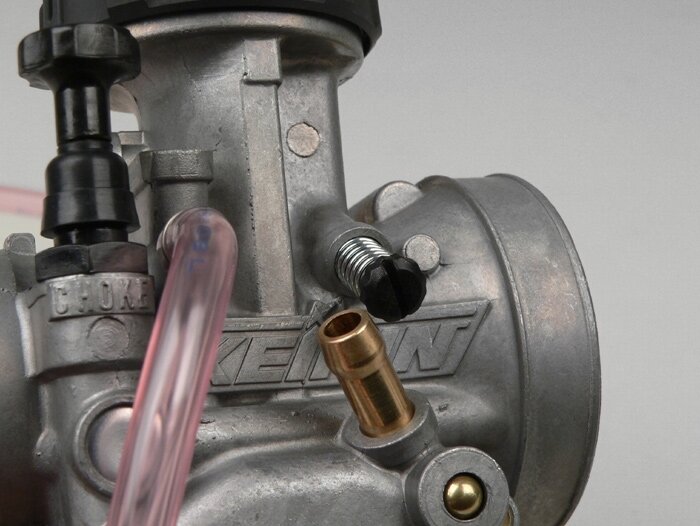

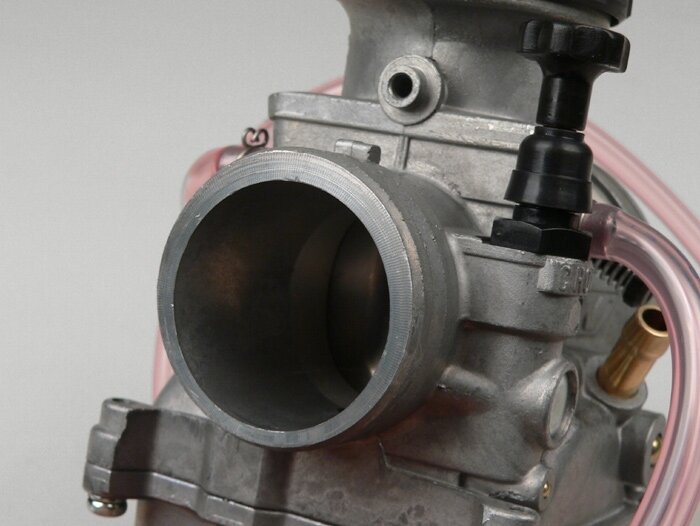

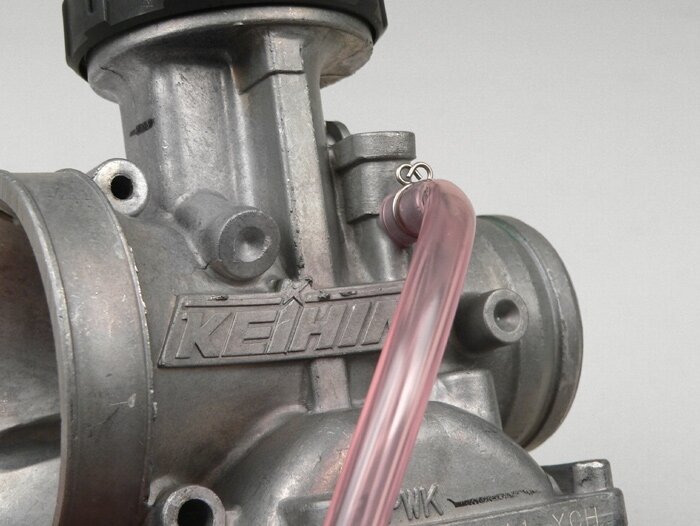

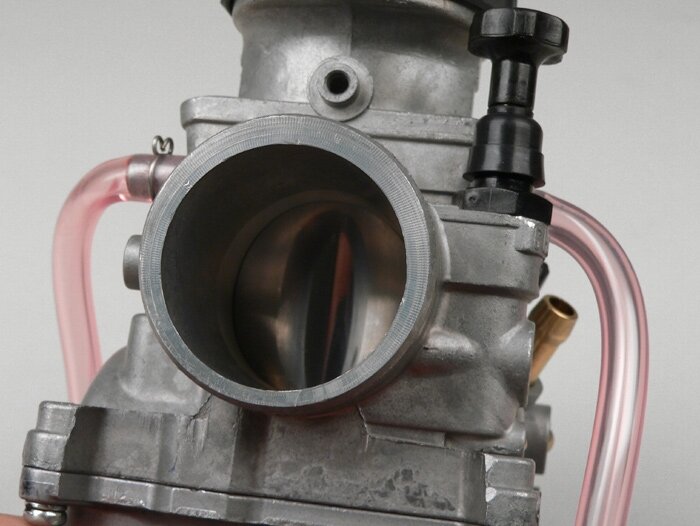

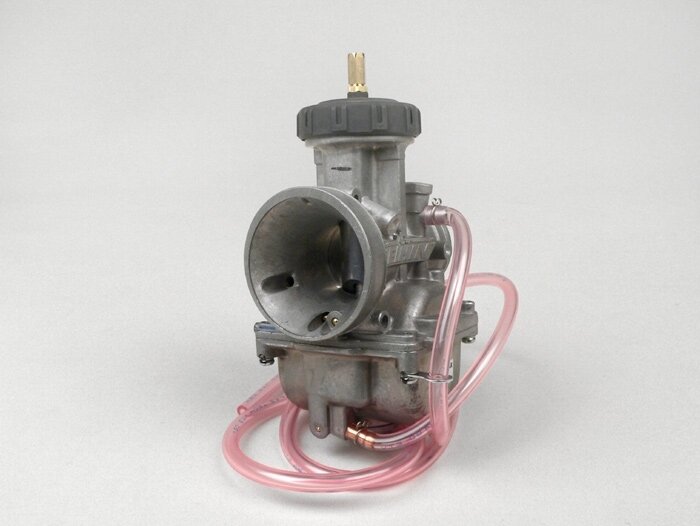

Power without compromise. Keihin's PWK carburetors are the first choice in motocross. Both for original equipment manufacturers and in the tuning sector. Due to the high quality workmanship, the easy tuning and the unique responsiveness, they are first choice wherever performance is required.

Features:

  • Chrome-plated D-shape slider in solid design
  • Direct response from idle speed
  • Flow-optimized in high rpm ranges
  • Easy tuning behavior

.
The large PWKs are perfect for all diaphragms derived from the RD350 reed block.
The carburettors come with a useful basic tuning and the large float chamber offers enough volume for speed orgies beyond the 10,000 mark. And that even with large displacement.

  • connection width intake manifold: 42mm
  • connection width air filter: 59mm
  • main nozzle: 165
  • side nozzle: 52
  • needle: 48CGL

Kyajet - PWK tuning tool (click)
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  05/07/2015

Toller Vergaser bei 90% der Vespa Setups funktioniert eine 40-48 Nebendüse, 140-165 Hauptdüse und eine BGN Nadel.

Carburetor
Main nozzle size
165
Main nozzle type
Keihin 5mm (99101-357) PWK
Secondary nozzle type
Keihin (N424-21)
Slider type
D-Schieber
Choke type
manuell Zugknopf
Connection type Intake manifold
Gummiverbindung
Position of mixture screw
links
Fuel hose position
links
Fitting type
M6 x 0.75
Float chamber material
Metall
Size of secondary nozzle
52
Needle size
CGL
has Powerjet
nein
Slider size
6
Height
163.3 mm
Width
85 mm
Depth
91 mm
Relative connection height
79.5 mm
Connection width air filter
59 mm
Connection width of intake manifold
42 mm
Fuel hose connection width
7 mm
has oil connection
nein
has vacuum connection
nein
Venturi size
33 mm
Connection type Air filter
geklemmt
Position of idle throttle screw
links
