Dellorto Item number: 2599993
Dellorto
3 Ratings
8,90 €*
available immediately
Shipping weight 0,01 kg
Throttle cable manifold sets for Dell'Orto carburettors with M6 thread in the carburettor cap.

We carry the manifolds with different angles, so you can rebuild the carburetors for almost every installation position. Usually the Dell'Orto carburettors are delivered with a short set screw directly screwed into the carburettor, or they have a 70°-90° angled connector.

For some installation positions, like the Smallframe models ala Primavera, ET3, PK etc., it is useful to convert the existing throttle cable manifold. Here the throttle cable is led from below to the carburettor, therefore the 180° elbow is ideally suited here.

This should however only be carefully countered to avoid a vibration break due to the large span of the elbow.

  • 50°
  • 70°
  • 90°
  • 180°

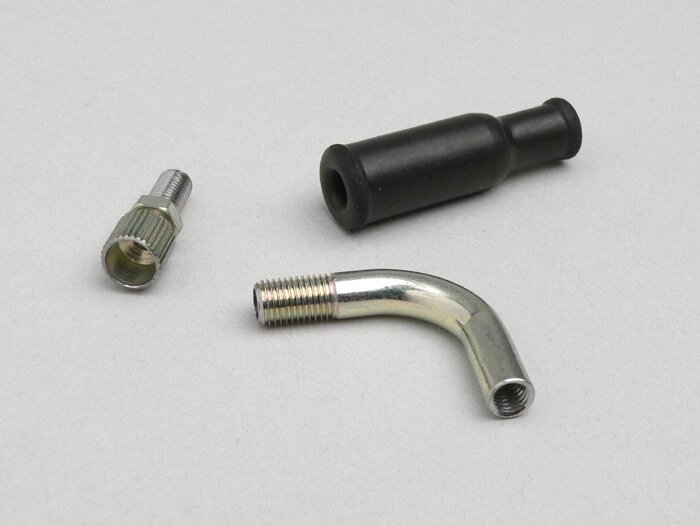

Included is the elbow, the adjusting screw for the throttle cable clearance, as well as the rubber grommet for the outer cable, which should prevent dirt and water from entering.

TIP: Also suitable for Keihin PWK carburettors!
AI-translation

This is how we ensure, that reviews come from real consumers.
Heinrich M. from Bergheim 07/14/2025
Anonym  07/29/2025
Waldemar S. from Hüttenberg 07/31/2025
Carburetor
Fitting type
M6 x 0.75

Throttle cable manifold
Length external thread
8.5mm
Internal thread
M5 x 0.75
Internal thread Length
14 mm
Ø outside
6 mm
Ø inside
3 mm
Total length
48mm
Material
Edelstahl
Adjusting screw included in the scope of delivery
ja
Rubber cap included in the scope of delivery
ja
Curvature
90°
Width across flats
7mm

OEM numbers (for comparison purposes only)
Piaggio:
113903, AP8550220
Scooter Center:
2599993
Dellorto:
5303600_78, 7423_35
