4 discs BGM8004
CONTAINS: 4x friction lining BGM Pro (each lining 3,50mm)
RESULT: 4-plate clutch in connection with series clutch parts (3x 1,50mm clutch steel plate like series)
5 discs BGM8005:
CONTAINS: 5x friction lining BGM Pro (each lining 3,50mm)
RESULTS: 5-plate clutch in connection with higher pinion, spider and base plate (4x 1,50mm clutch steel plate)

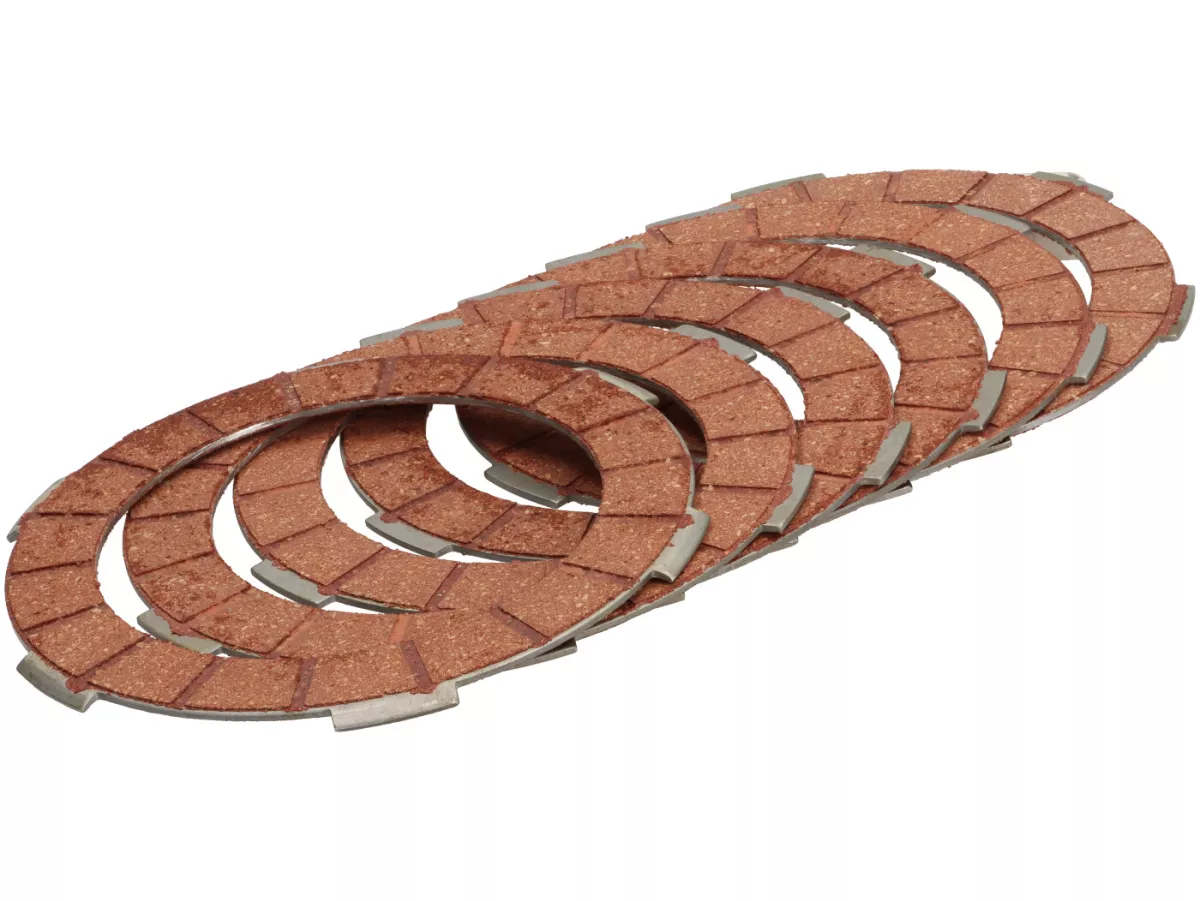

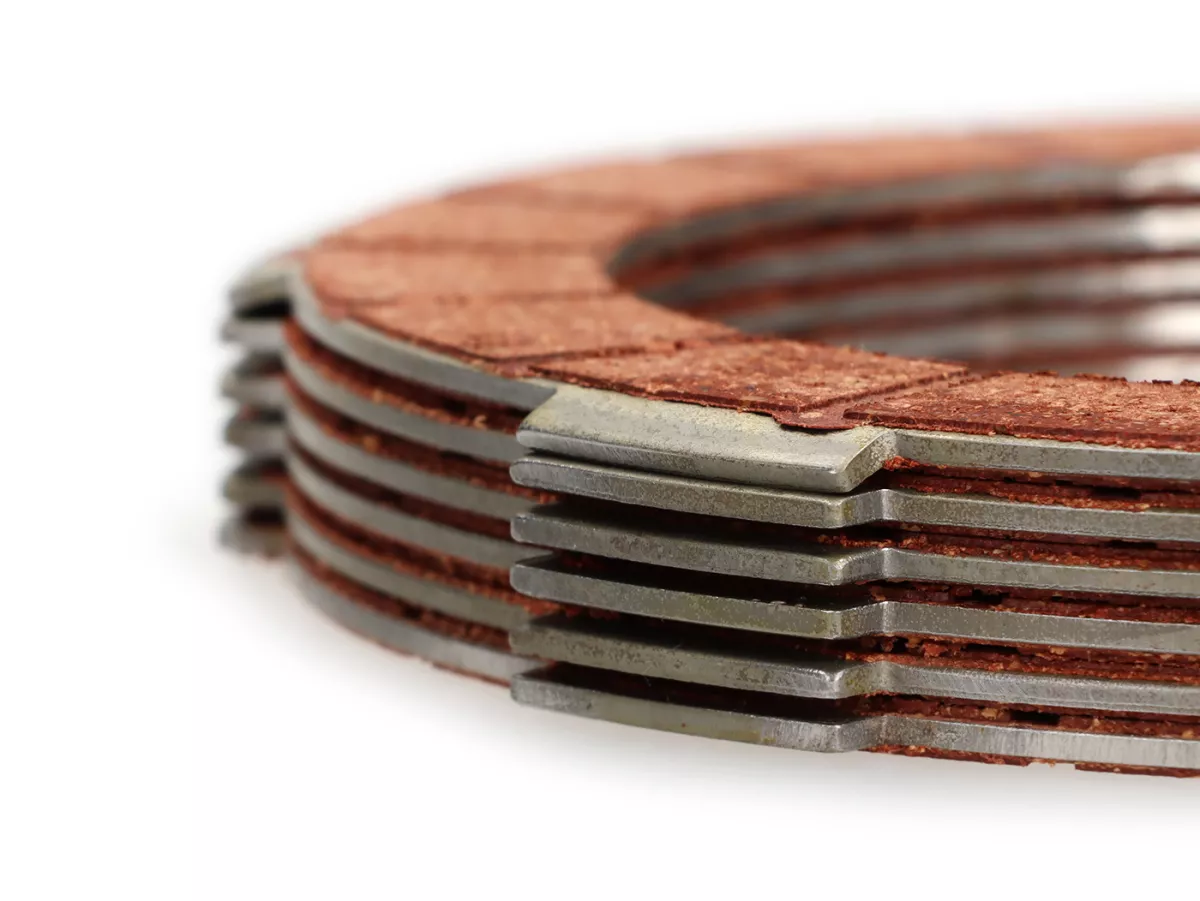

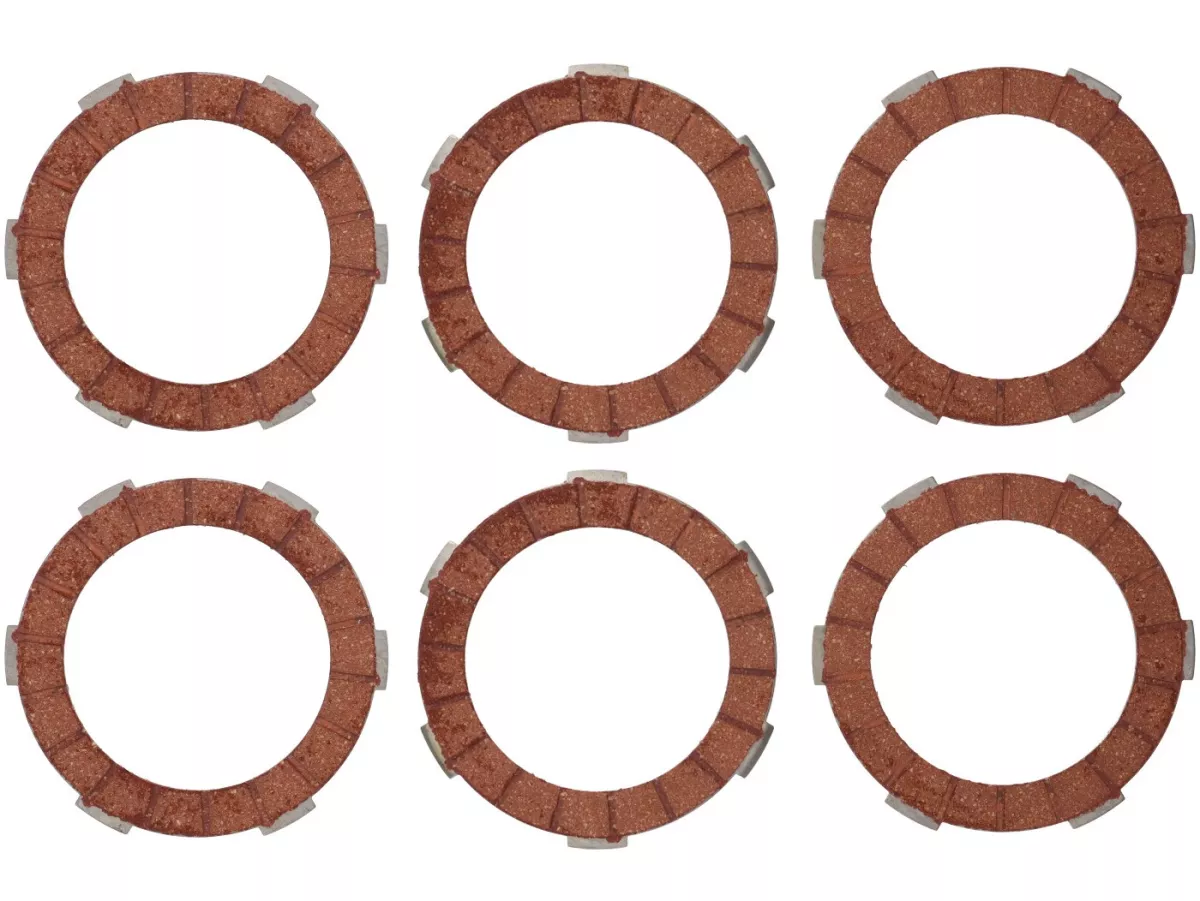

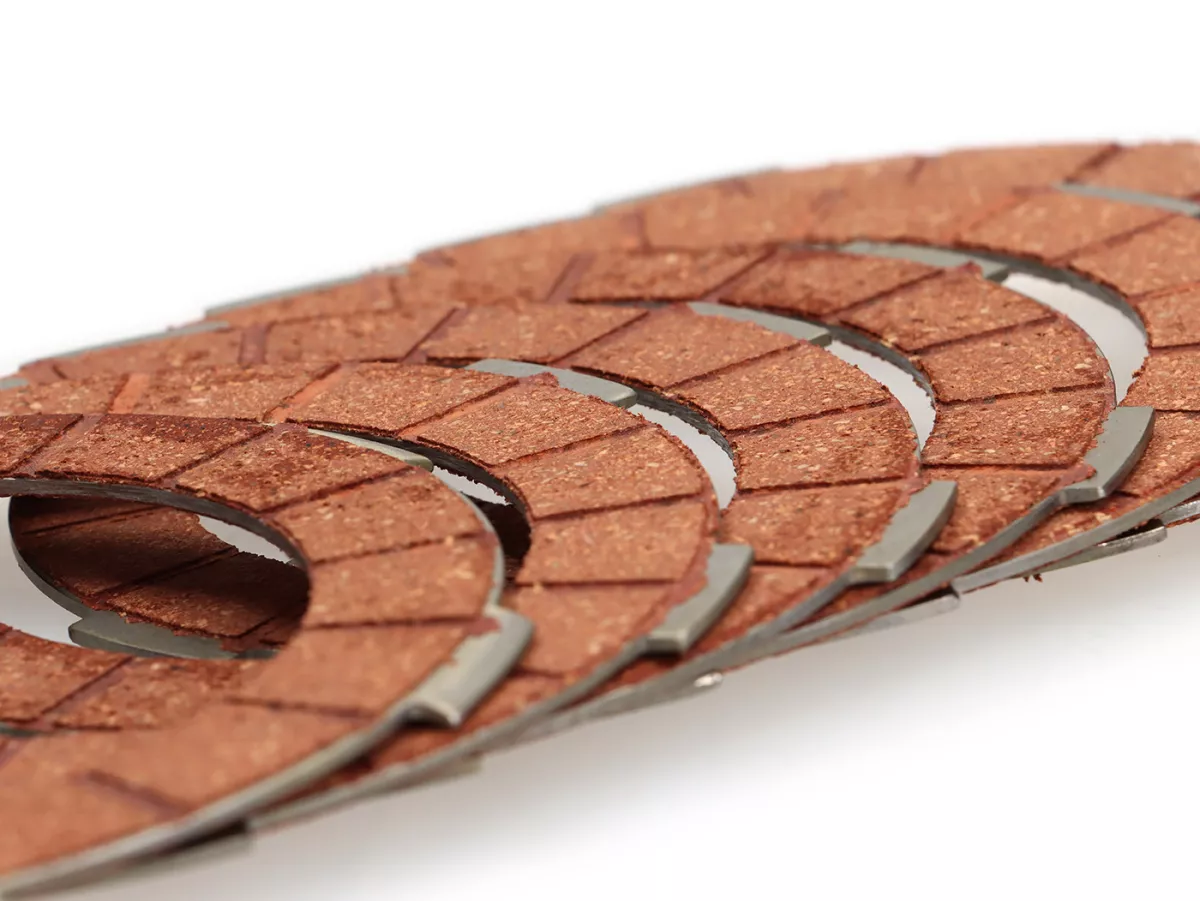

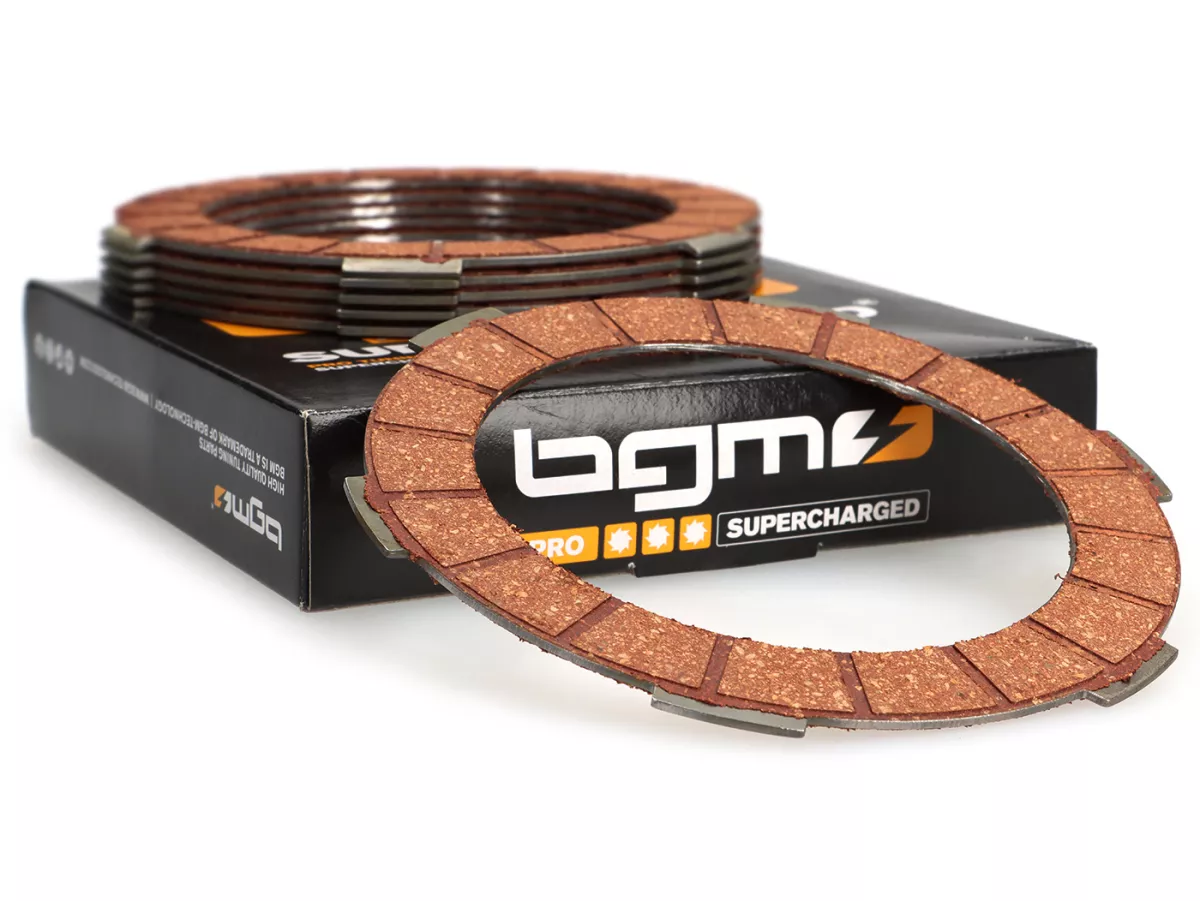

6 plates BGM8006 (red):
CONTAINS: 6x friction lining BGM Pro red (2.60mm lining each)
RESULTED: 5-plate clutch in conjunction with series clutch parts (4x 1.50mm clutch steel plate)
OR
RESULTED: 6-plate clutch in conjunction with higher pinion, spider and base plate (5x 1.50mm clutch steel plate)
TIP:
The transmittable torque of a clutch increases with the number of friction plates available. Therefore the red BGMs with their 2,6mm thickness offer a very nice solution to realize a solid 5 disc clutch on the basis of the standard clutch parts.
A durable 6 disc clutch can only be realized with a higher basket, spider and pressure plate. We advise against the attempt to obtain a 6-disc clutch by means of very thin steel discs and linings for reasons of durability.
