By combining different clutch pinions and primary gears, it is possible to intervene very nicely in the transmission ratio of the engine. This is possible due to a quite universal gear module of the primary gears. For example, on the 68 tooth primary wheel, as it is installed in almost all models up to and including 125 cc, clutches with 20, 21 and 22 teeth can be used without any other modification!
In general it can be said that on the very often installed 68 tooth primary wheels almost any clutch can be used. Exception is the 23 tooth sprocket of the 200 cc models. These can only be used on the 65 teeth primary wheel. The exchange of the sprockets only requires the removal of the clutch. Then the existing sprocket is simply replaced with the new sprocket and everything is reassembled in reverse order.

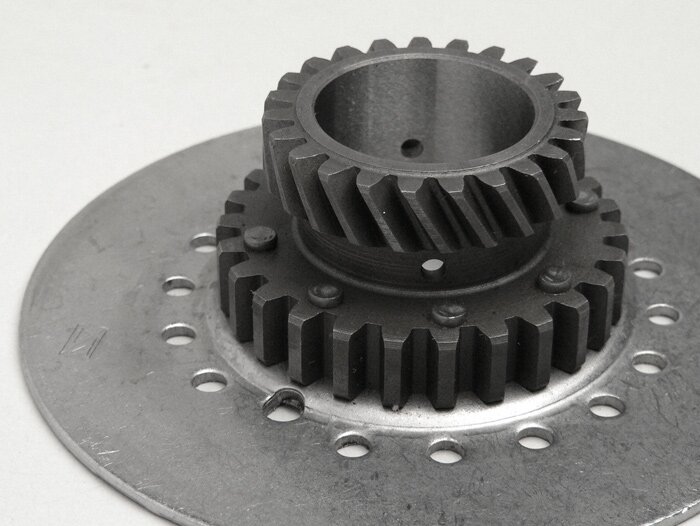

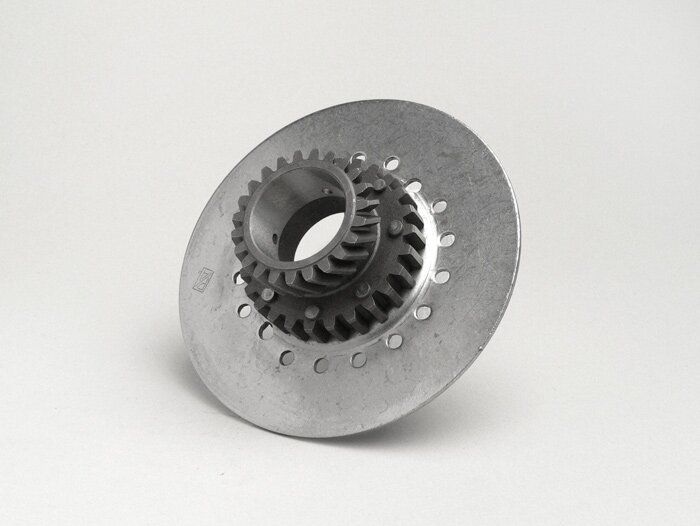

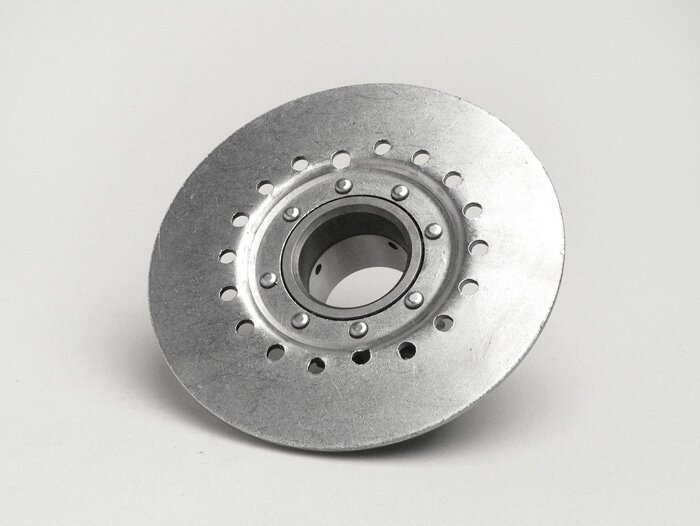

Clutch sprocket Vespa P 200 and Rally
As lubricant we recommend the BGM Pro Street gear oil (BGM2025, corresponds to specification API GL-3).


AI-translation

Rate this article now and let us know what you think.
Gearbox shift scooter
Number of teeth small primary gear
23
Type of gearing
schräg
Combinable primary wheels
64 Zähne schrägverzahnt (BGM PRO), 65 Zähne schrägverzahnt (BGM PRO, Piaggio), 64 Zähne schrägverzahnt (Bollag Motos, Stoffi's), 65 Zähne schrägverzahnt (Bollag Motos, Stoffi's)

OEM numbers (for comparison purposes only)
Piaggio:
130823, 1308235, 159855
