Mazzucchelli Item number: 1610008
Mazzucchelli
2 Ratings
119,00 €*
available immediately
Shipping weight 1,43 kg

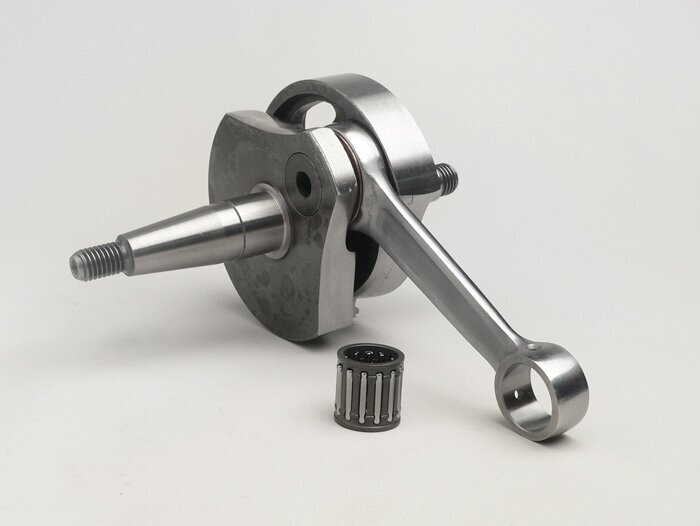

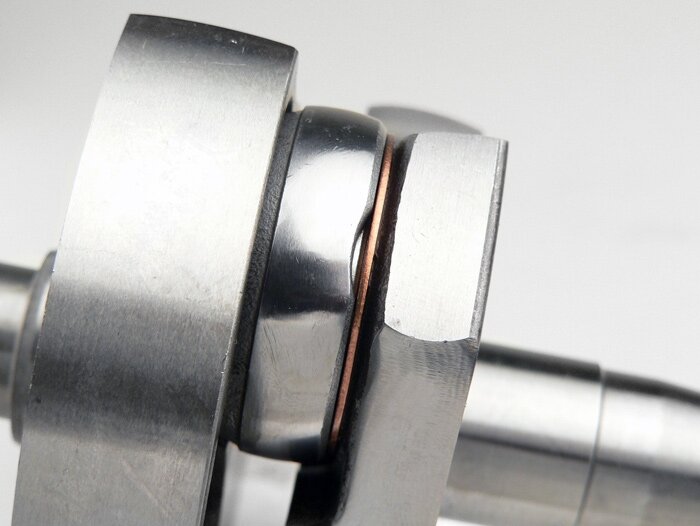

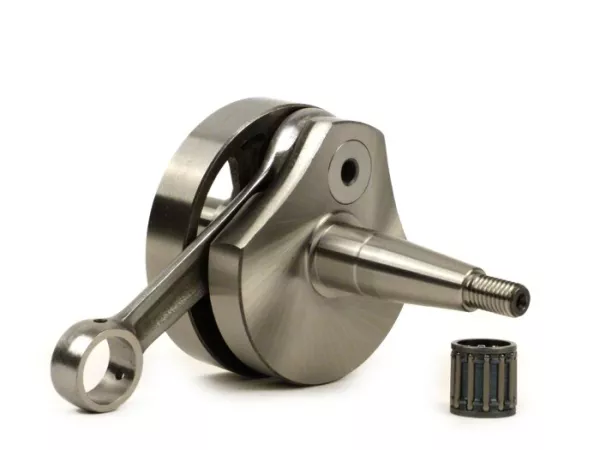

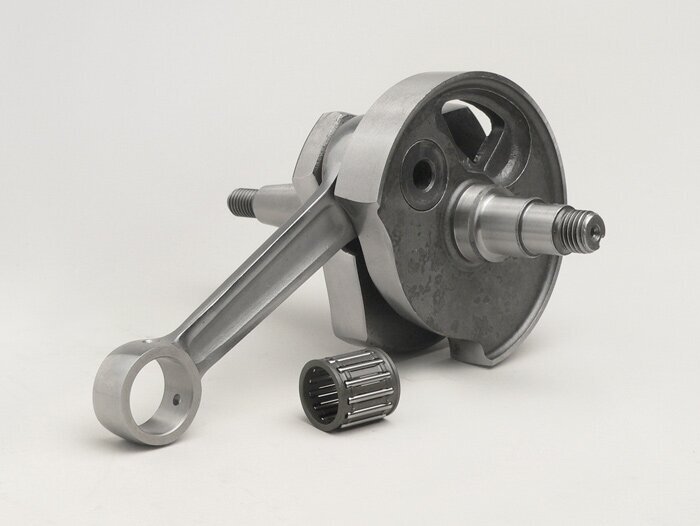

Mazzucchelli racing crankshaft for Vespa PV125, ET3, PK125

To achieve higher engine speeds, you should use a racing crankshaft. The extended intake timing allows the engine to rev much more freely. This measure is particularly noticeable with high-speed cylinders.

The quality of the crankshafts is very good and they can withstand even the highest speeds. They are an ideal addition, especially for larger displacement engines from 125cc upwards, to extend the usable rev range of racing cylinders without causing spitback in the lower rev range.

These engines offer both a decent torque over the entire rev range and free revving without the engine running out of air on inclines.
This is how we ensure, that reviews come from real consumers.
Anonym  08/19/2017

Bon qualité prix

Anonym  01/16/2018

beste ware. top

Ball bearing
Dimensions
15x19x20mm

Piston pin
Diameter
15 mm

Crankshafts
Stroke
51 mm
Thread on alternator side
M10x1,5 Rechtsgewinde
Thread on drive side
M12x1,25 Rechtsgewinde
Crank web diameter
87 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
ja
Length of rotary vane sealing surface on crank web
180 mm
Vespa V50, PV - Control angle short sealing surface (22mm) (°)
151
Vespa PK XL2, ETS - Control angle long sealing surface (28mm) (°
160
Vespa PK XL2, ETS - Control angle long sealing surface (37mm ful
173
Full cheek crankshaft
nein
Wide crank webs
38 mm
Bearing seat diameter on alternator side
20 mm
Bearing seat diameter on drive side
17 mm
Diameter of sealing ring seat on alternator side
19 mm
Diameter of sealing ring seat on drive side
22.7 mm

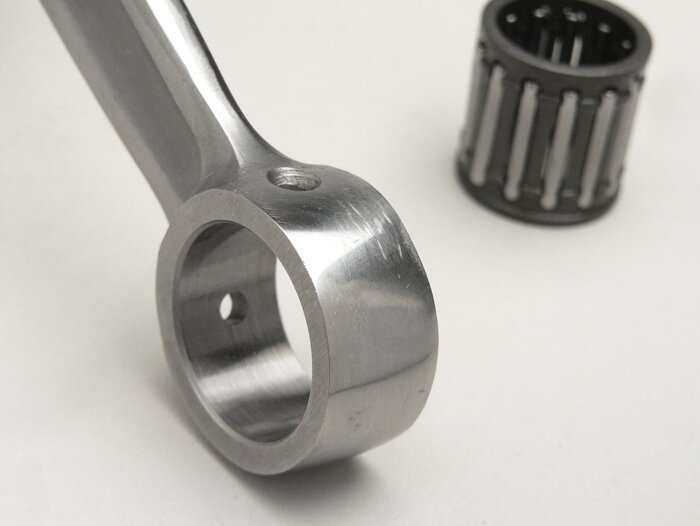

Connecting rod
Connecting rod length
97 mm
Connecting rod strength
4.6 mm
Connecting rod eye top diameter
19 mm
Lifting pin diameter
20 mm
Upper connecting rod eye lubrication hole
nein
Lower connecting rod eye lubrication hole
Nut
Connecting rod thrust washers
ja

OEM numbers (for comparison purposes only)
Scooter Center:
1610008
