Mazzucchelli Item number: 8070009
Mazzucchelli
175,00 €*
available immediately
Shipping weight 2,28 kg

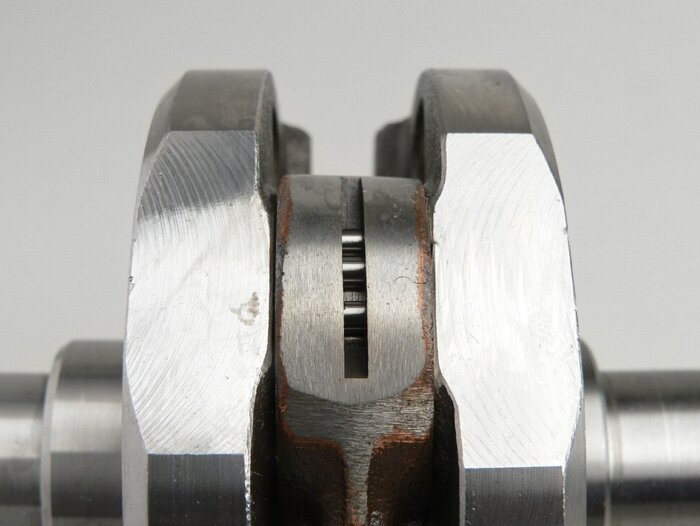

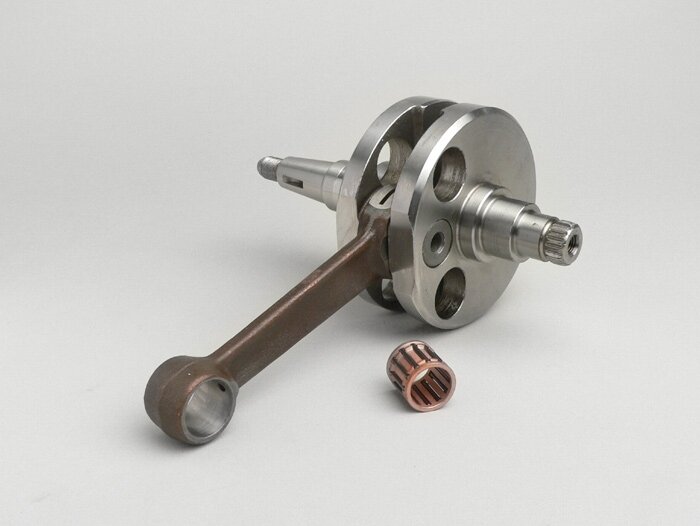

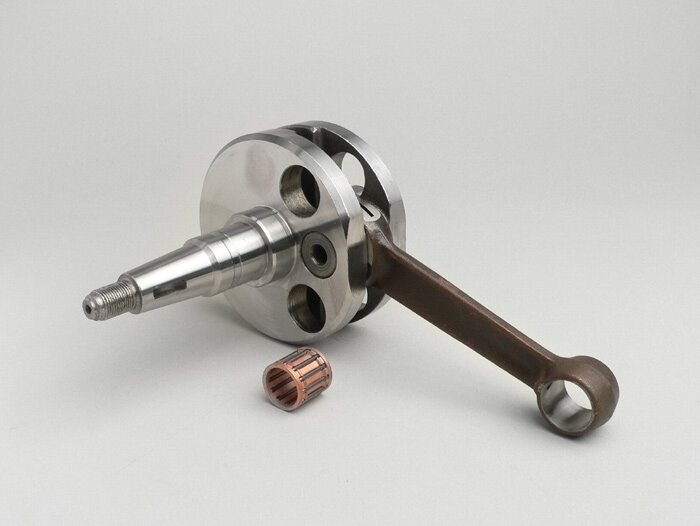

Mazzucchelli standard crankshaft 58/116 for Lambretta TV 175

Our standard crankshafts are an inexpensive replacement for worn-out models. The high-quality bearings and matching tolerances make the shaft a faithful companion.

The shafts with 58mm stroke and 116mm connecting rod were installed in the TV 175 models of series 2 and 3, the longer connecting rod is driven with a piston with the corresponding compression height.
Rate this article now and let us know what you think.
Ball bearing
Dimensions
16x20x20mm

Piston pin
Diameter
16 mm

Crankshafts
Stroke
58 mm
Thread on alternator side
M12x1,0 Linksgewinde
Thread on drive side
M8x1,0 Rechtsgewinde
Crank web diameter
95.9 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
nein
Full cheek crankshaft
nein
Diameter of variator stub
17.9 mm
Variomatic stub design
verzahnt
Wide crank webs
40.5 mm
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
25 mm
Diameter of sealing ring seat on alternator side
33 mm
Diameter of sealing ring seat on drive side
33 mm

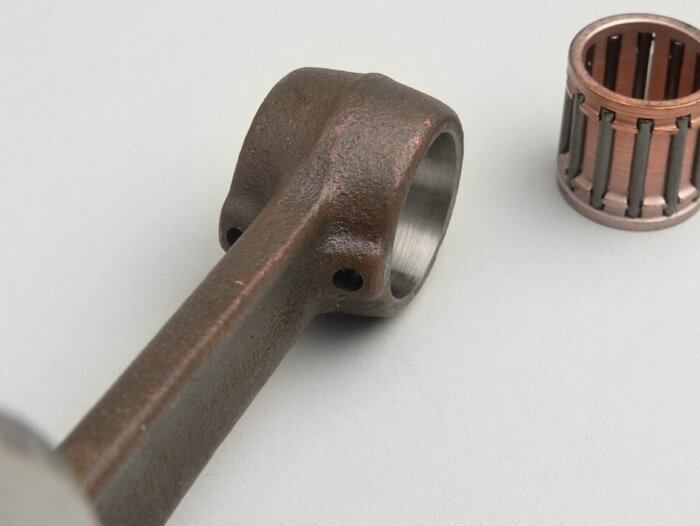

Connecting rod
Connecting rod length
116 mm
Connecting rod eye top diameter
20 mm

OEM numbers (for comparison purposes only)
Innocenti:
19212140
Scooter Center:
8070009
