Tameni Item number: 7671508
Tameni
155,00 €*
not available
Shipping weight 2 kg

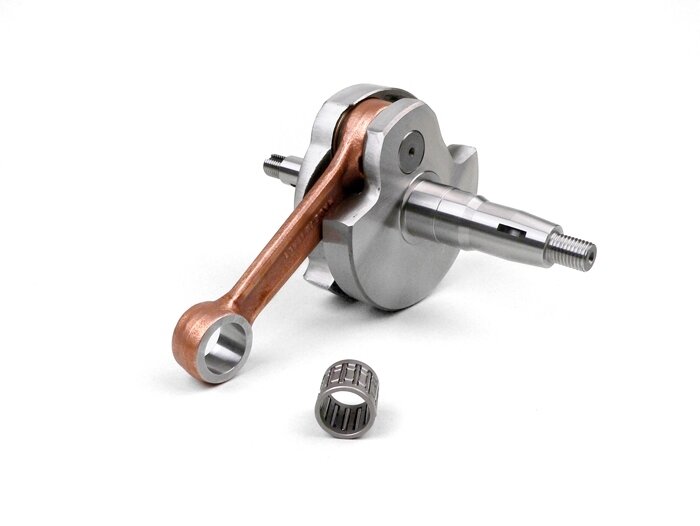

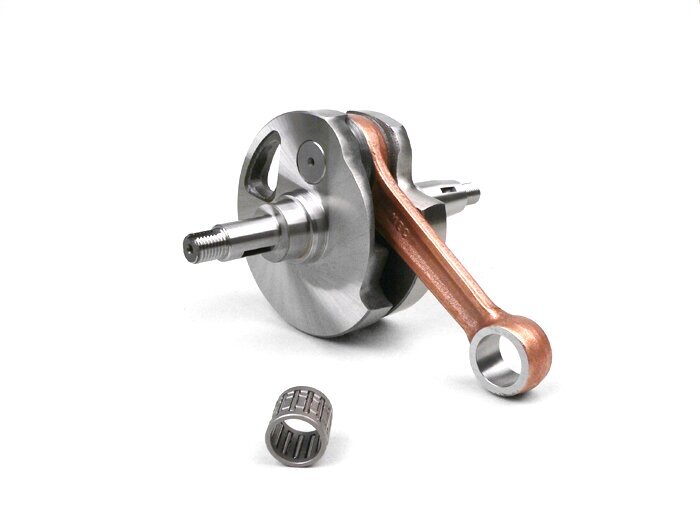

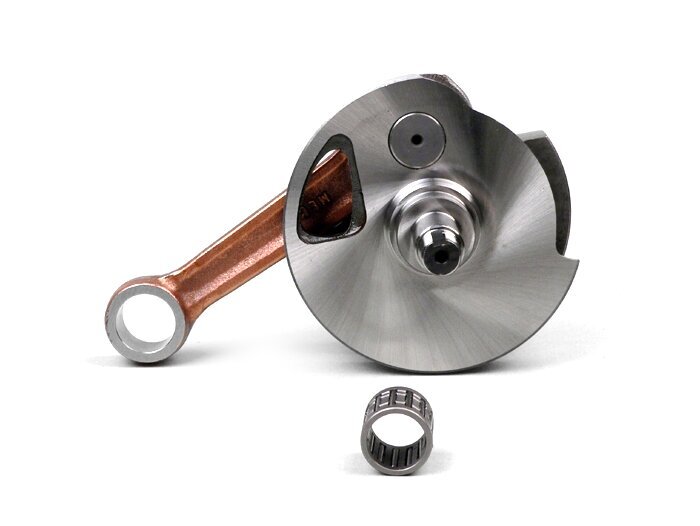

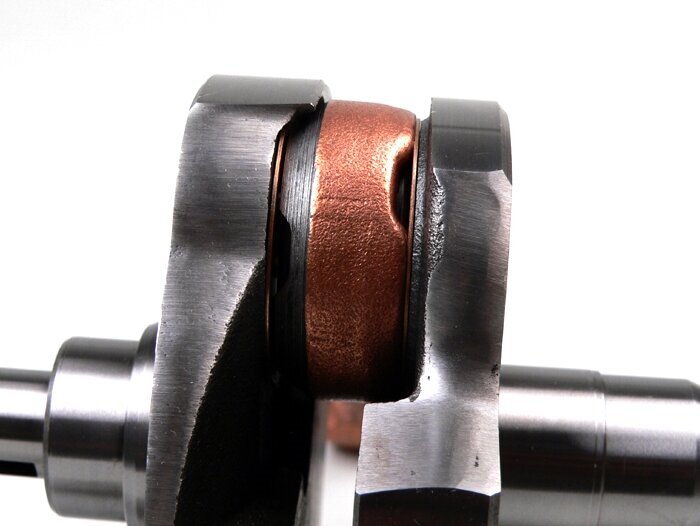

Finally available again, the Rally 180 standard crankshaft from TAMENI. This part is indispensable for an original engine restoration of a Vespa Rally 180, because old original parts are often rusty due to long lifetimes.
For years this part was not available, which was especially tragic for an original 180 Rally case, because no other or tuning shaft can be implanted here.
The well-known supplier Tameni has taken pity on this important part and has added it to his program again. The crankshaft is solidly manufactured after the original model and can therefore be installed in every Rally 180 engine.
The crankshaft stump has the blunt form of the SS 180, Rally 180 as well as Rally 200 models and can be driven with the pole wheels of these models! PX- and other pole wheels do not fit here!
The crankshaft stump is delivered including the upper conrod bearing.
AI-translation

Rate this article now and let us know what you think.
Ball bearing
Dimensions
16x20x20mm

Piston pin
Diameter
16 mm

Crankshafts
Stroke
57 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M12x1,5 Rechtsgewinde
Crank web diameter
98 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
ja
Length of rotary vane sealing surface on crank web
213 mm
Vespa PX200 - Control angle short sealing surface (46mm) (°)
164
Vespa PX200 - Control angle long sealing surface (62mm fully mac
183
Full cheek crankshaft
nein
Wide crank webs
39 mm
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
25 mm
Diameter of sealing ring seat on alternator side
24 mm
Diameter of sealing ring seat on drive side
31 mm

Connecting rod
Connecting rod length
110 mm
Connecting rod strength
6 mm
Connecting rod eye top diameter
20 mm
Lifting pin diameter
18 mm
Upper connecting rod eye lubrication hole
nein
Lower connecting rod eye lubrication hole
Nut
Connecting rod thrust washers
ja

OEM numbers (for comparison purposes only)
Piaggio:
112205
Scooter Center:
7671508
