Corteco Item number: 33820013
Corteco
available immediately
Shipping weight 0,1 kg

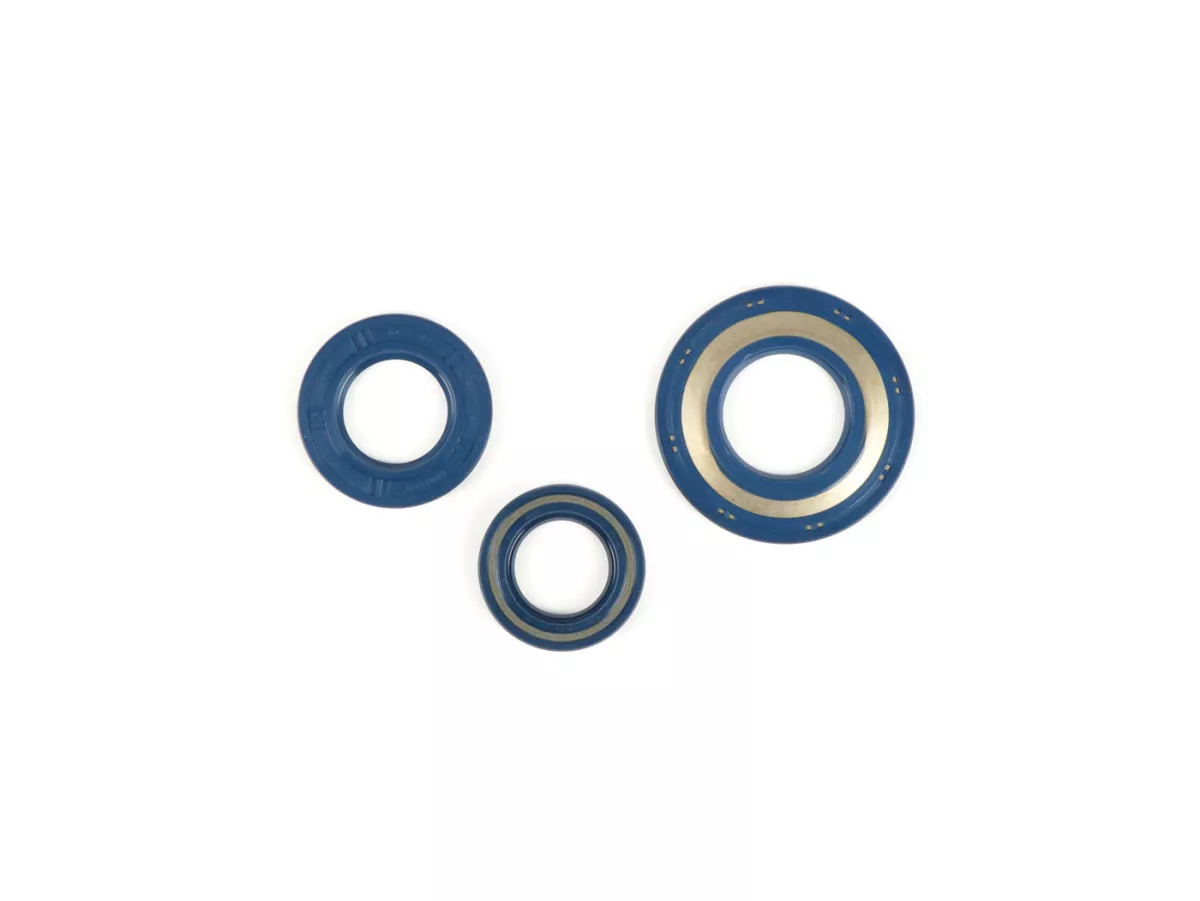

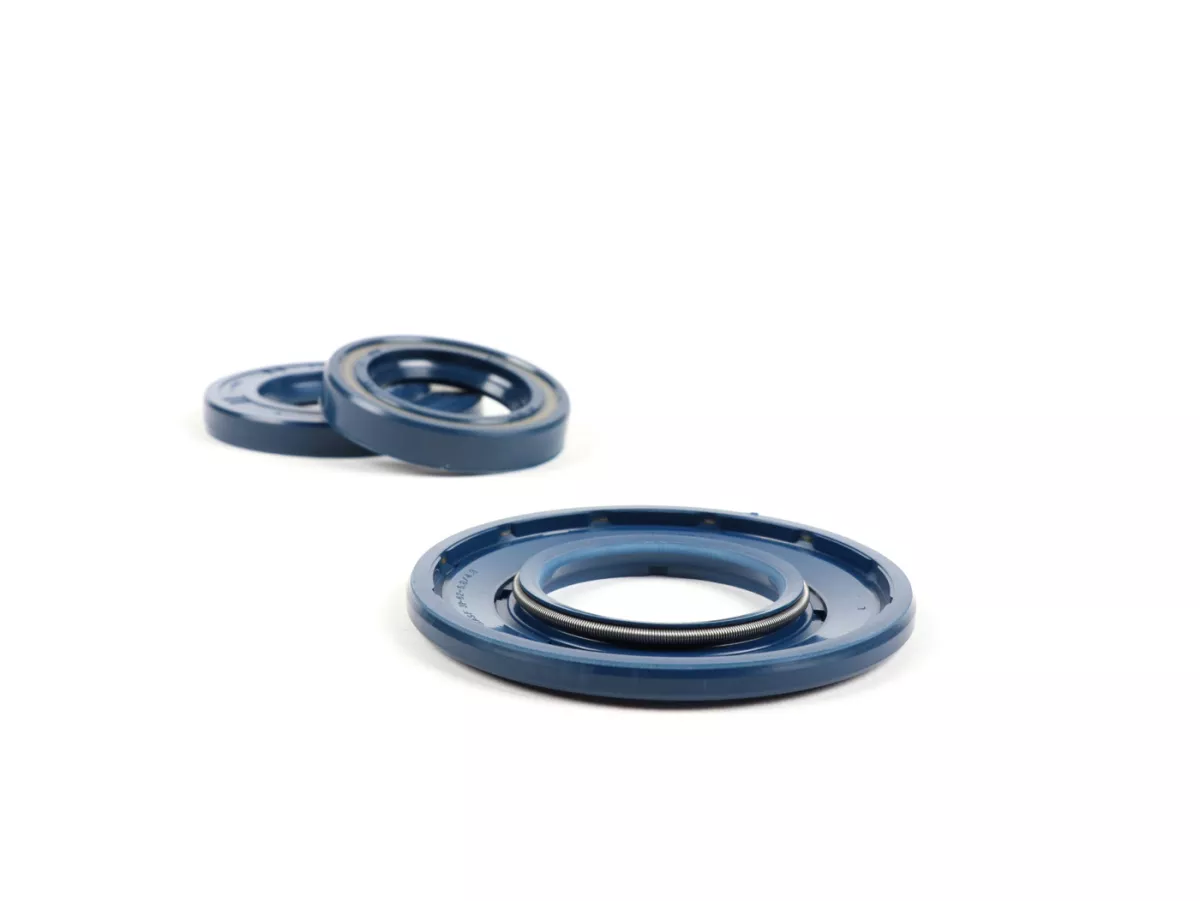

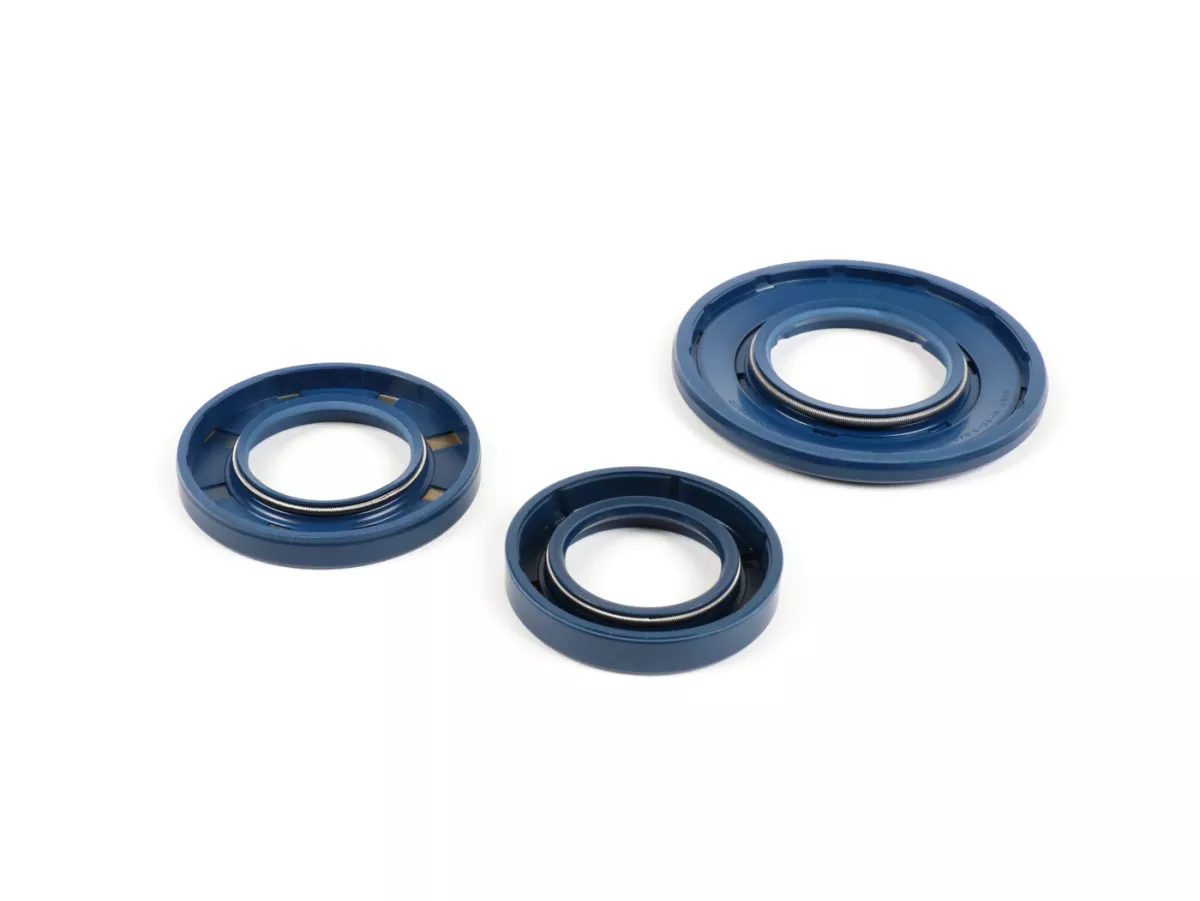

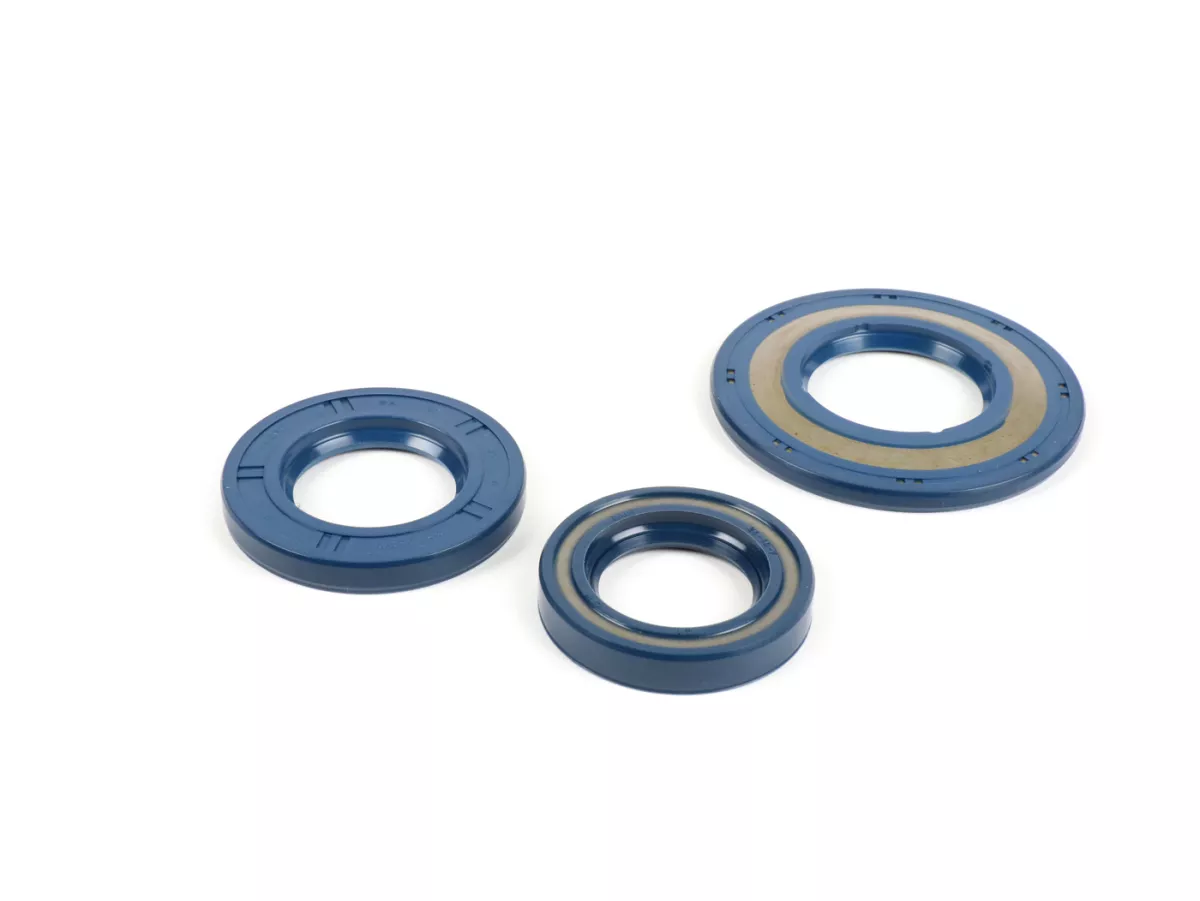

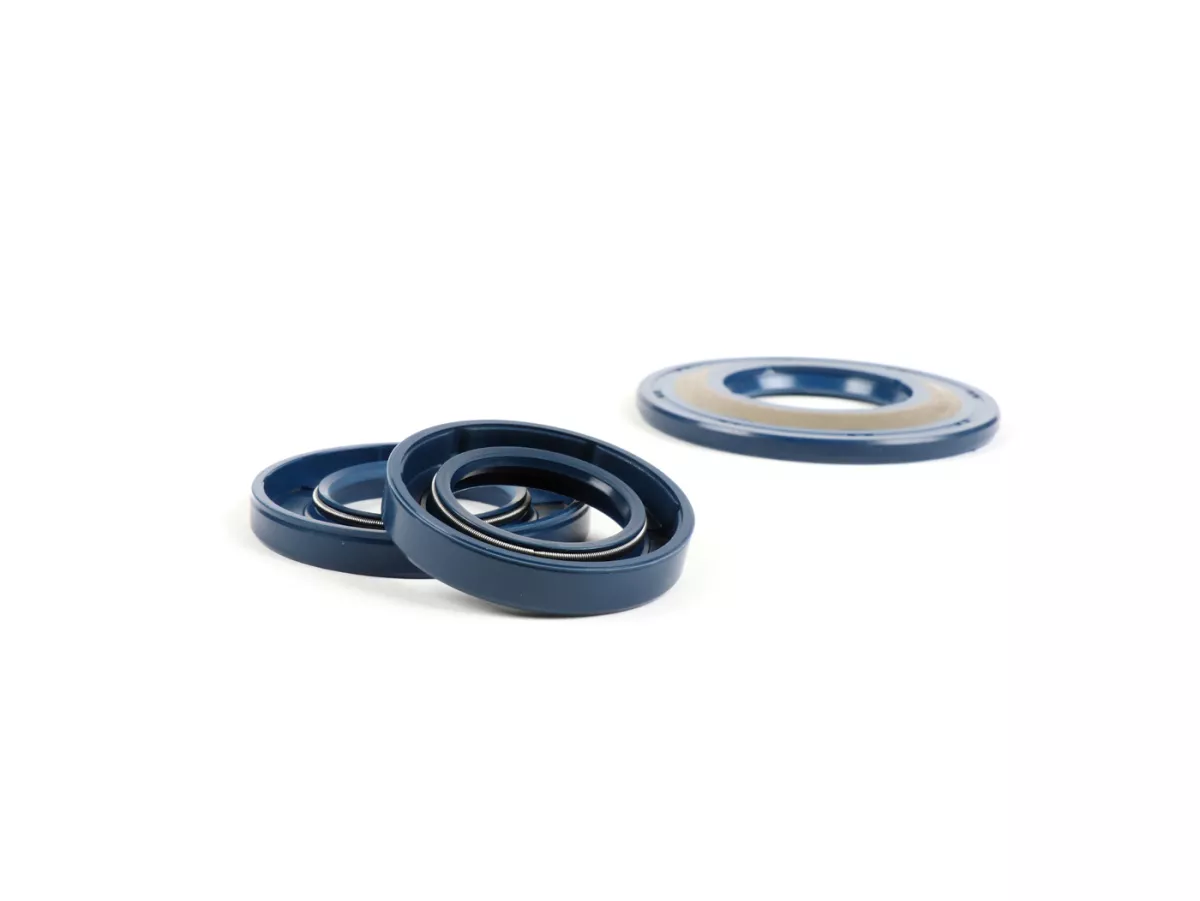

The following components are included in this set:
Oil seal 31x62,1x5,8/4,3mm -CORTECO Gummi, blau (used for crankshaft drive side Vespa PX (-1984), Rally180 (VSD1T), Rally200 (VSE1T), Sprint (since 1976), Super (since 1976), TS (since 1976), GT125 (since 1976), GTR125 (since 1976))
Oil seal 31x62,1x5,8/4,3mm -CORTECO Gummi, blau (used for crankshaft drive side Vespa PX (-1984), Rally180 (VSD1T), Rally200 (VSE1T), Sprint (since 1976), Super (since 1976), TS (since 1976), GT125 (since 1976), GTR125 (since 1976))
Oil seal 24x40x7mm - (used for crankshaft flywheel side Vespa Rally180 (VSD1T), Vespa Rally200 (VSE1T) (till 1976)
Oil seal 24x40x7mm - (used for crankshaft flywheel side Vespa Rally180 (VSD1T), Vespa Rally200 (VSE1T) (till 1976)
Oil seal 27x47x6mm -CORTECO NBR- (used for rear hub Vespa PX (-1984), Rally180 (VSD1T), Rally200 (VSE1T), Sprint (since 1972), TS (since 1972), GT125 (since 1972), GTR125 (since 1972), GL150 (VLA1T) (since 1972))
Oil seal 27x47x6mm -CORTECO NBR- (used for rear hub Vespa PX (-1984), Rally180 (VSD1T), Rally200 (VSE1T), Sprint (since 1972), TS (since 1972), GT125 (since 1972), GTR125 (since 1972), GL150 (VLA1T) (since 1972))
25,00 € *
Oil seal set for the Vespa Rally180 (VSD1T) and Rally200 (VSE1T) Femsatronic models. Compared to the later PX engines, their engines have an even larger crankshaft bearing on the alternator side. Therefore the outer circumference of the shaft seal ring for the alternator is larger Øa40mm instead of Øa35mm). Overall dimensions: 24x40x7mm. The oil seal for the rear wheel is the same as on the early PX models (27x47x6mm). The oil seal for the crankshaft on the clutch side is also identical to the PX type (31x62,1x5,8/4,3mm).
AI-translation

Rate this article now and let us know what you think.
Shaft seal sets
Number of shaft seals included in the scope of delivery
3
Number of O-rings included
0
Shaft seal size 1
27x47x6mm
Size of shaft seal 2
24x40x7mm
Shaft seal size 3
31x62,1x5,8/4,3mm
Shaft seal material 1
NBR
Shaft seal material 2
NBR
Shaft seal material 3
NBR
Coating of shaft seal ring 1
keine
Coating of shaft seal ring 2
keine
Coating of shaft seal ring 3
keine

OEM numbers (for comparison purposes only)
Scooter Center:
33820013
