Top Racing Item number: BGM030023
Top Racing
97,00 €*
available immediately
Shipping weight 1,15 kg

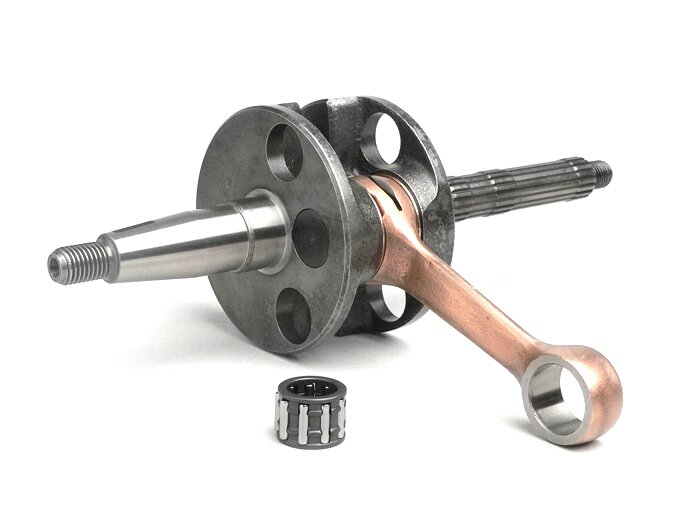

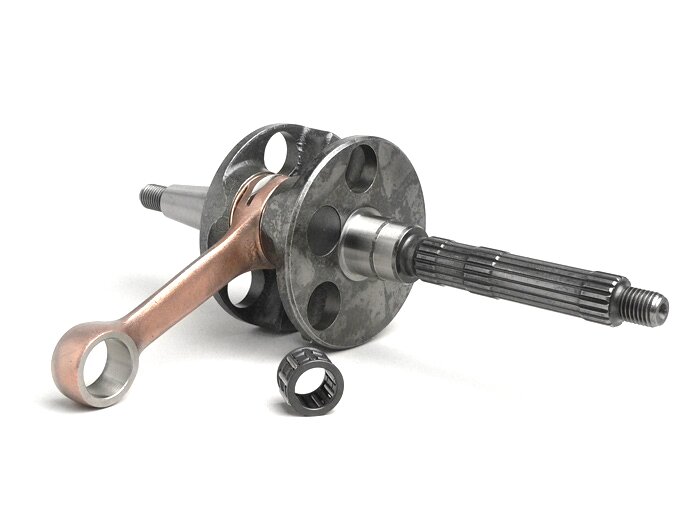

TOP RACING original crankshaft for Piaggio 50 cc 2-stroke

The TOP RACING ORIGINAL crankshaft offers you top quality at an extremely fair price. The manufacturing precision and the materials used are of the very highest quality. Both the crank webs and the connecting rod are forged, a complex manufacturing process that makes these shafts extremely reliable and durable. The bearings are also of a very high standard; only Japanese or European quality bearings are used, which are good for many thousands of kilometers.

Rate this article now and let us know what you think.
Ball bearing
Dimensions
12x17x15mm

Piston pin
Diameter
12 mm

Crankshafts
Stroke
39.3 mm
Thread on alternator side
M10x1,25 Rechtsgewinde
Thread on drive side
M10x1,25 Rechtsgewinde
Crank web diameter
70 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
nein
Full cheek crankshaft
nein
Diameter of variator stub
14.8 mm
Variomatic stub design
verzahnt
can be used with original variator
ja
Wide crank webs
40.2 mm
Bearing seat diameter on alternator side
20 mm
Bearing seat diameter on drive side
20 mm
Diameter of sealing ring seat on alternator side
19 mm
Diameter of sealing ring seat on drive side
18 mm

Connecting rod
Connecting rod length
80 mm
Connecting rod strength
4.4 mm
Connecting rod eye top diameter
17 mm
Lifting pin diameter
16 mm
Upper connecting rod eye lubrication hole
nein

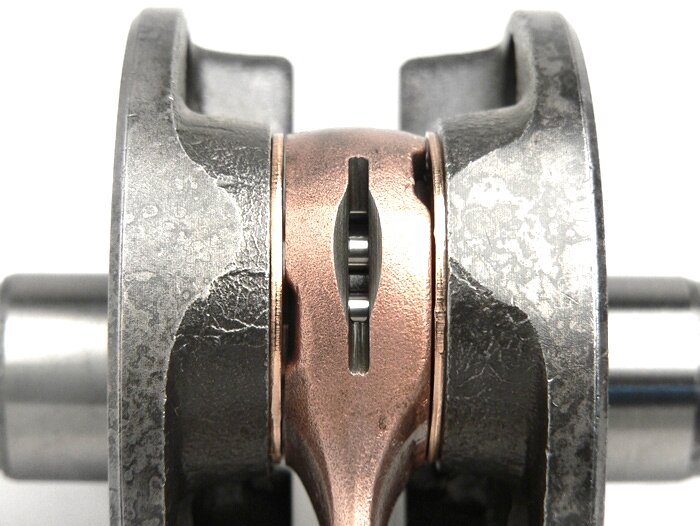

Lower connecting rod eye lubrication hole
Schlitz
Connecting rod thrust washers
ja

General
EAN
4250366601090

OEM numbers (for comparison purposes only)
Piaggio:
316255, 4316255, 8338275
Scooter Center:
BGM030023
