Top Racing Item number: BGM030079
Top Racing
119,00 €*
available immediately
Shipping weight 1,31 kg

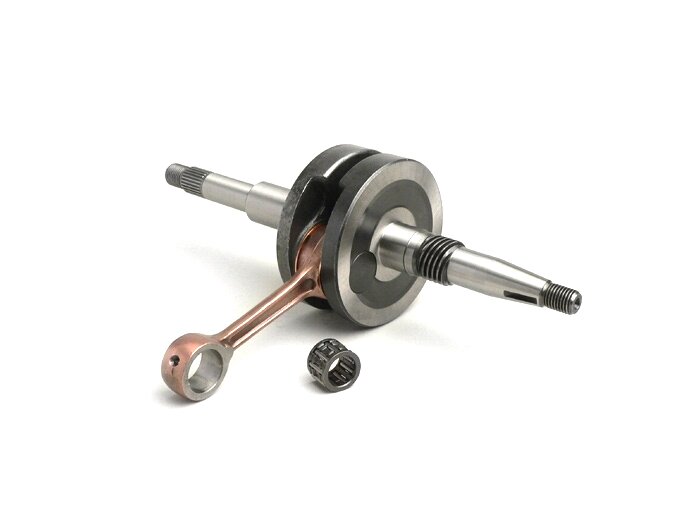

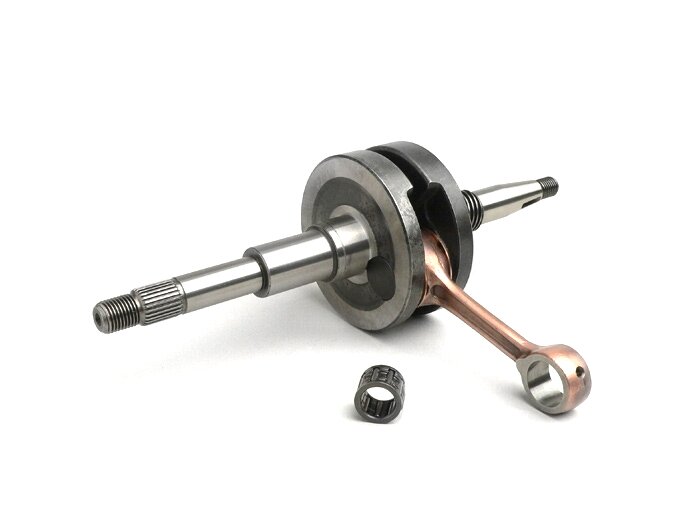

The TOP RACING ORIGINAL crankshaft offers you the highest quality at an extremely fair price. The manufacturing precision as well as the materials used are of the highest quality.

So both the crank webs and the connecting rod are forged, a complex manufacturing process that makes these shafts extremely reliable and resistant.

The bearings are also at a very high level, only Japanese or European quality bearings are used, which are good for many thousands of kilometres.
AI-translation

Rate this article now and let us know what you think.
Ball bearing
Dimensions
12x17x13mm

Piston pin
Diameter
12 mm

Crankshafts
Stroke
41.4 mm
Thread on alternator side
M10x1,25 Rechtsgewinde
Thread on drive side
M12x1,25 Rechtsgewinde
Crank web diameter
73.8 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
nein
Full cheek crankshaft
nein
Diameter of variator stub
14 mm
Variomatic stub design
glatt
can be used with original variator
ja
Wide crank webs
34 mm

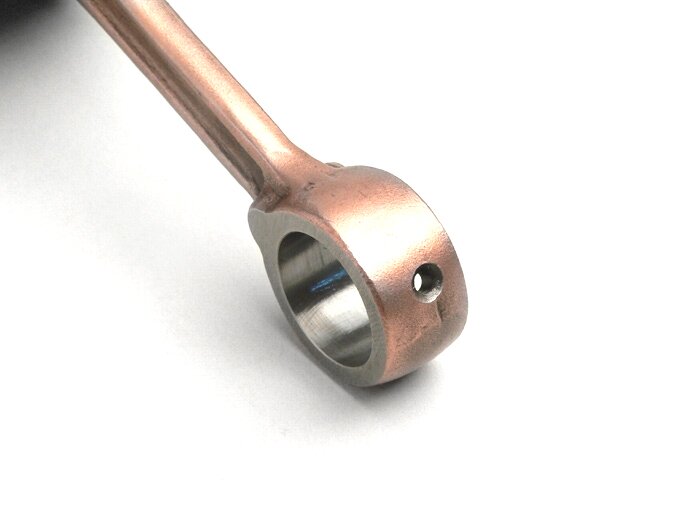

Connecting rod
Connecting rod length
80 mm
Connecting rod strength
5 mm
Lifting pin diameter
18 mm
Upper connecting rod eye lubrication hole
ja
Lower connecting rod eye lubrication hole
Schlitz

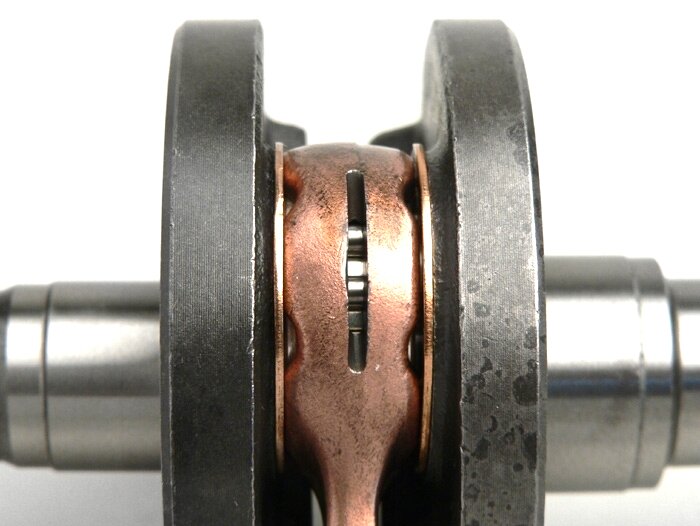

Connecting rod thrust washers
ja

OEM numbers (for comparison purposes only)
Scooter Center:
BGM030079
