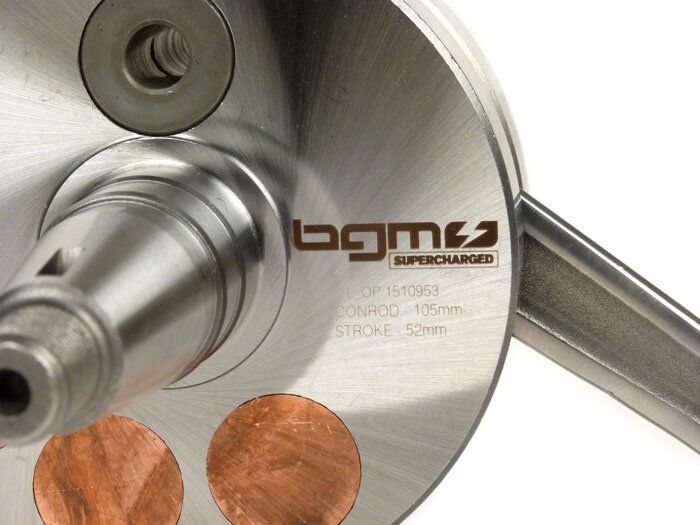

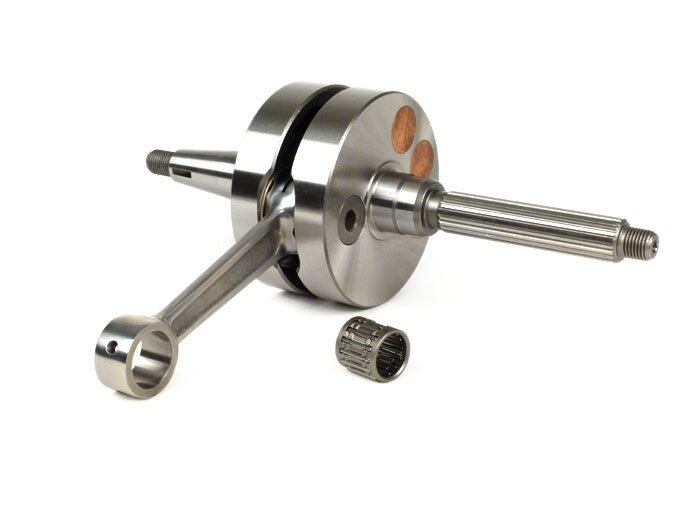

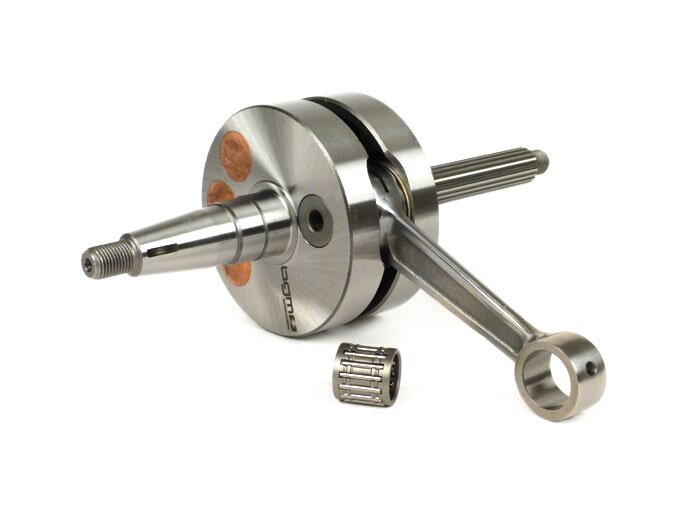

BGM PRO crankshaft 52 mm - forged full cheek shaft for all 90 mm Piaggio Maxi cases

The bgm EVOLUTION crankshafts are racing shafts of the very highest quality. The completely forged shafts are finely balanced full metal shafts. Both the crank webs and the connecting rod are forged. This gives the shaft incredible durability.

In order to achieve the highest possible weight, which is extremely important for low-vibration engine running, the shafts were not fitted with plastic paddings. Instead, the crank webs were designed directly as solid shafts. This may not look as colorful, but it only has advantages. By increasing the pre-compression, the full cheek shaft ensures a better filling level of the cylinder over the entire speed range.

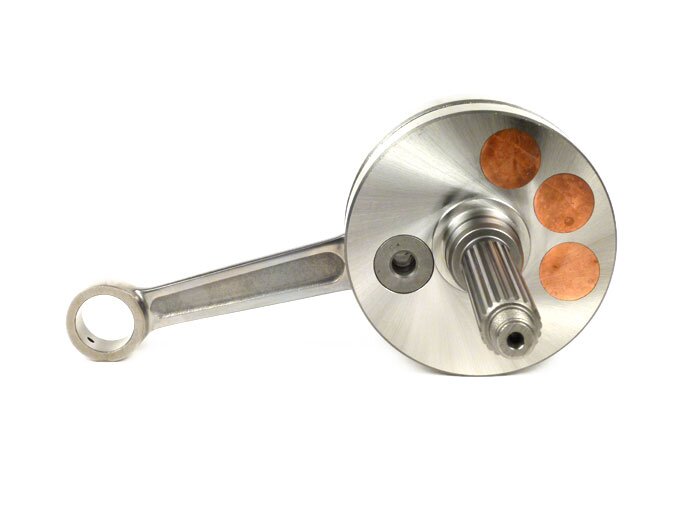

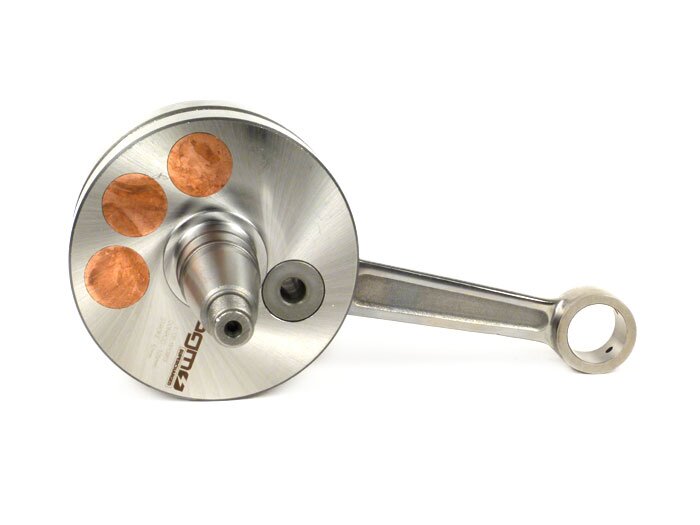

The bearings are in no way inferior to this top quality. The SSC racing bearings can withstand even the most extreme speed orgies. The double-slotted connecting rod with silver cage and double lubrication holes in the upper connecting rod bearing can withstand even the most brutal continuous loads. The bores are balanced with copper and aluminum weights to achieve optimum balancing. Thanks to its very high weight and the choice of balancing weights, it achieves first-class running characteristics.


Suitable for all 90mm crankshaft housings

Piaggio has used two different crankshaft types in its automatic 2-stroke engines in the 125cc-180cc displacement segment. These differ only in the diameter of the crank webs and the crank pin diameter of the lower connecting rod eye. The early engines, such as those used in the SKR, TPH and the Hexagon models of the EX series, used crank webs with a diameter of only 90 mm.

The later engines of the Gilera Runner FX/FXR, Piaggio Skipper, Hexagon LX/LXT and Italjet Dragster 125/180 series used crank webs with a diameter of 92 mm. This means that the shafts of the newer engines do not fit into the old housings. For this reason, almost all tuning crankshafts are manufactured with 90 mm cheeks (BGM, Malossi). They therefore always fit in all cases.


This is how we ensure, that reviews come from real consumers.
Anonym  12/15/2014

Günstiger preis gute qualität

Anonym  01/10/2018

Sitzt,passt. ... Gute Qualität.

Anonym  10/06/2015

Great stuff

Anonym  07/14/2021

Super wertig, super passgenau
Einfach klasse Verarbeitung , das merkt man .

Urban F. from Norrahammar 05/14/2025
Ball bearing
Dimensions
16x20x20mm

Piston pin
Diameter
16 mm

Crankshafts
Stroke
52 mm
Thread on alternator side
M12x1,25 Rechtsgewinde
Thread on drive side
M12x1,25 Rechtsgewinde
Crank web diameter
90 mm
Crankcase must be spindled
nein
Motor housing must be modified
nein
Rotary vane crankshaft
nein
Full cheek crankshaft
ja
Filling material for full cheek
Stahl
Material balancing weights
Aluminium
Diameter of variator stub
17 mm
Variomatic stub design
verzahnt
can be used with original variator
ja
Wide crank webs
46.4 mm
Bearing seat diameter on alternator side
25 mm
Bearing seat diameter on drive side
25 mm
Diameter of sealing ring seat on alternator side
25 mm
Diameter of sealing ring seat on drive side
25 mm

Connecting rod
Connecting rod length
105 mm
Connecting rod strength
5.5 mm
Connecting rod eye top diameter
20 mm
Lifting pin diameter
20 mm
Upper connecting rod eye lubrication hole
ja
Lower connecting rod eye lubrication hole
Schlitz
Connecting rod thrust washers
ja

General
EAN
4250366600666
