DR Item number: 192KT00067
DR

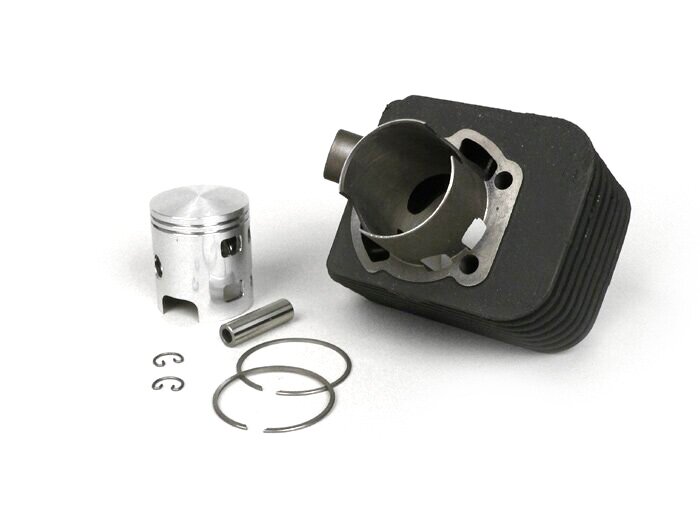

Cylinder -DR 63 ccm Evolution Ø43mm- Piaggio Ciao (gudgeon pin = Ø 10mm)

2 Ratings
109,00 €*
Ready for dispatch in 5-7 days
Shipping weight 1,65 kg
Information on product safety
Report error

TIP: Please always mount the piston rings carefully. Piston rings made of cast material have only limited elasticity and break relatively quickly.
Some pistons have trapezoidally profiled piston rings (so-called keystone rings), these only fit in one installation position. If the ring is not free, please loosen it carefully and reinstall it upside down.


AI-translation

This is how we ensure, that reviews come from real consumers.
Michael S. from Pörnbach 06/02/2025
Udo M. from Langenfeld (Rheinland) 08/05/2025
Rate this product now
General
Performance class
Sport

Piston pin
Diameter
10 mm

Spark plugs
Thread type
M14x1,25

Cylinder
Drill hole
43 mm
Type of cooling
luftgekühlt
Displacement
63 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
nein
Outlet shape
1-teilig (oval)
Exhaust assembly
Stutzen
Number of boost ports
2
Number of transfers (incl. boost ports)
6

Crankshafts
Stroke
43 mm

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,2mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,0mm
