Parmakit Item number: 7672085
Parmakit
1 Rating
24,90 €*
available immediately
Shipping weight 0,04 kg

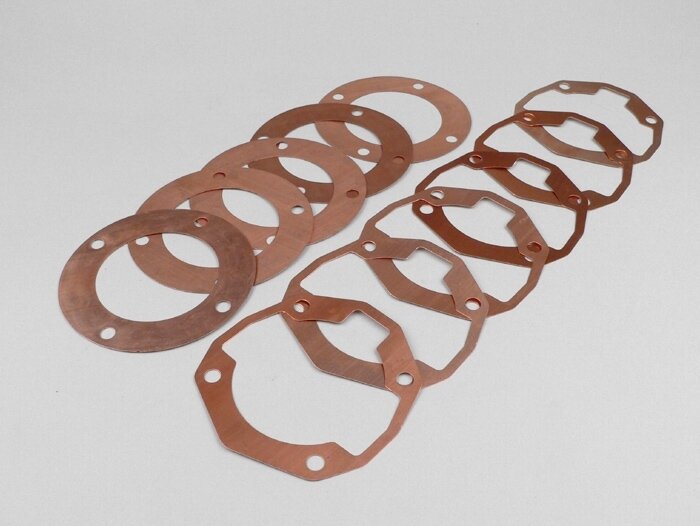

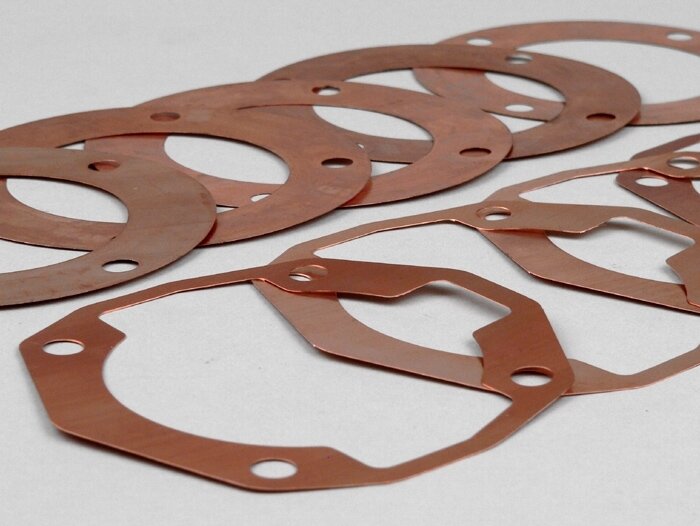

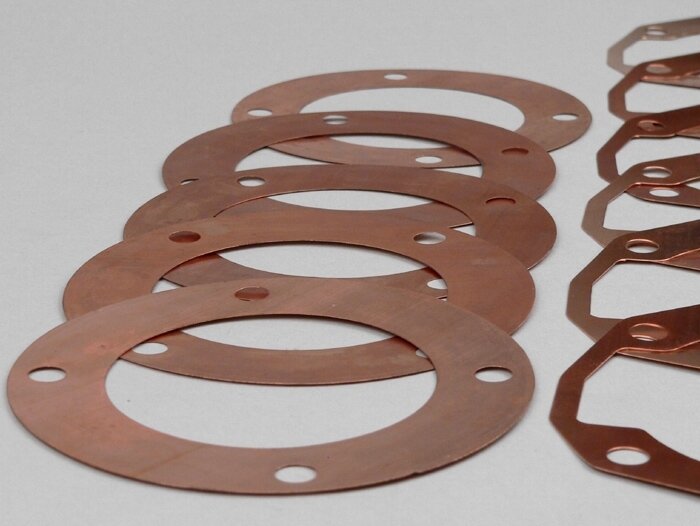

The gasket set for the Parmakit TSV cylinders contains two equally strong (0.2mm) foot as well as head gaskets. This allows both the squish dimension between combustion chamber and piston as well as the control angle of the cylinder to be individually adapted to the needs of the engine. To achieve an appropriate dimension, as many gaskets are mounted on top of each other until the desired dimension is reached.

In principle, the cylinder head is the most likely place for adjustment. In this way, the control angles of the cylinder are not shifted disproportionately (overcurrent time is overprioritized when the cylinder is raised, i.e. the overcurrent angle increases more than the exhaust angle).AI-translation

This is how we ensure, that reviews come from real consumers.
Marco R. from Hannover 04/28/2025
Seals
Number of seals
11
O-ring included in the scope of delivery
nein
Number of O-rings
0
Head gasket included in scope of delivery
ja
Foot gasket included in the scope of delivery
ja
Diaphragm seal included in the scope of delivery
nein
Valve stem seals included in the scope of delivery
nein
Squeeze ring included in the scope of delivery
nein
Exhaust gasket included in the scope of delivery
nein
Chain tensioner seal included in the scope of delivery
nein
Cylinder head gasket included in scope of delivery
nein
Oil pan gasket included in scope of delivery
nein
