Dellorto Item number: 1520012
Dellorto
1 Rating
89,00 €*
available immediately
Shipping weight 0,83 kg

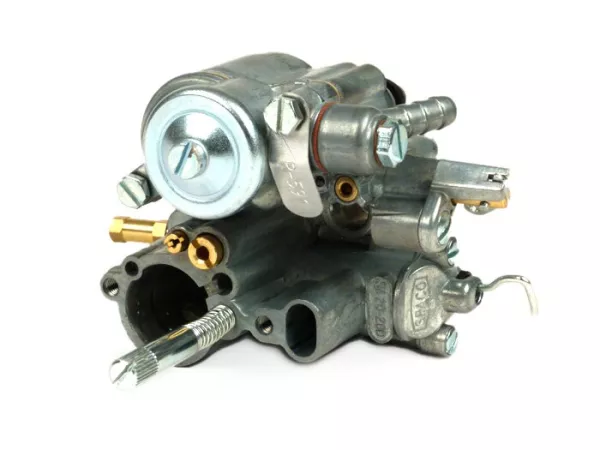

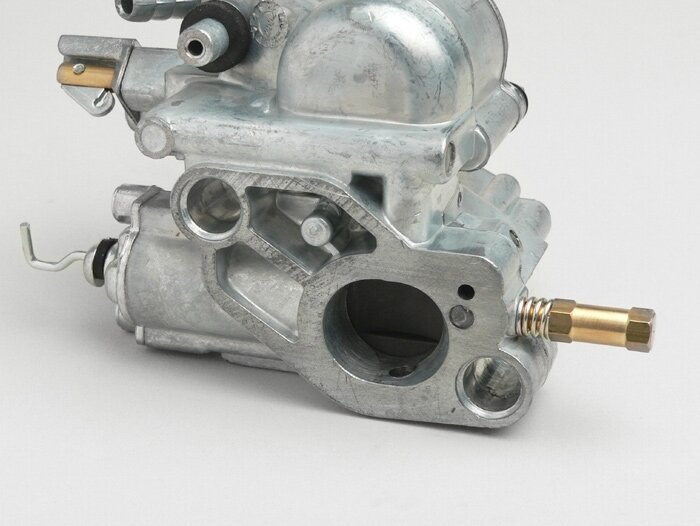

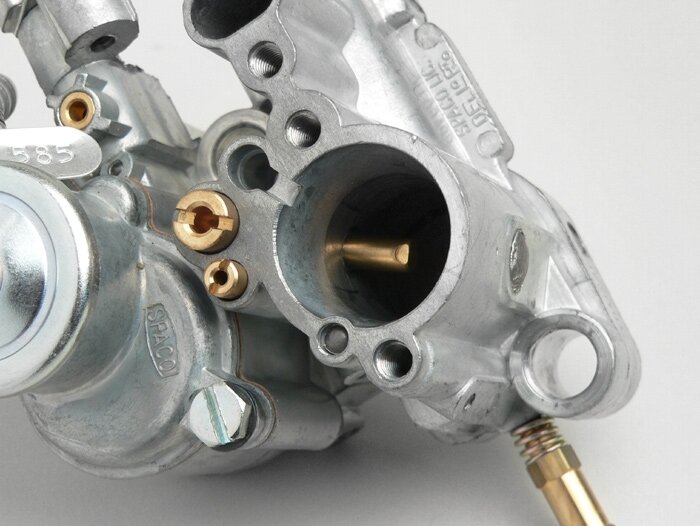

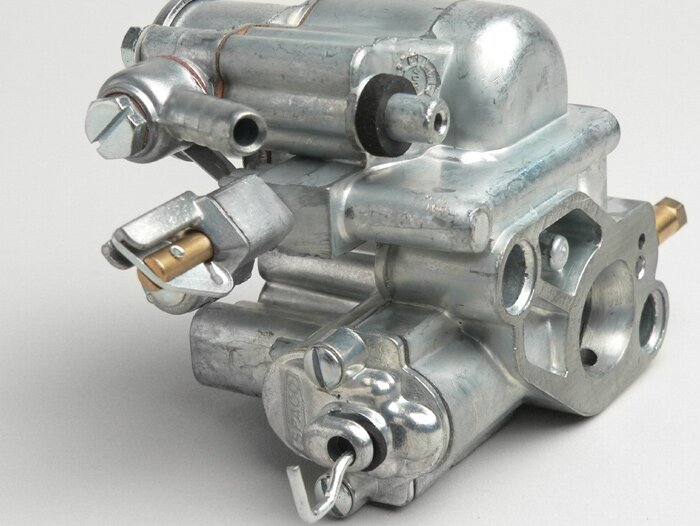

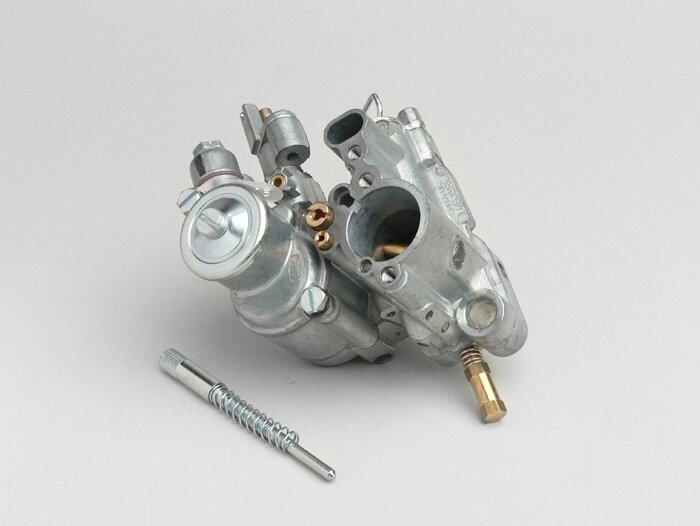

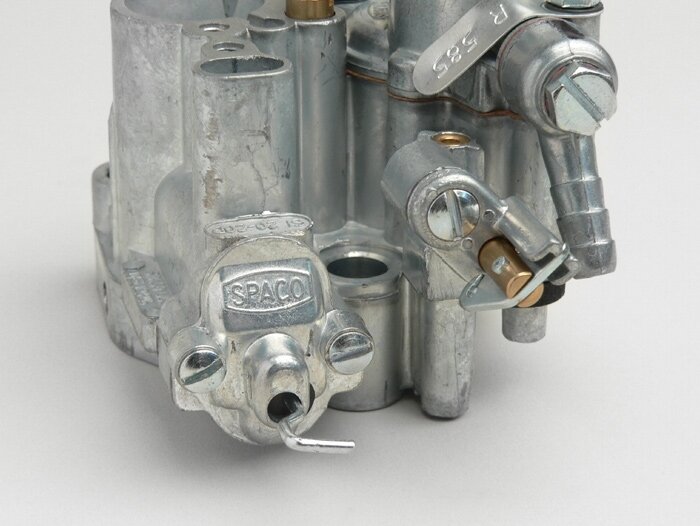

carburettor DELLORTO / SPACO SI20/20D Vespa PX125, PX150 Euro3 (2011-, type with catalyst/separate lubrication) - COD 585

  • main nozzle: 96
  • secondary nozzle: 45140
  • mixing tube: BE5
  • Main air correction nozzle: 140
  • Gas slide: 6823-11

The carburettors of the same series always differ only in their vehicle-specific equipment. However, this can easily be adapted to any new application. For example, a 20/20D can also be modified for operation with a larger cylinder.

separate lubrication
Carburettors for vehicles with separate lubrication can also be used on vehicles without separate lubrication.

TUNING
If a larger cross section is to be used, the SI20/20D carburettors can easily be exchanged for carburettors of the SI24/24E or SI26/26E series.

In both cases, the jetting must be adapted accordingly.

NOTE: All new SI carburettors are manufactured under licence by Spaco in India. These carburettors have been and are used in the series production of Piaggio for a long time. They are of the same quality as the original Dell'Orto carburettors. They also pass the quality assurance at Dell'Orto and are therefore partly also delivered packed in Dell'Orto cartons.


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  03/29/2015

Gute Verarbeitung

Carburetor
Main nozzle size
96
Main nozzle type
Dellorto SI (4576)
Secondary nozzle type
Dellorto SI (9892)
Air nozzle type
Dellorto SI (5827)
Choke nozzle type
Dellorto SI (5582)
Slider type
Flachschieber
Choke type
manuell Seilzug
Connection type Intake manifold
Flanschverbindung
Position of mixture screw
links
Fuel hose position
rechts
Float chamber material
Metall
Size of secondary nozzle
45/140
Air nozzle size
140
Choke nozzle size
60
Mixing tube size
BE5
has Powerjet
nein
Slider size
6823.11
Height
125 mm
Width
71 mm
Depth
80 mm
Connection width air filter
33 mm
Connection width of intake manifold
60 mm
Fuel hose connection width
8 mm
has oil connection
nein
has vacuum connection
nein
Venturi size
20 mm
Connection type Air filter
mit Schrauben
Position of idle throttle screw
oben

OEM numbers (for comparison purposes only)
Dellorto:
00585
