Polini Item number: P1400206
Polini
455,00 €*
available immediately
Shipping weight 1,11 kg

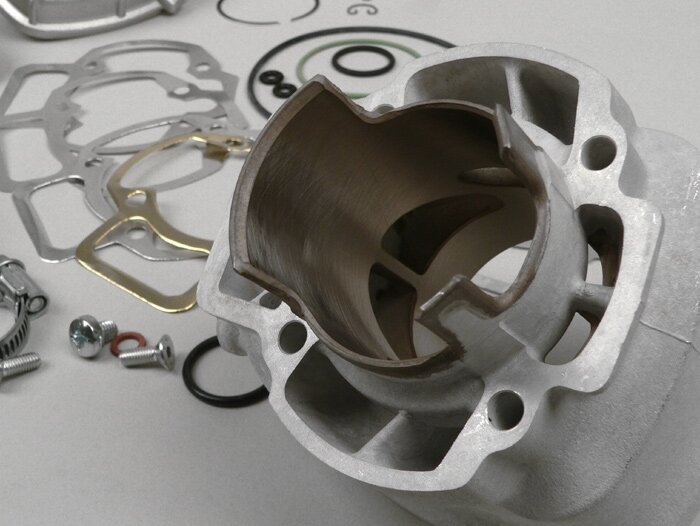

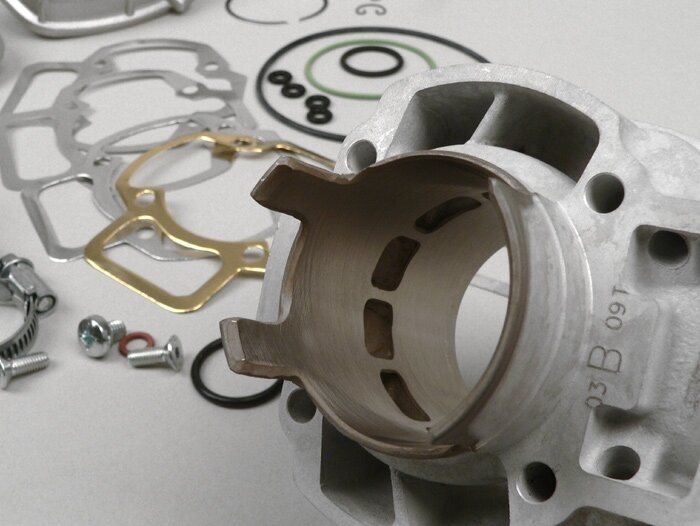

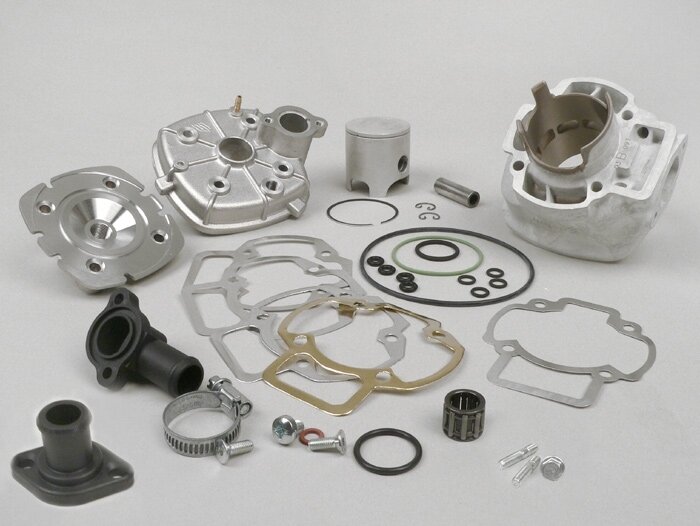

The Evo 3 tuning cylinder offers some subtle changes compared to the previous version. The healthy concept of the Evo 2 has been retained here and only minimal changes have been made. Massive is the reworking of the exhaust. Polini has abandoned the concept of the main diffuser with the two secondary diffusers. Instead the Evolution Three features a split T-port. This offers enough time cross section to beat the Evo 2 in terms of performance. So the completely made Evo 3 scratches at the 25 hp mark.

With such power orgies it goes without saying that the engine should be built without compromise. Especially the crankshaft whines here, faster than one would like, for mercy. A tip are our BGM Evolution shafts.
AI-translation/sub>

Rate this article now and let us know what you think.
General
Performance class
Racing

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B9ES
Spark plug thread
lang

Cylinder
Drill hole
47.6 mm
Type of cooling
flüssigkeitsgekühlt
Displacement
70 cm³
Motor type
2-Takt
Material
Aluminium
Piston raceway material
Keramik

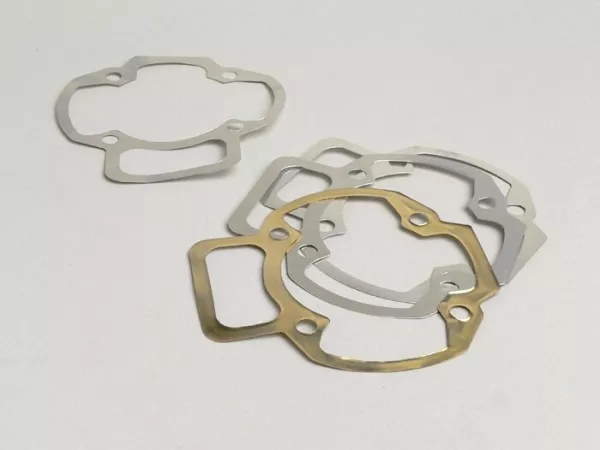

Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
2-teilig
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
46 mm
Threaded exhaust studs
M6
Number of boost ports
20000
Number of transfers (incl. boost ports)
6

Crankshafts
Stroke
39.3 mm

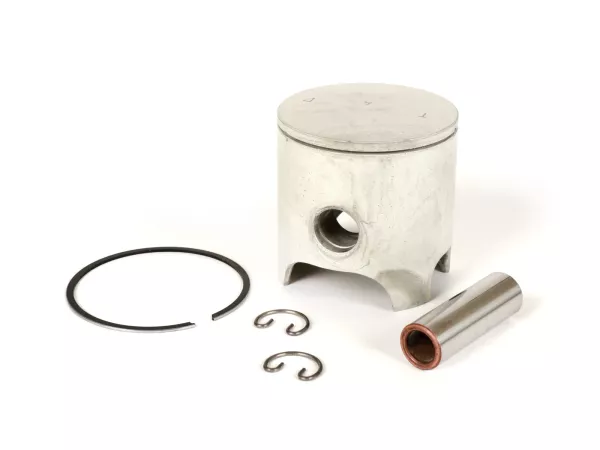

Piston
Number of piston rings
1
Piston manufacturing method
gegossen

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
0,8mm

Piston clips
Piston clip type
Doppel G-Typ
Wire gauge Piston clip
1,0mm

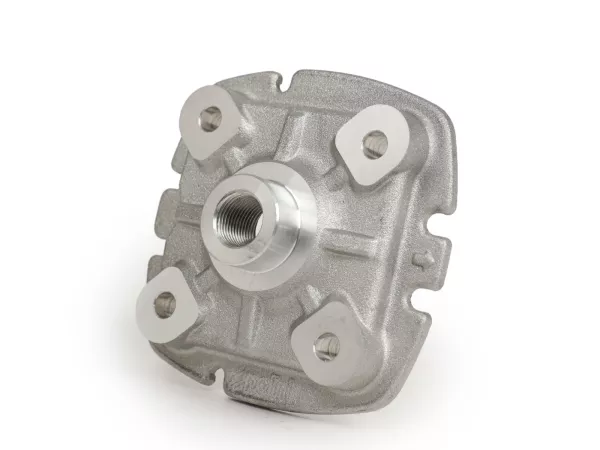

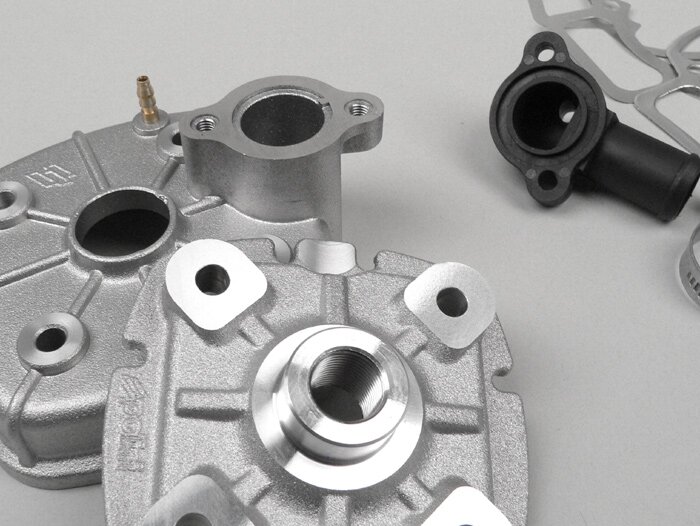

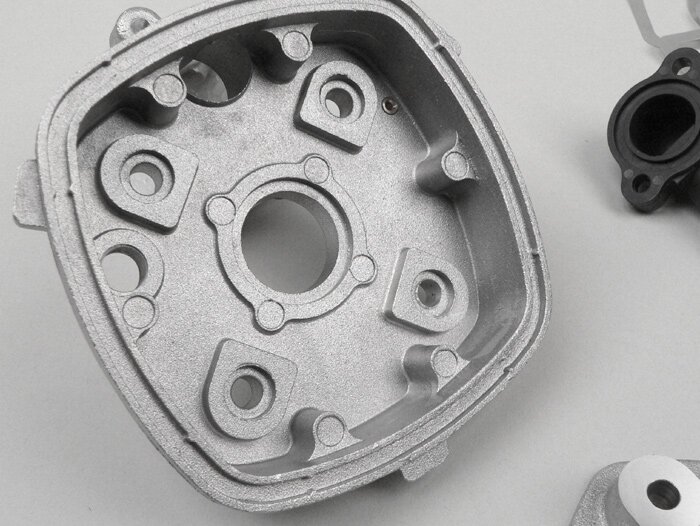

Cylinder heads
Cylinder head type
mehrteilig

OEM numbers (for comparison purposes only)
Scooter Center:
P1400206
Polini:
140.0206, 1400206, P140.0206, P1400206
