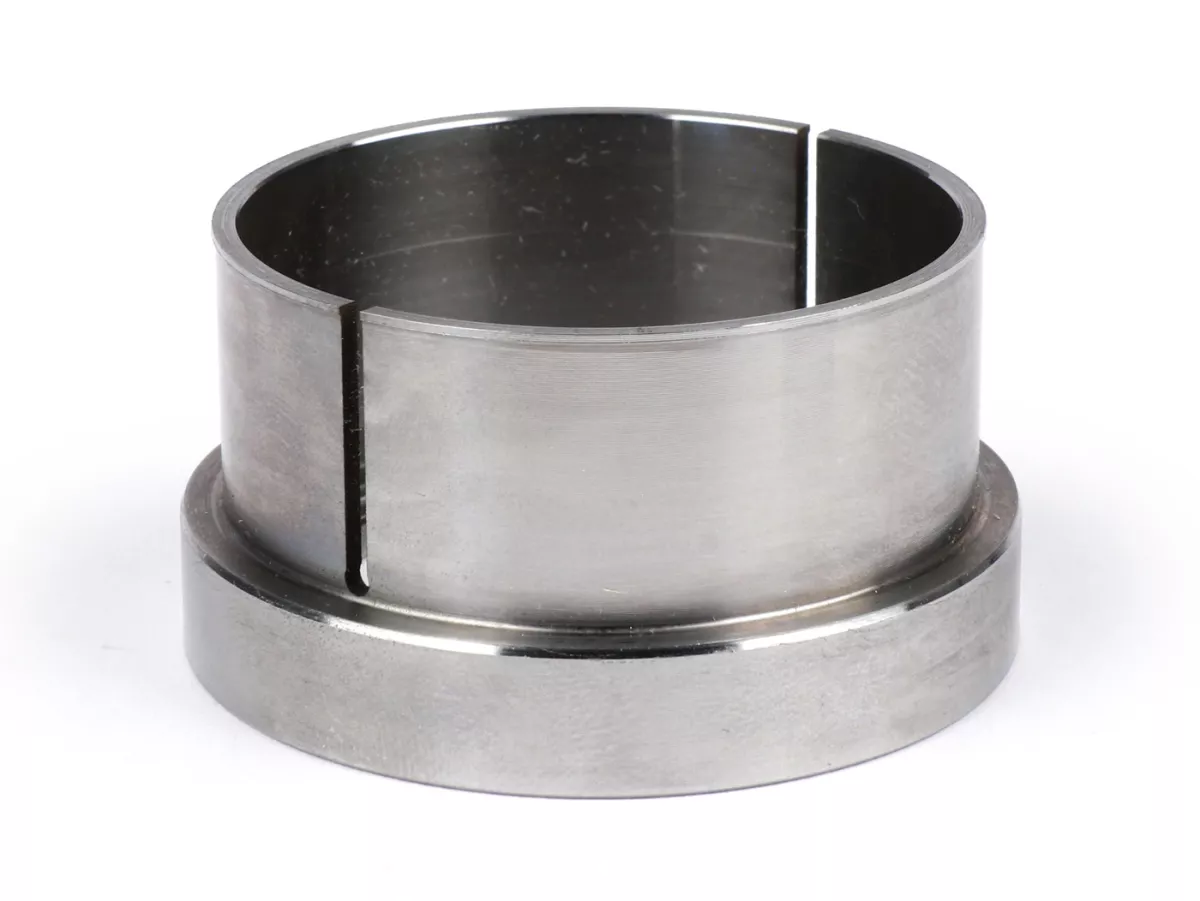

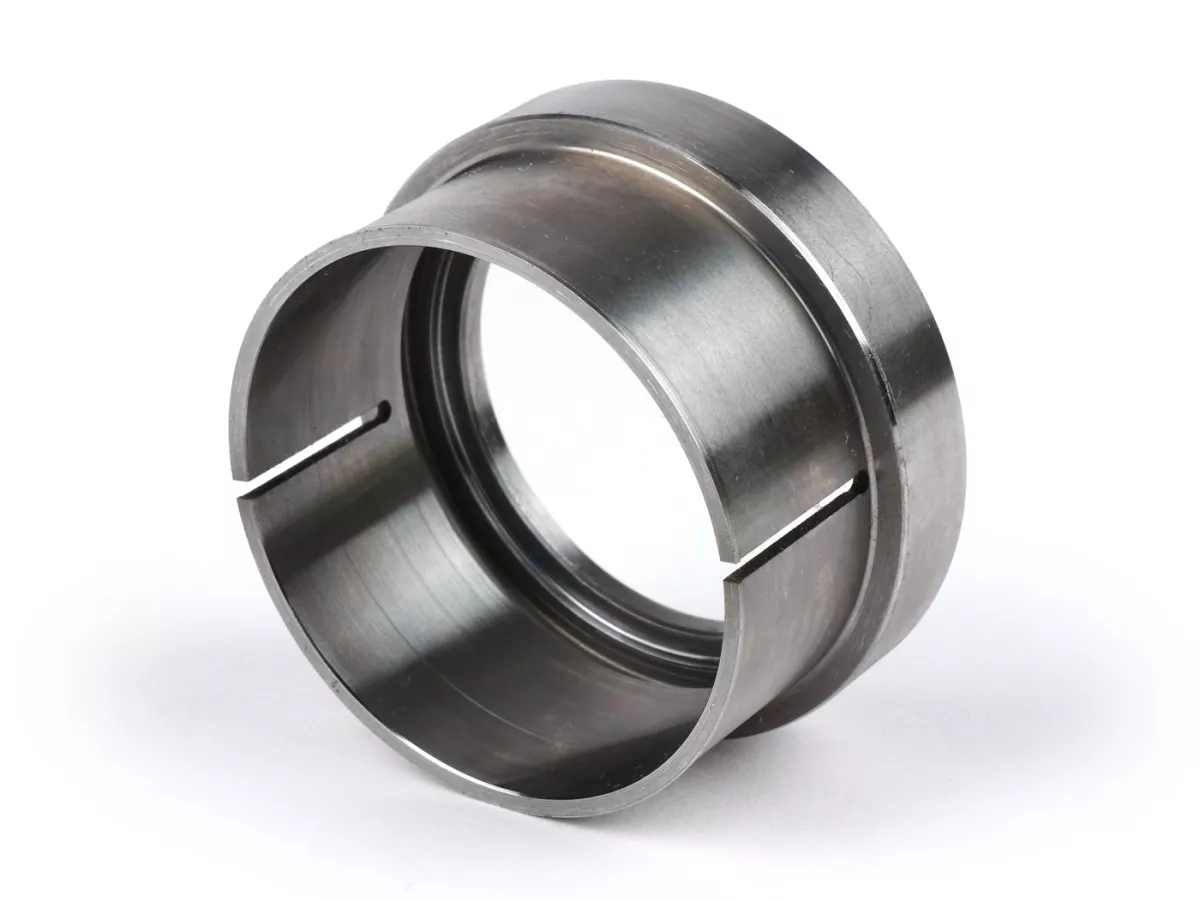

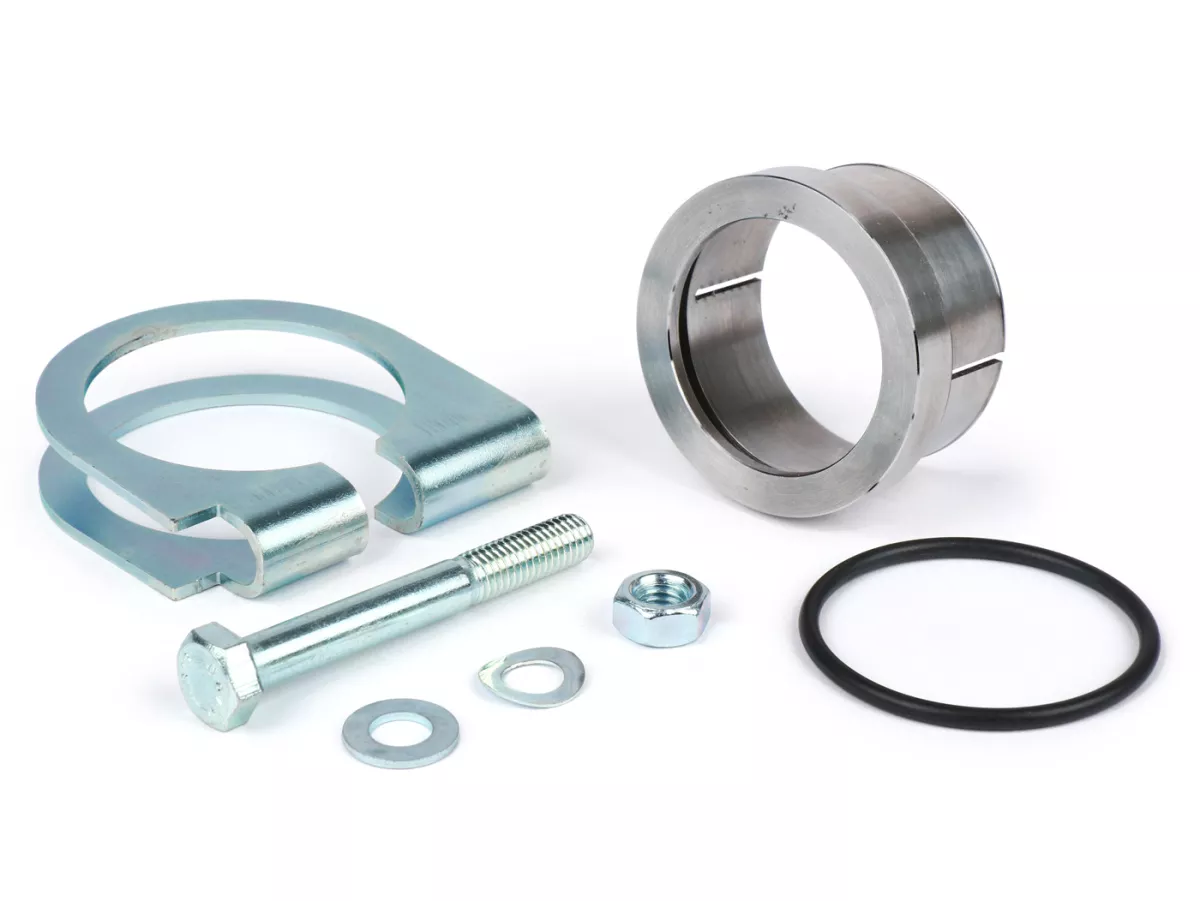

✅ Exhaust flange for welding on - for PX200 systems with 44.5 mm

With this exhaust flange, you can easily retrofit your PX200 exhaust system. The flange is welded on and fits systems with a diameter of 44.5 mm. The combination of O-ring and integrated clamp ensures a reliable seal and secure attachment to the cylinder's exhaust port.

As some tuning cylinders - depending on the manufacturer - have certain tolerances on the exhaust port, you should always check the fit before fitting.

Special case Quattrini:
For the Quattrini M232 and M244 cylinders, there is a special exhaust port with a suitable dimension of Ø 45 mm - this is available separately.

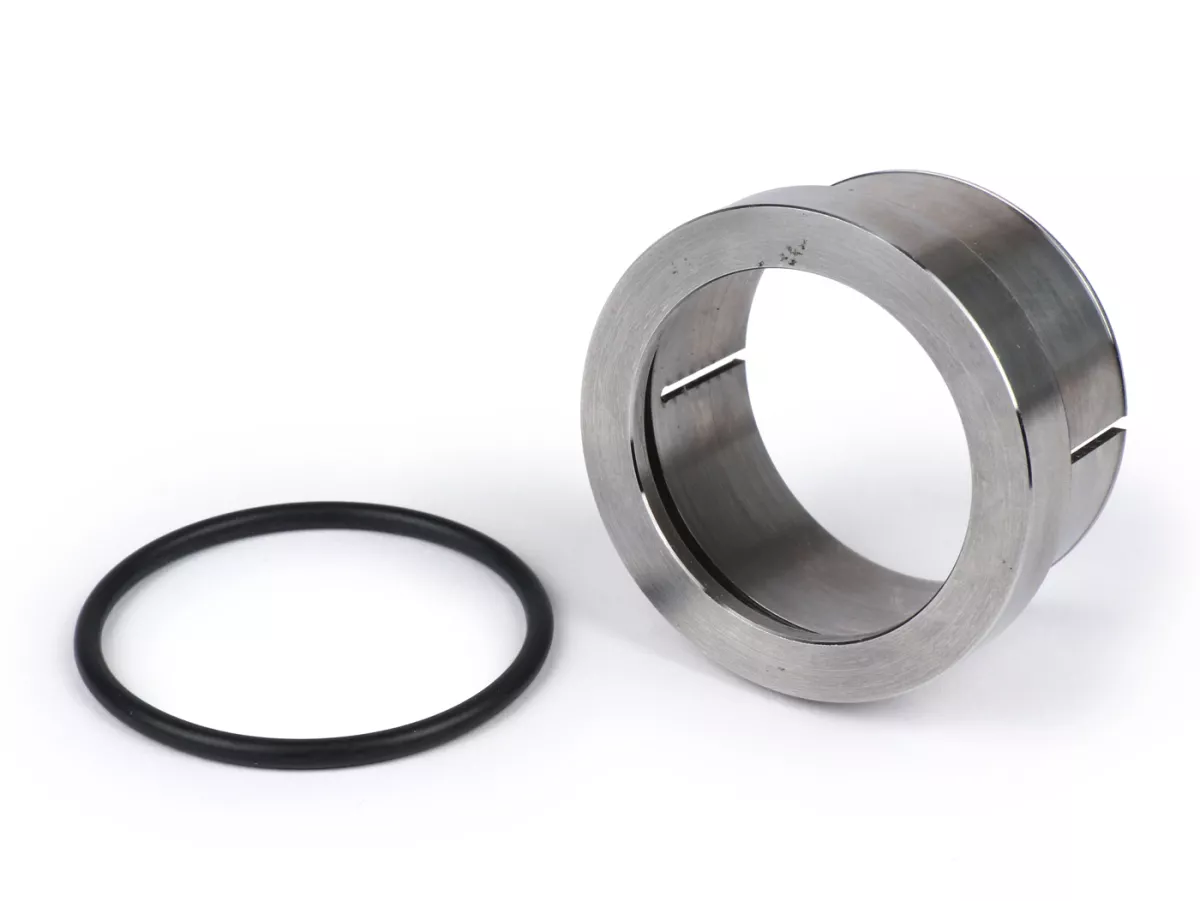

The O-ring supplied is made of FPM (Viton®), is temperature-resistant up to 240 °C and is resistant to oils and fuels - ideal for areas in the exhaust tract subject to heavy loads.

Important:
The O-ring must not be inserted when welding, as the resulting temperatures can permanently damage the material.

Advantages at a glance:

  • ✅ For retrofitting PX200 exhaust systems with Ø 44.5 mm

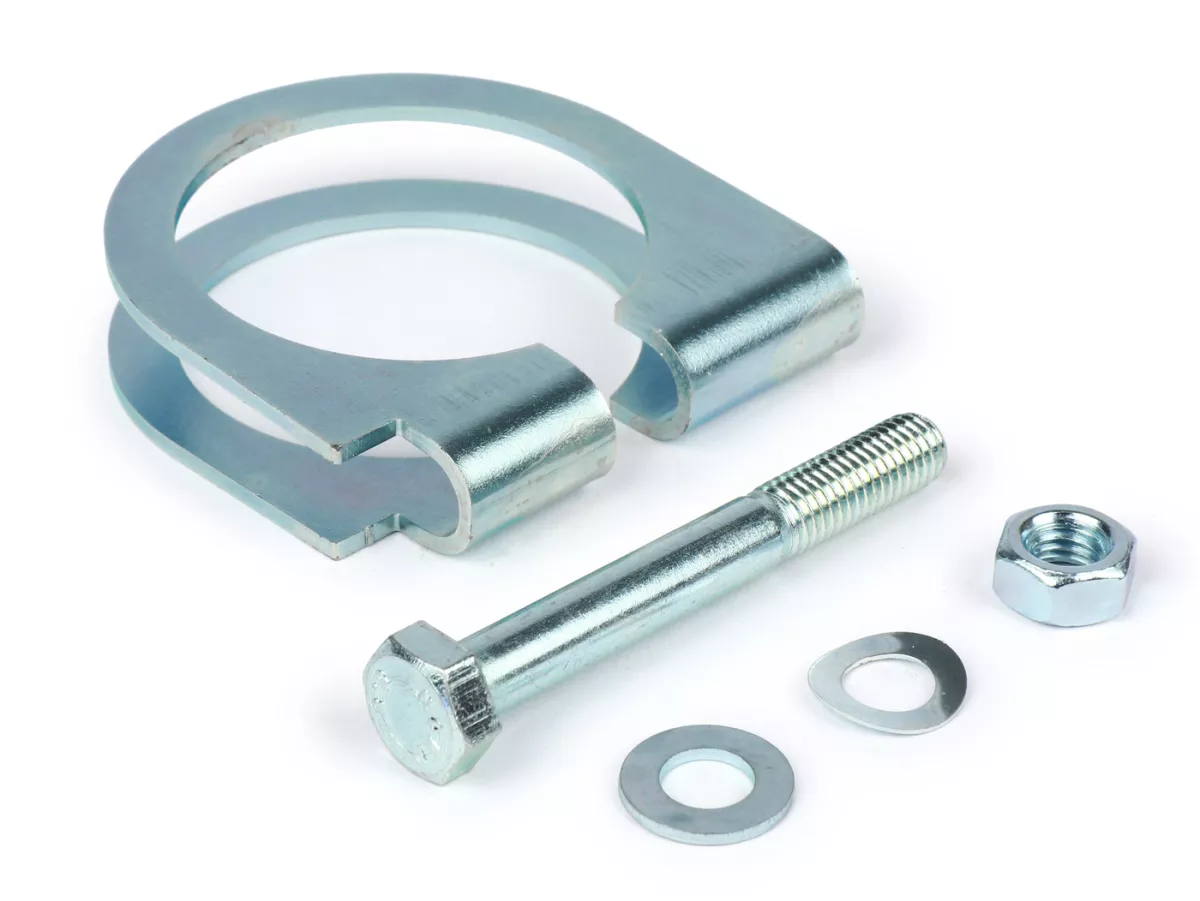

  • ✅ With clamping and FPM O-ring for a tight and secure connection
  • ✅ Heat-resistant up to 240 °C, resistant to oil and fuel
  • ✅ Fit check recommended - especially for tuning cylinders
  • ✅ Quattrini M232/M244: Separate 45 mm outlet connection available
