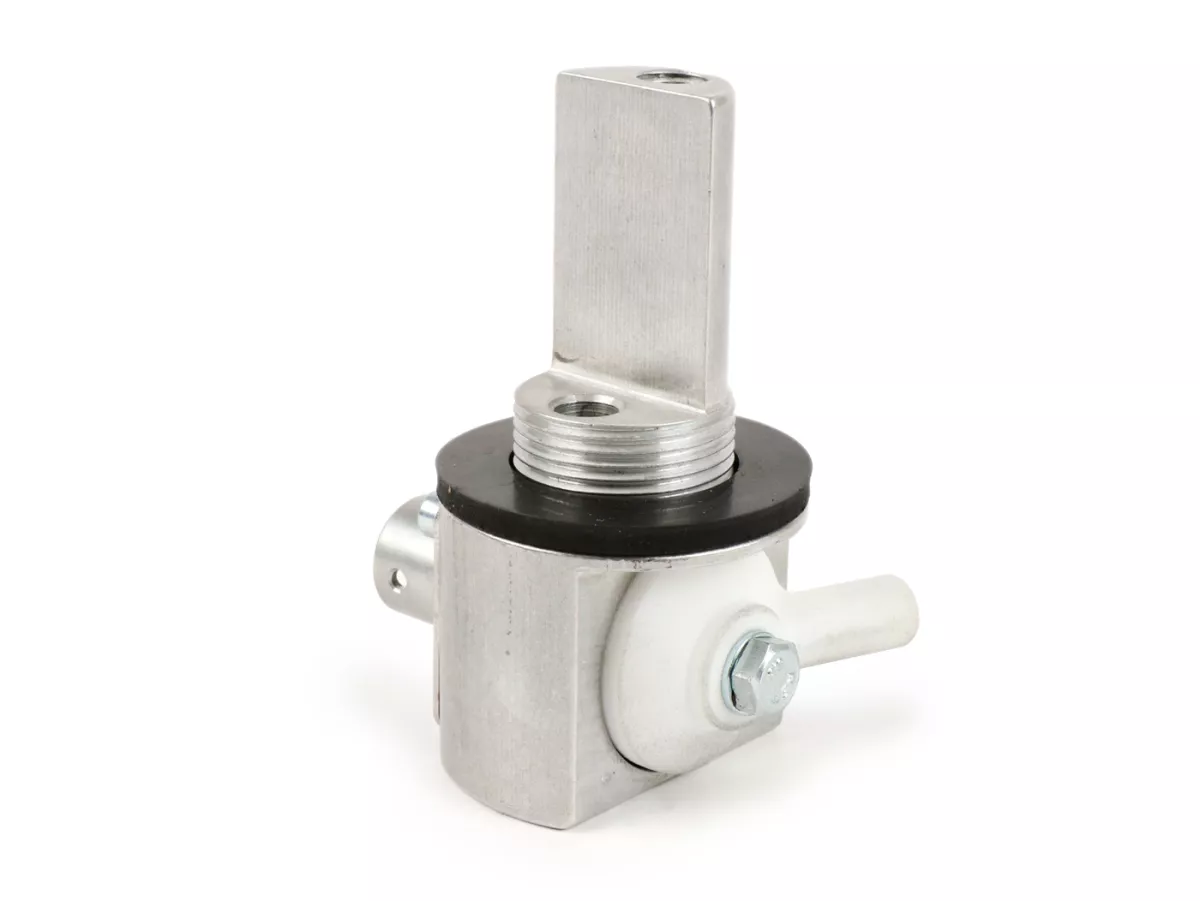

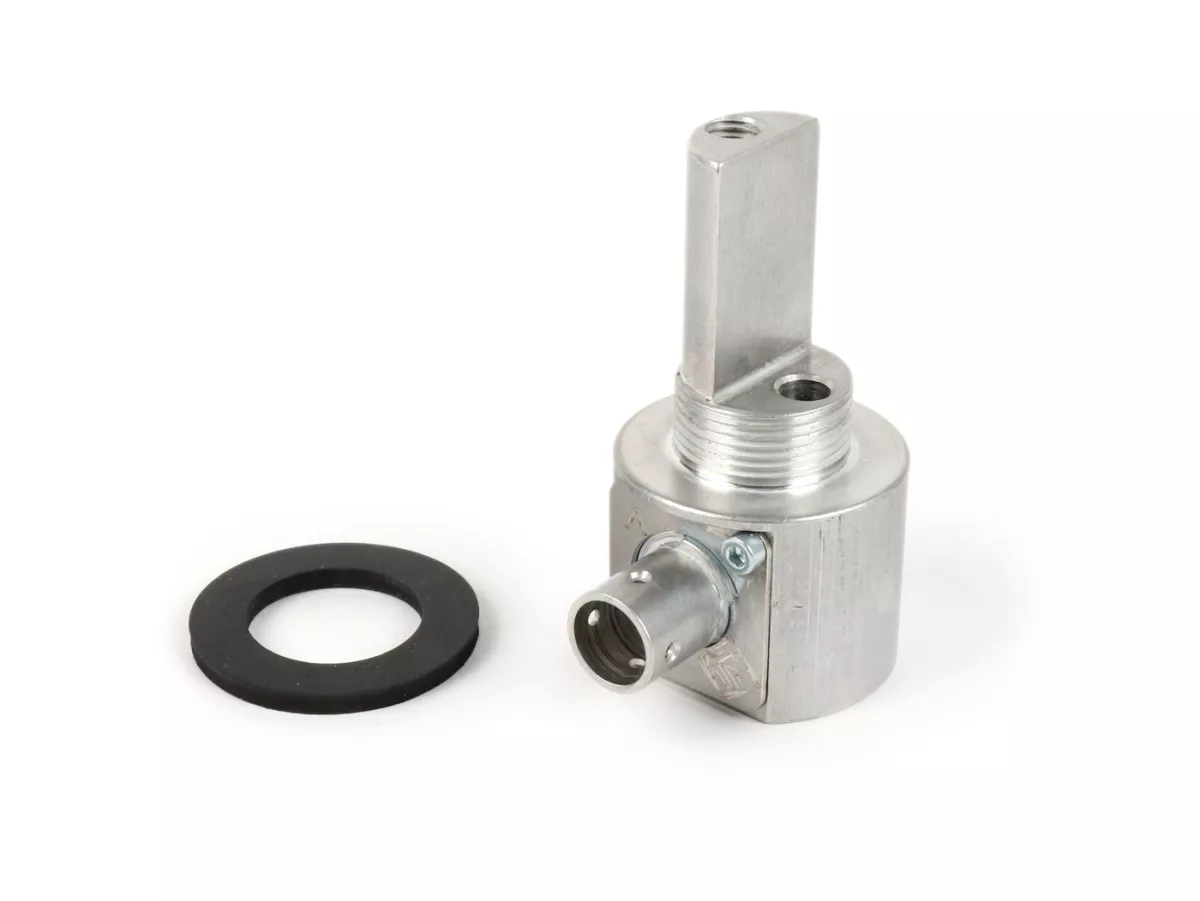

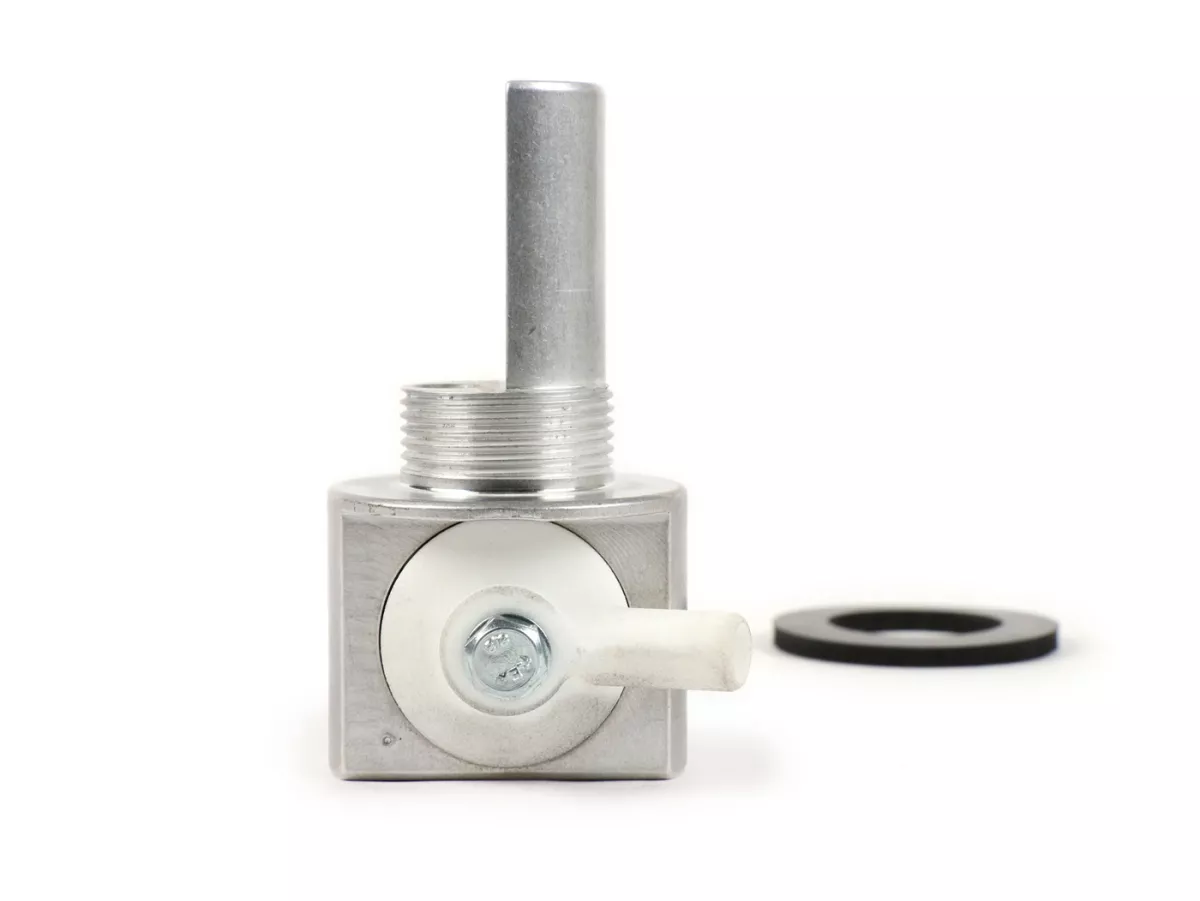

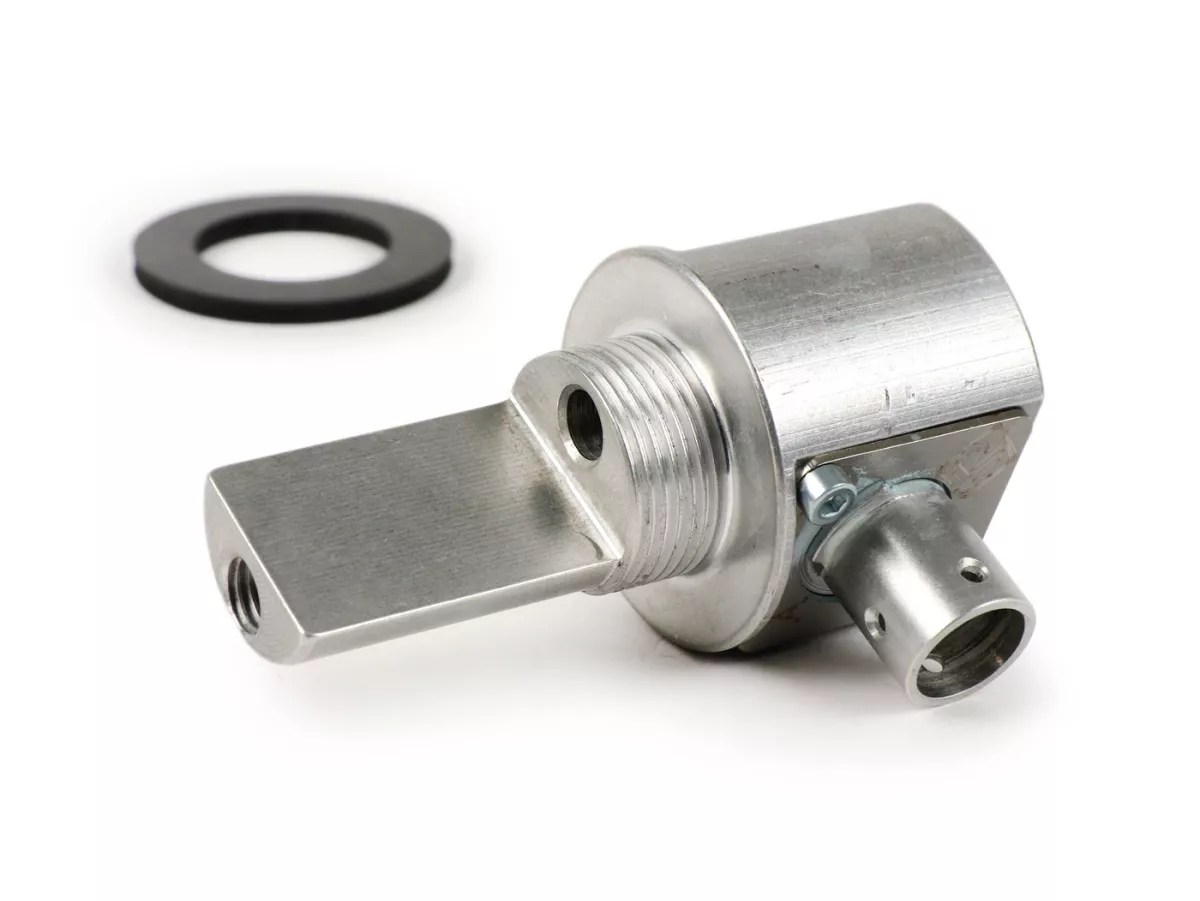

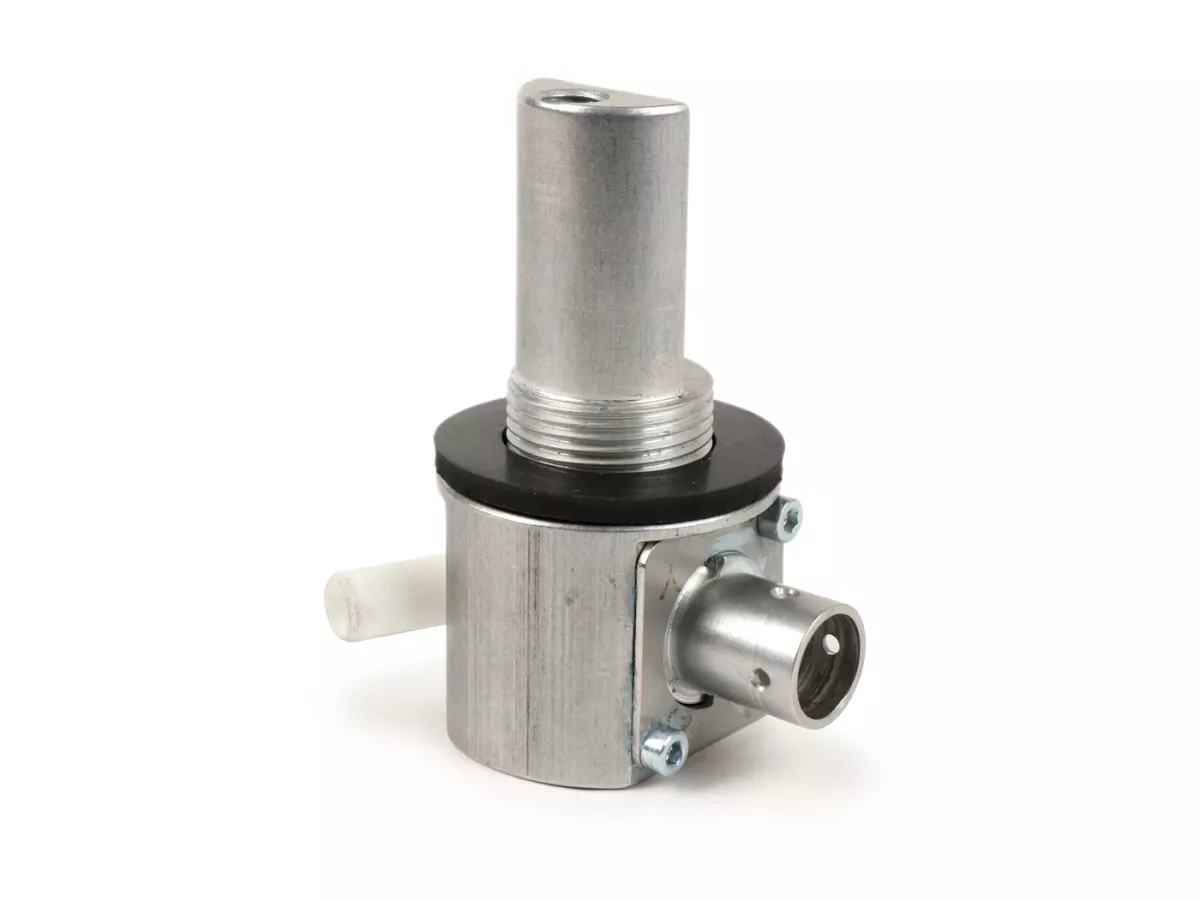

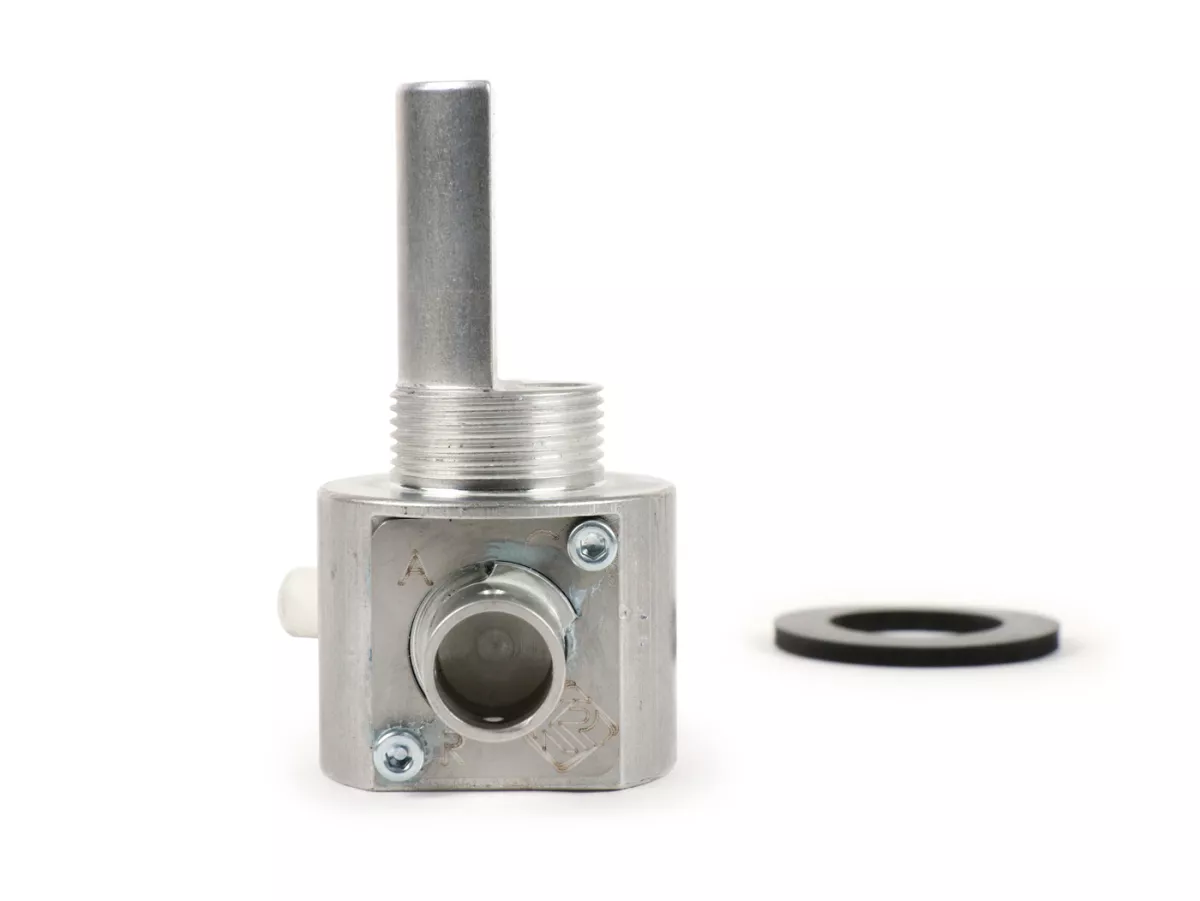

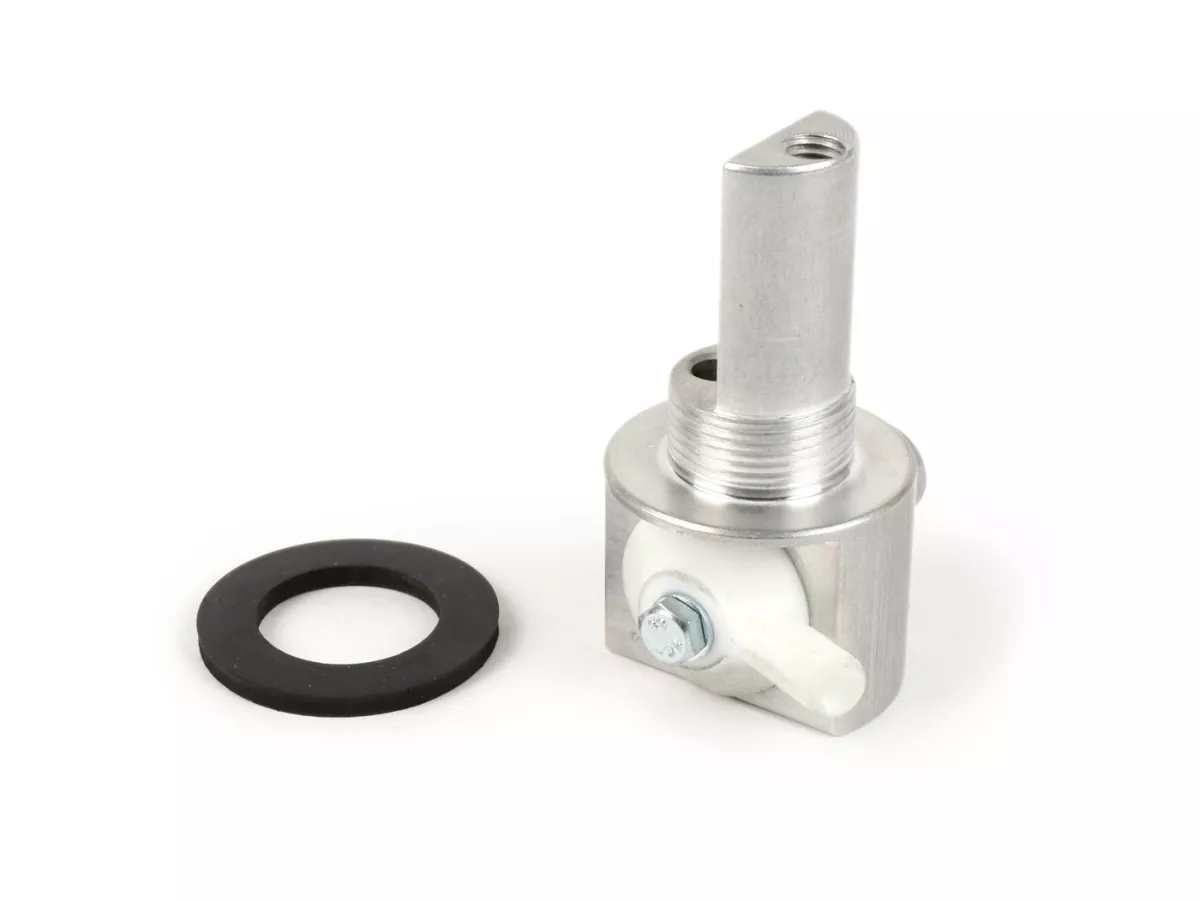

CNC fuel tap suitable for largeframes, smallframes and all other Vesparoller with straight fuel tap.
outlet 360 degrees rotatable to allow a direct routing in direction of the carburetor. Base body and rotating element for connecting the fuel tap lever milled from aluminium. Inside diameter of all bores at least Ø6mm.
flow maximum 2L/min with vertical outlet
flow with PX configuration 1L/min also in reserve mode until the tank is really empty (original Piaggio = ca.400ml/min)
The tap has two closed positions (0° and 270°).
All seals are made of FKM / FKM. The seal between the tank and the cock is doubled. The rotating element is equipped with O-ring and flat seal.
Diameter of the fuel hose 8mm
