AEL Item number: 3330784

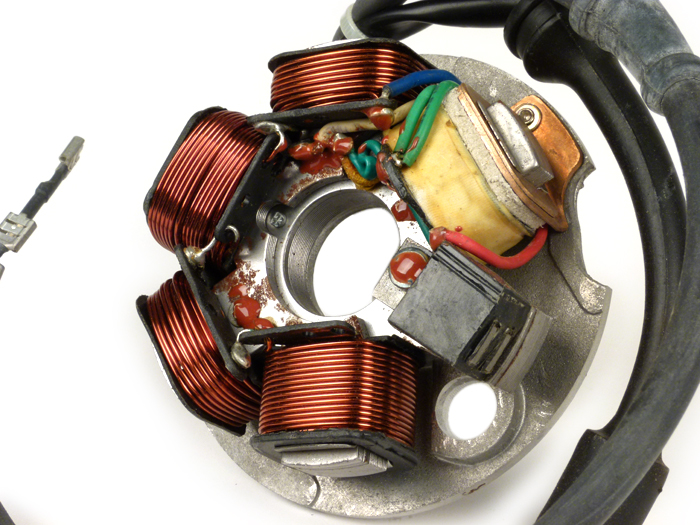

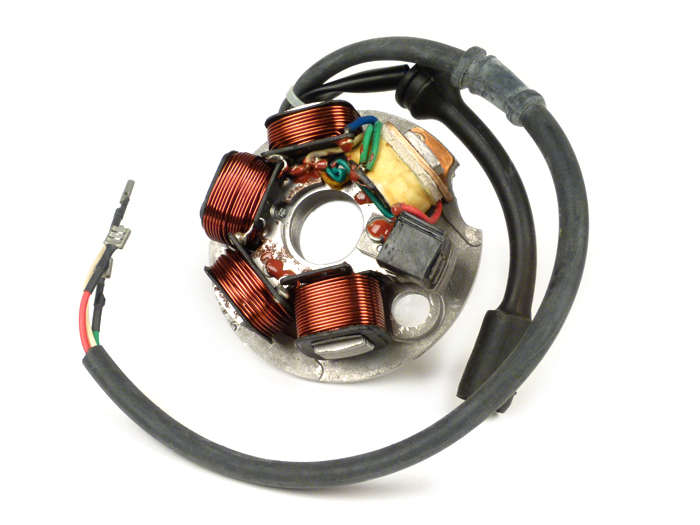

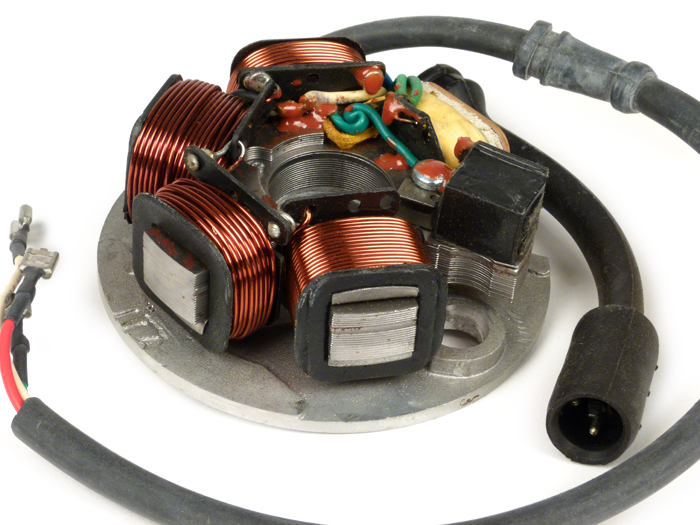

Ignition -AEL stator- Vespa PK XL, Ape 50 - 5 coils, 6-cable (round plug with 3-pin) - for vehicles without battery

14 Ratings

64,00 €*

not available

Shipping weight 0,86 kg

Send me an e-mail as soon as the item is back in stock.

Information on product safety

This is how we ensure, that reviews come from real consumers.

Anonym 10/14/2016

Ware wie beschrieben.Schnell, pünktlich, gut

Anonym 10/14/2016

Sehr passgenau,gute Lichtleiszung,zuverlässig.

Anonym 10/14/2016

Ware wie beschrieben. Schnell, pünktlich, gut

Anonym 05/22/2016

.......... wie original

Anonym 05/22/2016

… wie original

Anonym 05/22/2016

... Wie original.

Anonym 10/18/2015

hat super geklappt bei meiner PK 50 passt gut und funkt auch super

Anonym 10/11/2015

Passt. Roller läuft wieder

Anonym 10/11/2015

Passt. oller läuft wieder

Anonym 09/01/2015

Alles Ok

Anonym 09/01/2015

All OK.

Anonym 06/25/2015

Sehr gute Qualität,passt alles.

Stator ignition (base plate)

Ignition type

kontaktlos (elektronisch)

Position (pickup / contact)

innenliegend

Stator uses pole wheel type

Außenrotor

Number of coils

5

Tension

12V

Electricity

Wechselstrom (AC)

Base plate diameter

105 mm

Coil diameter

93 mm

Total height

39.5 mm

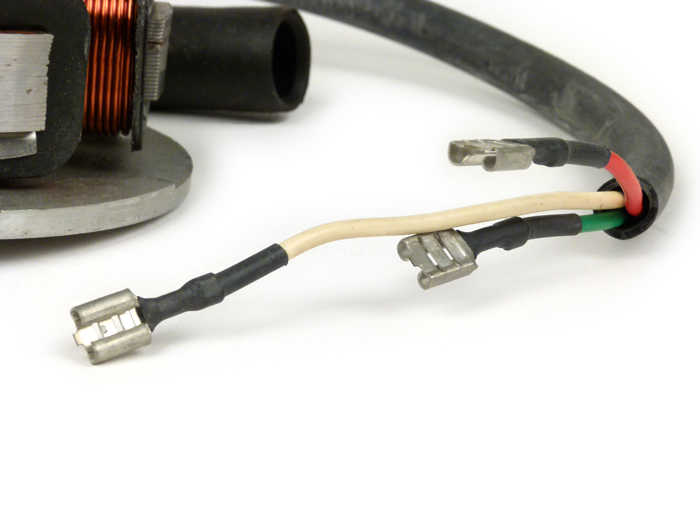

Number of cables

6

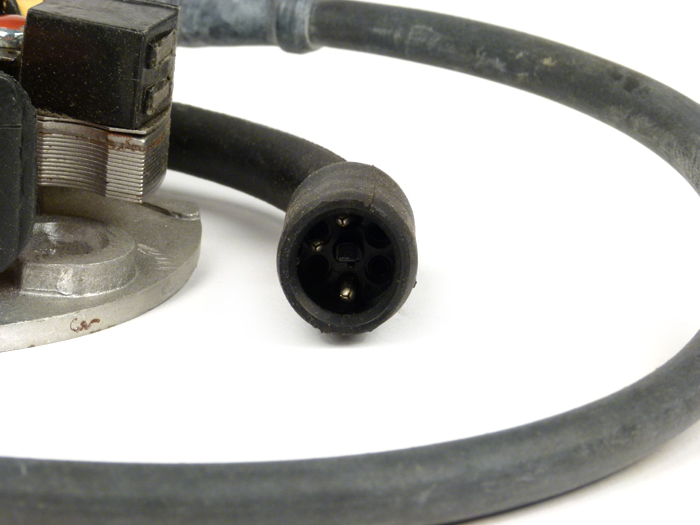

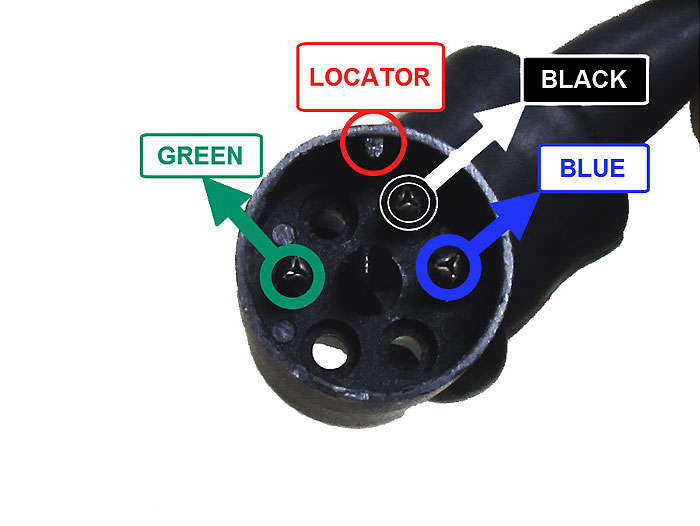

Plug type

Multistecker

Rotor ignition (pole wheel)

Pole wheel type

Außenrotor

Ignition in general

Rotor (pole wheel) included in the scope of delivery

nein

CDI included in scope of delivery

nein

Voltage regulator included in the scope of delivery

nein

Ignition timing

fest

OEM numbers (for comparison purposes only)

Piaggio:

497654

Scooter Center:

3330784

RMS:

246350051
