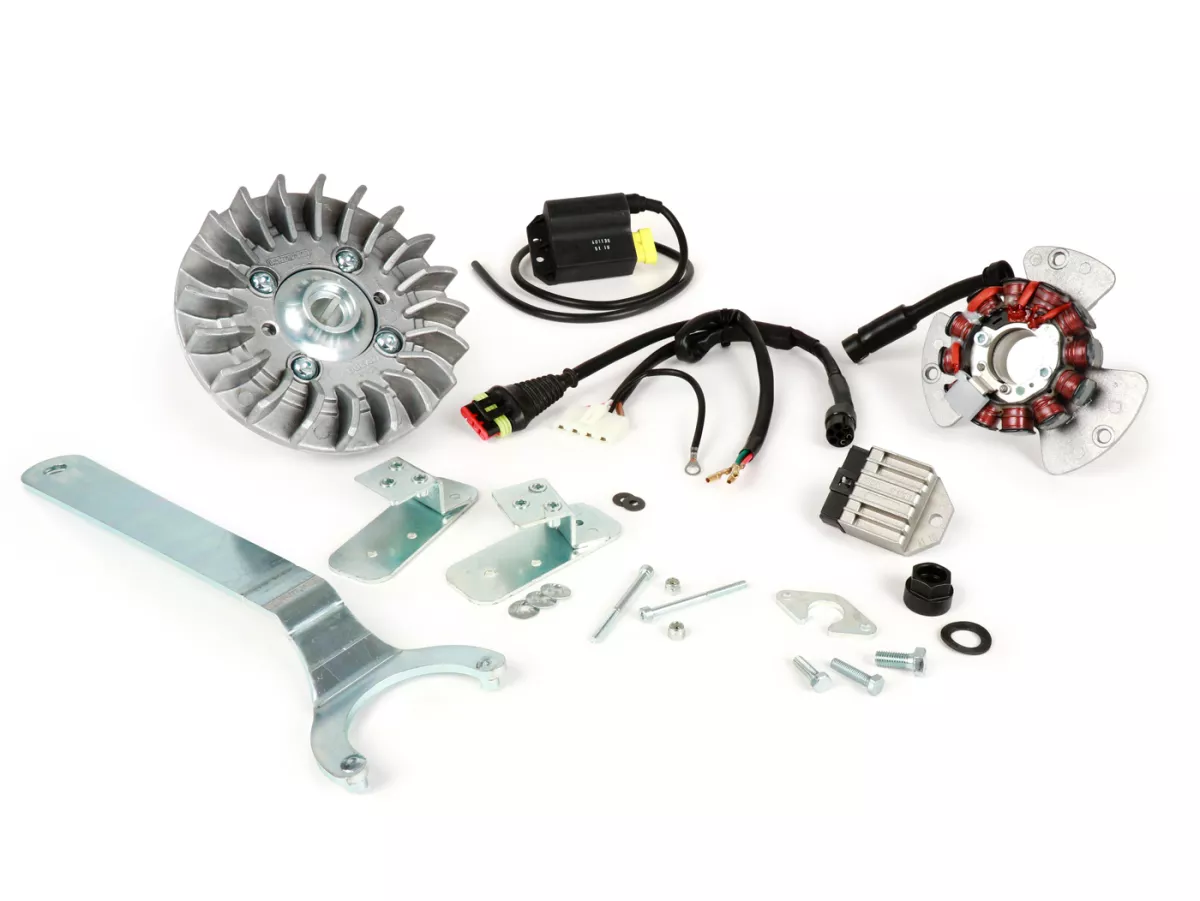

Casa Lambretta Casatronic Sport Ignition – Ducati 12 V for GP and DL

Ignition CASA LAMBRETTA DUCATI CASATRONIC Lambretta GP, DL.

The Casatronic has been manufactured by Ducati Energia since 2020 and features some innovative and groundbreaking characteristics.

Key advantages:

  • 12 V with a genuine 120 W output even at very low RPM
  • AC and DC output
  • Digital system with variable ignition timing
  • 12‑pole stator
  • CNC‑machined and balanced flywheel
  • Die‑cast stator plate
  • Die‑cast cooling fan blades
  • Incredibly easy to install
  • No ignition timing adjustment required
  • Plug 'n' Play connectors
  • European manufacturing and corresponding quality


Three different versions are available, differing in flywheel weight and in the pre‑programmed ignition curves of the CDIs.

  • Standard: Flywheel with fan: 2.5 kg
  • Sport: Flywheel with fan: 2.1 kg
  • Race: Flywheel with fan: 1.3 kg

In addition to the different flywheel weights, each ignition comes with a specific CDI unit and different ignition curves.

The Standard CDI has these part numbers: SC CLX907 – Casa Lambretta X907, with Ducati number 401135 printed on the back.

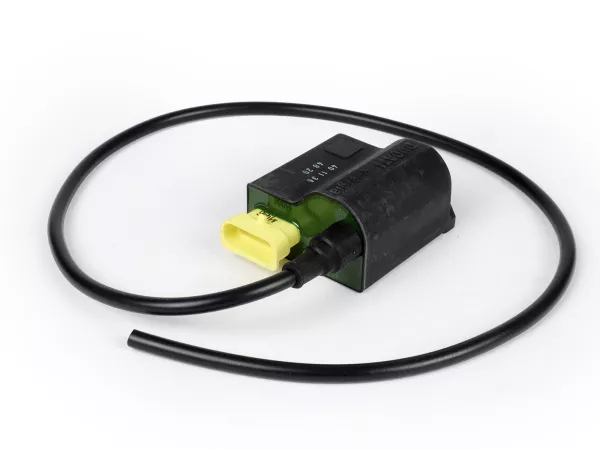

The Sport CDI has these part numbers: SC CLX908 – Casa Lambretta X908, with Ducati number 401136 printed on the back.

The Race CDI has these part numbers: SC CLX909 – Casa Lambretta X909, with Ducati number 401137 printed on the back.


The “no ignition adjustment needed” feature works as intended. However, to be 101 % sure, the engine should be checked with a timing light.

Rate this article now and let us know what you think.
