Indicator black tinted -MOTOGADGET handlebar end indicator- m.blaze disc - black anodised - rhs

Moto Gadget LED bar end indicator - with E-mark

The Moto Gadget bar end indicator is extremely flat and appears neutral and inconspicuous through the transparent pane. Thus it fits to many styles and the most different motorcycles. The technology is highly innovative and impresses with its very good function and formal beauty. The very bright LED emits the light into a precisely calculated plastic body. This shines a very bright light especially in the driving direction to the front. This makes the indicator directional (different indicators for left and right). The turn signal has a homologation in the EU for use as a front turn signal.
Vehicles that have turn signals at the rear ex works must continue to use them. The indicators are intended for use with 12V direct current (DC / battery). A direct connection to an alternating current (AC) board net (many old Vespa) is not possible.

• Selected high performance LEDs with maximum efficiency and a total power of 7W with a life span of more than 50.000 h
• An IC-controlled constant current regulation system clocked at 330kHz
• A special collimator optic, which couples the light of the LED precisely into the plastic body

The discreet aluminium housing is only used for the stable mounting of the glass body and the integration of control electronics and high-end LEDs. The flasher can be operated like any conventional LED flasher with load resistors or all load-independent flasher relays.

Advantages

• Barely noticeable on the handlebars when switched off
• Extremely bright light to the front, clearly visible light to the rear >/li>
• Modern high-power LED technology IntensiLED
• Electronic voltage conditioning and safe protection electronics
• Blink indicator light can be omitted
• Harmoniously closes the handlebar end

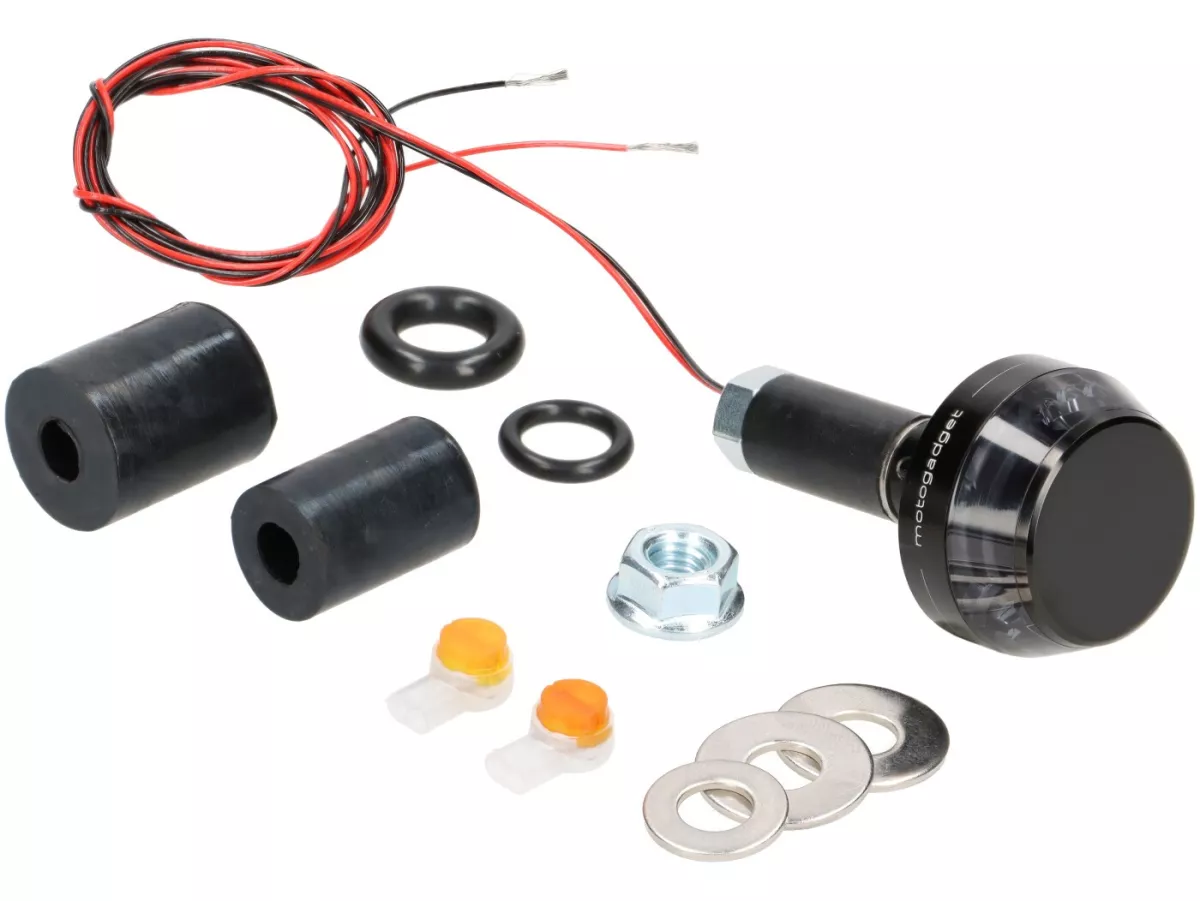

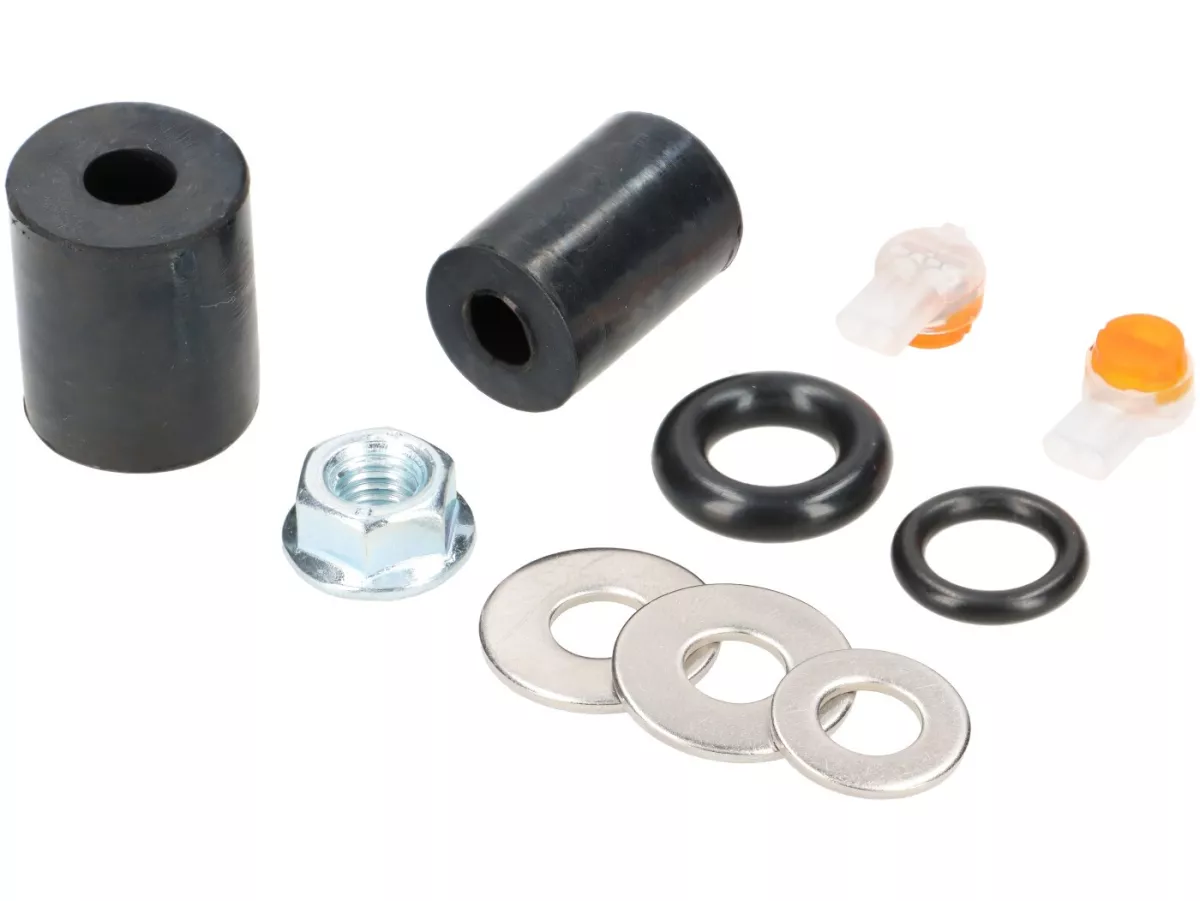

Scope of delivery

Individual handlebar end indicator m.blaze disc left or right with clamp for steel and aluminium handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm

connecting cable with approx. 100 cm.

Installation instructions

Data

• Diameter: 35 mm
• Length overall: approx. 68 mm
• Partial length outside the handlebar: 20 mm
• Partial length inside the handlebar: 48 mm
• Cable length: approx. 100 cm
• Weight: approx. 40 g
• 12 Volt DC

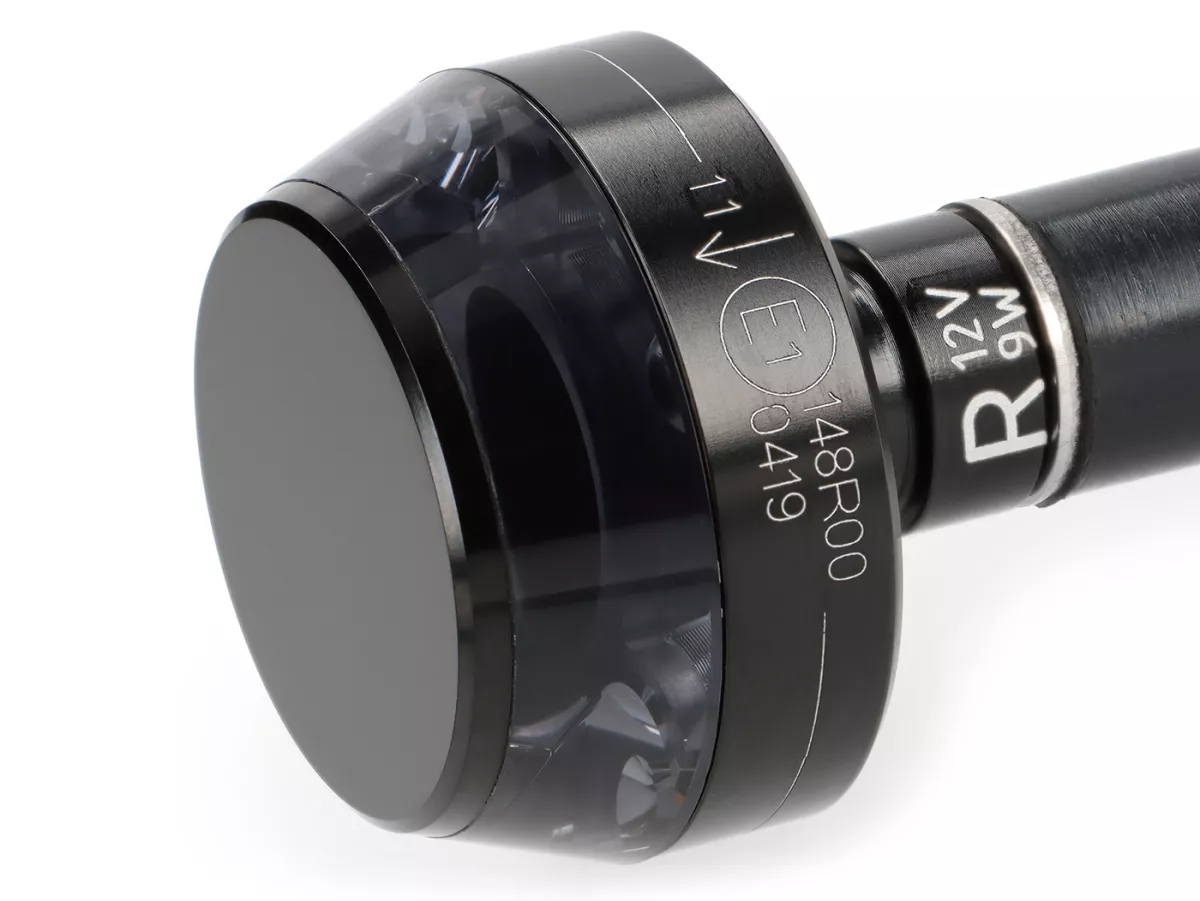

• With E-mark (no TÜV demonstration necessary)
