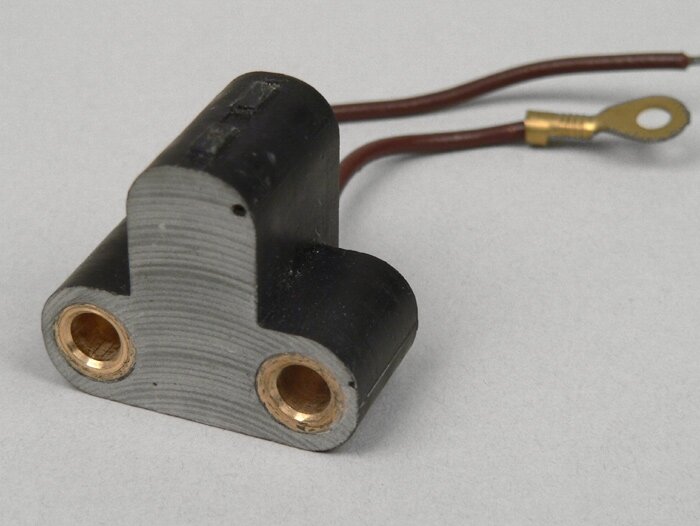

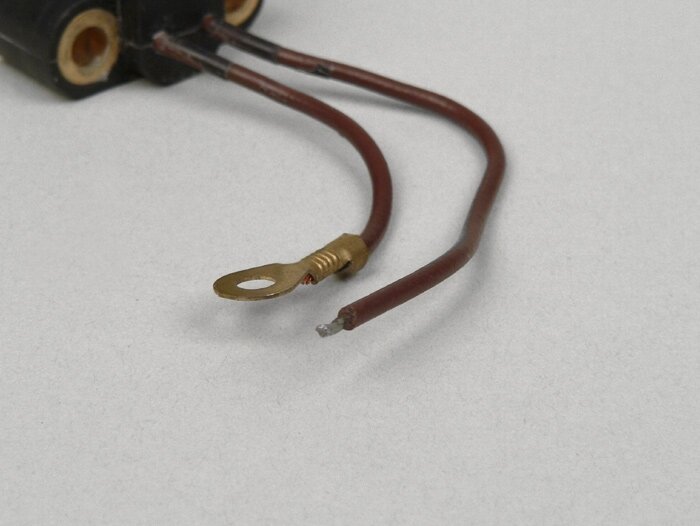

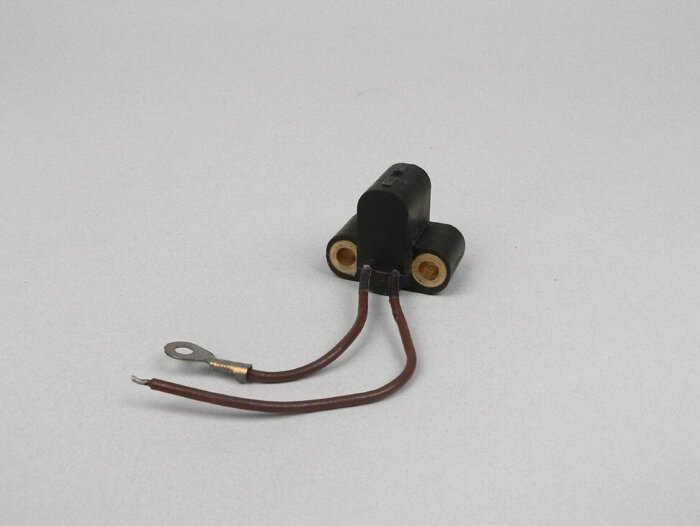

The most common reason for striking or spinning ignitions is the pickup truck. This relatively inexpensive spare part can be exchanged quickly.

Typical symptom for a defective pickup are starting problems with cold and/or warm engine. These are difficult to reproduce and occur very unexpectedly.

Cable colors of the original Femsatronic:

  • Blue = Resistance = 250 Ohm
  • Green = PickUp = 280 Ohm
  • Red = Excitation voltage (charging coil) = 170 Ohm

Measure all values against ground, without connected ignition box (CDI).
Distance of the pick-up to the cam: 0,25-0,30mm


AI-translation

Rate this article now and let us know what you think.
OEM numbers (for comparison purposes only)
Piaggio:
127254
Scooter Center:
9999997
