Malossi Item number: M348512B
Malossi
99,00 €*
available immediately
Shipping weight 0,26 kg

TIP: Always install piston rings carefully. Piston rings made of cast material are only elastic to a limited extent and break relatively quickly.
Some pistons have trapezoidally profiled piston rings (so-called keystoner rings), these only fit in one installation position. If the ring does not move freely, please loosen it carefully and reinstall it turned 'upside down'.

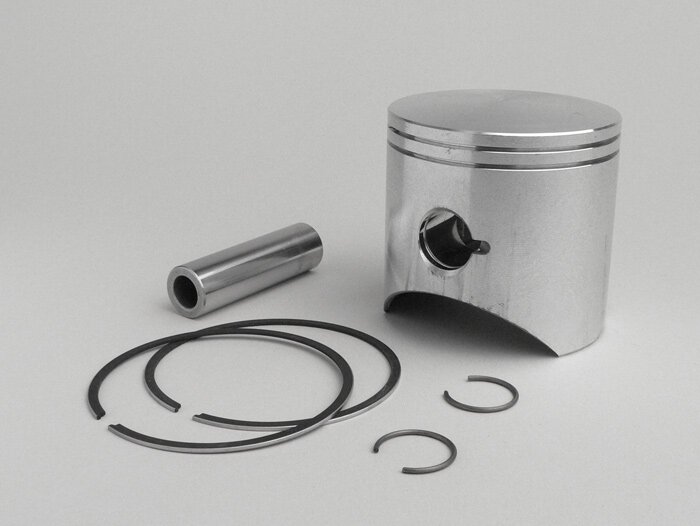

Replacement piston for M318237, M318236, M3111140, 7673598, 7673599.
The endings of the article number 0-D indicate the diameter of the piston with a difference of 0.01mm, whereby 0 corresponds to the smallest diameter.
The required diameter / piston size is marked on the cylinder.

AI-translation

Rate this article now and let us know what you think.

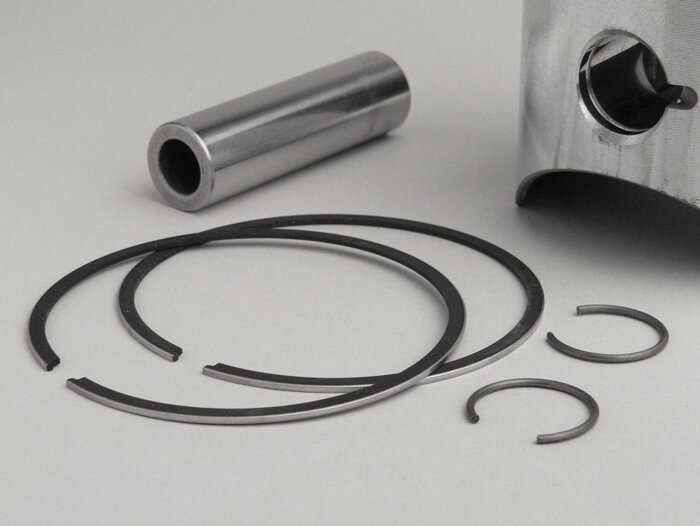

Piston pin
Diameter
16 mm
Length
55 mm

Cylinder
Drill hole
65 mm
Motor type
2-Takt

Piston
Number of piston rings
2
Piston manufacturing method
gegossen
Category (Grade)
B
Pin position
mittig
Compression height
30 mm
Piston roof shape
konvex gewölbt

Piston rings
Piston ring type
Trapez-Ring (Keystone-Ring)
Piston ring thickness
1,0mm

Piston clips
Piston clip type
C-Typ
Wire gauge Piston clip
1,2mm

OEM numbers (for comparison purposes only)
Scooter Center:
M348512B
Malossi:
348512.B0, M348512.B0
