TIP: Please always mount the piston rings carefully. Piston rings made of cast material have only limited elasticity and break relatively quickly.
Some pistons have trapezoidally profiled piston rings (so-called keystone rings), these only fit in one installation position. If the ring is not free, please loosen it carefully and reinstall it upside down.


AI-translation

Rate this article now and let us know what you think.

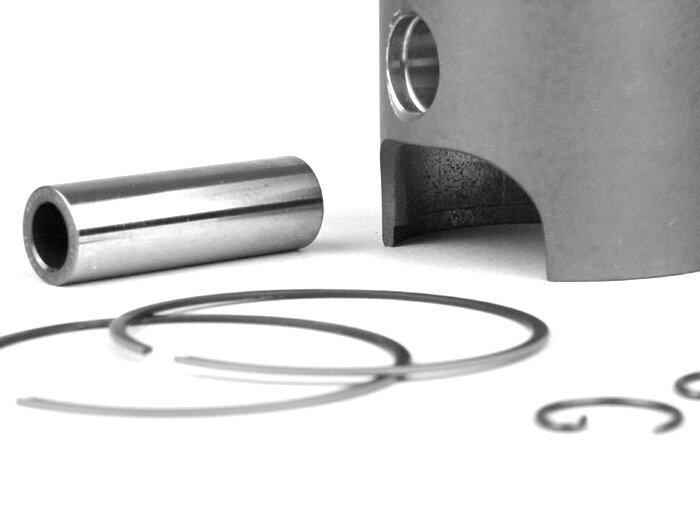

Piston pin
Diameter
15 mm
Length
47 mm

Cylinder
Drill hole
57 mm
Motor type
2-Takt

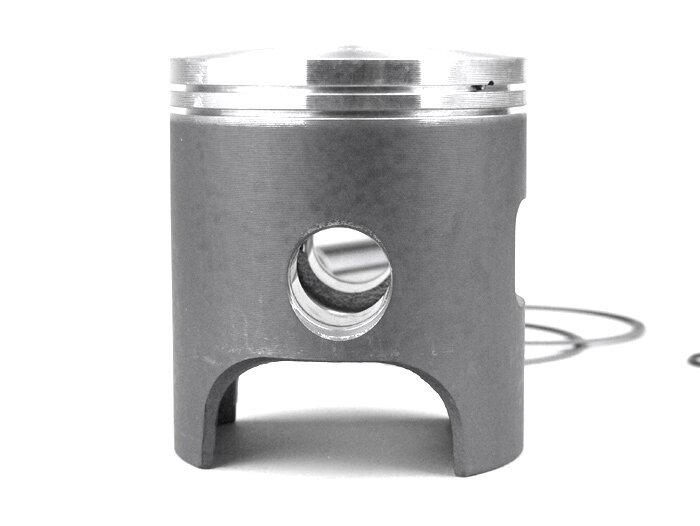

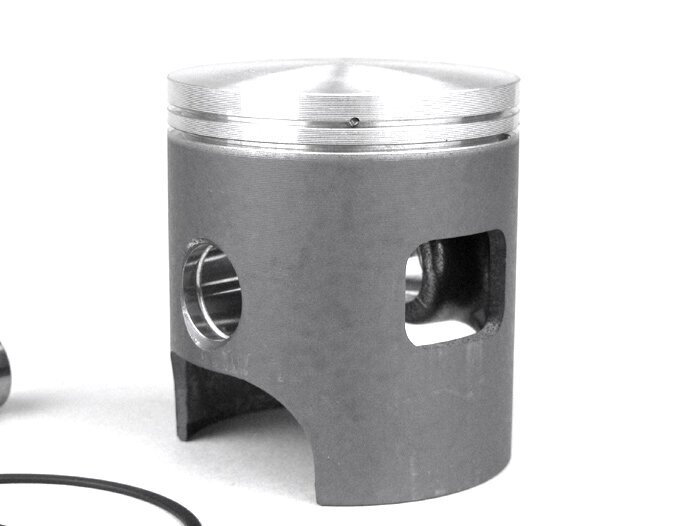

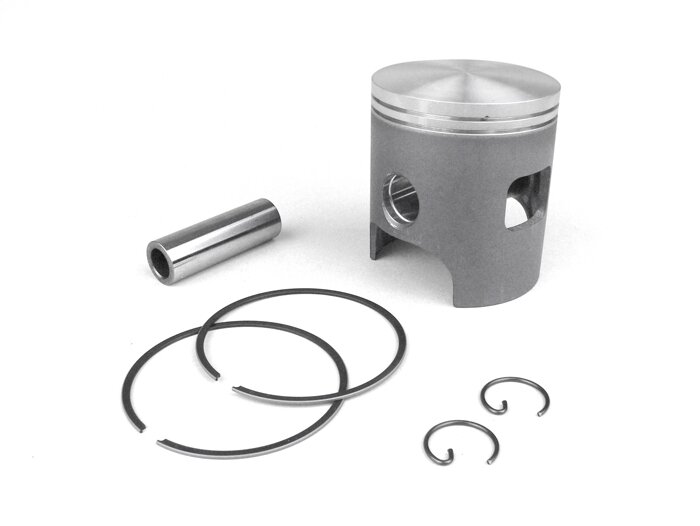

Piston
Number of piston rings
2
Piston manufacturing method
gegossen
Category (Grade)
A
Pin position
mittig
Compression height
32 mm
Piston roof shape
konvex gewölbt

Piston rings
Piston ring type
Rechteck-Ring
Piston ring thickness
1,0mm

Piston clips
Piston clip type
G-Typ
Wire gauge Piston clip
1,2mm

OEM numbers (for comparison purposes only)
Scooter Center:
P2040938A
Polini:
204.0938/A, P204.0938/A, P2040938A
