MCMINA CONVERSION KIT

The drive revolution for your Piaggio moped !
The wait is finally over !
After countless tests , over 2 years of development and thousands of kilometers
as well as hundreds of satisfied customers, the
MCMINA CONVERSION KIT
is
finally available for everyone
and usable with a variety of possible gearbox combinations


.






What is the Mina Conversion Kit ?
Thanks to the Mina Conversion Kit consisting of :

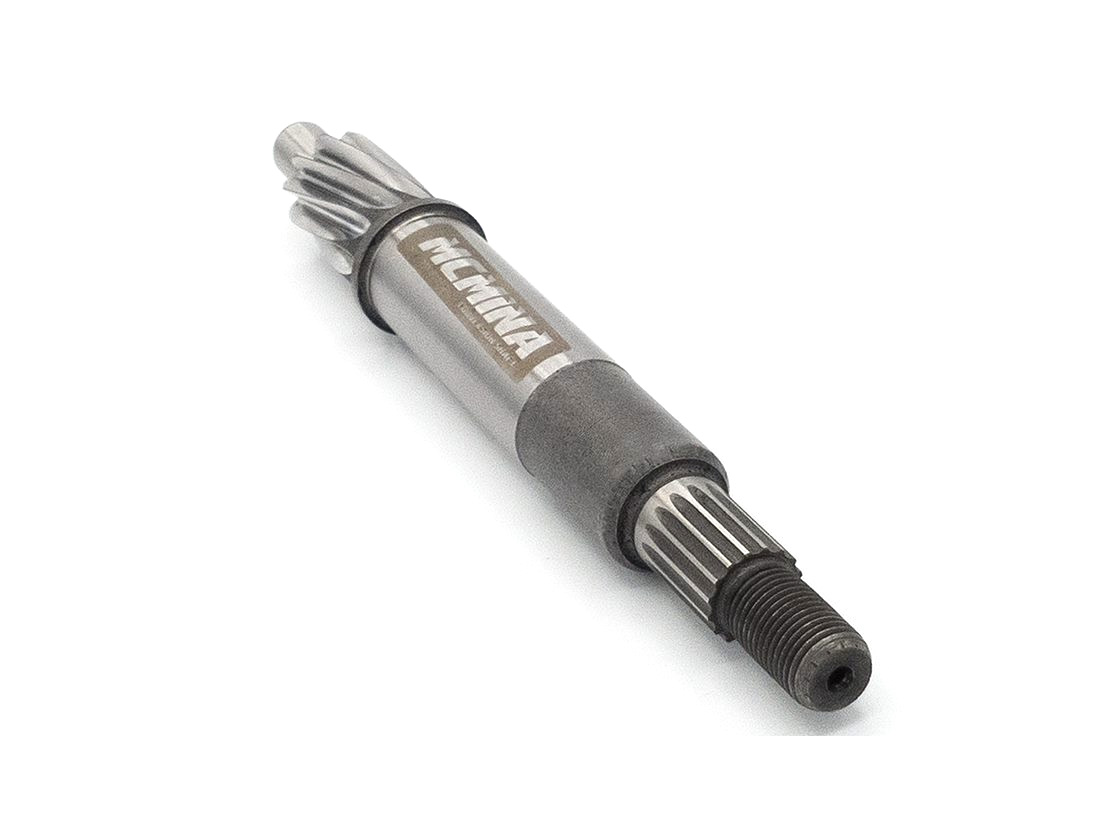

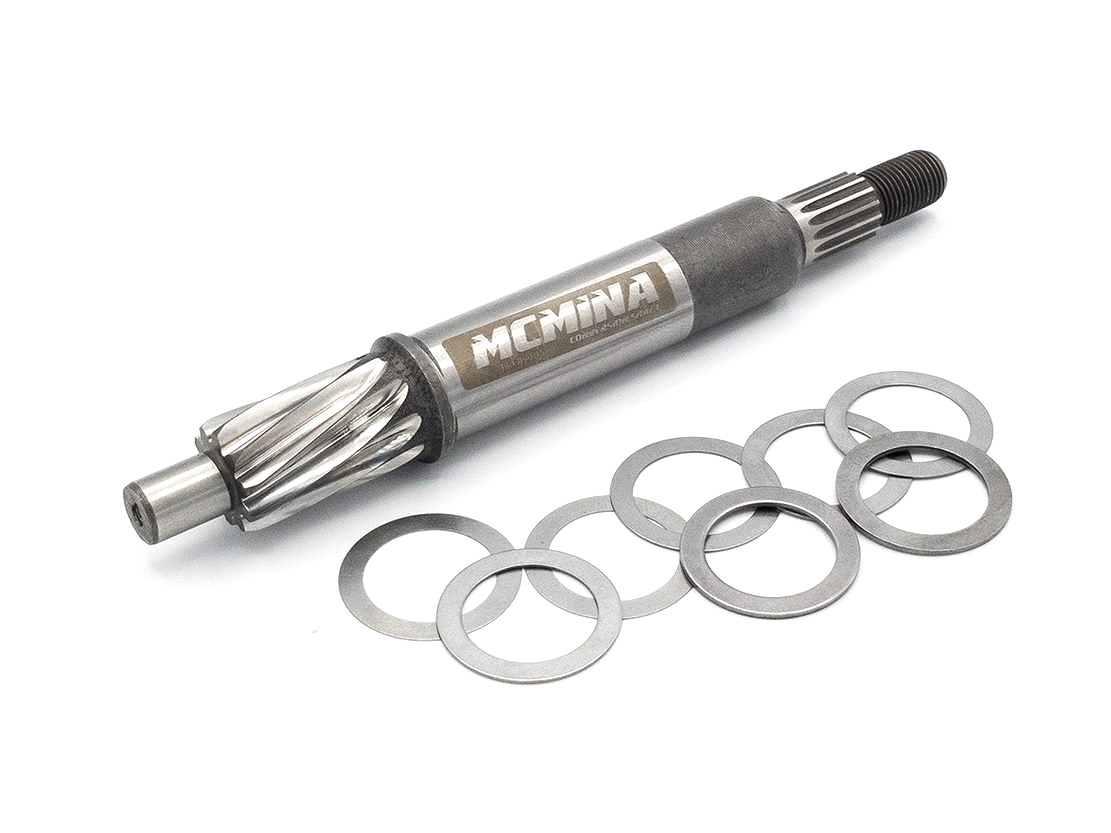

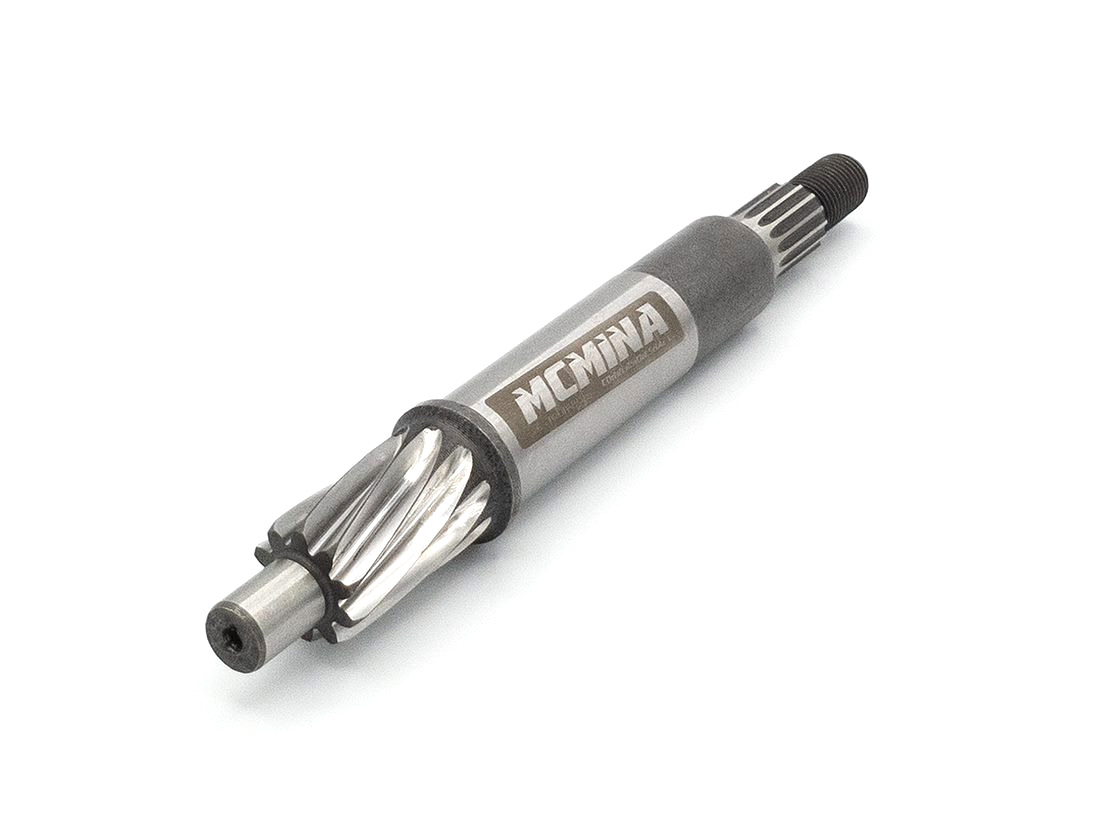

- Primary shaft 10 teeth helical
CNC turned / milled from hardened steel with perfect concentricity up to high speed regions (14000 + umd/min tested)
- Converter unit
Precise on a 5 axis CNC converted scooter / Minarelli converter with 101mm diameter with 41° pitch
it is possible to use complete scooter technology on his Piaggio moped !
During the conversion & manufacturing strong attention was paid to precision and quality materials !


The result is :
- no more problems with bad shifting
- no more problems with power over 5 hp
- no more problems with excessive belt wear / belt slippage
- no vibrations / imbalance (whirring)


-



less power loss at the drive



-




little to no bearing wear




-





converter side full control range usable





-






shifting behavior selectable ( 38 ° / 41 ° )
- better start / pull-through







-








higher Vmax








-









perfectly tunable (startup & holding speed)
- low wear
- no more crescent problems

-


large selection of clutch bells


-



large selection of clutches



- large



selection of
back pressure springs




-





works perfectly with MCBELT belts


Required :
- Primary shaft 10 teeth helical
- converter unit with 41°
- converter bell (can be freely selected from the Minarelli shelf , recommendation in the manual)
- clutch (different selectable , recommendation in the manual


) - back



pressure spring of your choice eg.e.g. from Malossi (from the Minarelli Regal > suitable for your setup)

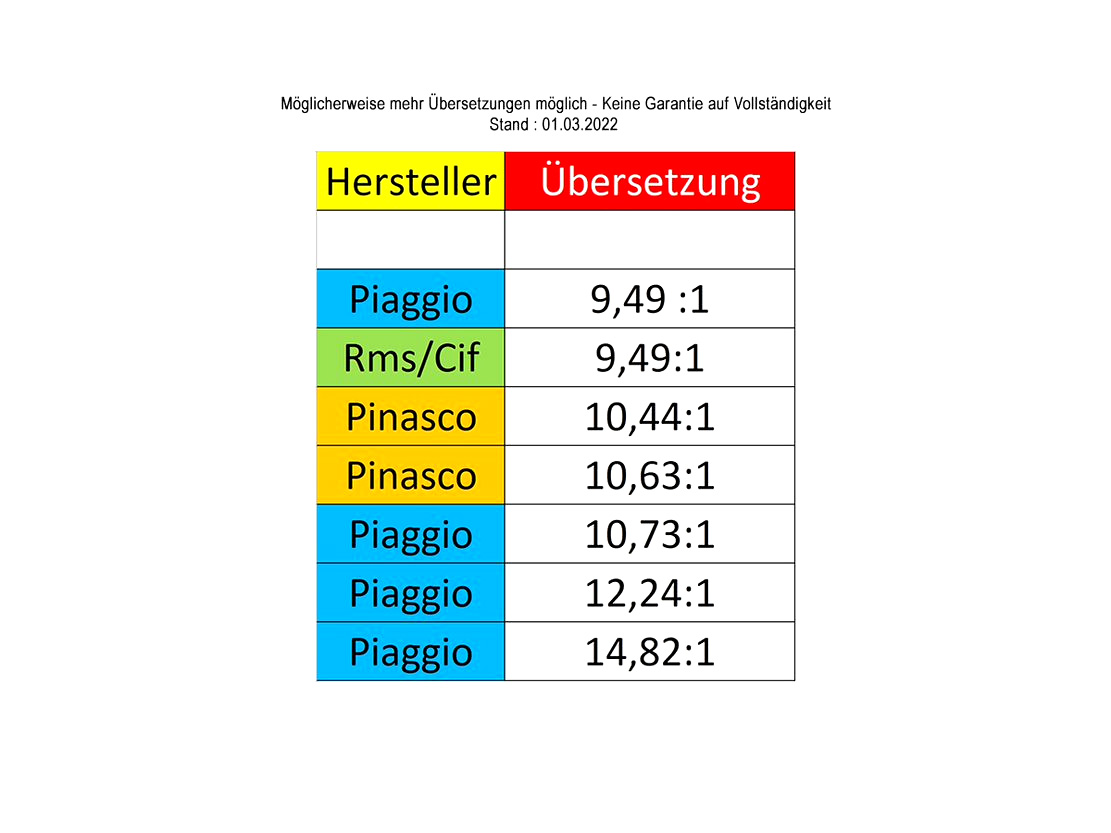

- A mono moped gearbox e
.g.
a 10.73:1 (recommendation)
- The mono moped gearbox must be milled off at the cover something, turned or filed down
- 1x bearing 1x Simmering


Info :
- Pushing the moped is no longer possible - because no starter pads available





-






Cable starter or kicker motor is required






-







Side parts must be machined rear







-








It should be a belt with correct geometry & angle used such as the MCBELT

A detailed & detailed instructions in the form of a PDF is available in the download area










.











In this everything is described to the smallest detail !
Including recommendations for back pressure springs , clutches & parts list.
