BGM PRO Item number: BGM2550
BGM PRO
1 Rating
49,00 €*
available immediately
Shipping weight 0,14 kg

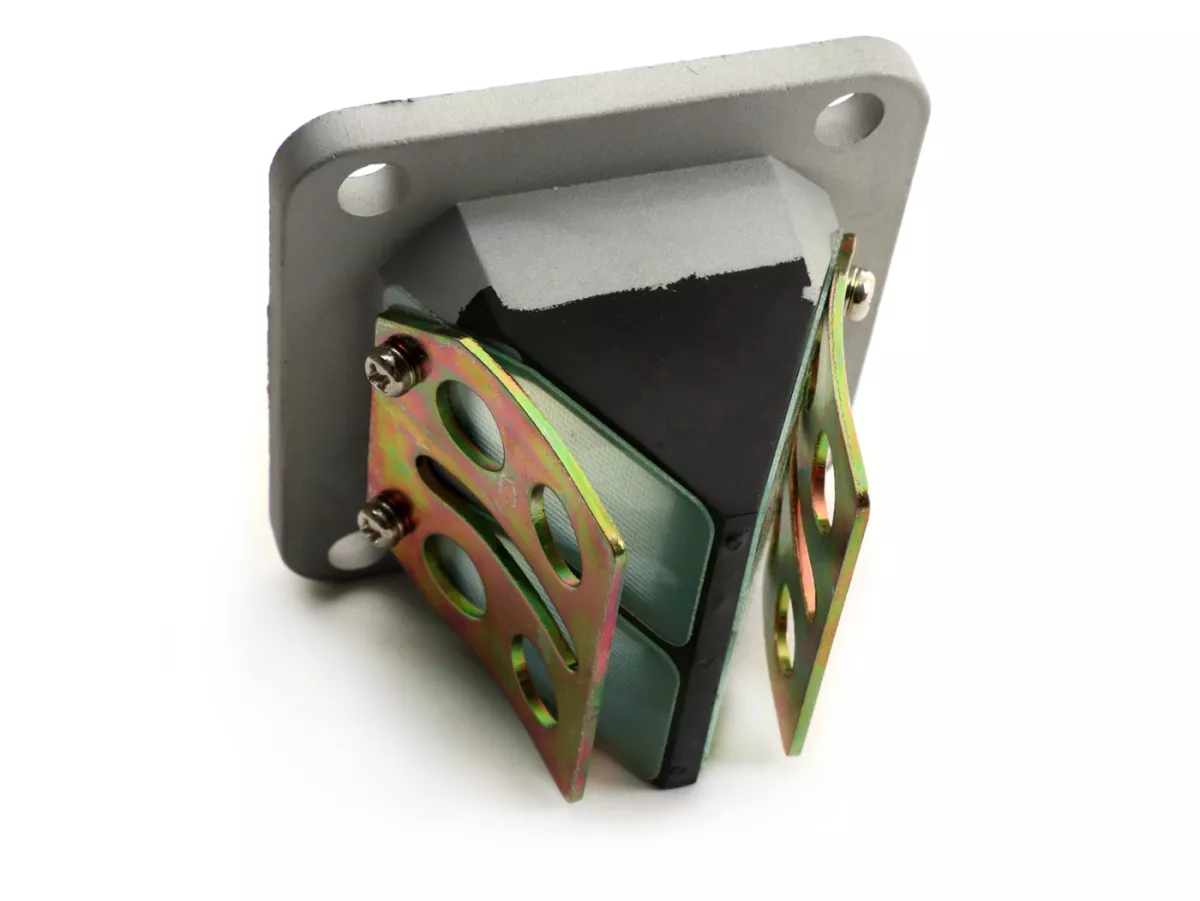

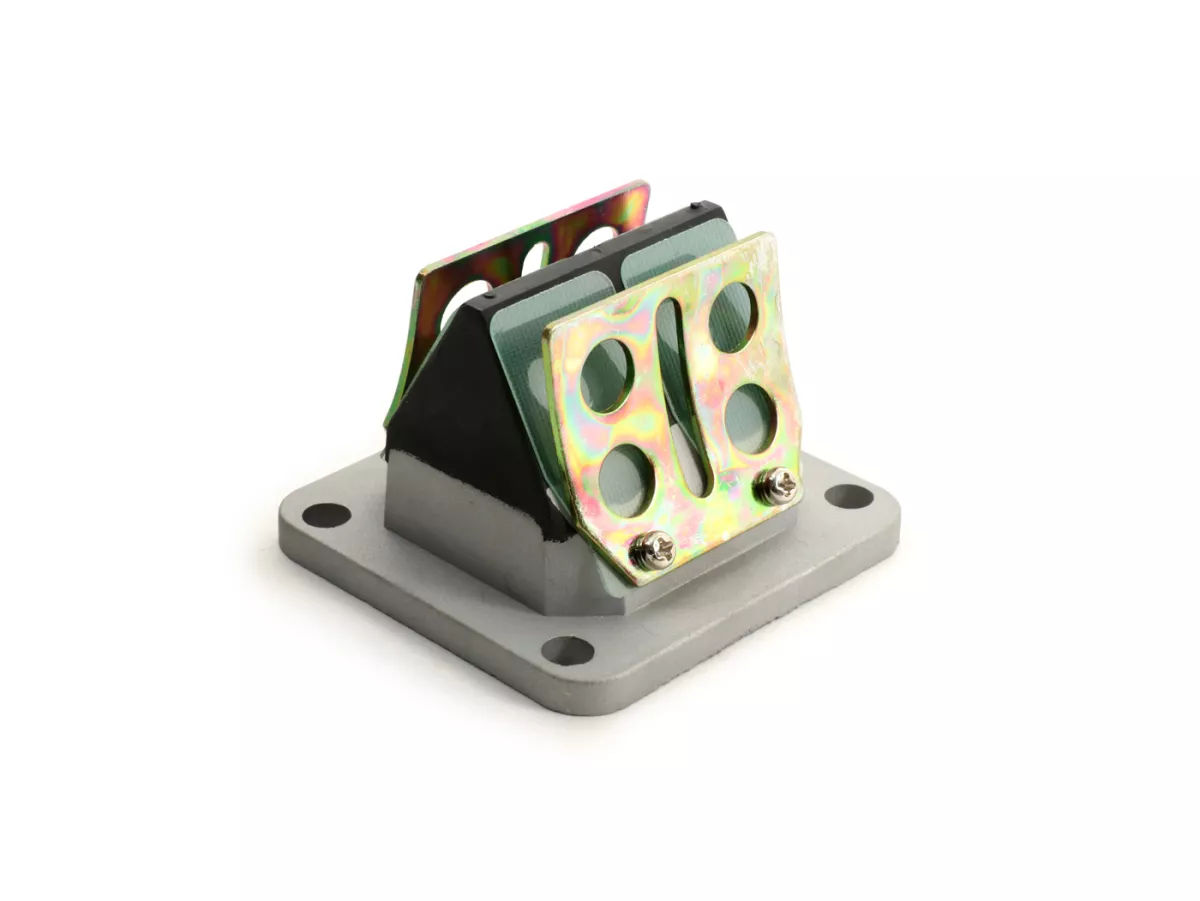

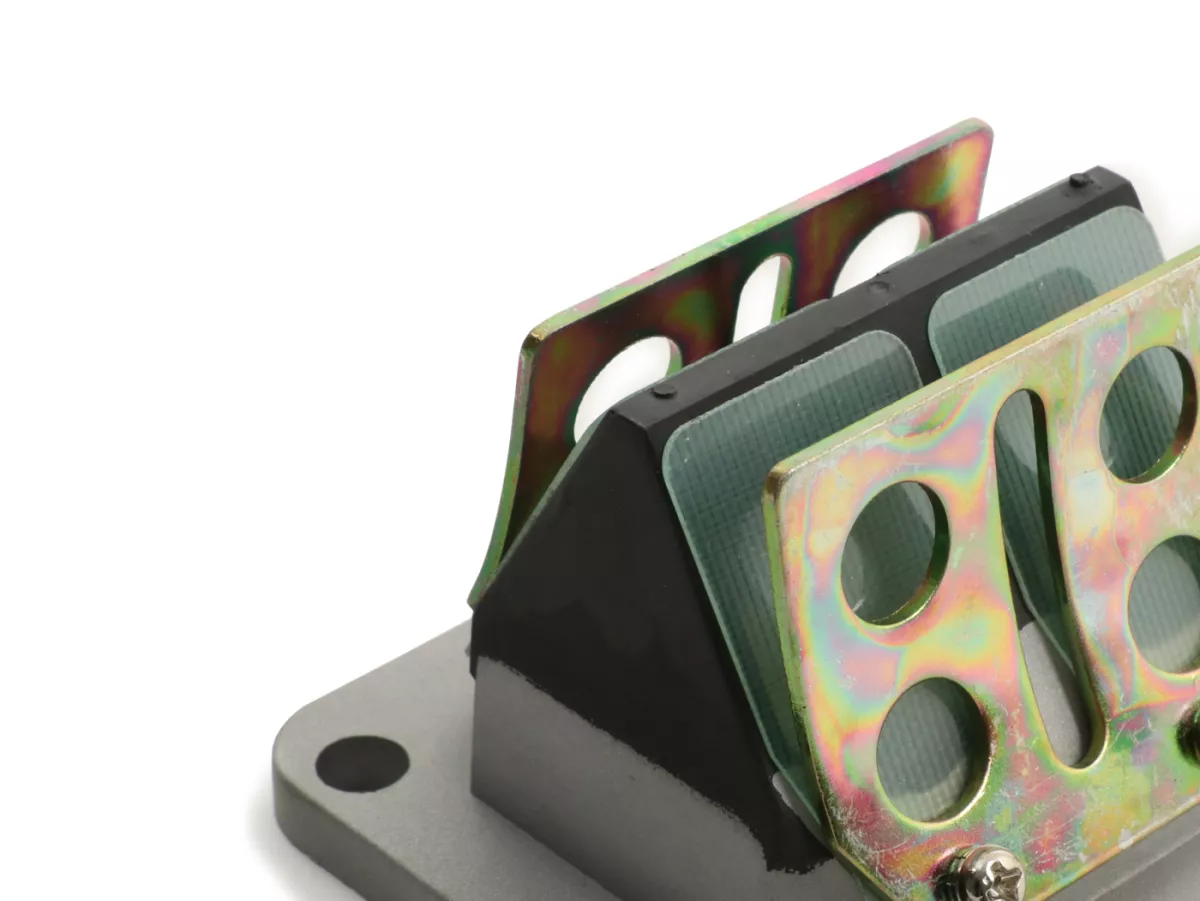

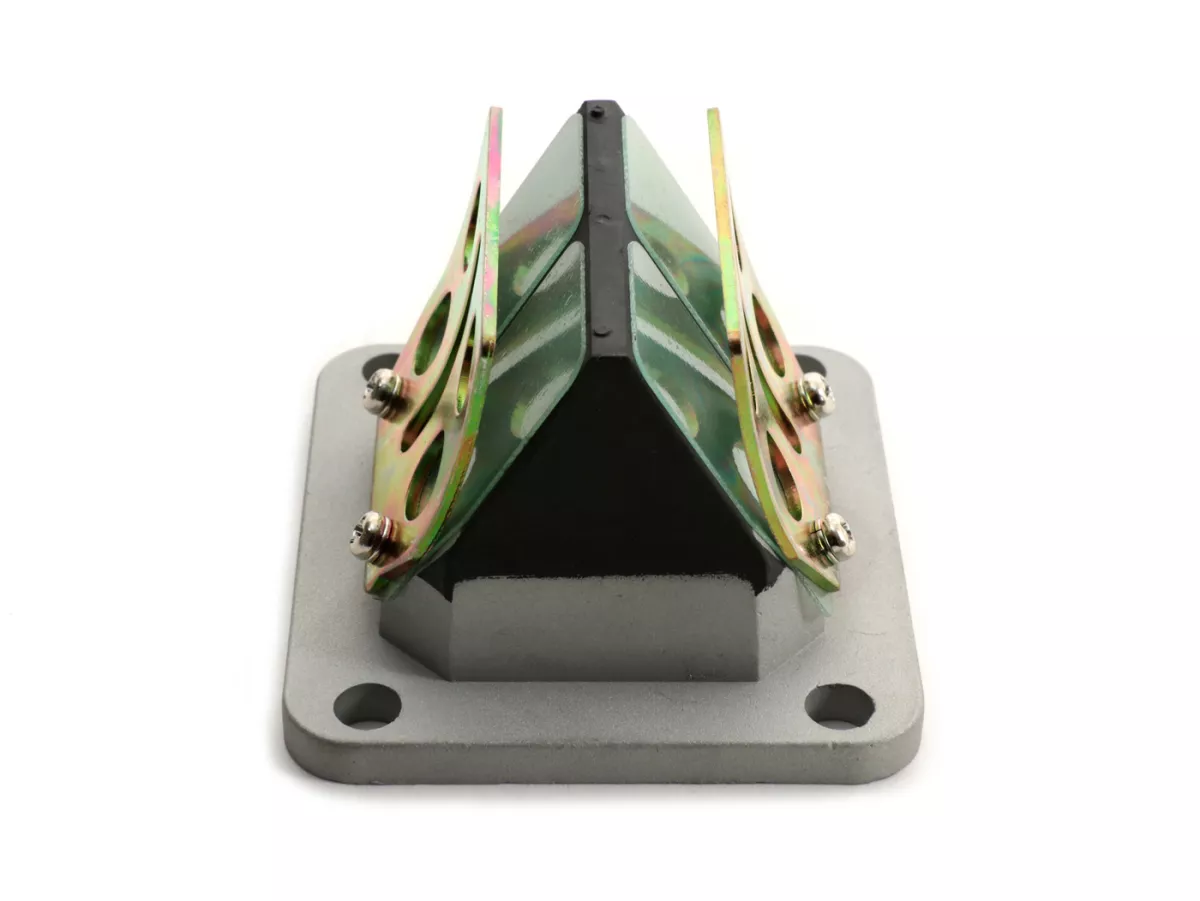

The RD 350 diaphragm is an absolute classic in the scooter sector. They offer a super compromise between unbelievable durability and official performance values.
The RD 350 diaphragms have proven themselves so well for years that we now offer a bgm RD350 block with GFK plates. The GRP plates are state of the art for an optimal response behaviour and a high performance yield. Furthermore, the GRP plates have an extremely long service life and thus the maintenance effort is reduced to a minimum. This means that the plates not only seal better, but the impact of the plates on the block is also better damped. The RD Style diaphragm is used in a wide range of applications, from the SRC intake manifold for automatic transmissions to the large Vespa diaphragm intake manifolds for the Lambretta and TS1 cylinders.
AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  12/22/2014

Gut

Membrane platelets
Strength tile 1
0.5 mm
Material
GFK
Number of screws per plate
2

Membrane blocks
Design
V-Form
Membrane body material
Aluminium
Rubberized membrane body
Nein
Number of fixing holes
4
Hole stitch
58 x 49mm
Outer dimension flange plate
66 x 60mm
Internal dimension flange plate
56 x 35,5mm
Flange plate thickness
5,5mm
Insertion depth
40,5mm
Stops for membrane plates
ja
Number of membranes
4
Stuffer included in the scope of delivery
nein
Seal included in the scope of delivery
nein
Spacer included in the scope of delivery
nein
Replacement plates included in the scope of delivery
nein

General
EAN
4250366611969

OEM numbers (for comparison purposes only)
Scooter Center:
BGM2550
