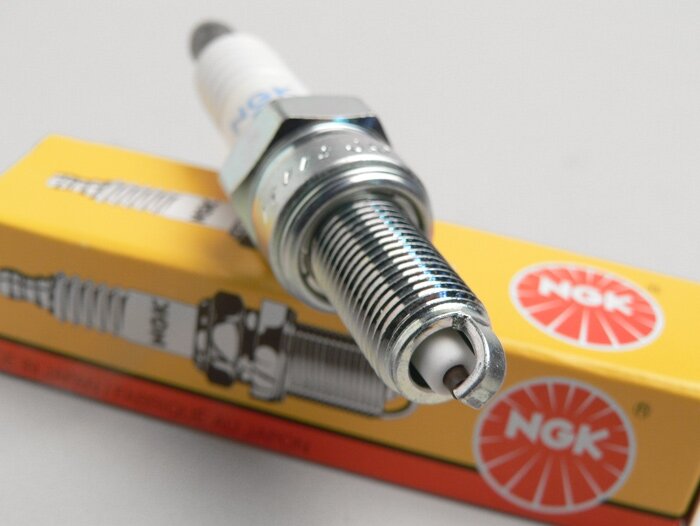

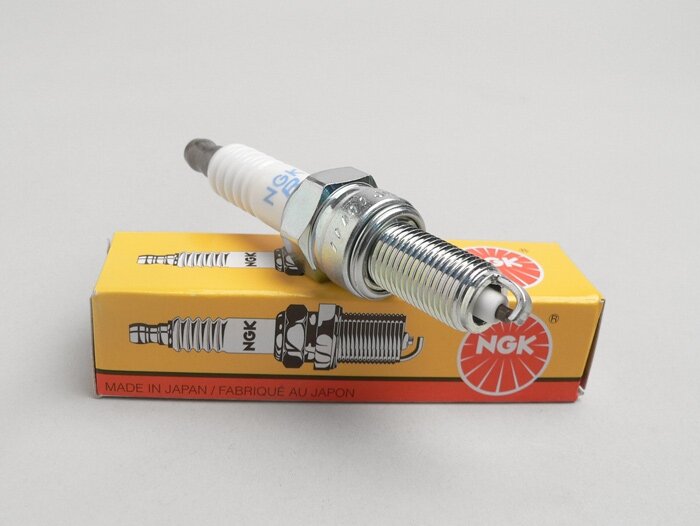

NGK Item number: 3300011
NGK
2 Ratings
10,90 €*
available immediately
Shipping weight 0,036 kg

Spark plugs differ in the following things:

thread diameter
The usual threads are M10, M12 and M14 Classical vehicles usually have an M14 thread. 4-stroke and modern 2-stroke with injection use the smaller plugs with M10 or M12.

thread length
The common thread lengths are 19mm (long thread)and 12.7mm (short thread).

heat value
The heat value is decisive for the thermal fatigue strength of the spark plug and its self-cleaning effect. A distinction is therefore made between so-called cold and hot spark plugs.
A cold plug is for engines which develop a very high combustion chamber temperature, usually these are engines which, measured by their displacement, have a lot of power. A hot spark plug, on the other hand, is used in series production engines with low loads. This type of candle quickly reaches a high temperature and the soot on the candle burns off well.
The temperature resistance is achieved by differently designed insulators. A cold candle can give off a lot of temperature via the cylinder head, but with a cold candle exactly this is strongly prevented. The heat value has nothing to do with the strength or performance of a spark plug. A cold spark plug in a cold (weak) engine will oil or soot and can therefore break without damaging the engine itself. A hot spark plug in a racing engine burns up and damages the engine ,usually severely.
The heat value of a spark plug is not standardized. Every manufacturer has its own code.

  • NGK from cold to hot = 10-9-8-7-6
  • Bosch from cold to hot = 2-3-4-5-6
  • DENSO from cold to hot = 37-34-31-27-24-22-20-16-14

electrode material
Here comes copper, platinum, silver or even iridium.
Copper is the most common, followed by silver and platinum. Due to the high prices for the precious metals, the spark plugs are also correspondingly more expensive than their copper counterparts.
The material is ultimately almost only interesting for wear, only the extremely thin iridium electrodes (Ø=0.6mm) have a higher ignition voltage, the spread of the flame front in the combustion chamber improves.


AI-translation

This is how we ensure, that reviews come from real consumers.
Anonym  02/24/2015

Sehr gut

Anonym  05/24/2016

Was soll ich zu einer Zündkerze sagen. Tut was sie soll und Qualitativ NGK eben.

Spark plugs
Thread type
M10x1,00
Spark plug with cap (thread protection)
ja
Spark plug thread
lang
Spark plug thread length
19 mm
Electrode material
Nickel
Electrode type
Standard
Width across flats
16 mm
Cap (thread protection) can be screwed on
ja
Thermal value Denso
N24EXRB

OEM numbers (for comparison purposes only)
Aprilia:
AP2BEN000276
