Polini Item number: 1010001
Polini
2 Ratings
165,00 €*
available immediately
Shipping weight 2,28 kg

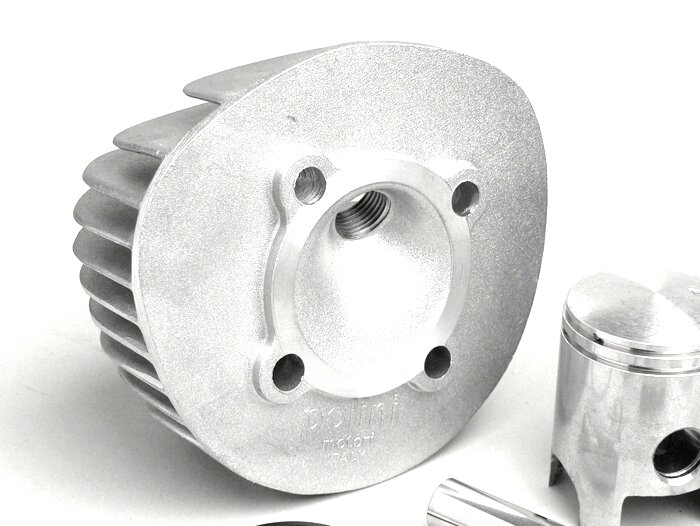

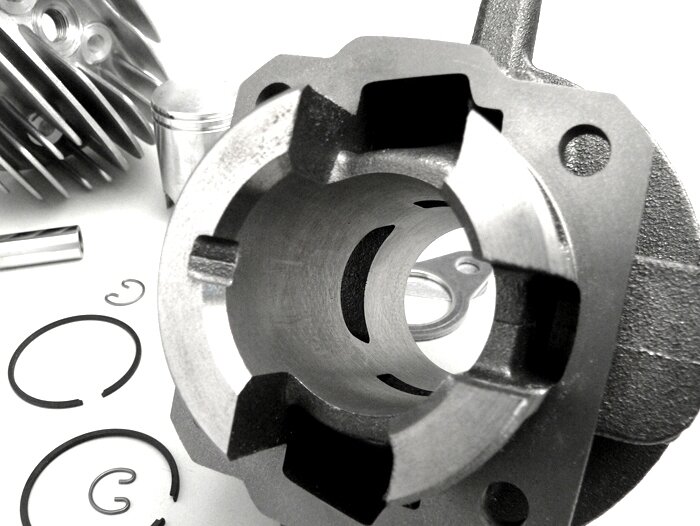

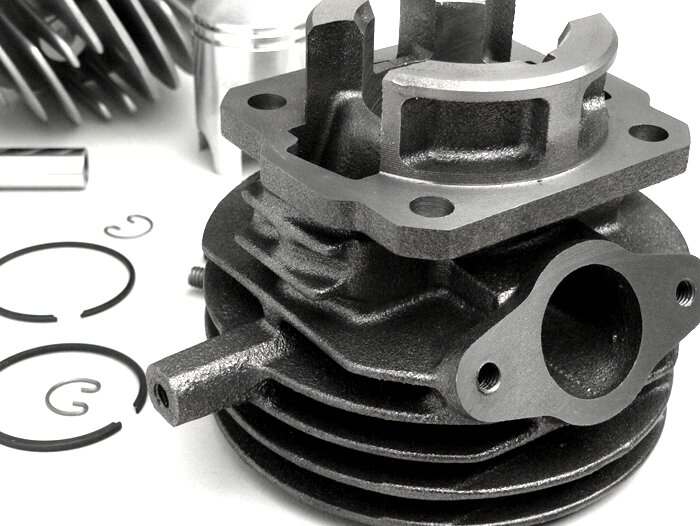

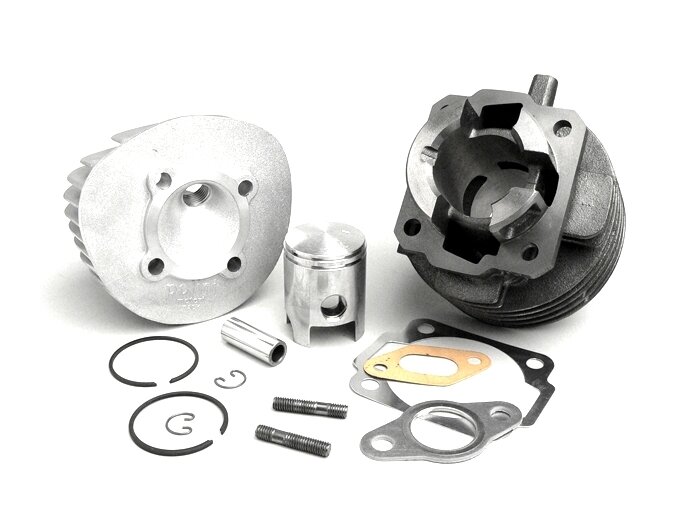

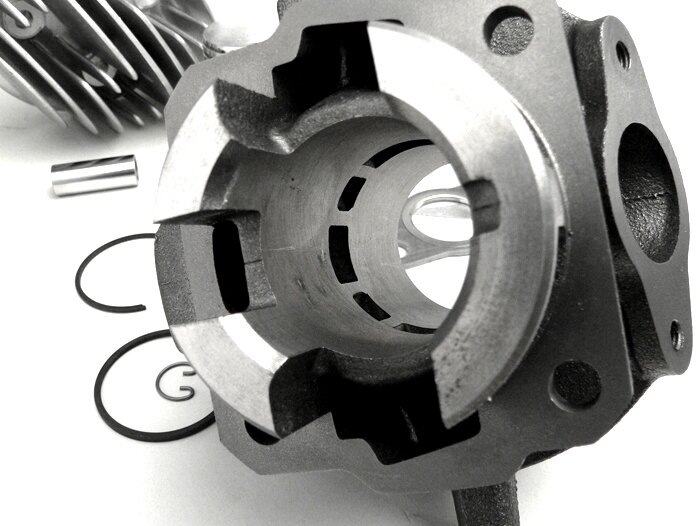

Polini 50 cc cylinder for V50 and PK50 with 5-channel layout

The 50 cc Polini cylinder is the sportier alternative to the 50cc DR. With a compression ratio of 9.9:1 and five overcurrent ducts, it helps a 50cc to achieve a quite official increase in performance.

Responds very well to sports exhaust systems such as those of the 125 ET 3 or the SS 50/90. Due to the high compression ratio, it should be used with premium petrol and a main jet of around 60 (SHB16-16).
This is how we ensure, that reviews come from real consumers.
Anonym  08/24/2015

Gute Verarbeitung, passgenau.

Anonym  02/16/2018

Als Ersatz für defektes Teil

General
Performance class
Standard, Sport

Piston pin
Diameter
12 mm

Spark plugs
Thread type
M14x1,25
Thermal value NGK
B7HS
Spark plug thread
kurz

Cylinder
Drill hole
38.4 mm
Type of cooling
luftgekühlt
Displacement
50 cm³
Motor type
2-Takt
Material
Grauguß
Piston raceway material
Grauguß
Cylinder gasket set included
ja
Cylinder head included
ja
Outlet shape
1-teilig (oval)
Exhaust assembly
Flansch
Flange type
2-Schrauben
Distance between exhaust studs
52 mm
Threaded exhaust studs
M6
Number of boost ports
1
Number of transfers (incl. boost ports)
5

Crankshafts
Stroke
43 mm

Piston
Number of piston rings
2
Piston manufacturing method
gegossen

Piston rings
Piston ring type
L-Ring (Dykes-Ring), Rechteck-Ring

Piston clips
Piston clip type
Doppel G-Typ
Wire gauge Piston clip
1,0mm

Cylinder heads
Cylinder head type
einteilig

OEM numbers (for comparison purposes only)
Polini:
140.0091, 1400091, P140.0091, P1400091
